Dahua 4 x 6MP + 4 Channels Kit: 4 x DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 4CH NVR+ 4TB HDD
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua 4 x 6MP + 4 Channels Kit: 4 x DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 4CH NVR+ 4TB HDD
SKU: DH-IPC-HDW3641EM-AS
Description
Complete 4-channel Dahua WizSense IP CCTV kit with four 6MP SMD eyeball cameras, a 4-channel AI NVR and a 4TB surveillance hard drive included, ready to record and view remotely.

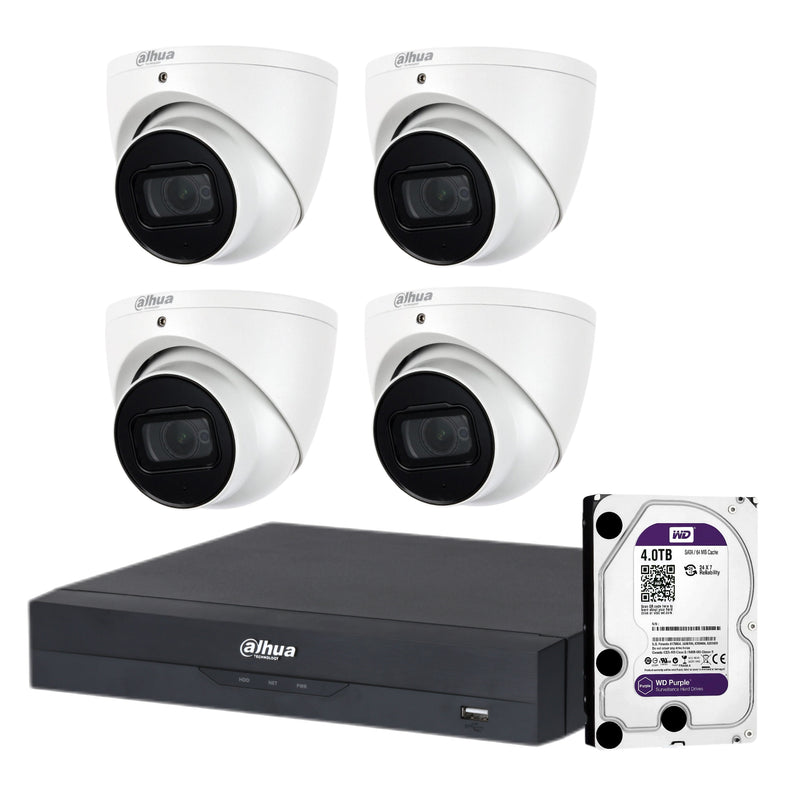

- 4 x Dahua 6MP HDW3641EM-AS WizSense eyeball cameras, 2.8mm
- 4-channel Dahua AI NVR (NVR4104HS-P) with built-in PoE
- 4TB surveillance hard drive included
- SMD Plus human and vehicle detection on every camera
- Infrared night vision up to 50m
- Built-in microphone on each camera; IP67 weatherproof
- Free DMSS app for live view, playback and push alerts
Regular price
$1,112.75 AUD
Sale price
$1,112.75 AUD
Regular price
$1,014.70 AUD
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua 4 x 6MP + 4 Channels Kit: 4 x DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 4CH NVR+ 4TB HDD
1
/
of
1
Customize this kit Kit price $1,112.75
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 4 × Dahua DH-IPC-HDW3641EM-AS-0280B-AUS 6MP Eyeball Network Camera 50m IR 2.8mm with SMD, Wizsense
- 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder (4ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DH-IPC-HDW3641EM-AS is
This Dahua 4-camera, 4-channel kit is a complete IP surveillance system for a home or small site, supplied ready to record.
It pairs four 6MP HDW3641EM-AS WizSense eyeball cameras with a 4-channel Dahua AI NVR (NVR4104HS-P) and a 4TB surveillance hard drive, covering the key entries and perimeter of a typical home in higher 6MP detail.
Each camera uses SMD Plus to classify movement as a person or vehicle, keeping notifications and searches focused on real targets rather than animals or weather, and provides infrared night vision up to 50m with a 2.8mm wide view.
A built-in microphone records on-site audio alongside the video, and the IP67 metal housing suits exposed eaves and walls.
The NVR has built-in PoE, so each camera runs on a single network cable for power and data, and the free DMSS app gives live view, playback and push notifications on your phone.
The 4TB drive is included per the kit specification and can be upgraded for longer retention.
As a 4-channel system the four cameras fill all four channels, so to add more cameras later you would step up to an 8-channel recorder.
See it in action
What the DH-IPC-HDW3641EM-AS features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
Illustrative — simulated for demonstration
§ 02Engineering
DH-IPC-HDW3641EM-AS specifications
- Cameras: 4 x Dahua 6MP HDW3641EM-AS WizSense eyeball cameras, fixed 2.8mm wide view
- Recorder: 4-channel Dahua AI NVR (NVR4104HS-P) with built-in PoE
- Storage: 4TB surveillance hard drive included; upgrade to a larger drive for longer retention
- Smart detection: SMD Plus human and vehicle classification to cut nuisance alerts
- Night vision: infrared up to 50m for after-dark coverage
- Audio: built-in microphone on each camera records on-site sound with the video
- Durability and power: IP67 metal cameras; single-cable PoE from the recorder
- Remote access: free DMSS app for live view, playback and push notifications
- Recorder: 4-channel Dahua AI NVR (NVR4104HS-P) with built-in PoE
- Storage: 4TB surveillance hard drive included; upgrade to a larger drive for longer retention
- Smart detection: SMD Plus human and vehicle classification to cut nuisance alerts
- Night vision: infrared up to 50m for after-dark coverage
- Audio: built-in microphone on each camera records on-site sound with the video
- Durability and power: IP67 metal cameras; single-cable PoE from the recorder
- Remote access: free DMSS app for live view, playback and push notifications
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) × 2048(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | > 56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° Support 90°/270° with 1920 × 1080 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 72° × Diagonal 131° | 3.6 mm: Horizontal 80° × Vertical 58° × Diagonal 106° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) | 3.6 mm: 1.6 m (5.3 ft) |
| DORI Distance | 2.8 mm: Detect 56.0 m (183.8 ft); Observe 22.4 m (73.49ft); Recognize 11.2 m (36.74 ft); Identify 5.6 m (18.37 ft) | 3.6 mm: Detect 79.4 m (260.49 ft); Observe 31.8 m (104.33 ft); Recognize 15.9 m (52.16 ft); Identify 7.9 m (25.91 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265,H.264,H.264B,H.264H,MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream (3072 × 2048@1–25/30 fps) | Sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) | Third stream (1920 × 1080@1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 6M (3072 × 2048/3072 × 1728-16:9); 5M (2592 × 1944);4M (2688 × 1520); 3M (2048 ×1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×960 ); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps | H.265: 3 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G726 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire; intrusion (classification and accurate detection of vehicle and human) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 72M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE8; IE9; IE11; Chrome; Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | IOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
Interface
| Feature | Detail |
|---|---|
| Network | RJ-45 (10/100 Base-T) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12V DC (±30%), PoE (802.3af) |
| Power Consumption | Basic power consumption: 2.8W (12V DC); 3.5W (PoE) | Max. power consumption (WDR + H.265 + IR LED intensity): 6.7W (12V DC); 7.5W (PoE) |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (Φ4.17" × 3.69") |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
| Certification | EN 55032 | EN 61000-3-2 | EN 61000-3-3 | EN 55024 | EN 50130-4 | EN55035 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | RCM AS/NZS CISPR 32 |
§ 04Why choose this
Built for the way you actually use the DH-IPC-HDW3641EM-AS
Complete and ready to record
Four cameras, a 4-channel AI NVR and a 4TB drive are supplied together for a system that records out of the box.
Fewer nuisance alerts
SMD Plus human and vehicle classification keeps notifications and searches focused on real targets.
Simple single-cable install
Built-in PoE runs each camera on one network cable for power and data, with remote view via the DMSS app.
§ 05Where it fits
Right at home in these scenarios
Family homes
Covers the front and back entries, driveway and side access of a house in 6MP detail, with classification to focus after-hours alerts.
Small shops
Watches the entry, counter and storeroom of a small retail site, with higher-resolution detail and on-site audio.
Driveways and entries
The 6MP detail and 50m infrared suit driveways and entries where identifying a person or vehicle clearly matters.
Sheds and small yards
Keeps an eye on outbuildings and gates with infrared night vision and people and vehicle filtering.
§ 06Setup
Installation & setup
Plan four camera positions
With four channels filled, choose the four highest-value positions: typically the main entries, driveway and a rear or side approach.
Run single PoE cables
Run one Cat6 cable from each camera to the NVR's built-in PoE ports for power and data, keeping each run within roughly 100m.
Set up recording and the app
Power on the recorder, confirm all four cameras appear, set recording schedules, then add the NVR to the DMSS app for remote viewing.
Plan for future expansion
The 4TB drive is fitted; for longer retention fit a larger surveillance drive. To add cameras later, step up to an 8-channel recorder and move the cameras across.
§ 07Questions
Frequently asked about the DH-IPC-HDW3641EM-AS
Q.01
Is a hard drive included in this kit?
Yes. This kit includes a 4TB surveillance-grade hard drive, supplied per the Smarket kit specification, so it records on arrival. Surveillance drives are built for continuous 24/7 writing, and you can fit a larger drive later for longer retention across the four 6MP cameras.
Q.02
Can I add more cameras to this kit?
This is a 4-channel system and the four included cameras fill all four channels, so there is no spare channel for more cameras. To expand later you would step up to an 8-channel or larger Dahua NVR and move the cameras across, then add more, so plan ahead if you expect to grow.
Q.03
What does the 6MP resolution give me?
At 6MP the cameras capture more detail than a 4MP or 2MP camera across the same scene, so you can make out faces, vehicles and detail more clearly and zoom into recorded footage with less loss. This suits entries and driveways where identifying detail matters.
Q.04
Do the cameras tell people and vehicles apart?
Yes. Each camera uses SMD Plus to classify movement as a person or vehicle, so tripwire, intrusion and motion alerts focus on real targets and filter out animals, foliage and weather, which reduces nuisance notifications.
Q.05
How far do the cameras see at night?
The cameras provide infrared night vision up to 50m, giving clear monochrome coverage across driveways, yards and entries after dark. The 2.8mm lens gives a wide view, so plan the mounting height and angle for the area you want before installing.
Q.06
Can I view the cameras on my phone?
Yes. Add the NVR to the free Dahua DMSS app on iOS or Android for live view, playback and push notifications from anywhere with internet. Connect the recorder to your router so it can reach the internet for remote access.
Q.07
Do the cameras record audio?
Each camera has a built-in microphone that records on-site audio with the video. There is no speaker, so they capture sound one way rather than two-way talk. Confirm audio recording is permitted and disclosed for your site before enabling it.
Q.08
Is this kit suitable for outdoor use?
Yes. The cameras have IP67-rated metal housings that seal against dust and water for eaves, walls and soffits. Mount them under an eave where practical to limit direct weather on the lens and keep the view clear over time.
§ 08In motion
Dahua 3641 Camera - One of the 'Best Value', Feature Rich 6MP cameras on the market!
§ 09Bundles
Recommended packages
Plan an expansion path
This 4-channel system is full with four cameras. To grow, step up to a larger recorder such as the 8-channel NVR4108HS-8P and add more 6MP HDW3641EM eyeball cameras.
Power and cabling for extras
When you expand, add a Dahua PoE switch and run quality Cat6 cable, one run per camera.
Storage
The kit includes a 4TB surveillance drive; for longer retention fit a larger surveillance drive. Contact us to plan an upgrade or expansion for your site.
