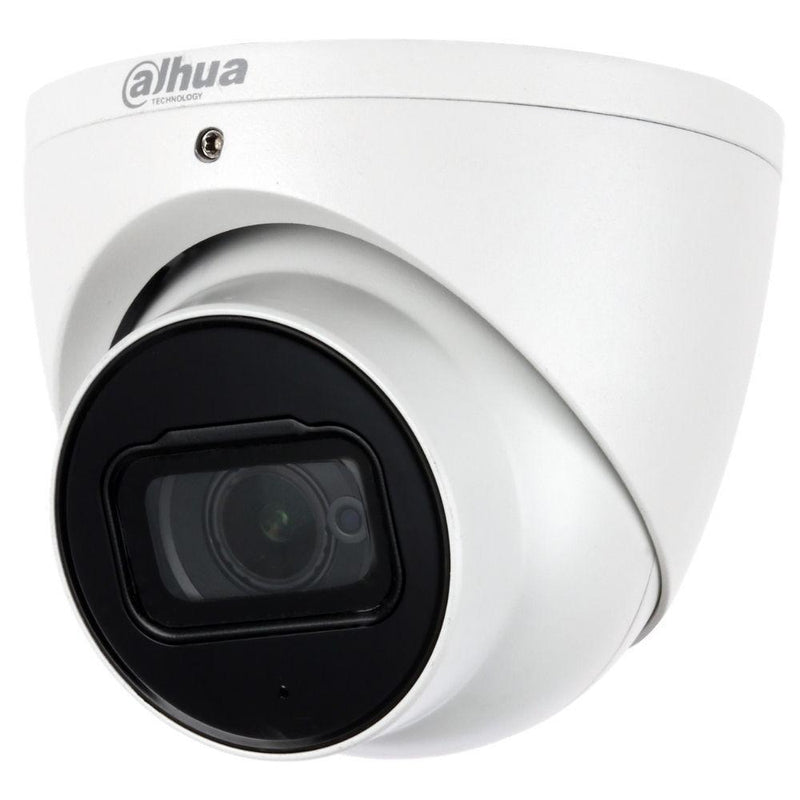

Dahua DH-IPC-HDW3641EM-AS-0280B-AUS 6MP Eyeball Network Camera 50m IR 2.8mm with SMD, Wizsense
Dahua DH-IPC-HDW3641EM-AS-0280B-AUS 6MP Eyeball Network Camera 50m IR 2.8mm WizSense
1 1
Dahua

Dahua DH-IPC-HDW3641EM-AS-0280B-AUS 6MP Eyeball Network Camera 50m IR 2.8mm with SMD, Wizsense

SKU: DH-IPC-HDW3641EM-S-S2
Description

This product has been discontinued – click here to view the replacement model Dahua DH-IPC-HDW3667EM-S-IL-ANZ

6MP WizSense IP turret with SMD Plus human and vehicle detection, 50m IR and a built-in microphone for accurate, filtered outdoor monitoring.

  • 1/2.7" 6MP CMOS, up to 3072 x 2048
  • Fixed 2.8mm lens, F1.6
  • Smart IR up to 50m
  • SMD Plus and perimeter protection with human and vehicle classification
  • Starlight low light and 120dB WDR
  • Built-in microphone; Smart H.265
  • IP67 metal housing; 12V DC or PoE (802.3af)
6MP Ultra HD 50m IR Night Vision IP67 Weatherproof False Alarm Reduction Human/Vehicle Detection Built-in Microphone
$150.00 AUD $150.00 AUD $200.00 AUD
Sale 25.0% $50.00 AUD (25.0%)
Member Price$145.50 AUD
to save $4.50 AUD · Free to join
Business or bulk buyer? Apply for trade pricing →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $649.45 or kits from $848.70

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Pre-built kits
Bundle total: $150.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HDW3641EM-S-S2 is

The Dahua DH-IPC-HDW3641EM-S-S2 is a 6MP WizSense IP turret that pairs high-resolution detail with accurate, filtered AI alerting for residential and small-business perimeters.

An independent AI chip runs SMD Plus and perimeter protection with human and vehicle classification, so tripwire and intrusion alerts focus on people and vehicles and filter out animals, foliage and weather.

A 1/2.7-inch 6MP sensor captures up to 3072 x 2048 with Starlight low-light imaging and 120dB WDR.

A fixed 2.8mm lens gives a wide view for driveways and entries, and Smart IR reaches up to 50m for clear monochrome footage in complete darkness.

A built-in microphone records on-site audio, Smart H.265 keeps storage and bandwidth down, and the IP67 metal housing suits exposed outdoor positions.

It powers from 12V DC or PoE (802.3af) and works with intelligent search on a compatible Dahua NVR to find events quickly in recorded footage.

See it in action

What the DH-IPC-HDW3641EM-S-S2 features actually look like

Representative illustrations of how each key feature performs in a real scene.

6MP Ultra HD — 6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a fac...

6MP Ultra HD

6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (1/2)
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (2/2)

50m IR Night Vision

Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDW3641EM-S-S2 specifications

- Sensor and resolution: 1/2.7" 6MP CMOS, up to 3072 x 2048, for high-detail footage

- Classification: SMD Plus and perimeter protection (tripwire, intrusion) with human and vehicle classification

- Night vision: Smart IR up to 50m, with intensity control to avoid overexposing close subjects

- Lens: fixed 2.8mm, F1.6, giving a wide view for driveways, entries and yards

- Imaging: Starlight low light and 120dB WDR for dim and high-contrast scenes

- Audio: built-in microphone records on-site audio alongside the video

- Storage: Smart H.265 compression and microSD card support for efficient recording

- Durability and power: IP67 metal housing, -40C to +60C; 12V DC or PoE (802.3af)

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-IPC-HDW3641EM-AS-0280B-AUS 6MP Eyeball Network Camera 50m IR 2.8mm with SMD, Wizsense
FeatureDetail
Image Sensor 1/2.7" 6Megapixel progressive scan CMOS
Max. Resolution 3072(H) × 2048(V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
Min. Illumination 0.005 Lux @F1.6
S/N Ratio > 56 dB
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0°/90°/180°/270° Support 90°/270° with 1920 × 1080 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDW3641EM-S-S2

Accurate, filtered alerts

SMD Plus and perimeter protection classify humans and vehicles, cutting nuisance alerts from animals, foliage and weather.

High 6MP detail

A 6MP sensor with Starlight low light and 120dB WDR captures clear detail across a wide scene and in difficult light.

Audio included

A built-in microphone records on-site sound alongside the video, adding context to events without extra hardware.

Cost-effective and weatherproof

An IP67 metal turret with PoE, Smart H.265 and microSD support delivers AI performance at an accessible price.

§ 05Where it fits

Right at home in these scenarios

Home driveways and entries

A wide 2.8mm view and 50m IR cover the front of a property, with SMD Plus alerting only to people and vehicles.

Small business perimeters

Tripwire and intrusion detection raise after-hours alerts on people and vehicles approaching shopfronts and yards.

Side and rear yards

Weatherproof coverage of gates, paths and yards with human and vehicle filtering to cut nuisance alarms.

Multi-camera systems

Smart H.265 and 6MP detail balance image quality and storage when scaling across several positions on a WizSense NVR.

§ 06Setup

Installation & setup

01

Plan the fixed-lens position

This is the fixed 2.8mm version, so set the mounting position and height for the area before mounting, as the lens cannot be zoomed later.

02

Power over PoE or 12V DC

Run a single PoE (802.3af) cable from a switch or NVR, or provide a 12V DC supply where PoE is not available.

03

Mount on wall, eave or ceiling

Fix the turret to a wall, eave or ceiling, using a Dahua junction box such as the PFA137 where surface cabling or extra clearance is needed.

04

Pair a WizSense NVR

For full SMD Plus and perimeter protection, connect the camera to a Dahua WizSense AI NVR and set the human and vehicle rules.

§ 07Questions

Frequently asked about the DH-IPC-HDW3641EM-S-S2

Q.01

How does SMD Plus reduce false alarms?
SMD Plus uses an independent AI chip to classify movement as human or vehicle before raising an alert, rather than flagging any motion. Animals, wind-blown foliage and weather are filtered out, so tripwire and intrusion notifications stay focused on people and vehicles.
Q.02

How far does the night vision reach?
Smart IR reaches up to 50m, suiting driveways, yards and perimeter fences. The intensity adjusts for closer subjects to avoid overexposure, and Starlight imaging holds detail in low light before the scene switches to monochrome infrared.
Q.03

What resolution does it capture?
It captures up to 6MP at 3072 x 2048, giving more detail across a wide scene than a 4MP or 5MP camera. The extra resolution helps identify faces, vehicles and detail toward the edges of the frame at driveways and entries.
Q.04

Does it record audio?
Yes. It has a built-in microphone that records on-site audio with the video. There is no built-in speaker, so it captures sound one way and does not provide two-way talk.
Q.05

What lens does it have?
This is the fixed 2.8mm version, giving a wide view for driveways, entries and yards. The focal length is fixed and cannot be zoomed after install, so plan the mounting position for the area you want to cover.
Q.06

How is it powered?
It runs on PoE (802.3af) over a single cable from a switch or NVR, or on 12V DC where PoE is not available. Power draw is low, so it fits comfortably within a standard PoE budget.
Q.07

Do I need a special NVR for the AI features?
For full SMD Plus, perimeter protection and intelligent search, pair it with a Dahua WizSense AI NVR. It also runs as a standard ONVIF camera on third-party recorders, though the AI events may not be available there.
Q.08

Is it suitable for outdoor use?
Yes. The metal housing is IP67-rated against dust and water across a -40C to +60C range, suiting exposed walls and eaves. Mount under an eave where practical to limit direct weather on the lens.

§ 08In motion

Dahua 3641 Camera - One of the 'Best Value', Feature Rich 6MP cameras on the market!

Dahua 3641 Camera - One of the 'Best Value', Feature Rich 6MP cameras on the market!

§ 09Bundles

Recommended packages

03

Mounting

For surface cabling or extra clearance, add a Dahua PFA137 junction box; confirm it suits this turret before ordering.
