HiLook Hikvision 6MP Pro Turret IP Camera with Mic Colour Night Vision IPC-T363H-MU
SKU: DH-IPC-T363H-MU
Description
- 6MP Resolution: Crystal-clear 3200×1800 video for detailed surveillance.
- Hybrid Night Vision: 30m color imaging using IR + white light technology.
- Smart Motion Detection: Human/vehicle classification to reduce false alarms.
- Built-in Mic & IP67: Audio capture with weatherproof housing durability.
- H.265+ Compression: Efficient storage and bandwidth optimization.
Regular price
$112.10 AUD
Sale price
$112.10 AUD
Regular price
$130.00 AUD
Sale
13.77%
$17.90 AUD
(13.77%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
HiLook Hikvision 6MP Pro Turret IP Camera with Mic Colour Night Vision IPC-T363H-MU
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $552.55 or kits from $636.50
Or pick a ready-made kit
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is

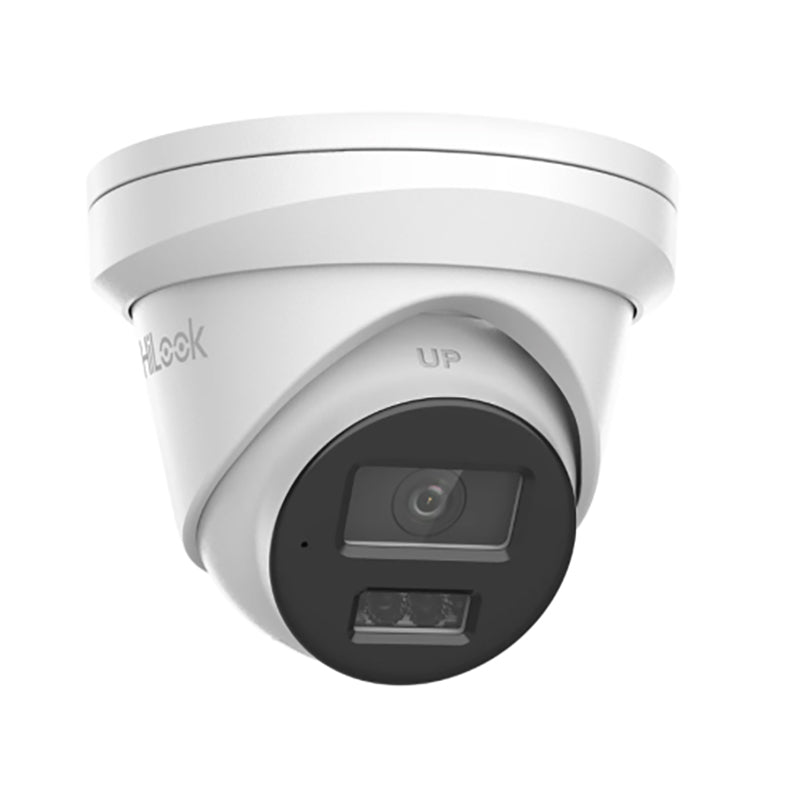

The IPC-T363H-MU is a fixed turret network camera for reliable day/night security in standard environments. Equipped with 6MP resolution for detailed imaging, hybrid light technology for colour night vision, smart motion detection to reduce false alarms, and a built-in microphone for audio capture.
§ 02Engineering
Technical specifications
- Resolution: 6MP high-resolution imaging delivering 3200 × 1800 detailed footage for clear surveillance.
- Active Deterrence: Hybrid IR and white light technology provides full-colour night vision to deter intruders.
- H.265+ Compression: Advanced compression technology for efficient storage and reduced bandwidth usage.
- Built-in Mic: Captures audio with noise filtering for clear situational awareness.
- IP67 Rating: Weatherproof housing for reliable indoor and outdoor performance.
- Smart Motion Detection (SMD): Accurately classifies human and vehicle motion to minimize false alerts.
- Active Deterrence: Hybrid IR and white light technology provides full-colour night vision to deter intruders.
- H.265+ Compression: Advanced compression technology for efficient storage and reduced bandwidth usage.
- Built-in Mic: Captures audio with noise filtering for clear situational awareness.
- IP67 Rating: Weatherproof housing for reliable indoor and outdoor performance.
- Smart Motion Detection (SMD): Accurately classifies human and vehicle motion to minimize false alerts.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 119.6°, vertical FOV 60°, diagonal FOV 149° | 4 mm, horizontal FOV 96.8°, vertical FOV 50°, diagonal FOV 115° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.2 |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
AI & Deep Learning
| Feature | Detail |
|---|
Network & Storage
| Feature | Detail |
|---|---|
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
| Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal |
| Dimension | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 600 g (1.3 lb.) |
| With Package Weight | Approx. 909 g (2.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
§ 04Why choose this
Built for the way you actually use it
AI Detection Filters Australian Wildlife
AcuSense Lite technology distinguishes humans and vehicles from kangaroos, possums, and birds, dramatically reducing false alarm notifications that plague properties with native wildlife activity
Professional 6MP Resolution with Wide Coverage
Delivers 3200×1800 sharp detailed footage using quality sensor, with 2.8mm lens providing 119.6-degree horizontal field of view ideal for monitoring driveways, backyards, and large property areas
3-Year Warranty with Subscription-Free Recording
Backed by comprehensive Australian manufacturer warranty and local support, with all footage recording locally to NVR without ongoing monthly subscription fees required
§ 05Where it fits
Right at home in these scenarios
Front Driveway and Carport Monitoring
Wide-angle lens captures vehicle arrivals, registration plates, and visitor identification with Smart Hybrid Light providing colour footage during night-time activity for enhanced security evidence
Backyard and Side Access Protection
Weatherproof IP67 construction withstands harsh Australian conditions whilst AI detection filters wildlife movement, alerting only to human or vehicle presence in vulnerable access points
Small Business Retail Floor Coverage
6-megapixel resolution enables face identification at close range for monitoring customer areas, cash registers, and storage rooms with AI reducing false alarms in busy environments
Outdoor Yards and Loading Dock Security
Metal housing resists UV damage and temperature extremes whilst built-in microphone captures delivery interactions and equipment sounds, with 30-metre night vision covering typical commercial yards
§ 06Setup
Installation & setup
What's in the Box
1. HiLook IPC-T363H-MU Camera × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power Source: Requires Power over Ethernet switch or NVR with built-in PoE ports, supporting IEEE 802.3af standard with maximum 6.5-watt power draw per camera 2. Network Cabling: Cat5e or Cat6 Ethernet cable with maximum 100-metre run from PoE source to camera, with pre-terminated cables in standard lengths available from Australian retailers 3. Mounting Surface: Solid wall or eave surface capable of supporting 515-gram camera weight, with recommended mounting height of 2-3 metres for optimal facial identification coverage 4. Tools Required: Power drill with 5mm bit, Phillips screwdriver, ladder, and cable management supplies including clips or outdoor-rated conduit for surface-mounted installations meeting Australian standards
App Setup
1. Download the HiLookVision or Hik-Connect app from Google Play Store or Apple App Store on your iOS or Android mobile device for remote viewing capability 2. Connect camera to HiLook NVR built-in PoE ports for automatic plug-and-play detection and IP configuration, or manually configure network settings for third-party NVR integration 3. Configure AcuSense AI detection zones within app interface, selecting human and vehicle classification to filter Australian wildlife and reduce false alarm notifications effectively
