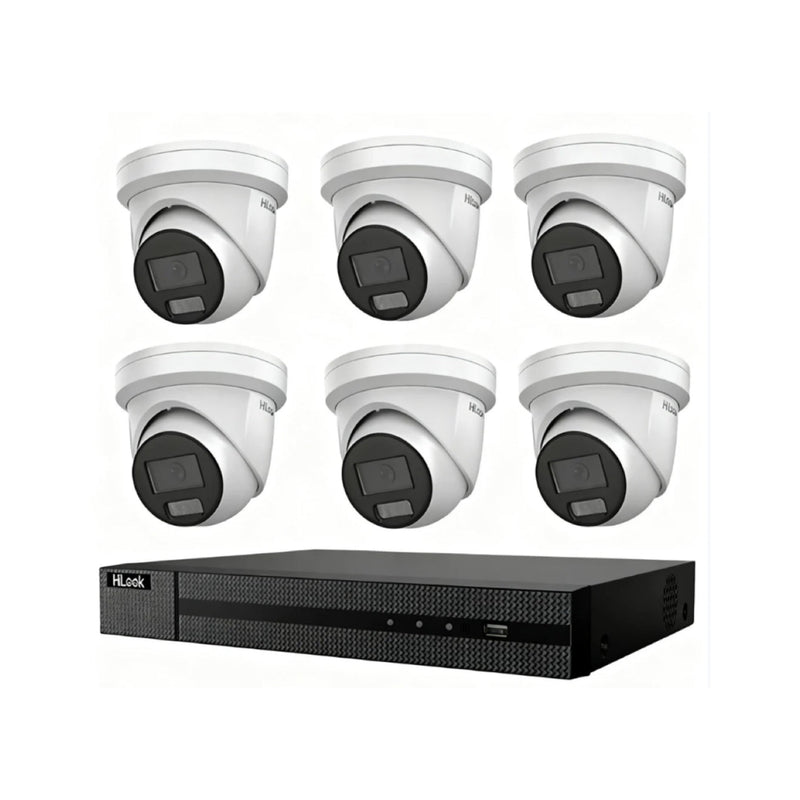

Name: HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Brand: Hilook
Price: 892.0 AUD
Availability: InStock

Customize this kit Kit price $892.00

This kit includes: Cabling not included — add cables in the accessories below (one per camera).

6 × HiLook Hikvision 6MP Pro Turret IP Camera with Mic Colour Night Vision IPC-T363H-MU
1 × HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder (8ch)
No HDD included (add one below)

Add extra cameras HiLook Hikvision 6MP Pro Turret IP Camera with Mic Colour Night Vision IPC-T363H-MU · Max 16 · Each extra camera uses one NVR channel

+$0.00

NVR · channels ≥ your total camera count Base: 8ch · HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder

8ch HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI,... Base (included)

HiLook NVR-216MH-C-16P 16CH NVR, 16x PoE NVR Network Video Recorder

16ch HiLook NVR-216MH-C-16P 16CH NVR, 16x PoE NVR Ne... +$116.60

Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7

No HDD

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB 4TB HDD – WD Purple / Seagate Surveillance HDD ... $269.45

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB 6TB HDD – WD Purple / Seagate Surveillance HDD ... $405.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB 8TB HDD – Purple / Skyhawk Surveillance Hard Dr... $545.15

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB 10TB HDD – Purple Surveillance Hard Drive for D... $699.00

Notes for warehouse (optional)

§ 01Overview

What the IPC-T363H-MU is

The HiLook Hikvision 6MP Pro Series CCTV Kit (6x IPC-T363H-MU + NVR-108MH-C/8P) is a comprehensive surveillance solution for homes or small businesses seeking powerful image quality and intelligent monitoring.

Equipped with 6MP fixed turret cameras, full-colour night vision, smart motion detection, built-in microphones, and plug-and-play NVR with PoE ports.

See it in action

What the IPC-T363H-MU features actually look like

Representative illustrations of how each key feature performs in a real scene.

6MP Ultra HD — 6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a fac... — 6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d... — Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h... — IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

IPC-T363H-MU specifications

- Resolution: 6MP Ultra-HD (3200 × 1800) for detailed identification of faces and objects.
- Full-Colour Night Vision: Hybrid IR + White Light maintains color images up to 30m in darkness.
- Smart Motion Detection (SMD): Filters human/vehicle movement to reduce false alarms from foliage or animals.
- Built-in Mic: Each camera records clear audio alongside footage for contextual surveillance.
- H.265+ Compression: Efficient storage and bandwidth optimization in the NVR.
- IP67 Weatherproof: Reliable outdoor protection against dust and water ingress.
- Plug-and-Play NVR: 8 PoE ports for simple installation and centralized 4K HDMI output.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail
Image Sensor	1/2.4" Progressive Scan CMOS
Max. Resolution	3200 × 1800
Min. Illumination	Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Day/Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, HLC, 3D DNR
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask	4 programmable polygon privacy masks

Lens & Distance

Lens & Distance — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 119.6°, vertical FOV 60°, diagonal FOV 149° \| 4 mm, horizontal FOV 96.8°, vertical FOV 50°, diagonal FOV 115°
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.2
DORI	2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m \| 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Pan Range	0° to 360°
Tilt Range	0° to 75°
Rotation Range	0° to 360°

Night Vision

Night Vision — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail
Supplement Light Type	IR, White Light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm

Video

Video — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail
Main Stream	50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) \| 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression	Main stream: H.265+/H.265/H.264+/H.264 \| Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR, VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream

Audio

Audio — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail
Audio Type	Mono sound
Environment Noise Filtering	Yes
Audio Sampling Rate	8 kHz/16 kHz
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

AI & Deep Learning

AI & Deep Learning — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail

Network & Storage

Network & Storage — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Client	iVMS-4200, HiLookVision
Web Browser	Plug-in required live view: IE 10, IE 11 \| Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Event & Alarm

Event & Alarm — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event	Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle))
Linkage	Upload to FTP, send email, notify surveillance center, trigger capture

Interface

Interface — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone	Yes
Reset Key	Yes

General & Environment

General & Environment — HiLook Hikvision 6MP Pro Series CCTV Kit – 6x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Feature	Detail
Power	12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection \| PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material	Metal
Dimension	Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8")
Package Dimension	150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight	Approx. 600 g (1.3 lb.)
With Package Weight	Approx. 909 g (2.0 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language	English, Ukrainian
General Function	Heartbeat, anti-banding, mirror, password protection, password reset via email
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 \| RCM: AS/NZS CISPR 32: 2015 \| IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1: 2014+A11 \| CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU \| WEEE: 2012/19/EU \| Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013
