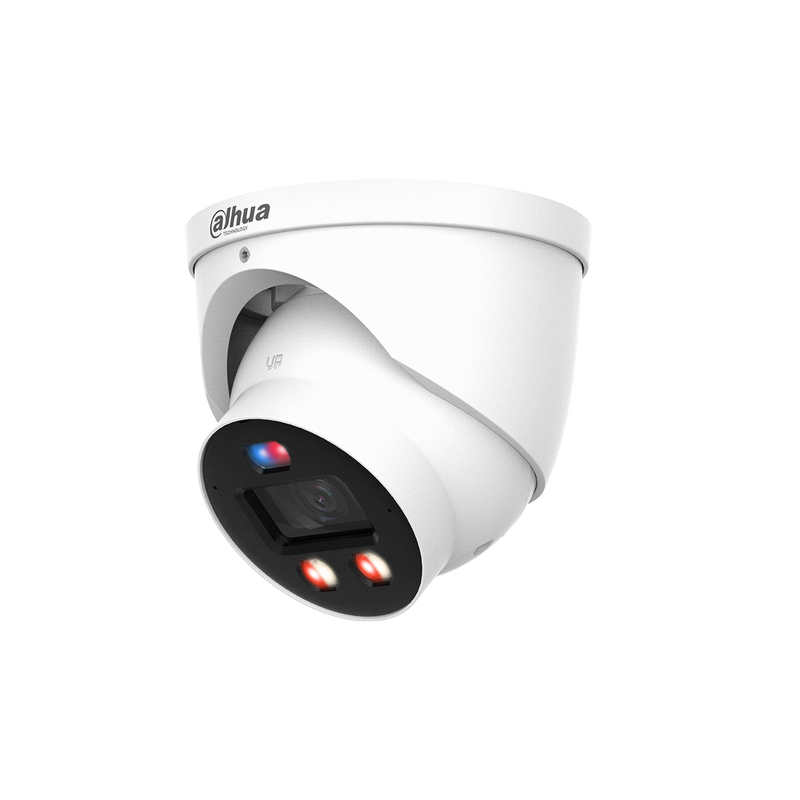

Dahua DH-IPC-HDW3649H-AS-PV-PRO 6MP TiOC AcuPick Turret
SKU: DH-IPC-HDW3649H-AS-PV-PRO
Description
The Dahua IPC-HDW3649H-AS-PV-PRO is a 6MP TiOC (Three-in-One) turret that combines full-colour night vision, AI perimeter protection and active deterrence in one camera. On a confirmed person or vehicle event it can flash red and blue strobes and sound its siren while you hear and speak through the built-in two-way audio.
Key points
- 6MP (3288 x 1850) on a large 1/1.8" sensor with F1.0 aperture for low light
- Smart dual illuminators: full-colour to 30m, or discreet IR when idle
- Active deterrence: red/blue strobe and built-in siren on AI events
- Built-in mic and speaker for two-way audio and spoken warnings
- SMD/Perimeter human and vehicle AI; AcuPick search on a Dahua AI NVR
- IP67 metal turret; PoE or 12V DC on a single Cat5e/6 cable
Regular price
$308.00 AUD
Sale price
$308.00 AUD
Regular price
$363.00 AUD
Sale
15.15%
$55.00 AUD
(15.15%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
Dahua DH-IPC-HDW3649H-AS-PV-PRO 6MP TiOC AcuPick Turret
1
/
of
3
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

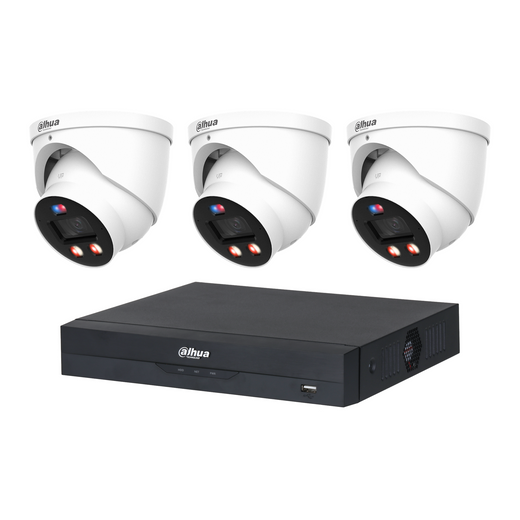

Build your setup
Build a complete CCTV system
—
Complete setup from
$908.00
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
§ 01Overview
What the DH-IPC-HDW3649H-AS-PV-PRO is
The Dahua IPC-HDW3649H-AS-PV-PRO is a 6MP TiOC PRO turret that brings together three jobs in one unit: clear full-colour imaging at night, AI that tells people and vehicles from everything else, and active deterrence that warns intruders off before they get close. It is built on a large 1/1.8" sensor with an F1.0 lens, so it gathers far more light than a typical camera and keeps usable colour in dim conditions.
Smart dual illuminators are the clever part. When the scene is quiet the camera uses discreet infrared, but the moment its AI detects a person or vehicle it switches to warm white light for full-colour footage out to about 30 metres - so you are not flooding the neighbours with white light all night, only when something matters. On a confirmed event it can also flash its red and blue strobes and sound the built-in siren, and you can speak through the two-way audio or play a pre-recorded warning.
SMD and perimeter protection (tripwire, intrusion) classify humans and vehicles to cut false alarms. Paired with a Dahua AI NVR, AcuPick lets you tap a target and search every channel for matching appearances; on a standard 4-Series NVR you still get SMD smart search and Quick Pick. The IP67 metal turret runs on PoE or 12V DC over a single Cat5e/6 cable and suits homes, shops and commercial entries. Like any TiOC it reacts out loud — draw zones to your own boundary, and on a tight shared street consider whether a quieter WizSense model is the better neighbour.
See it in action
What the DH-IPC-HDW3649H-AS-PV-PRO features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Dual-Light Night Vision
Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction
Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Illustrative — simulated for demonstration
§ 02Engineering
DH-IPC-HDW3649H-AS-PV-PRO specifications
Sensor / resolution — large 1/1.8" CMOS · 3288 × 1850 (6MP) @ 25/30 fps · F1.0 · 0.0005 lux colour — over twice the light of a standard 1/2.7" camera, so colour holds well into the evening before any illuminator fires
Lens / field of view — 2.8 mm · 109° H × 59° V — takes in a whole driveway or shopfront from a single mount
DORI — detect 70.2 m · observe 28.1 m · recognise 14.0 m · identify 7.0 m — in plain terms, faces are clearly identifiable at doorway distance
Deterrence — red-and-blue warning strobes · built-in siren · pre-recorded and custom voice warnings on confirmed AI events — the camera confronts intruders on its own, before you have even seen the alert
Night vision — Smart Dual Light: IR to 30 m · warm light to 30 m, fired on person/vehicle events — discreet by default, colour evidence when it matters
Audio — dual built-in mics and speaker · two-way talk in DMSS — hear what is happening and speak back from your phone
Detection — SMD 4.0 person/vehicle · IVS tripwire & intrusion · AcuPick with an NVR5-series recorder — alerts for people and cars only, plus search-by-appearance once paired with the right recorder
Image — 120 dB true WDR · HLC/BLC · AI SSA scene adaptation — faces stay readable against headlights and harsh backlight
Power — PoE (6 W typical, 10 W max) or 12 V DC — one network cable runs everything, siren included
Compression — H.265 / H.264 — smaller files, so each terabyte of storage holds more days
Edge & interop — microSD to 512 GB · ONVIF (Profile S/G/T) · CGI — keeps recording locally if the network drops out, and works with third-party systems
Build — IP67 metal turret · –40 °C to +60 °C — sealed metal housing that shrugs off Australian heat, storms and frost
Lens / field of view — 2.8 mm · 109° H × 59° V — takes in a whole driveway or shopfront from a single mount
DORI — detect 70.2 m · observe 28.1 m · recognise 14.0 m · identify 7.0 m — in plain terms, faces are clearly identifiable at doorway distance
Deterrence — red-and-blue warning strobes · built-in siren · pre-recorded and custom voice warnings on confirmed AI events — the camera confronts intruders on its own, before you have even seen the alert
Night vision — Smart Dual Light: IR to 30 m · warm light to 30 m, fired on person/vehicle events — discreet by default, colour evidence when it matters
Audio — dual built-in mics and speaker · two-way talk in DMSS — hear what is happening and speak back from your phone
Detection — SMD 4.0 person/vehicle · IVS tripwire & intrusion · AcuPick with an NVR5-series recorder — alerts for people and cars only, plus search-by-appearance once paired with the right recorder
Image — 120 dB true WDR · HLC/BLC · AI SSA scene adaptation — faces stay readable against headlights and harsh backlight
Power — PoE (6 W typical, 10 W max) or 12 V DC — one network cable runs everything, siren included
Compression — H.265 / H.264 — smaller files, so each terabyte of storage holds more days
Edge & interop — microSD to 512 GB · ONVIF (Profile S/G/T) · CGI — keeps recording locally if the network drops out, and works with third-party systems
Build — IP67 metal turret · –40 °C to +60 °C — sealed metal housing that shrugs off Australian heat, storms and frost
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3288 (H) × 1850 (V) |
| ROM | 256 MB |
| RAM | 2 G |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0005 Lux@F1.0 (Color, 30IRE) | 0.0004 Lux@F1.0 (B/W, 30IRE) | 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 109°; V: 59°; D: 131° | 3.6 mm: H: 93; V: 50°; D: 111 |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 3.2 m (10.50 ft) | 3.6 mm: 4.4 m (14.44 ft) |
| DORI Distance | 2.8 mm: Detect 70.2 m (230.31 ft); Observe 28.1 m (92.19 ft); Recognize 14.0 m (45.93 ft); Identify 7.0 m (22.97 ft) | 3.6 mm: Detect 85.6 m (280.84 ft); Observe 34.3 m (112.53 ft); Recognize 17.1 m (56.10 ft); Identify 8.6 m (28.22 ft) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Up to 30 m (98.43 ft) (IR) | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 (Compression rate ≥25%) | AI H.264 (Compression rate ≥25%) |
| Video Frame Rate | Main stream: 3288 × 1850@(1 fps–25/30 fps) | Sub stream: 1920 × 1080@(1–25/30 fps) | Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 6M (3288 × 1850/3200 × 1800); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR/ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G;Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP;SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android |
| Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC; PoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.1 W (12 VDC); 6 W (PoE) | Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.2 W (12 VDC); 10 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Casing Material | Metal |

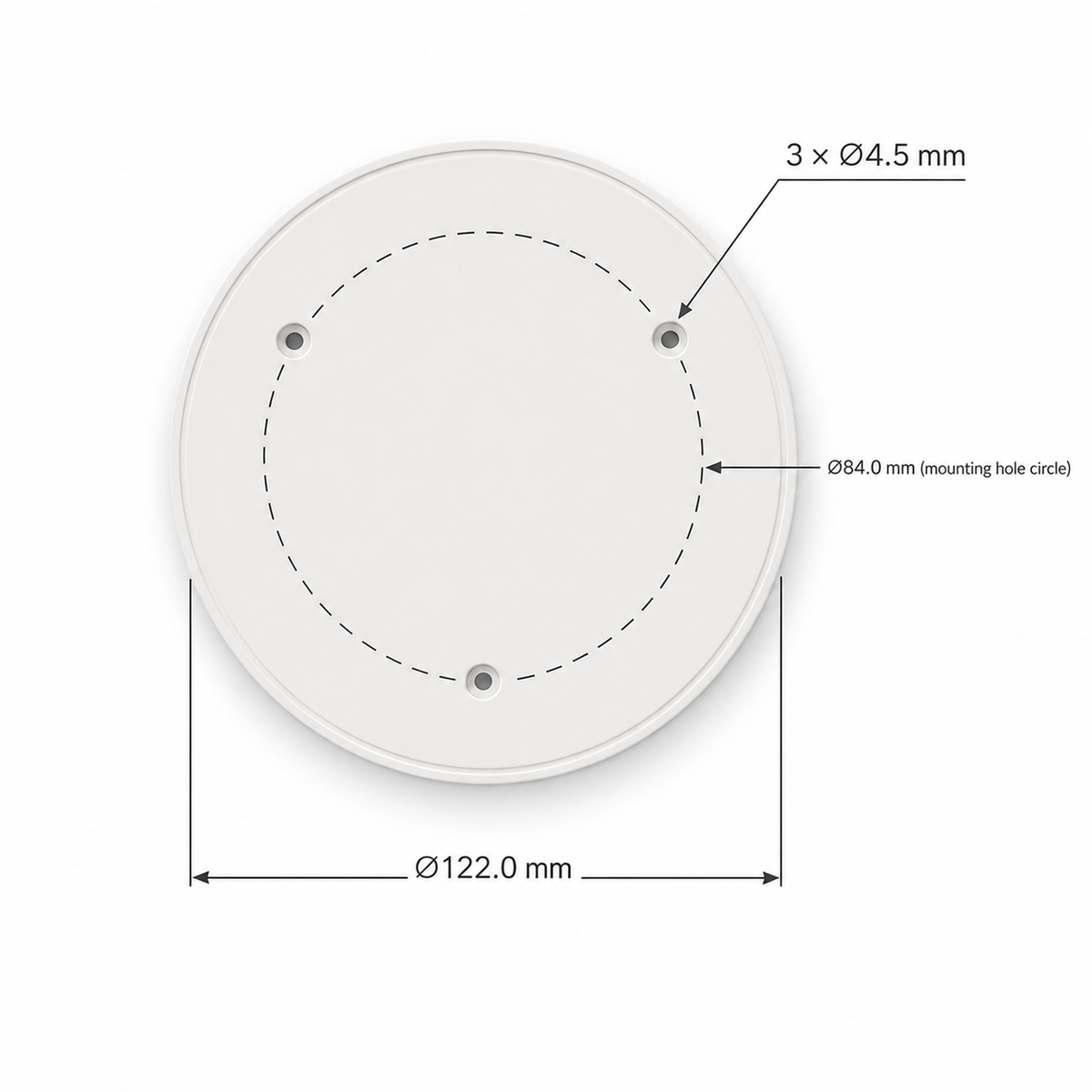

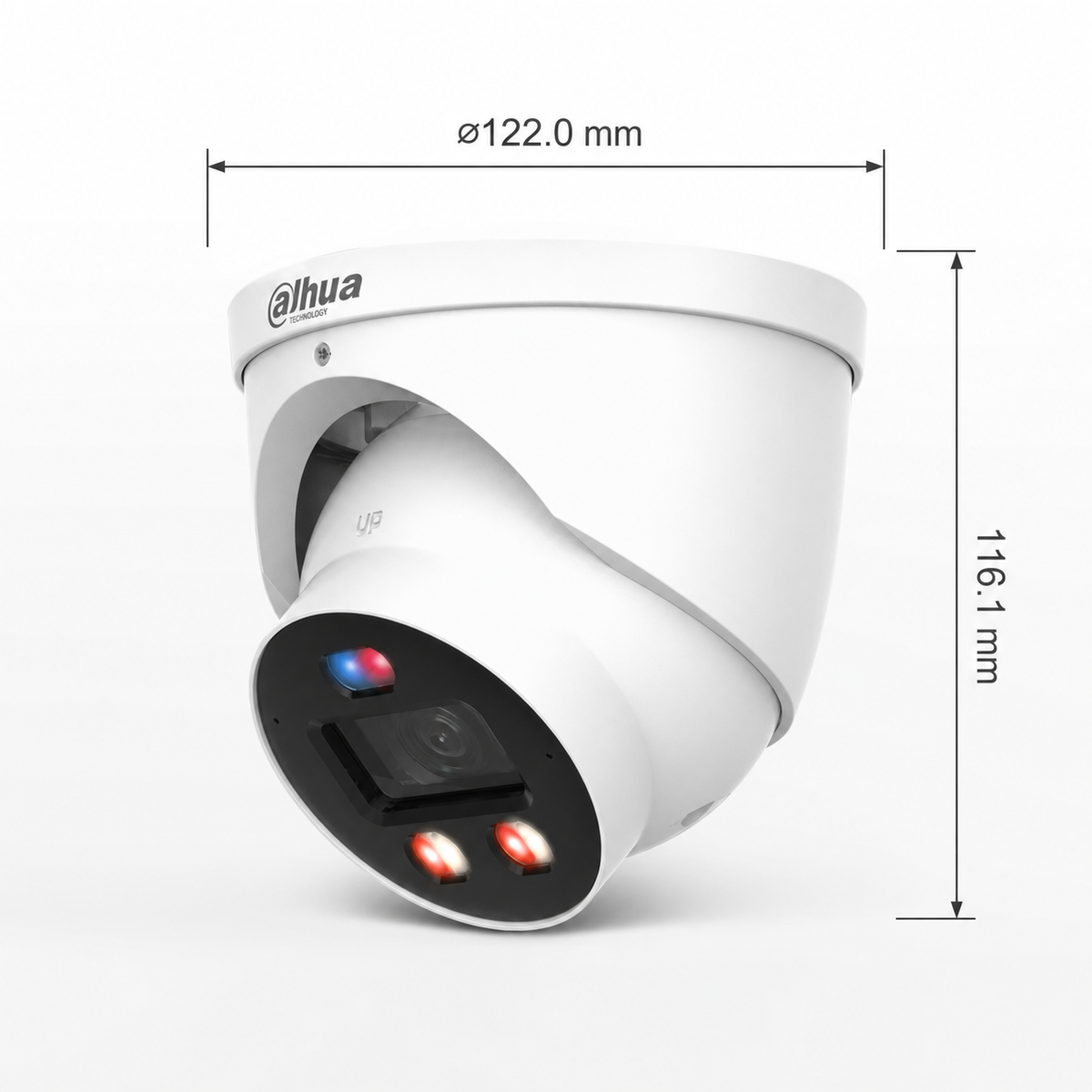

| Product Dimensions | Φ122.0 mm × 116.1 mm (4.80" × Φ4.57") |
| Net Weight | 0.8 kg (1.76 lb) |
| Gross Weight | 1.0 kg (2.20 lb) |
| Certifications | CE-LVD: EN 62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Camera & Image — Image Sensor | 1/1.8" CMOS |
|---|---|
| Camera & Image — Max. Resolution | 3288 (H) × 1850 (V) |
| Camera & Image — ROM | 256 MB |
| Camera & Image — RAM | 2 G |
| Camera & Image — Scanning System | Progressive |
| Camera & Image — Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Camera & Image — Min. Illumination | 0.0005 Lux@F1.0 (Color, 30IRE) | 0.0004 Lux@F1.0 (B/W, 30IRE) | 0 lux (Illuminator on) |
| Camera & Image — S/N Ratio | >56 dB |
| Camera & Image — Day/Night | Auto(ICR)/Color/B/W |
| Camera & Image — BLC | Yes |
| Camera & Image — HLC | Yes |
| Camera & Image — WDR | 120 dB |
| Camera & Image — Scene Self-adaptation (SSA) | Yes |
| Camera & Image — White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Camera & Image — Gain Control | Auto |
| Camera & Image — Noise Reduction | 3D NR |
| Camera & Image — Motion Detection | OFF/ON (4 areas, rectangular) |
| Camera & Image — Region of Interest (RoI) | Yes (4 areas) |
| Camera & Image — Defog | Yes |
| Camera & Image — Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Camera & Image — Mirror | Yes |
| Camera & Image — Privacy Masking | 8 areas |
| Camera & Image — LDC | Yes |
| Lens & Distance — Lens Type | Fixed-focal |
| Lens & Distance — Lens Mount | M16 |
| Lens & Distance — Focal Length | 2.8 mm; 3.6 mm |
| Lens & Distance — Max. Aperture | F1.0 |
| Lens & Distance — Field of View | 2.8 mm: H: 109°; V: 59°; D: 131° | 3.6 mm: H: 93; V: 50°; D: 111 |
| Lens & Distance — Iris Control | Fixed |
| Lens & Distance — Close Focus Distance | 2.8 mm: 3.2 m (10.50 ft) | 3.6 mm: 4.4 m (14.44 ft) |
| Lens & Distance — DORI Distance | 2.8 mm: Detect 70.2 m (230.31 ft); Observe 28.1 m (92.19 ft); Recognize 14.0 m (45.93 ft); Identify 7.0 m (22.97 ft) | 3.6 mm: Detect 85.6 m (280.84 ft); Observe 34.3 m (112.53 ft); Recognize 17.1 m (56.10 ft); Identify 8.6 m (28.22 ft) |
| Lens & Distance — Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Night Vision — Illumination Distance | Up to 30 m (98.43 ft) (IR) | Up to 30 m (98.43 ft) (Warm light) |
| Night Vision — Illuminator On/Off Control | Auto;Manual |
| Night Vision — Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Night Vision — Smart Illumination | Yes |
| Night Vision — Smart Dual Light | Yes |
| Video — Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Video — Smart Codec | Smart H.265+; Smart H.264+ |
| Video — AI Coding | AI H.265 (Compression rate ≥25%) | AI H.264 (Compression rate ≥25%) |
| Video — Video Frame Rate | Main stream: 3288 × 1850@(1 fps–25/30 fps) | Sub stream: 1920 × 1080@(1–25/30 fps) | Third stream: 1920 × 1080@(1–25/30 fps) |
| Video — Stream Capability | 3 streams |
| Video — Resolution | 6M (3288 × 1850/3200 × 1800); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video — Bit Rate Control | CBR/VBR/ABR |
| Video — Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| Audio — Built-in MIC | Yes, built-in dual Mic |
| Audio — Built-in Speaker | Yes, built-in speaker |
| Audio — Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| AI & Deep Learning — IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| AI & Deep Learning — SMD | SMD 4.0 |
| AI & Deep Learning — AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI & Deep Learning — AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| AI & Deep Learning — Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Network & Storage — SDK and API | Yes |
| Network & Storage — Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Network & Storage — Interoperability | ONVIF (Profile S; Profile G;Profile T); CGI |
| Network & Storage — User/Host | 20 (Total bandwidth: 64 M) |
| Network & Storage — Storage | FTP;SFTP; Micro SD card (support max. 512 GB); NAS |
| Network & Storage — Browser | IE: IE11; Chrome; Firefox |
| Network & Storage — Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Network & Storage — Mobile Client | iOS;Android |
| Network & Storage — Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
| Event & Alarm — Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
| Interface — Network Port | RJ-45 (10/100 Base-T) |
| Interface — Audio Input | 1 channel (RCA port) |
| Interface — Audio Output | 1 channel (RCA port) |
| Interface — Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Interface — Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| General & Environment — Power Supply | 12 VDC; PoE |
| General & Environment — Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| General & Environment — Power Consumption | Basic: 4.1 W (12 VDC); 6 W (PoE) | Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.2 W (12 VDC); 10 W (PoE) |
| General & Environment — Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| General & Environment — Operating Humidity | ≤95% |
| General & Environment — Protection | IP67 |
| General & Environment — Casing Material | Metal |
| General & Environment — Product Dimensions | Φ122.0 mm × 116.1 mm (4.80" × Φ4.57") |
| General & Environment — Net Weight | 0.8 kg (1.76 lb) |
| General & Environment — Gross Weight | 1.0 kg (2.20 lb) |
| General & Environment — Certifications | CE-LVD: EN 62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
§ 04Why choose this
Built for the way you actually use the DH-IPC-HDW3649H-AS-PV-PRO
Colour at night, only when needed
Smart dual illuminators give full-colour footage to 30m on detection and fall back to IR when idle, so there is no constant white light.
Targets real threats
SMD and perimeter AI classify people and vehicles, cutting alerts from animals, rain and foliage to a handful of genuine events.
Fast review with AcuPick
On a Dahua AI NVR, AcuPick finds a chosen person or vehicle across every channel in seconds instead of scrubbing footage.
The strongest night sensor in the family
The 1/1.8" F1.0 sensor rates 0.0005 lux in colour — over twice the light of the standard 3649 — so colour holds later into the evening before any illuminator fires.
Loud on purpose — make sure that suits the spot
Strobes and siren voices confront whoever triggers them. Draw zones to your own boundary and schedule sound overnight — or for tight terrace streets and strata, the quieter 3667 WizSense turret family records the same AI events without the noise.
§ 05Where it fits
Right at home in these scenarios
Porch and front approach
Faces identify to about 7 metres — doorway distance — and the warm light captures them in colour, not grey infrared. Two-way talk lets you direct a courier or challenge a stranger from your phone.
Driveway and carport
Someone lingering around the car at 2am gets strobes and a voice warning before a door handle is touched, with the big 1/1.8" sensor holding colour in barely-lit streets.
Gates, yards and rear lanes
A tripwire on the boundary triggers the camera the moment it's crossed — and the wide 109-degree view covers the whole approach from one mount.
Shops and commercial entries
Active deterrence after hours, colour faces at the door, and AcuPick on an NVR5-series recorder to pull every appearance of one person from a day of footage in seconds.
§ 06Setup
Installation & setup
What's in the box
1 x IPC-HDW3649H-AS-PV-PRO camera, mounting hardware and quick-start guide. The 2.8 mm lens is standard.
Mount for deterrence
Fix the turret 2.5-3m high covering the approach so the strobe, siren and audio reach an intruder before they reach the building.
Single-cable power
Run one Cat5e/6 cable from a PoE switch or NVR port, up to 100 m — 6 W typical, 10 W with the siren, lights and warm light all firing. A 12 V DC supply works where PoE is not available.
Avoid night reflections
Don't aim it along a close wall or at glass — the IR and warm light can bounce back and wash out the image. Angle slightly away from reflective surfaces.
Add AI search
Record on a Dahua AI NVR such as the NVR5208-8P or NVR5216-16P to use AcuPick target search across channels.
Do you need a sparkie?
Usually not for PoE — one data cable carries power, video and every deterrence feature, and you are not touching 240 V. Get a licensed electrician if the run goes through walls or roof space.
Set rules and warnings
Set tripwire/intrusion zones tight to your own property, link the strobe and siren to person/vehicle events, and record a spoken warning in DMSS.
§ 08Questions
Frequently asked about the DH-IPC-HDW3649H-AS-PV-PRO
Q.01
What does TiOC mean?
TiOC stands for Three-in-One Camera. It combines full-colour night vision, AI perimeter detection and active deterrence (strobe, siren and audio) in a single unit instead of separate devices.
Q.02
How does the active deterrence work?
When the AI confirms a person or vehicle in a defined zone, the camera flashes its red and blue strobes, sounds the built-in siren and can play a pre-recorded warning, all automatically.
Q.03
Does it show colour at night?
Yes, to about 30 metres. Smart dual illuminators use warm white light for full colour when motion is detected and fall back to discreet infrared when the scene is quiet, which limits light pollution.
Q.04
Do I need a special NVR for AcuPick?
AcuPick target search needs a Dahua AI NVR, typically a 5-Series model. On a standard 4-Series NVR you still get SMD smart search and Quick Pick, just not the full AcuPick cross-channel search.
Q.05
Can I talk through the camera?
Yes. It has a built-in microphone and speaker for two-way audio through the DMSS app, so you can listen and speak live or trigger an automatic spoken warning.
Q.06
Will it stop false alarms from animals?
Yes. SMD and perimeter protection only treat people and vehicles as targets, so possums, birds and moving foliage do not trigger the deterrence or fill your alerts.
Q.07
Is the night image good enough to identify someone?
The large 1/1.8" F1.0 sensor gives strong low-light colour for general identification near the camera. Place it at the perimeter for deterrence and pair it with a detail camera where you need plates.
Q.08
How is it powered and cabled?
It runs on a single Cat5e/6 cable using standard PoE, or a 12V DC supply, and is IP67-rated for outdoor mounting.
Q.09
What's the difference between the PRO and the standard ANZ model?
Both share the same TiOC deterrence — strobes, siren, two-way talk. The PRO upgrades the imaging: a larger 1/1.8" sensor rated 0.0005 lux against the standard 3649's 1/2.7" at 0.003, a wider 109-degree view versus 97, identification at 7.0 m versus 6.6, dual mics, a 512 GB microSD ceiling versus 256, and AcuPick attribute search with an NVR5-series recorder. If deterrence at a normal doorway is the whole job, the standard model saves money; where night detail or future AcuPick search matters, the PRO earns its price.
Q.10
Can it record without an NVR at all?
Yes, to a microSD card up to 512 GB — use a high-endurance surveillance card, as a normal phone card will die inside a year of 24/7 writing. Edge recording also keeps working as a fallback if the NVR or network goes down.
Q.11
Three 3649 turrets look almost the same — what's the difference?
They share the TiOC toolkit — strobes, siren, two-way talk, SMD 4.0. This PRO is the imaging pick: a larger 1/1.8" sensor, a 109-degree view, dual mics and AcuPick-readiness. The standard ANZ keeps the same deterrence on a smaller sensor for less, and the ZAS swaps the fixed lens for a motorised 2.7-13.5 mm zoom that stretches identification out to nearly 19 m for gates and long driveways. If you're unsure, send us a photo of the spot and we'll call it.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 09In motion
Dahua AcuPick 2.0
Dahua Tioc 2.0 - the ultimate 3-in-1 camera
§ 10Bundles
Recommended packages
Record with AcuPick
Use a Dahua AI NVR such as the NVR5208-8P or NVR5216-16P so AcuPick target search and full event linkage are available.
Or a standard PoE NVR
A Dahua NVR4108HS-8P or NVR4216-16P records it with SMD smart search and Quick Pick on a tighter budget.
Add storage
Fit a surveillance-grade 6TB or 8TB drive for continuous 6MP recording.
Choose a varifocal sibling
Need to zoom the framing? The HDW3649H-ZAS-PV motorised version covers longer or narrower scenes.
Save with the standard model
If deterrence at a normal doorway is the whole job, the standard HDW3649H-AS-PV-ANZ keeps the strobes, siren and two-way talk on a smaller sensor for less.

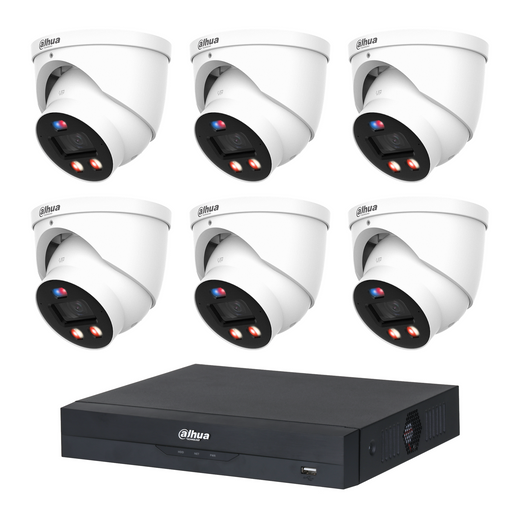

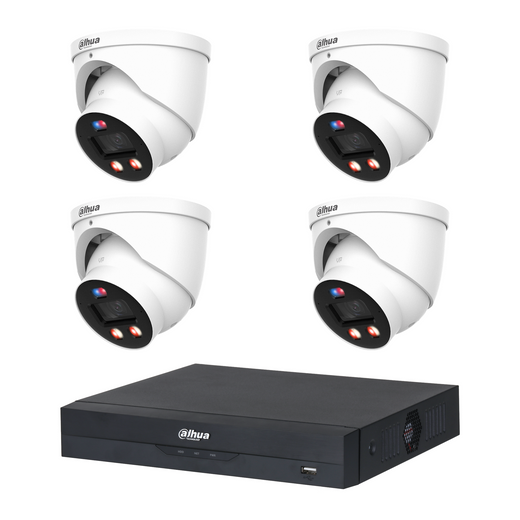

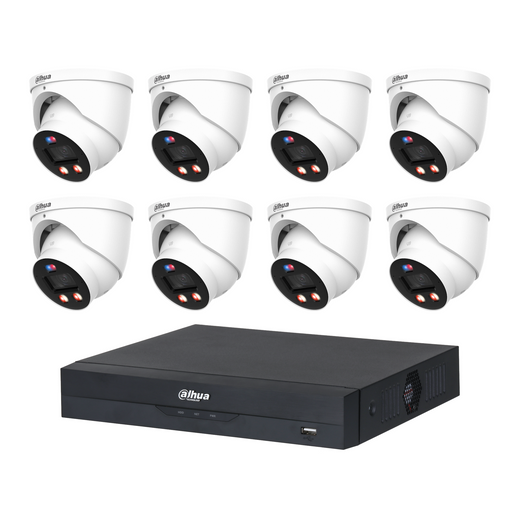

TiOC in a full kit
The 4, 6 and 8-camera TiOC kits build the standard ANZ model of this turret into a matched PoE recorder — the fastest way to put deterrence on every approach.
