Dahua 8 MP + 8 Channels Kit: 2 x 8MP TiOC and 2 x 8MP Turret Cameras with 8CH AI NVR + 4TB HDD
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua 8 MP + 8 Channels Kit: 2 x 8MP TiOC and 2 x 8MP Turret Cameras with 8CH AI NVR + 4TB HDD
SKU: DH-IPC-HDW3866EMP-S-AUS DH-IPC-HDW3849H-AS-PV-ANZ-S2
Description
1 x DHI-NVR4108HS-8P-AI/ANZ with 4TB HDD,
2 x DH-IPC-HDW3866EMP-S-AUS,
2 x DH-IPC-HDW3849H-AS-PV-ANZ-S2.
Regular price
$1,375.65 AUD
Sale price
$1,375.65 AUD
Regular price
$1,583.00 AUD
Sale
13.1%
$207.35 AUD
(13.1%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua 8 MP + 8 Channels Kit: 2 x 8MP TiOC and 2 x 8MP Turret Cameras with 8CH AI NVR + 4TB HDD
1
/
of
1
Customize this kit Kit price $1,375.65

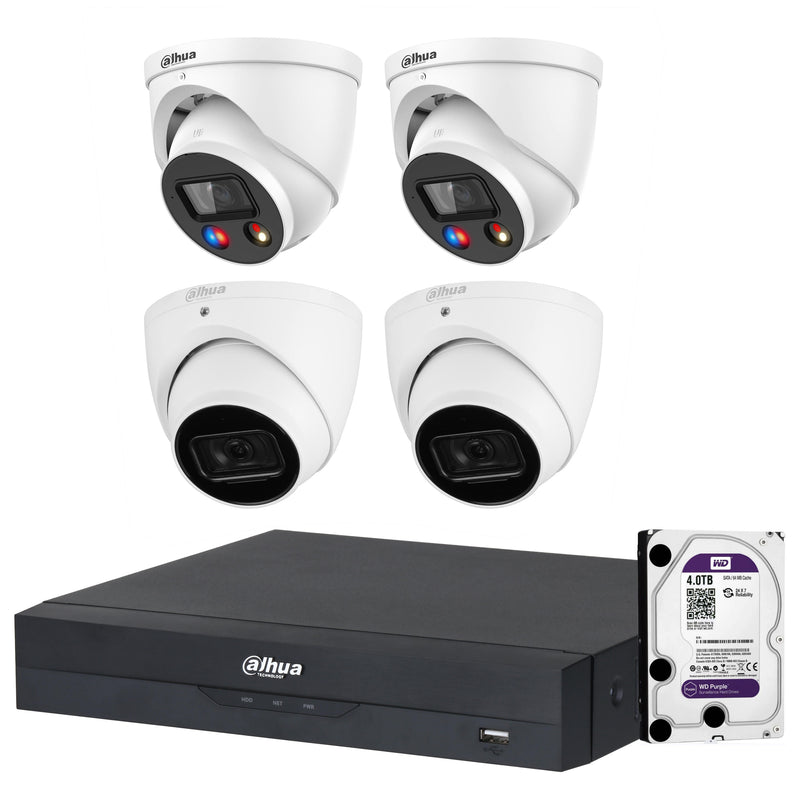

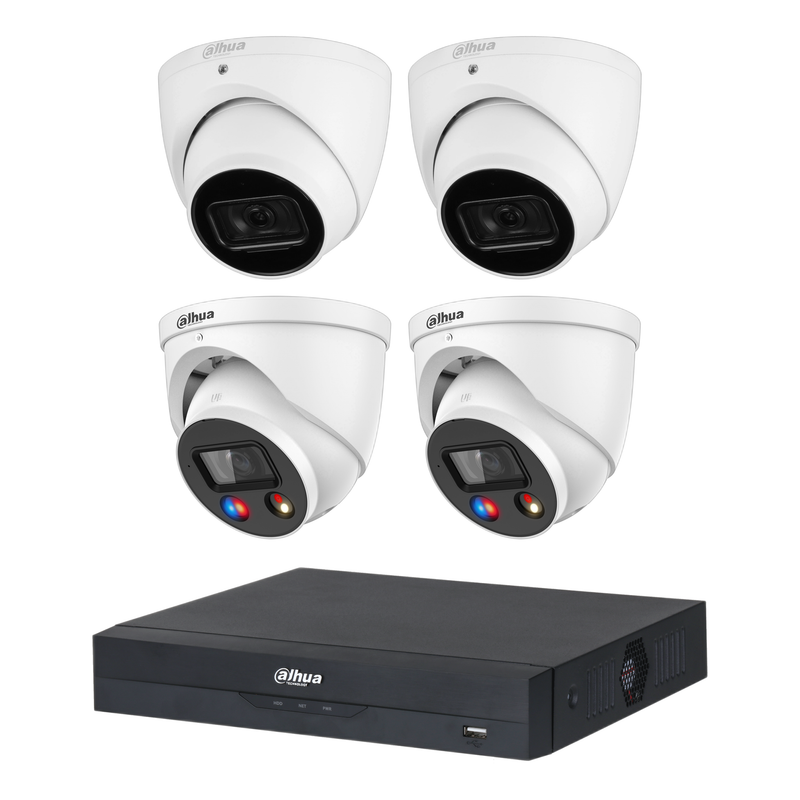

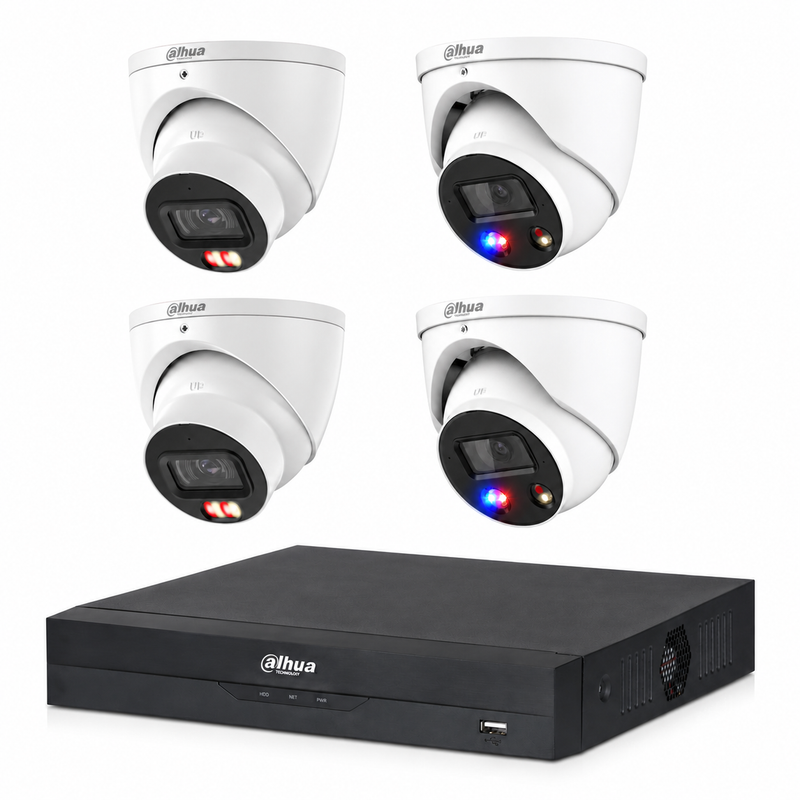

This kit includes:
- 4 × Dahua DH-IPC-HDW3866EMP-S-AUS 8MP 4K WizSense Turret Camera 2.8mm, SMD 4.0, 30m IR, Built-in Mic
- 1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens options: 2.8mm or 4mm focal length.
Color options: White or Black.
Note: Please indicate your choice in your order message.
The Dahua surveillance package with DH-IPC-HDW3866EMP and DH-IPC-HDW3849H cameras delivers 8MP resolution and AI detection of humans and vehicles for accurate security targeting.
This CCTV kit integrates SMD 4.0 technology and an advanced NVR for long-term storage and comprehensive monitoring in offices, malls, shops, and small to medium homes.
§ 02Engineering
Technical specifications
- WizSense AI Cameras: Includes four 8MP turrets with intelligent detection differentiating humans and vehicles via intrusion and tripwire, backed by SMD 4.0 technology.
- High-Resolution Imaging: 8MP resolution at 3840x2160 @25/30fps with H.265 compression for clear, bandwidth-efficient footage.
- Enhanced Low-Light Performance: Built-in IR illumination up to 30 meters; TiOC models add warm light for full-color night vision and active deterrence alarms.
- All-Weather Durability: IP67-rated protection for reliable outdoor use in diverse environments.
- AI NVR System: 8-channel recorder supporting face detection, perimeter protection, and up to 256Mbps bandwidth for multi-camera AI analytics.
- High-Resolution Imaging: 8MP resolution at 3840x2160 @25/30fps with H.265 compression for clear, bandwidth-efficient footage.
- Enhanced Low-Light Performance: Built-in IR illumination up to 30 meters; TiOC models add warm light for full-color night vision and active deterrence alarms.
- All-Weather Durability: IP67-rated protection for reliable outdoor use in diverse environments.
- AI NVR System: 8-channel recorder supporting face detection, perimeter protection, and up to 256Mbps bandwidth for multi-camera AI analytics.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2 G |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 106°; V: 55°; D: 125° | 3.6 mm: H: 85; V: 45°; D: 102° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) | 3.6 mm: 2.2 m (7.22 ft) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| DORI Distance | 2.8 mm: Detect 66.0 m (216.54 ft); Observe 26.4 m (86.61 ft); Recognize 13.2 m (43.31 ft); Identify 6.6 m (21.65 ft) | 3.6 mm: Detect 78.0 m (255.91 ft); Observe 22.2 m (102.36 ft); Recognize 15.6 m (51.18 ft); Identify 7.8 m (25.59 ft) |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 (Compression rate ≥25%); AI H.264 (Compression rate ≥25%) |
| Video Frame Rate | Main stream: 3840 × 2160 @(1 fps–25/30 fps); Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps); Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR/ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: IE 9/11; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC; PoE |
| Power Consumption | Basic: 4.5 W (12 VDC); 5.8 W (PoE); Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | Φ122.0 mm × 110.9 mm (4.80" × Φ4.37") |
| Net Weight | 0.75 kg (1.65 lb) |
| Gross Weight | 0.92 kg (2.03 lb) |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
§ 04Why choose this
Built for the way you actually use it
Active Deterrence System
TiOC units feature red and blue flashing lights plus a siren to instantly warn off intruders.
4K Ultra-HD Resolution
Capture license plates and facial details clearly with 8MP sensors delivering four times the clarity of 1080p.
AI Smart Detection
WizSense algorithms on all units filter wind and animals to focus alerts solely on humans and vehicles.
§ 05Where it fits
Right at home in these scenarios
Front Driveway
Position TiOC cameras here to trigger red-blue lights that deter vehicle theft or unwanted approach.
Main Entrance
Use active deterrence features to greet visitors or warn trespassers via two-way audio and visual alerts.
Backyard Entertaining Area
Install standard turret cameras for discreet, high-quality monitoring of family activities and pool areas.
Side Passage
Secure narrow access points with reliable infrared night vision that captures movement along property boundaries.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua 8MP TiOC & WizSense Turret Kit × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power Source: NVR unit requires connection to a standard 240V mains power outlet via included power supply. 2. Network Cabling: Cameras connect directly to the NVR's PoE ports using Cat5e or Cat6 Ethernet cables. 3. Mounting Surface: Solid wall or eave surfaces required; TiOC units need clearance for strobe light visibility.
App Setup
1. Download the DMSS app from the Apple App Store or Google Play Store. 2. Scan the QR code on the NVR unit to add the entire system to your mobile account. 3. Configure active deterrence schedules specifically for the TiOC cameras within the alarm settings menu.
§ 08In motion
Dahua WizColor Review HDW3849H-Pro
Dahua Tioc 2.0 - the ultimate 3-in-1 camera
