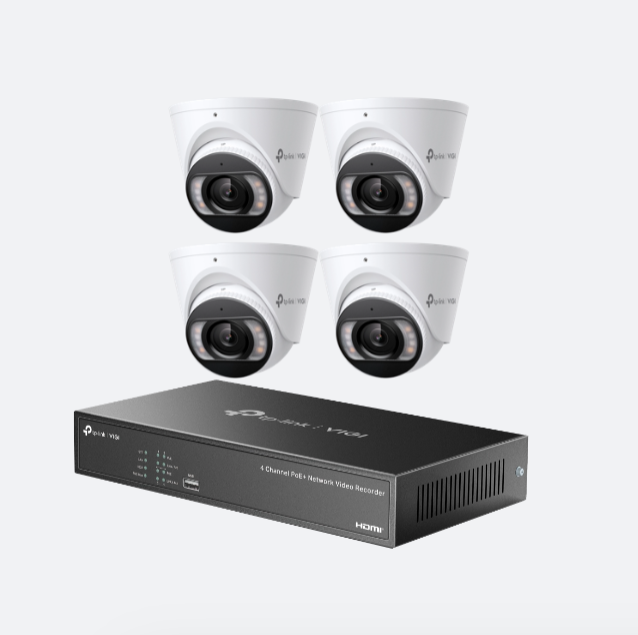

TP-Link Insight 5MP CCTV Kit: 4 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR
Skip to product information
1
/
of
1
Vendor:
TP-Link
TP-Link Insight 5MP CCTV Kit: 4 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR
SKU: kit-tp-link-vigi4x5mp4ch
Description
The VIGI-S455 Kit includes:
4 x VIGI Insight S455
1 × VIGI NVR1004H-4P
Regular price
$688.70 AUD
Sale price
$688.70 AUD
Regular price
$805.50 AUD
Sale
14.5%
$116.80 AUD
(14.5%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
TP-Link Insight 5MP CCTV Kit: 4 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR
1
/
of
1
Customize this kit Kit price $688.70
This kit includes:
- 4 × TP-Link VIGI Insight 5MP S455 Turret Full-Colour Fixed Lens Camera 2.8mm
- 1 × tp-link VIGI VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder (4ch)
- No HDD included (add one below)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the kit-tp-link-vigi4x5mp4ch is
The TP-Link InSight S455 5MP 4-Channel PoE Network Camera Kit offers a professional-grade surveillance solution for Australian residential and commercial environments.
It includes two 5MP full-colour turret cameras and a 4-channel recorder, providing a reliable foundation for security with room for future camera expansion.
§ 02Engineering
kit-tp-link-vigi4x5mp4ch specifications
-2 x 5MP High-Definition Turret Cameras: Capture ultra-clear 2880 x 1620 video resolution to ensure precise identification of people and vehicles across your property.
- Four-Channel PoE+ Network Video Recorder: Simplifies installation by providing power and data to cameras through a single Ethernet cable while supporting up to four cameras total.
- 24/7 Full-Colour Imaging and 30m Night Vision: Uses high-sensitivity sensors and integrated lighting to provide vivid colour footage even in pitch-black Australian outdoor conditions.
- Advanced Human and Vehicle Classification: Utilises intelligent AI to distinguish between significant targets and irrelevant motion like animals or trees, reducing false notification alerts.
- Integrated Two-Way Audio and Deterrence: Features a built-in microphone and speaker for real-time communication and active deterrence of unauthorised persons on the premises.
- IP67 Weatherproof and Durable Housing: Engineered to withstand the harsh Australian climate, providing reliable protection against heavy rain, dust, and extreme temperatures.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Product Model | InSight S455 (2.8mm/4mm) |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Day & Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range (WDR) | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Max. Resolution | 2880 X 1620 |
Lens & Distance
| Feature | Detail |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm; 2.8 mm |
| Aperture | F1.6 |
| FOV | 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° | 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: Detect: 64 m (210 ft); Observe: 27 m (89 ft); Recognize: 13 m (43 ft); Identify: 6 m (20 ft) | 4 mm: Detect: 80 m (262 ft); Observe: 33 m (108 ft); Recognize: 16 m (52 ft); Identify: 8 m (26 ft) |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| IR LED | Quantity: 4; Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 4; Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Feature | Detail |
|---|---|
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main stream: H.265/H.265+/H.264/H.264+; Sub-stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
Audio
| Feature | Detail |
|---|---|
| Audio Communication | Two-way audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Human & Vehicle Classification | Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. |
| Smart Detection | Line-Crossing Detection; Intrusion Detection; Abandoned Object Detection; Object Removal Detection; Region Exiting Detection; Region Entering Detection; Scene Change Detection; Loitering Detection |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| API | Open Network Video Interface (Profile S/T/G) |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web, VMS Local, VIGI Cloud VMS |
| Cloud | Yes |
| ONVIF | Yes |
Event & Alarm
| Feature | Detail |
|---|---|
| Smart Event | Human & Vehicle Classification; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection |
| Basic Event | Motion Detection; Video Tampering Detection; Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording; Message Push; Audible Warning; White Light Flashing |
| Output Notification | Message Push |
Interface
| Feature | Detail |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Reset Button | Yes |
| Power | DC Power Port |
General & Environment
| Feature | Detail |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-condensing) |
| Storage Humidity | 95% or Less (Non-condensing) |
| Power Supply | 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12 W |
| Material | Metal |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 111*111*83.7mm |
| Package Contents | VIGI Network Camera; Quick Start Guide; Waterproof Cable Attachments; Mounting Accessories |
| Net Weight | 0.48 Kg |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
