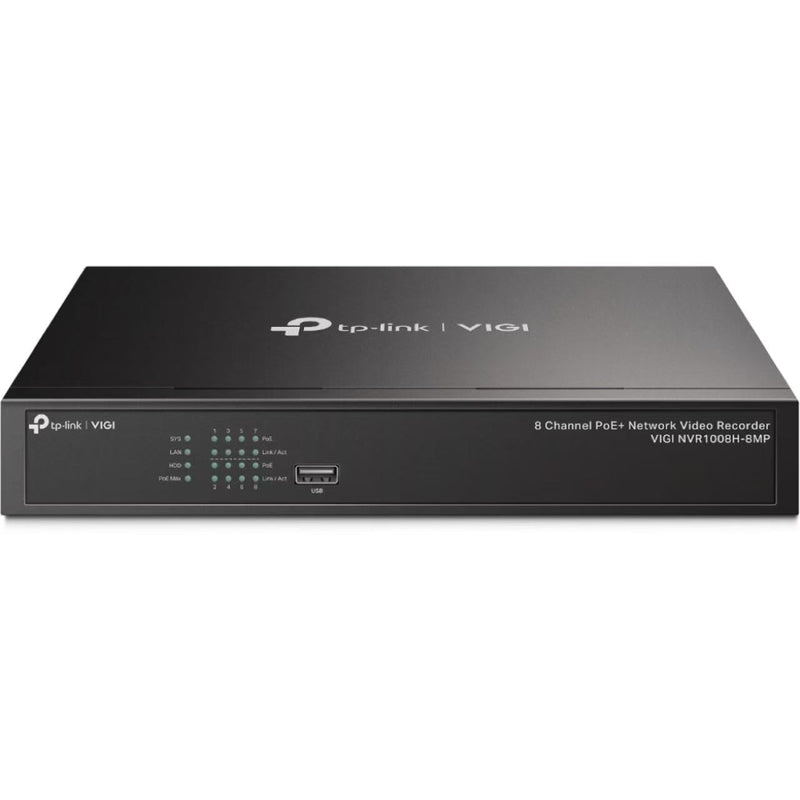

tp-link VIGI NVR1008H-8MP 8 Channel PoE+ 8 Channel Network Video Recorder with 8 POE
SKU: VIGI NVR1008H-8MP
Description
Power and manage up to eight security cameras with a single cable for simplified, high-definition business surveillance.
Regular price
$284.05 AUD
Sale price
$284.05 AUD
Regular price
$299.00 AUD
Sale
5.0%
$14.95 AUD
(5.0%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
tp-link VIGI NVR1008H-8MP 8 Channel PoE+ 8 Channel Network Video Recorder with 8 POE
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Optional extras
Accessories & upgrades
—
Complete setup from
$654.05
01Overview
What the VIGI NVR1008H-8MP is
The TP-Link VIGI NVR1008H-8MP is an 8-channel PoE+ network video recorder for small CCTV systems. Its eight built-in PoE+ ports connect and power up to eight IP cameras over a single cable each, so there are no separate adapters to wire. It is plug-and-play with VIGI cameras and records to a SATA hard drive — the drive is not included.
Channels / PoE: 8 channels and 8 PoE+ ports (802.3af/at), 113 W total and up to 30 W per port.
Bandwidth: 80 Mbps incoming — comfortably records up to eight 4 MP cameras at once; if you run several 8 MP cameras you may need to trim their bitrate.
Output / playback: 4K (3840×2160) over HDMI plus simultaneous VGA, with 8-channel synchronous playback.
Storage: one SATA bay for a drive up to 16 TB — the hard drive is not included.
It records H.265+/H.264+ to save space, with smart alarms (motion, line-crossing, intrusion, human and vehicle) driven by the cameras, two-way audio, and remote viewing through the VIGI app, web UI and VIGI Security Manager. It is ONVIF (Profile S), so it works with most third-party IP cameras, though plug-and-play setup and the full smart features are best with VIGI cameras. This is an indoor recorder (−10 to 55 °C).
02Engineering
VIGI NVR1008H-8MP specifications
- Eight PoE+ ports, one cable per camera: connects and powers up to eight IP cameras over single Ethernet runs — 113 W total, 30 W max per port, no separate adapters.
- 4K video output: 3840×2160 over HDMI with simultaneous VGA for sharp live view on a monitor.
- 8-channel synchronous playback: review all eight cameras at once, searchable by date, event and tag.
- Storage up to 16 TB: one SATA bay for a surveillance hard drive (not included) for weeks of footage.
- 80 Mbps incoming bandwidth: comfortably records up to eight 4 MP cameras; trim bitrate if you run several 8 MP.
- H.265+ compression: cuts storage and bandwidth use without losing detail.
- Works with VIGI and ONVIF cameras: plug-and-play with VIGI, ONVIF Profile S for most third-party IP cameras.
- Manage anywhere: VIGI app, web UI and VIGI Security Manager, with two-way audio support.
- 4K video output: 3840×2160 over HDMI with simultaneous VGA for sharp live view on a monitor.
- 8-channel synchronous playback: review all eight cameras at once, searchable by date, event and tag.
- Storage up to 16 TB: one SATA bay for a surveillance hard drive (not included) for weeks of footage.
- 80 Mbps incoming bandwidth: comfortably records up to eight 4 MP cameras; trim bitrate if you run several 8 MP.
- H.265+ compression: cuts storage and bandwidth use without losing detail.
- Works with VIGI and ONVIF cameras: plug-and-play with VIGI, ONVIF Profile S for most third-party IP cameras.
- Manage anywhere: VIGI app, web UI and VIGI Security Manager, with two-way audio support.
03Full datasheet
Detailed specifications
Video
| Feature | Detail |
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-Channel |
| Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP | 30fps: 4-ch @ 3MP, 2-ch @ 5MP |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
Network & Storage
| Feature | Detail |
|---|---|
| Network Protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Interoperability | ONVIF Profile S, CGI |
| Mobile Phone Access | Android, iOS |
| Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| SATA | 1 SATA Interface |
| HDD Capacity | Up to 16 TB Capacity for Each HDD |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Rgular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
Event & Alarm
| Feature | Detail |
|---|---|
| General Alarm | Motion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame. Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | Video Loss; Offline and IP Conflict; Disk Exception; Login Exception. Note: The alarm function requires the use of a camera. |
| Alarm Linkage | Recording; White Light Alarm; Buzzer; Log; Audible Alarm. Note: The alarm function requires the use of a camera. |
Interface
| Feature | Detail |
|---|---|
| PoE Interface | 1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Power | 113 W Available for All PoE+ Ports, 30 W Max per Port |
| PoE Standard | 802.3at/af Compliant |
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Input |
| Power | 1× DC Jack |
| Reset Button | 1 |
| HDMI | 1 |
| VGA | 1 |
General & Environment
| Feature | Detail |
|---|---|
| Product Model | VIGI NVR1008H-8MP |
| Package Contents | VIGI Network Video Recorder; Power Adapter; HDD Screws; Mouse; Mounting Brackets & Rubber Feet; Quick Installation Guide |
| Power Supply | 53.5V DC/2.43A |
| Power Consumption | 4.82W (Without HDD) | 14.23W (With HDD) |
| Working Temperature | NVR: -10–55 °C | Power Adapter: 0–40 °C |
| Storage Temperature | -40-70 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Product Dimensions (W × D × H) | 294 × 180 × 44 mm |
| Net Weight | 1.12 Kg |
| Gross Weight | 2.2 Kg |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Video — IP Video Input | 8-Channel |
|---|---|
| Video — Incoming Bandwidth | 80 Mbps |
| Video — Outgoing Bandwidth | 60 Mbps |
| Video — HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video — VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video — Video Output Mode | HDMI/VGA Simultaneous Output |
| Video — Multi-View Display | 1/4/6/8 |
| Video — Video Compression | H.265+/H.265/H.264+/H.264 |
| Video — Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Video — Synchronous Playback | 8-Channel |
| Video — Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP | 30fps: 4-ch @ 3MP, 2-ch @ 5MP |
| Audio — Audio Compression | G.711A/G.711U/G.726 |
| Network & Storage — Network Protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Network & Storage — Interoperability | ONVIF Profile S, CGI |
| Network & Storage — Mobile Phone Access | Android, iOS |
| Network & Storage — Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Network & Storage — SATA | 1 SATA Interface |
| Network & Storage — HDD Capacity | Up to 16 TB Capacity for Each HDD |
| Network & Storage — Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Network & Storage — Playback Mode | Instant Playback, Rgular Playback, Tag Playback, Event Playback |
| Network & Storage — Backup Mode | Regular Backup, Video Clip Backup |
| Network & Storage — Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| Event & Alarm — General Alarm | Motion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame. Note: The alarm function requires the use of a camera. |
| Event & Alarm — Anomaly Alarm | Video Loss; Offline and IP Conflict; Disk Exception; Login Exception. Note: The alarm function requires the use of a camera. |
| Event & Alarm — Alarm Linkage | Recording; White Light Alarm; Buzzer; Log; Audible Alarm. Note: The alarm function requires the use of a camera. |
| Interface — PoE Interface | 1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Interface — PoE Power | 113 W Available for All PoE+ Ports, 30 W Max per Port |
| Interface — PoE Standard | 802.3at/af Compliant |
| Interface — Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Interface — USB Interface | 2× USB 2.0 |
| Interface — Audio Interface | 1-ch RCA Input; 1-ch RCA Input |
| Interface — Power | 1× DC Jack |
| Interface — Reset Button | 1 |
| Interface — HDMI | 1 |
| Interface — VGA | 1 |
| General & Environment — Product Model | VIGI NVR1008H-8MP |
| General & Environment — Package Contents | VIGI Network Video Recorder; Power Adapter; HDD Screws; Mouse; Mounting Brackets & Rubber Feet; Quick Installation Guide |
| General & Environment — Power Supply | 53.5V DC/2.43A |
| General & Environment — Power Consumption | 4.82W (Without HDD) | 14.23W (With HDD) |
| General & Environment — Working Temperature | NVR: -10–55 °C | Power Adapter: 0–40 °C |
| General & Environment — Storage Temperature | -40-70 °C |
| General & Environment — Working Humidity | 10%~90% RH Non-Condensing |
| General & Environment — Storage Humidity | 10%~90% RH Non-Condensing |
| General & Environment — Product Dimensions (W × D × H) | 294 × 180 × 44 mm |
| General & Environment — Net Weight | 1.12 Kg |
| General & Environment — Gross Weight | 2.2 Kg |
| General & Environment — Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
04Why choose this
Built for the way you actually use the VIGI NVR1008H-8MP
4K live and playback
3840×2160 over HDMI plus VGA, with 8-channel synchronous playback.
Plug-and-play with VIGI
VIGI cameras set up automatically; ONVIF Profile S covers most third-party IP cameras.
Up to 16 TB storage
One SATA bay for a surveillance drive (not included) for weeks of footage.
Smart, camera-driven alarms
Motion, line-crossing, intrusion and human or vehicle events, with two-way audio.
View anywhere
VIGI app, web UI and Security Manager for remote live view, playback and alerts.
Right-sized bandwidth
80 Mbps records up to eight 4 MP cameras comfortably.
05Where it fits
Right at home in these scenarios
Small business CCTV
Shops, warehouses, cafes and offices needing up to eight cameras on one recorder.
Whole-home systems
Houses wanting four to eight cameras recorded centrally with remote phone access.
Local recording, no fees
Record to your own drive instead of paying monthly cloud subscriptions.
Mixed-resolution sites
Run 4 MP and 8 MP VIGI cameras together, trimming bitrate where needed.
Standalone or networked
Use it on a monitor with the included mouse, or manage remotely through the app.
06Setup
Installation & setup
-
01
What's in the Box
- VIGI NVR1008H-8MP recorder × 1
- Power adapter × 1
- USB mouse × 1
- HDD screws × 1 set
- Mounting brackets and rubber feet × 1 set
- Quick Installation Guide × 1
- (SATA hard drive not included)
-
02
Installation Requirements
- Storage: one SATA surveillance hard drive up to 16 TB (not included) — fit it before first use.
- Cameras: up to eight PoE cameras on the built-in PoE+ ports; VIGI cameras are plug-and-play and ONVIF cameras are supported.
- Display and network: an HDMI or VGA monitor for local viewing, plus a LAN connection for remote app access.
- Placement: indoor only (−10 to 55 °C); keep it ventilated near a power point.
08Questions
Frequently asked about the VIGI NVR1008H-8MP
Q.01
Does it come with a hard drive?
No. The NVR ships without a drive, so you add a SATA surveillance hard drive (up to 16 TB) to record. A surveillance-rated drive such as WD Purple or Seagate SkyHawk is built for continuous 24/7 recording and is the safer choice over a standard desktop drive.
Q.02
How many cameras and what resolution can it really handle?
It has eight channels and eight PoE+ ports. The 80 Mbps incoming bandwidth comfortably records up to eight 4 MP cameras at once; if you run several 8 MP cameras you may need to lower their bitrate or frame rate to stay within budget.
Q.03
Will it work with non-VIGI cameras?
It supports ONVIF (Profile S), so most third-party IP cameras can connect and record. Plug-and-play setup, two-way audio and the full smart features work best with VIGI cameras.
Q.04
Does it power the cameras?
Yes. The eight PoE+ ports (802.3af/at) carry data and power on one cable per camera, with a 113 W total budget and up to 30 W per port — enough for typical 4 MP and 8 MP VIGI cameras.
Q.05
How much footage will it store?
That depends on drive size, resolution, frame rate and how much motion is recorded. As a rough guide, one large surveillance drive holds days to weeks of continuous 8-camera footage, and recording on motion or events stretches it much further. The single bay takes a drive up to 16 TB.
Q.06
Can I view it on my phone?
Yes. The VIGI app for Android and iOS gives live view, playback and alerts remotely, and you can also use the web UI or VIGI Security Manager on a computer.
Q.07
Can I run it on a monitor without a computer?
Yes. It includes a USB mouse and has HDMI and VGA outputs, so it works as a standalone recorder on a monitor or TV.
Q.08
Where should it be installed?
It is an indoor recorder rated −10 to 55 °C, so mount it inside in a ventilated spot near the camera cabling and a power point. Keep it cool and dust-free for reliable 24/7 operation.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Add a hard drive (required)
It records to a SATA drive that is not included — add a surveillance HDD such as 6 TB for most jobs, or 10 TB for longer retention.
Add VIGI cameras
Power and record up to eight PoE turrets — the InSight S455 (5 MP) or S485 (8 MP / 4K).
Only need a few cameras
For up to four cameras, the 4-channel NVR1004H-4P is the smaller sibling.
