TP-Link VIGI S485 6-Camera 4K CCTV Kit + 8CH NVR + WD 4TB

SKU: KIT-S485-6CAM-8CH-WD4TB
Description

Six 4K views, WD 4TB storage and space to expand. This TP-Link VIGI InSight S485 kit pairs six 8MP turret cameras with an 8-channel PoE recorder for a home, shop or business that needs more camera positions.

Get two-way audio, human and vehicle classification, and active audible and light warnings from the S485 cameras. The included WD 4TB surveillance drive gives you local recording storage from the outset.

Includes 6 × S485 cameras, 1 × 8-channel PoE NVR and 1 × WD 4TB surveillance hard drive. Two recorder inputs remain available. Network cabling, a monitor and installation are separate. Promotion available while stocks last.

6 cameras 8MP Ultra HD IP67 cameras Human/Vehicle Detection Two-Way Audio 8 x POE PORTS
$1,265.88 AUD $1,265.88 AUD $1,959.35 AUD
Sale 35.39% $693.47 AUD (35.39%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit $1,265.88
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 6 × TP-Link VIGI Insight S485 8MP 4K Turret Full-Colour Fixed Lens Camera 2.8mm

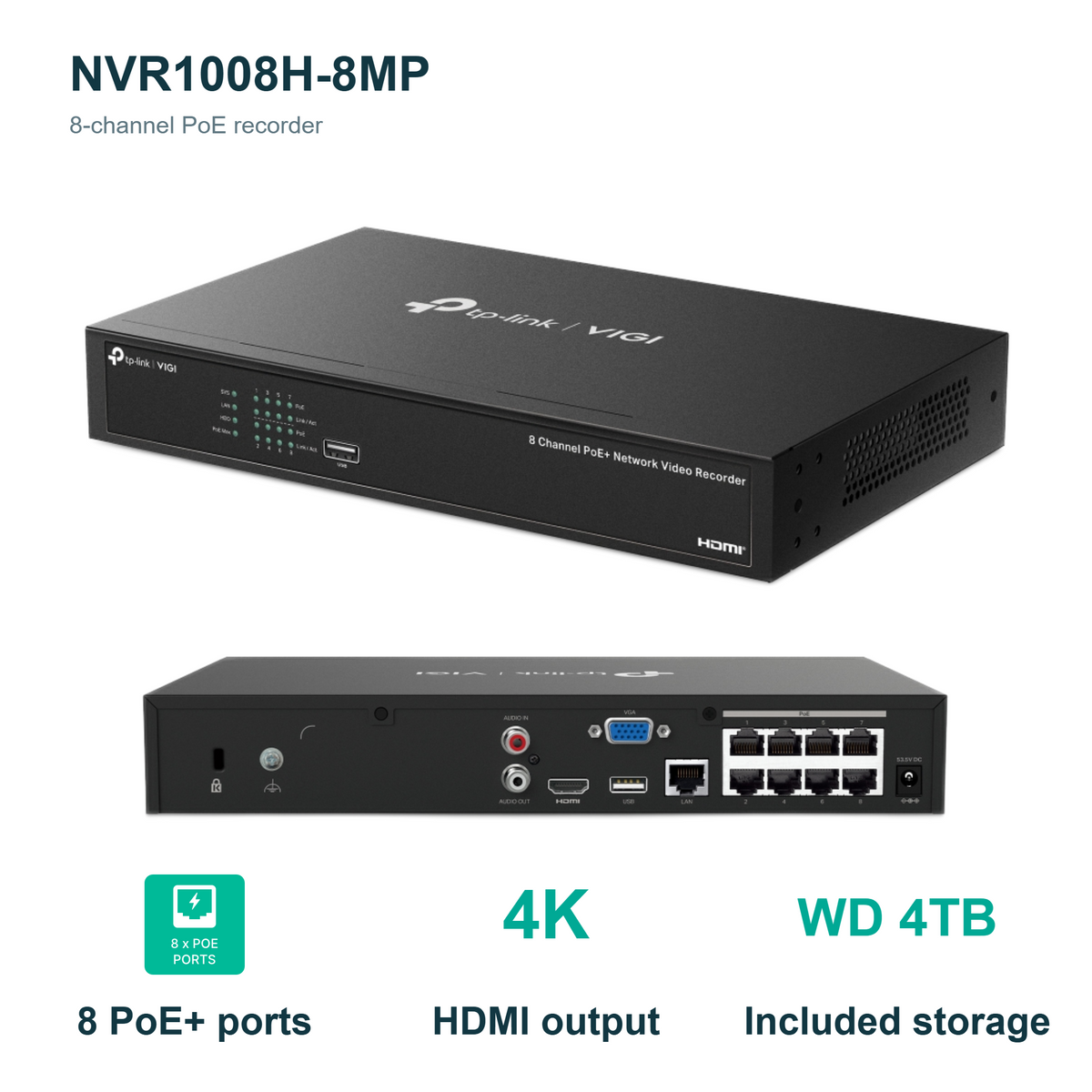

  • 1 × tp-link VIGI NVR1008H-8MP 8 Channel PoE+ 8 Channel Network Video Recorder with 8 POE (8ch)
  • Hard drive configuration as supplied with this kit. See the kit specifications.
Add extra cameras Insight S485(2.8mm)
+$0.00
NVR · channels ≥ your total camera count Base: 8ch · tp-link VIGI NVR1008H-8MP 8 Channel PoE+ 8 Channel Network Video Recorder with 8 POE
Hard Drive Fixed configuration

The hard drive configuration is fixed for this kit and cannot be changed here.

Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • TP-Link VIGI S485 6-Camera 4K CCTV Kit + 8CH NVR + WD 4TB $1,265.88
Total: $1,265.88

01Overview

What the KIT-S485-6CAM-8CH-WD4TB is

See more of the site in one recording system. Six camera positions let you separate front access, parking, side routes, deliveries and indoor activity rather than relying on a single wide overview.

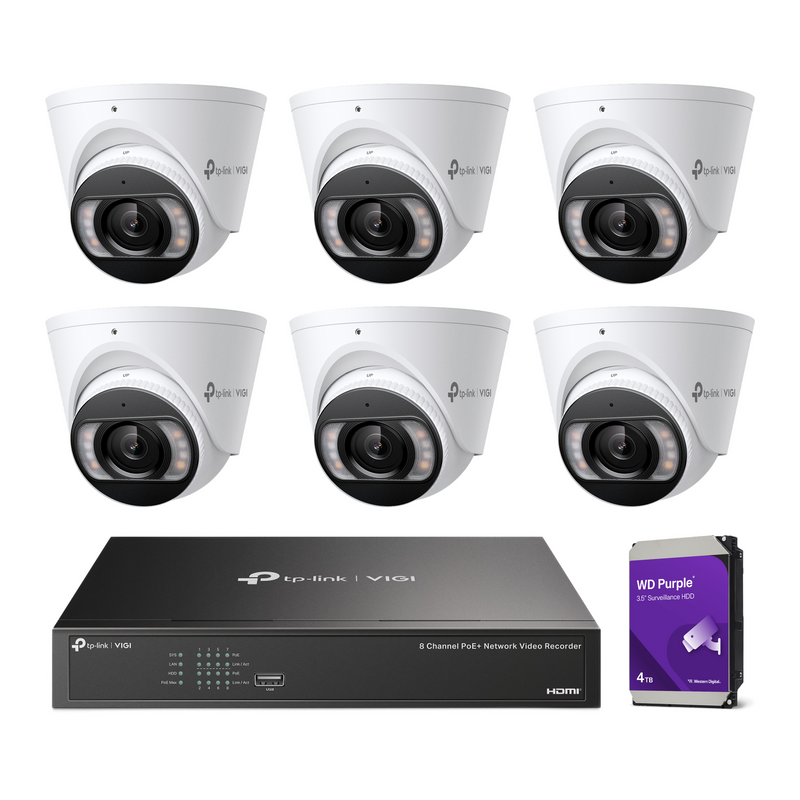

This kit contains 6 white TP-Link VIGI InSight S485 8MP turret cameras with 2.8mm fixed lenses, one NVR1008H-8MP 8-channel PoE recorder and one WD 4TB surveillance hard drive. The drive is part of this package, so there is no separate storage purchase to make before configuring NVR recording.

Each camera has a built-in microphone and speaker for two-way audio, human and vehicle classification, audible warning and white-light flashing. IR and white-light illumination are rated up to 30m; colour viewing after dark requires suitable ambient light or the camera's white lights.

Six cameras occupy six of the eight recorder inputs, leaving two inputs and PoE ports available. Add suitable cameras later within the recorder bandwidth and power budget. The included 4TB drive has twice the nominal capacity of 2TB, but recording time also depends on the six cameras and their settings.

02Engineering

KIT-S485-6CAM-8CH-WD4TB specifications

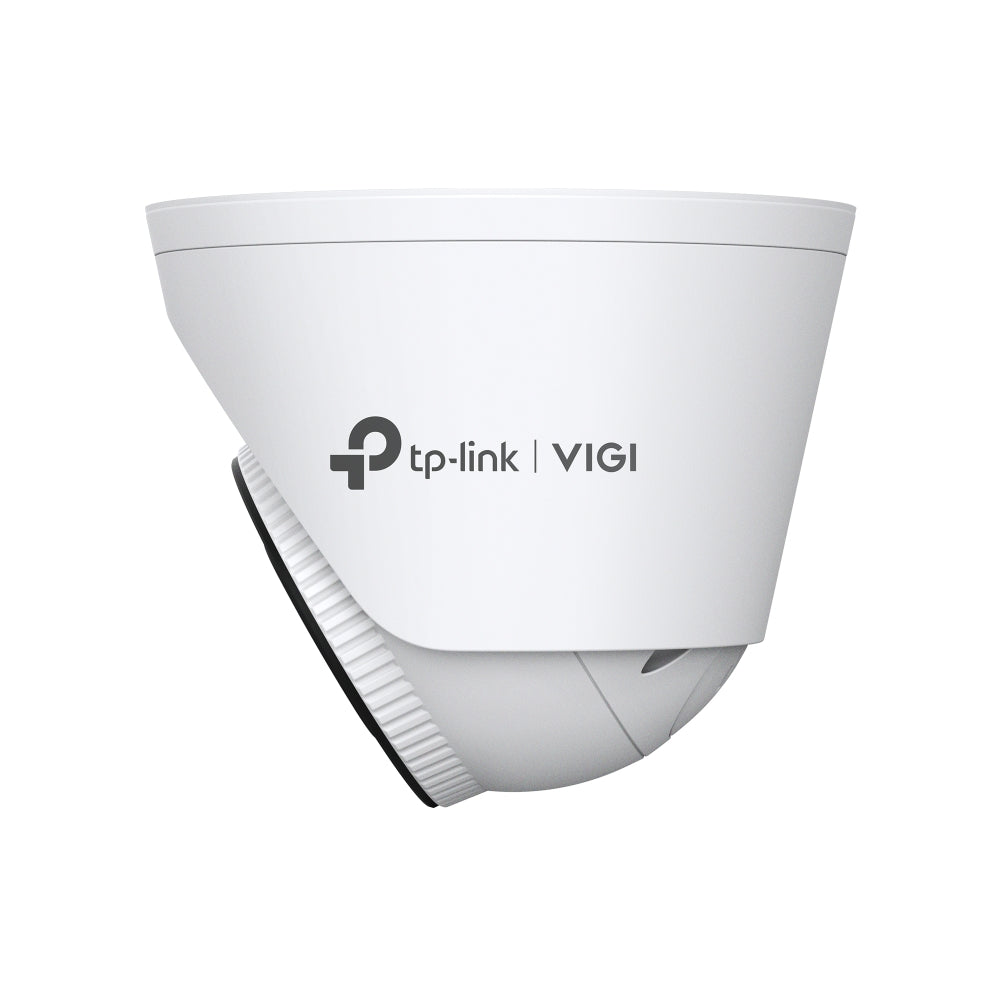

- 6 × S485 8MP cameras — up to 3840 × 2160 resolution, white turret housings and 2.8mm fixed lenses.
- WD 4TB storage included — a surveillance hard drive supplied as part of this kit.
- 8CH PoE recording — one recorder for the supplied 6 views; Ethernet carries camera power and video.

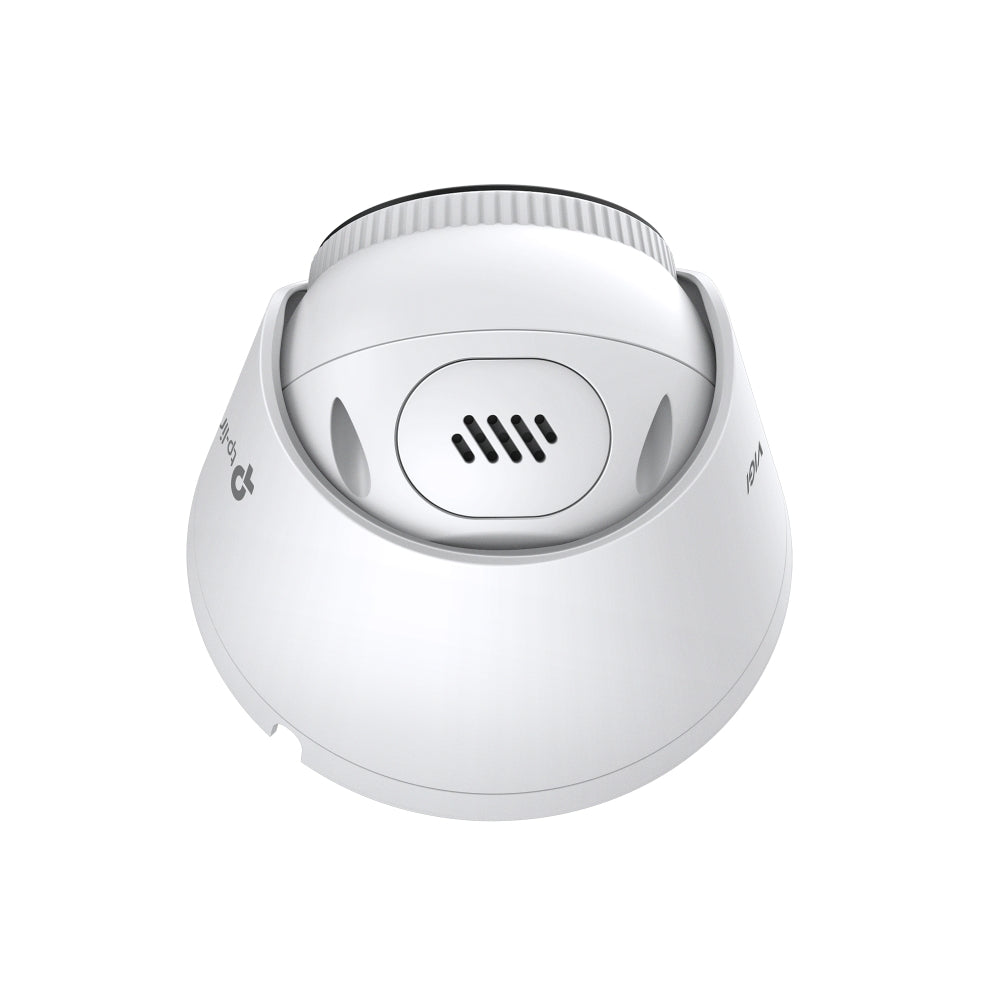

- Two-way audio — built-in microphone and speaker in every supplied camera.
- Human and vehicle classification — focus motion detection on people and vehicles.
- Active warnings — audible warning and white-light flashing, configured for the scene.
- Night viewing — up to 30m IR or white-light illumination; colour requires suitable light.
- IP67 cameras — suitable for indoor or outdoor positions with protected connections.
- Space for two more views — two recorder inputs remain available; expansion must fit power and bitrate limits.

03Full datasheet

Detailed specifications

Package

Package — TP-Link VIGI S485 6-Camera 4K CCTV Kit + 8CH NVR + WD 4TB
FeatureDetail
Cameras 6 × TP-Link VIGI InSight S485
Recorder 1 × NVR1008H-8MP
Included drive 1 × WD 4TB surveillance HDD
Camera finish / lens White / 2.8mm fixed
Unused camera inputs 2
Network cabling / monitor / installation Separate

04Why choose this

Built for the way you actually use the KIT-S485-6CAM-8CH-WD4TB

Six views for a bigger camera plan

Give front access, side approaches, deliveries and indoor activity their own views. Six separate camera positions make the layout easier to plan around how the site is used.

4K detail where it matters

Each S485 supports 8MP recording. Choose mounting angles and distances for the details you need, then check sample footage on the actual site.

See, hear and respond

Use the built-in microphone and speaker for two-way communication through supported VIGI tools. Configure audible and light warnings for the events and positions where they are useful.

4TB included, with room for two more cameras

A WD 4TB surveillance drive and an 8-channel PoE recorder support a larger starting setup. Two channels remain available for future positions. Extra cameras are separate.

05Where it fits

Right at home in these scenarios

Homes with more access routes

Use the extra views for a longer driveway, a detached garage, multiple entrances or outdoor activity areas. Select each position for useful detail rather than overlapping views.

Shops, workshops and warehouses

Separate the front entrance, sales floor, deliveries, storage and rear access. Use two-way audio where the camera microphone and speaker can serve a practical purpose.

A staged camera rollout

Start with six cameras, then use the two spare recorder inputs for future positions. Check power and recording bandwidth before selecting the extra cameras.

06Setup

Installation & setup

  1. Included in this package

    • 6 × TP-Link VIGI InSight S485 8MP turret cameras, white, 2.8mm
    • 1 × NVR1008H-8MP 8-channel PoE recorder
    • 1 × WD 4TB surveillance hard drive
    • Standard manufacturer-supplied mounting and recorder accessories. Network cabling, monitor, microSD cards and installation are separate.

  2. Connect, initialise and set recording

    • Plan and label the 6 camera positions and cable routes.
    • Use one suitable Ethernet cable between each camera and the recorder's PoE ports.
    • Fit or check the included HDD as applicable, initialise the recorder and drive, set strong passwords and the correct time.
    • Configure camera streams, recording schedules, alerts and authorised remote access.

  3. Check every view before handover

    Verify day and night views, test two-way audio where enabled and play back a sample recording from each camera. Check weatherproofing and cable runs. The six camera maxima total 75W before cable losses against the recorder's stated 113W PoE budget. Any later expansion must stay within the budget and recording bandwidth.

08Questions

Frequently asked about the KIT-S485-6CAM-8CH-WD4TB

Q.01

Is the WD hard drive included?
Yes. One WD 4TB surveillance hard drive is included with this kit. It is not an optional add-on to the advertised configuration. HDD installation and initialisation must be checked before recording is used.
Q.02

Can I add more cameras later?
Yes. The supplied recorder has eight camera inputs and six are used by this kit. Two remain available. Choose compatible extra cameras and confirm total PoE power, bitrate and recording settings. Extra cameras are separate.
Q.03

Does full-colour mean the camera sees colour in total darkness?
Colour viewing needs suitable ambient light or the built-in white lights. The S485 also has infrared illumination for black-and-white night vision. Choose the lighting mode for the scene and check the result after dark.
Q.04

How long will the included drive record?
There is no single fixed recording duration. Retention depends on all 6 cameras, bitrate, frame rate, compression, scene activity and recording schedules. Configure these settings for the required retention and verify actual storage use.
Q.05

Can I view all cameras at full 4K quality simultaneously?
The cameras support 8MP streams, but the recorder's simultaneous decoding capacity is separate from its input count. The documented 25fps decoding examples include 2 × 8MP or 4 × 4MP, or 8 × 2MP. Configure suitable substreams for the multi-camera grid and main streams for the required recordings.
Q.06

What do I need for remote viewing and installation?
The package supplies the cameras, recorder and stated WD storage. Allow for Ethernet cabling, suitable mounting, a local monitor if needed and installation. Remote viewing requires the recorder to be connected to a suitable internet connection and configured with the VIGI app or supported tools.
