TP-Link 8MP 8CH CCTV Kit: 6 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 8CH NVR
TP-Link 8MP 8CH CCTV Kit 6 IP Turret Cameras Full-Colour Speaker Mic Light 8CH NVR
1 1
TP-Link

TP-Link 8MP 8CH CCTV Kit: 6 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 8CH NVR

SKU: kit-tp-link-vigi6x8ch
Description

This TP-Link VIGI kit pairs 6 InSight S485 8MP turret cameras with a VIGI NVR1008H-8MP 8-channel PoE+ recorder for a complete 4K surveillance system out of the box.

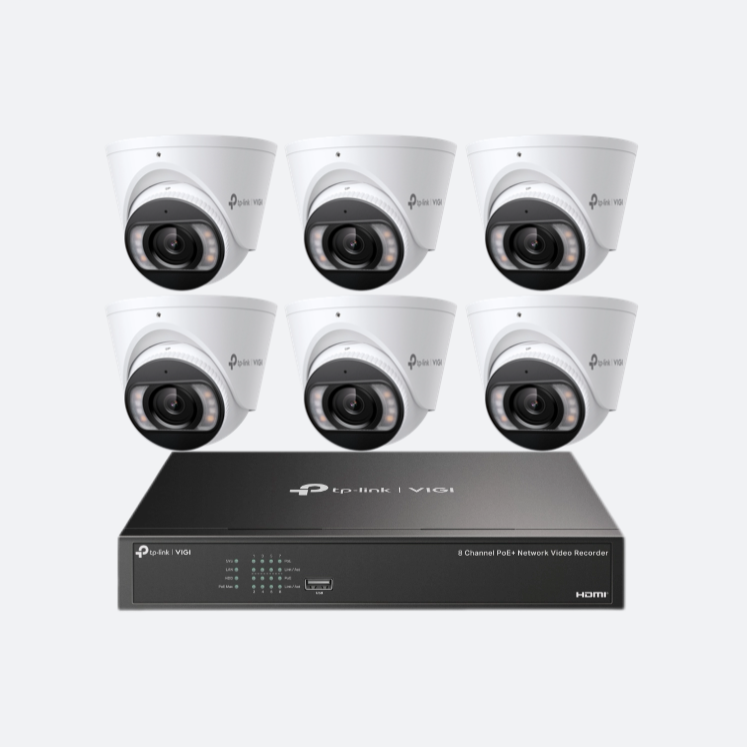

Kit includes
- 6 x VIGI InSight S485 8MP 4K full-colour turret camera (2.8mm or 4mm lens)
- 1 x VIGI NVR1008H-8MP 8-channel PoE+ network video recorder
- No hard drive included – add a surveillance HDD below

Key points
- 8MP 4K (3840 x 2160) with 24/7 full-colour night vision (white LEDs and IR, both to 30 m)
- AI human and vehicle detection, two-way audio and active deterrence on every camera
- 8x PoE+ ports power and connect each camera over a single network cable
- IP67 metal cameras; H.265+ recording; 1 SATA bay in the NVR for a hard drive
6 cameras 8MP Ultra HD 30m IR Night Vision Dual-Light Night Vision Full Color Night Vision IP67 Weatherproof False Alarm Reduction Human/Vehicle Detection Audio Alarm Strobe Light Built-in Microphone Built-in Speaker Two-Way Audio 8 x POE PORTS
$1,181.80 AUD $1,181.80 AUD $1,583.00 AUD
Sale 25.34% $401.20 AUD (25.34%)
Member Price$1,146.35 AUD
to save $35.45 AUD · Free to join
6% off orders over $2000 $1,110.89 AUD BEST PRICE
When your order totals $2,000+ — applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Customize this kit Kit price $1,181.80
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 6 × TP-Link VIGI Insight S485 8MP 4K Turret Full-Colour Fixed Lens Camera 2.8mm
  • 1 × tp-link VIGI NVR1008H-8MP 8 Channel PoE+ 8 Channel Network Video Recorder with 8 POE (8ch)
  • No HDD included (add one below)
Add extra cameras Insight S485(2.8mm)
+$0.00
NVR · channels ≥ your total camera count Base: 8ch · tp-link VIGI NVR1008H-8MP 8 Channel PoE+ 8 Channel Network Video Recorder with 8 POE
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cabling
0
0
0
0
Price breakdown:
  • TP-Link 8MP 8CH CCTV Kit: 6 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 8CH NVR $1,181.80
Total: $1,181.80
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the kit-tp-link-vigi6x8ch is

This TP-Link VIGI kit brings together 6 InSight S485 8MP turret cameras and a VIGI NVR1008H-8MP 8-channel recorder, supplied as a matched, tested set so the cameras and NVR work together from the first power-up.

Each S485 records 4K (3840 x 2160) detail and keeps footage in full colour at night, using white LEDs and IR both rated to 30 m, so you capture clothing and vehicle colour rather than black-and-white IR.

The 8-channel NVR leaves 2 spare channels, so you can add more VIGI cameras later without changing the recorder.

Every camera has AI human and vehicle classification, which keeps alerts to real people and cars and makes searching recorded footage faster, plus two-way audio through a built-in microphone and speaker and white-light flashing for active deterrence.

The NVR1008H-8MP has eight PoE+ ports, so each camera needs only a single Cat5e/6 cable for both power and data, with a combined 113W power budget; a 4K HDMI output drives a local monitor and H.265+ compression keeps recordings small.

The cameras carry an IP67 metal housing for Australian outdoor conditions and come with a 2.8mm wide lens or a 4mm longer-reach lens (note your preference in the order comments).

The kit does not include a hard drive: the NVR has one SATA bay, and for 24/7 recording across 6 4K cameras a 6TB or 8TB surveillance-grade drive is a good match.

It is normally installed by a security or cabling technician.

See it in action

What the kit-tp-link-vigi6x8ch features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Dual-Light Night Vision — Combines infrared with a warm spotlight so it can light a scene in colour at nigh...

Dual-Light Night Vision

Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Illustrative — simulated for demonstration

§ 02Engineering

kit-tp-link-vigi6x8ch specifications

- 6 x InSight S485 8MP 4K (3840 x 2160) turret cameras for sharp, detailed footage across your site.

- 24/7 full-colour night vision: white LEDs and IR, both rated to 30 m, keep footage in colour after dark.

- AI human and vehicle classification on every camera cuts false alarms and speeds up footage searches.

- Two-way audio with a built-in microphone and speaker, plus white-light flashing for active deterrence.

- VIGI NVR1008H-8MP with 8 PoE+ ports (113W budget): one Cat5e/6 cable powers and connects each camera.

- IP67 metal cameras; 2.8mm or 4mm lens; H.265+ recording; one SATA bay for a surveillance hard drive (sold separately).

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — TP-Link 8MP 8CH CCTV Kit: 6 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 8CH NVR
FeatureDetail
Product Model InSight S485 (2.8mm/4mm)
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.005 Lux; 0 Lux with IR/White light
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Day & Night Mechanism IR Cut Filter
Day/Night Switch Unified/Scheduled/Auto
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range (WDR) 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Max. Resolution 3840 X 2160

§ 04Why choose this

Built for the way you actually use the kit-tp-link-vigi6x8ch

Colour footage at night

White-light and IR night vision keep the S485 in full colour after dark, recording detail that an IR-only kit loses to black-and-white.

Simple PoE+ cabling

Each camera runs on one network cable to the NVR for both power and data, so there are no separate power supplies at the camera.

Matched and tested

Cameras and NVR are supplied as one compatible set, so there is no guesswork pairing parts that may not work together.

Backed locally

Supplied by an authorised dealer with a 3-year warranty and Australia-wide support.

§ 05Where it fits

Right at home in these scenarios

Shops and hospitality

Cover entrances, counters and floors in 4K colour, with AI alerts that ignore passing foot and vehicle traffic.

Homes and acreage

Watch driveways, yards, gates and garages with colour night vision and two-way audio for after-hours warnings.

Warehouses and workshops

IP67 metal cameras handle dust and damp, and PoE+ cabling keeps a large floor area tidy with one cable per camera.

Offices and car parks

Read faces, vehicle colours and number plates at the entrance and across the car park, day and night.

§ 06Setup

Installation & setup

01

What it is

A matched 6-camera 8MP 4K full-colour kit with a VIGI NVR1008H-8MP 8-channel PoE+ recorder. No hard drive is included.

02

Cabling and power

Run one Cat5e/6 cable from the NVR to each camera; the NVR's PoE+ ports supply power and data, so no power adaptor is needed at the camera.

03

Add a hard drive

Fit a surveillance-grade SATA drive in the NVR before recording; for 24/7 4K a 6TB or 8TB drive is a sensible size.

04

Setup

In Australia a CCTV kit is usually fitted by a licensed security installer or a competent IT/cabling technician, who runs a Cat5e/6 cable to each camera, mounts the cameras, fits a hard drive in the NVR and adds the cameras in the VIGI app or NVR. Pick the 2.8mm or 4mm lens to suit each location and set detection and colour-night-vision modes in the app.

§ 07Questions

Frequently asked about the kit-tp-link-vigi6x8ch

Q.01

Does this kit include a hard drive?
No, the NVR1008H-8MP ships without a drive. It has one SATA bay; add a surveillance-grade hard drive, and for 24/7 4K recording a 6TB or 8TB drive is recommended.
Q.02

Do the cameras record in colour at night?
Yes. Each S485 has white LEDs rated to 30 m for full-colour night vision, separate from the IR LEDs, so footage stays in colour rather than black-and-white.
Q.03

How are the cameras powered?
Over PoE+ from the NVR. Each camera uses one Cat5e/6 cable to a PoE+ port for both power and data, so no separate power supply is needed at the camera.
Q.04

Can I mix 2.8mm and 4mm lens cameras?
Yes. The S485 comes in 2.8mm and 4mm fixed lenses and both work with this NVR. Note your preferred mix in the order comments at checkout.
Q.05

Does it have AI detection and two-way audio?
Yes. Every camera classifies people and vehicles to cut false alarms, and has a built-in microphone and speaker for two-way audio.
Q.06

Can I view it on my phone?
Yes. The kit works with the TP-Link VIGI app for live view, playback, alerts and two-way audio, and with VIGI Security Manager on a PC.
Q.07

Is it suitable for outdoors in Australia?
Yes. Each S485 has an IP67 metal housing sealed against dust and water, so it suits eaves, car parks and exposed building perimeters.
Q.08

Can I add more cameras later?
Yes. The NVR has 8 channels, so you can add more VIGI cameras up to that total and fit them to spare PoE+ ports.

§ 09Bundles

Recommended packages

01

Add a hard drive

The NVR ships without a drive. Add a surveillance HDD such as the 6TB, 8TB or 2TB for continuous 4K recording.

03

Spare or extra cameras

Expand with extra InSight S485 (2.8mm) or S485 4mm (4mm) turret cameras to fill the remaining NVR channels.

04

Mount and weatherproof

Add the VJB-300 junction box or VJB-240 wall-mount bracket for tidy, protected cabling at each camera.
