TP-Link Insight 8MP CCTV Kit: 4 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR
TP-Link Insight 8MP CCTV Kit 4 IP Turret Cameras Full-Colour Speaker Mic Light 4CH NVR
1 1
TP-Link

TP-Link Insight 8MP CCTV Kit: 4 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR

SKU: kit-tp-link-vigi4x8mp4ch
Description

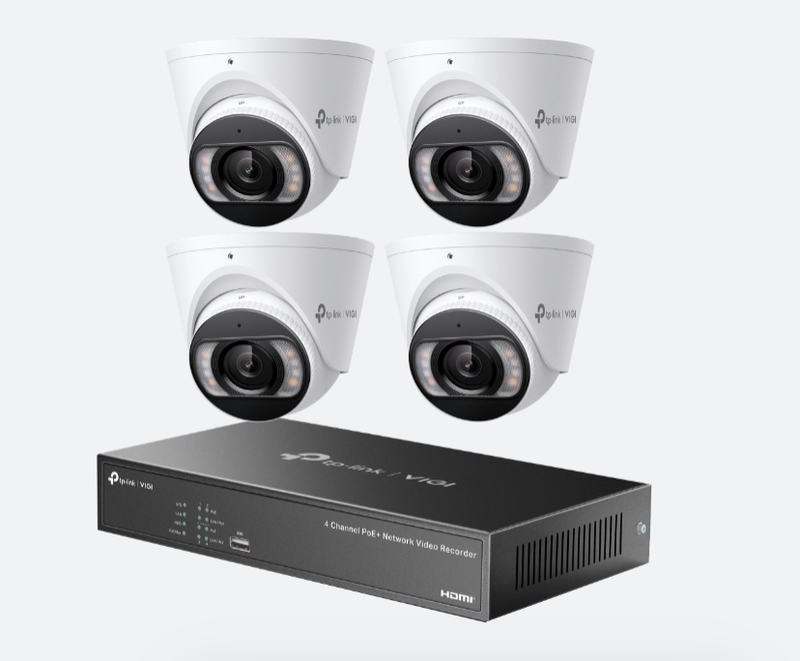

This TP-Link VIGI kit pairs four InSight S485 8MP (4K) full-colour turret cameras with the VIGI NVR1004H-4P 4-channel PoE recorder — a complete 4K system for the main approaches of a home or small business. Each camera records in true colour around the clock to about 30 metres, classifies people and vehicles to cut false alerts, and has a built-in microphone and speaker for two-way audio and active deterrence. The PoE NVR powers and connects all four cameras over a single cable each. No hard drive is included, so you can choose the storage that suits you.

Kit includes
- 4 × VIGI InSight S485 8MP 4K full-colour turret cameras (2.8 mm), IP67
- 1 × VIGI NVR1004H-4P 4-channel PoE network video recorder
- No hard drive included (add a surveillance-grade drive separately)
- All four channels used; optional 8-channel NVR upgrade for future cameras
- NDAA compliant; 3-year warranty and local support
4 cameras 8MP Ultra HD 30m IR Night Vision Dual-Light Night Vision Full Color Night Vision IP67 Weatherproof False Alarm Reduction Human/Vehicle Detection Audio Alarm Strobe Light Built-in Microphone Built-in Speaker Two-Way Audio 4 x POE PORTS
$811.80 AUD $811.80 AUD $949.50 AUD
Sale 14.5% $137.70 AUD (14.5%)
Member Price$787.45 AUD
to save $24.35 AUD · Free to join
6% off orders over $2000 $763.09 AUD BEST PRICE
When your order totals $2,000+ — applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Customize this kit Kit price $811.80
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 4 × TP-Link VIGI Insight S485 8MP 4K Turret Full-Colour Fixed Lens Camera 2.8mm
  • 1 × tp-link VIGI VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder (4ch)
  • No HDD included (add one below)
Add extra cameras Insight S485(2.8mm)
+$0.00
NVR · channels ≥ your total camera count Base: 4ch · tp-link VIGI VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories
0
0
0
0
0
0
0
0
0
Price breakdown:
  • TP-Link Insight 8MP CCTV Kit: 4 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR $811.80
Total: $811.80
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the kit-tp-link-vigi4x8mp4ch is

This TP-Link VIGI 8MP kit is a complete four-camera 4K system for the main approaches of a home or small business — front, back, drive and side, or the corners of a shop.

It brings together four InSight S485 8MP full-colour turret cameras and the VIGI NVR1004H-4P, a 4-channel recorder with built-in PoE so every camera connects over a single network cable that carries both power and data.

At 8MP (3840 × 2160) the S485 captures the fine detail that makes faces, clothing and number plates usable, and you can zoom into recorded 4K footage and still keep clarity.

It records in full colour 24/7 using a high-sensitivity sensor and white LEDs to about 30 metres, with 850 nm infrared on hand for a discreet view, also to 30 metres.

AI classification of people and vehicles keeps notifications meaningful, and a built-in microphone and speaker on each camera give you two-way audio and active deterrence.

The compact turret housings aim cleanly under an eave and resist glare, the 2.8 mm wide lens covers open areas, and the IP67 metal bodies suit outdoor weather.

Two honest notes.

This kit ships without a hard drive — add a surveillance-grade drive sized to your cameras and retention; a 2TB drive is a sensible start for four 4K cameras, with 4TB or 6TB for longer keep times.

And the recorder is a 4-channel model with all four ports used, so to add more cameras later you would step up to an 8-channel NVR, which is offered as an upgrade for this kit.

The cameras work with the VIGI app, Security Manager or web, and also support ONVIF and RTSP for third-party recorders.

TP-Link VIGI is NDAA compliant, and the kit is genuine stock with a local 3-year warranty and support.

See it in action

What the kit-tp-link-vigi4x8mp4ch features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Dual-Light Night Vision — Combines infrared with a warm spotlight so it can light a scene in colour at nigh...

Dual-Light Night Vision

Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Illustrative — simulated for demonstration

§ 02Engineering

kit-tp-link-vigi4x8mp4ch specifications

- 4 x VIGI InSight S485 8MP 4K full-colour turret cameras (3840 x 2160), IP67 metal housings
- VIGI NVR1004H-4P 4-channel recorder with 4 built-in PoE ports (one cable per camera)
- 24/7 full colour with white LEDs to about 30 m; 850 nm infrared also to 30 m
- Human and vehicle classification plus smart events (intrusion, line-crossing, loitering)
- Two-way audio and active deterrence: built-in microphone, speaker and light/on each camera
- H.265+ compression and remote access via the VIGI app, cloud VMS or web
- No hard drive included - add a surveillance-grade drive; 8-channel NVR upgrade available
- NDAA compliant; genuine stock with a local 3-year warranty and support

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — TP-Link Insight 8MP CCTV Kit: 4 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR
FeatureDetail
Product Model InSight S485 (2.8mm/4mm)
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.005 Lux; 0 Lux with IR/White light
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Day & Night Mechanism IR Cut Filter
Day/Night Switch Unified/Scheduled/Auto
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range (WDR) 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Max. Resolution 3840 X 2160

§ 04Why choose this

Built for the way you actually use the kit-tp-link-vigi4x8mp4ch

Covers the main approaches

Four 8MP 4K cameras handle front, back, drive and side on one tidy PoE recorder.

Evidence-grade 4K

8MP detail captures faces and plates clearly and lets you zoom into recorded footage and keep clarity.

Colour all night

White LEDs keep footage in true colour to about 30 m, so detail stays usable after dark.

Speak and deter

Built-in audio and a light/on every camera let you warn someone off in real time.

§ 05Where it fits

Right at home in these scenarios

Family home

Cover the front door, driveway, backyard and side gate with 4K colour footage day and night.

Retail or hospitality

Watch entries, the floor and service areas with accurate people and vehicle alerts.

Small office or warehouse

IP67 cameras and PoE cabling suit indoor and outdoor points across a single floor plan.

Rental and trade sites

Remote VIGI app access and loitering detection suit after-hours monitoring off-site.

§ 06Setup

Installation & setup

01

What's in the box

Four VIGI InSight S485 turret cameras (2.8 mm) with mounting accessories, one VIGI NVR1004H-4P recorder and guides. A hard drive, network cables and a monitor are supplied separately.

02

Installation requirements

Mount the four cameras over the approaches you want, run one network cable from each to the NVR's PoE ports, and fit a surveillance-grade hard drive before recording. Configure the system in the VIGI app or on a monitor, then test each view and the night mode before relying on it.

§ 07Questions

Frequently asked about the kit-tp-link-vigi4x8mp4ch

Q.01

Is a hard drive included with this kit?
No. This kit ships without a hard drive so you can match storage to your needs. Add a surveillance-grade drive such as a WD Purple or Seagate Skyhawk; a 2TB drive is a sensible start for four 4K cameras, with 4TB or 6TB for longer retention.
Q.02

Does this kit record in full colour at night?
Yes. All four S485 cameras keep full colour in low light using white LEDs to around 30 metres, and can switch to 850 nm infrared, also to 30 metres, for a discreet view. Colour night footage makes identifying clothing and vehicle details much easier than infrared-only cameras.
Q.03

Can I add more cameras to this system?
This kit uses all four channels of the NVR. To add more cameras you would move up to an 8-channel recorder, which is offered as an upgrade for this kit and gives room for up to four extra cameras without replacing it later.
Q.04

How does the two-way audio and active deterrence work?
Each camera has a built-in microphone and speaker. Through the VIGI app you can listen to the scene and speak back, and on a detected person or vehicle the camera can flash its light and sound an alarm to warn the intruder off and notify you.
Q.05

Will the cameras work with a non-VIGI recorder?
Yes. They support ONVIF and RTSP, so they can be added to a third-party NVR, NAS or software that supports ONVIF, including many Hikvision and Dahua recorders. For the full smart-event and management features, the included VIGI NVR is recommended.
Q.06

What lens do the cameras use, and can I change it?
They ship with the 2.8 mm wide-angle lens for about a 111-degree view of open areas. A 4 mm option is available for a tighter, longer view — note it in the order comments at checkout and the correct cameras will be supplied.
Q.07

Is the kit suitable for outdoor use, and is it NDAA compliant?
Yes on both. The cameras carry IP67-rated metal housings for rain, dust and heat, and TP-Link VIGI is NDAA compliant, which suits sites with approved-hardware requirements. The kit is genuine stock with a local 3-year warranty.

§ 08In motion

TP-Link | VIGI Tutorial | How to Install and Manage VIGI Products

TP-Link | VIGI Tutorial | How to Install and Manage VIGI Products

§ 09Bundles

Recommended packages

01

Add a hard drive to record

This kit ships without a drive — add a surveillance-grade 2TB drive or 6TB drive sized to your retention.

03

Prefer a bullet look?

The 4-camera S385 bullet kit uses the same 8MP class in a visible bullet form on a 4-channel NVR.

04

Plan for expansion

Add extra InSight S485 8MP cameras after moving up to an 8-channel NVR.
