TP-Link VIGI S485 2.8mm 4K CCTV Kit – 2 Cameras + 4CH NVR, No HDD
1 1
TP-Link

TP-Link VIGI S485 2.8mm 4K CCTV Kit – 2 Cameras + 4CH NVR, No HDD

SKU: kit-tp-link-vigi2x8mp4ch
Description

This TP-Link VIGI kit pairs 2 InSight S485 8MP 4K turret cameras with fixed 2.8mm lenses and one NVR1004H-4P 4-channel PoE recorder for two key positions such as an entrance and driveway.

Each camera supports two-way audio, human and vehicle classification, audible warning and flashing white light. Infrared produces black-and-white night video; colour in darkness requires the built-in white light.

Storage: No hard drive is included. Add a compatible surveillance hard drive and initialise the recorder before using NVR recording. 2 recorder inputs remain available. Extra cameras must fit the recorder bandwidth and PoE budget and are sold separately. Network cabling, a monitor and installation are separate.

2 cameras 8MP Ultra HD 30m IR Night Vision Full Color Night Vision IP67 cameras False Alarm Reduction Human/Vehicle Detection Audio Alarm Strobe Light Built-in Microphone Built-in Speaker Two-Way Audio 4 x POE PORTS
$474.55 AUD $474.55 AUD $555.00 AUD
Sale 14.5% $80.45 AUD (14.5%)

Log in to save 3%

Apply for TradePrice Match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit $474.55
This kit includes: Cabling not included — add cables in the accessories below (one per camera).

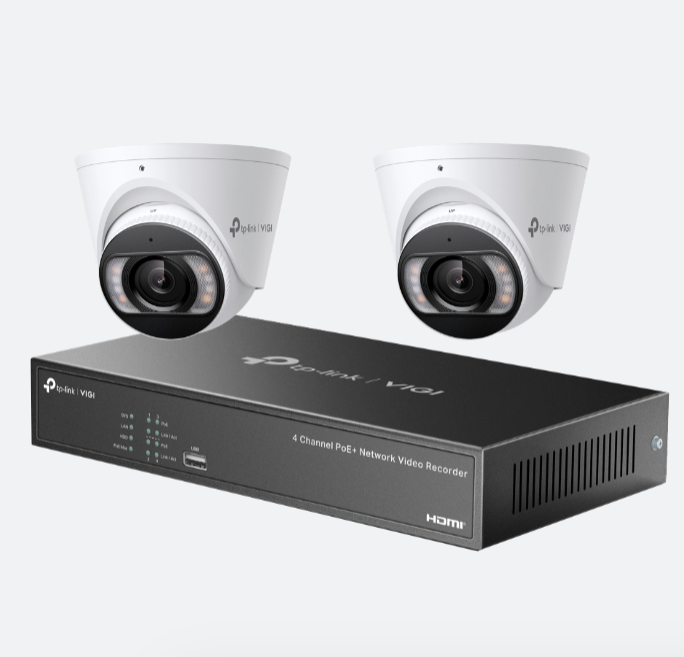

  • 2 × TP-Link VIGI InSight S485 8MP 4K PoE Turret Camera – 2.8mm
  • 1 × tp-link VIGI VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder (4ch)
  • No HDD included (add one below)
Add extra cameras Insight S485(2.8mm)
+$0.00
NVR · channels ≥ your total camera count Base: 4ch · tp-link VIGI VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Monitor
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • TP-Link VIGI S485 2.8mm 4K CCTV Kit – 2 Cameras + 4CH NVR, No HDD $474.55
Total: $474.55

01Overview

What the kit-tp-link-vigi2x8mp4ch is

Plan 2 separate views with S485 2.8mm cameras and one 4-channel PoE recorder. The cameras provide a 111.4° horizontal field of view for wide-area coverage. Mounting distance, angle, lighting and subject movement determine identifiable detail; 4K resolution is not a guarantee of reading number plates.

The supplied NVR1004H-4P powers and connects the cameras through individual Ethernet cables. No hard drive is included. Add a compatible surveillance hard drive and initialise the recorder before using NVR recording.

Use infrared where black-and-white night viewing is suitable, or white-light colour when colour information matters. Configure detection areas and warning actions for each location. 2 recorder inputs remain available. Extra cameras must fit the recorder bandwidth and PoE budget and are sold separately.

See it in action

What the kit-tp-link-vigi2x8mp4ch features actually look like

Representative illustrations of how each key feature performs in a real scene.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Strobe Light — On detecting activity, the camera can trigger a bright flashing strobe to make an intruder a...

Strobe Light

On detecting activity, the camera can trigger a bright flashing strobe to make an intruder aware they've been spotted — a visible warning rather than silent recording.

02Engineering

kit-tp-link-vigi2x8mp4ch specifications

- 2 × TP-Link VIGI InSight S485 8MP cameras with fixed 2.8mm lenses.
- 1 × NVR1004H-4P with 4 camera inputs and 4 PoE ports.
- No HDD included; NVR recording requires a separately selected drive.
- IR and white-light illumination rated up to 30m; this is not an identification-distance guarantee.
- Human and vehicle classification, line-crossing and intrusion detection; configure rules to reduce unwanted alerts.
- Built-in microphone and speaker for two-way audio; audible warning and white-light flashing.
- IP67 camera housings; protect cable connections and install the recorder indoors.
- 2 recorder inputs remain available. Extra cameras must fit the recorder bandwidth and PoE budget and are sold separately.

03Full datasheet

Detailed specifications

Package

Package — TP-Link VIGI S485 2.8mm 4K CCTV Kit – 2 Cameras + 4CH NVR, No HDD
FeatureDetail
Camera quantity 2
Camera model / lens InSight S485 / 2.8mm fixed
Recorder NVR1004H-4P
Included HDD None; hard drive sold separately
Unused camera inputs 2
Network cabling / monitor / installation Separate

04Why choose this

Built for the way you actually use the kit-tp-link-vigi2x8mp4ch

A defined 2-camera layout

Allocate each camera to a specific access route or area and check the view before final mounting.

Choose the night view

Infrared provides black-and-white footage. White light supports colour video in darkness where visible illumination is suitable.

Listen and respond

Use supported VIGI tools for two-way talk and configure audible or flashing-light warnings.

Understand the supplied storage

No hard drive is included. Add a compatible surveillance hard drive and initialise the recorder before using NVR recording.

05Where it fits

Right at home in these scenarios

Home access routes

Plan the 2 views around the entrance, driveway, side access and other relevant areas; avoid relying on distant digital zoom for identification.

Shops and business premises

Position cameras around entry, stock, deliveries and rear access. Configure each detection zone for its surroundings.

Indoor and outdoor camera positions

The camera housings are IP67-rated. Keep the recorder in a dry, ventilated indoor location and protect external connections.

06Setup

Installation & setup

  1. Included configuration

    2 × S485 8MP turret cameras with 2.8mm lenses; 1 × NVR1004H-4P 4-channel PoE NVR; no hard drive included. Network cabling, a monitor, microSD cards and installation are separate.

  2. Connect and configure

    Run one suitable Ethernet cable from each camera to the NVR. No hard drive is included. Add a compatible surveillance hard drive and initialise the recorder before using NVR recording. Set passwords, time, recording schedules and authorised remote access. An internet connection is required for off-site access.

  3. Check the installation

    Test daylight and night views, audio, alerts and sample playback. Camera maximum PoE loads total 25W before cable losses; the recorder has a stated 53W PoE budget. Check the complete cable and power plan.

08Questions

Frequently asked about the kit-tp-link-vigi2x8mp4ch

Q.01

Is a hard drive included?
No hard drive is included. Add a compatible surveillance hard drive and initialise the recorder before using NVR recording.
Q.02

Which cameras and lens are supplied?
This configuration includes 2 InSight S485 cameras with fixed 2.8mm lenses and a 111.4° horizontal field of view.
Q.03

Can I add more cameras?
2 recorder inputs remain available. Extra cameras must fit the recorder bandwidth and PoE budget and are sold separately.
Q.04

Do the cameras record in colour in complete darkness?
Colour video in darkness needs the built-in white light. Infrared night viewing is black and white. The 30m illumination rating does not guarantee identifying a face or reading a number plate at 30m.
Q.05

How long will recordings be kept?
Retention depends on storage capacity, all 2 cameras, bitrate, compression, frame rate, scene activity and recording schedules. Set the required retention and verify actual use after installation; there is no fixed number of weeks for every setup.
Q.06

Can every camera be displayed at 4K simultaneously?
Recording resolution and simultaneous decoding are different specifications. The NVR1004H-4P datasheet lists 25fps decoding examples of 2 × 8MP or 4 × 4MP. Configure substreams for multi-camera viewing and main streams for recording within the recorder bandwidth.
Q.07

Can all camera features run at maximum settings together?
Up to 25fps; maximum 20fps with 120dB WDR, 90°/270° image rotation or People & Vehicle Analytics enabled. With People & Vehicle Analytics enabled, only DWDR is supported. People & Vehicle Analytics requires TP-Link-specified VIGI software; check the installed firmware and software. This is distinct from basic human/vehicle classification.
Q.08

Can I use microSD recording or another recorder?
Each S485 supports a suitable microSD card up to 512GB, sold separately. Camera-card recording is separate from the included NVR: it does not supply a hard drive to the recorder. ONVIF support does not guarantee all features with another recorder; check the exact model, firmware and codecs.
Q.09

What do I need for installation and remote viewing?
Allow for Ethernet cabling, suitable mounting and recorder storage. Configure the cameras, recorder, network and VIGI viewing tools, then test playback. Off-site viewing needs a working internet connection.
