TP-Link VIGI S485 4-Camera 4K CCTV Kit + 4CH NVR + WD 2TB

SKU: KIT-S485-4CAM-4CH-WD2TB
Description

Four 4K camera views. A PoE recorder. WD 2TB storage included. This TP-Link VIGI InSight S485 kit brings the core recording equipment together for your home, shop or small business.

See 8MP detail, speak through the cameras with two-way audio, and use human and vehicle classification to focus motion alerts. Built-in white lights support colour viewing after dark; infrared is available for black-and-white night vision.

Includes 4 × S485 cameras, 1 × 4-channel PoE NVR and 1 × WD 2TB surveillance hard drive. Network cabling, a monitor and installation are separate. Promotion available while stocks last.

4 cameras 8MP Ultra HD IP67 cameras Human/Vehicle Detection Two-Way Audio 4 x POE PORTS
$922.68 AUD $922.68 AUD $1,349.25 AUD
Sale 31.62% $426.57 AUD (31.62%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit $922.68
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 4 × TP-Link VIGI Insight S485 8MP 4K Turret Full-Colour Fixed Lens Camera 2.8mm

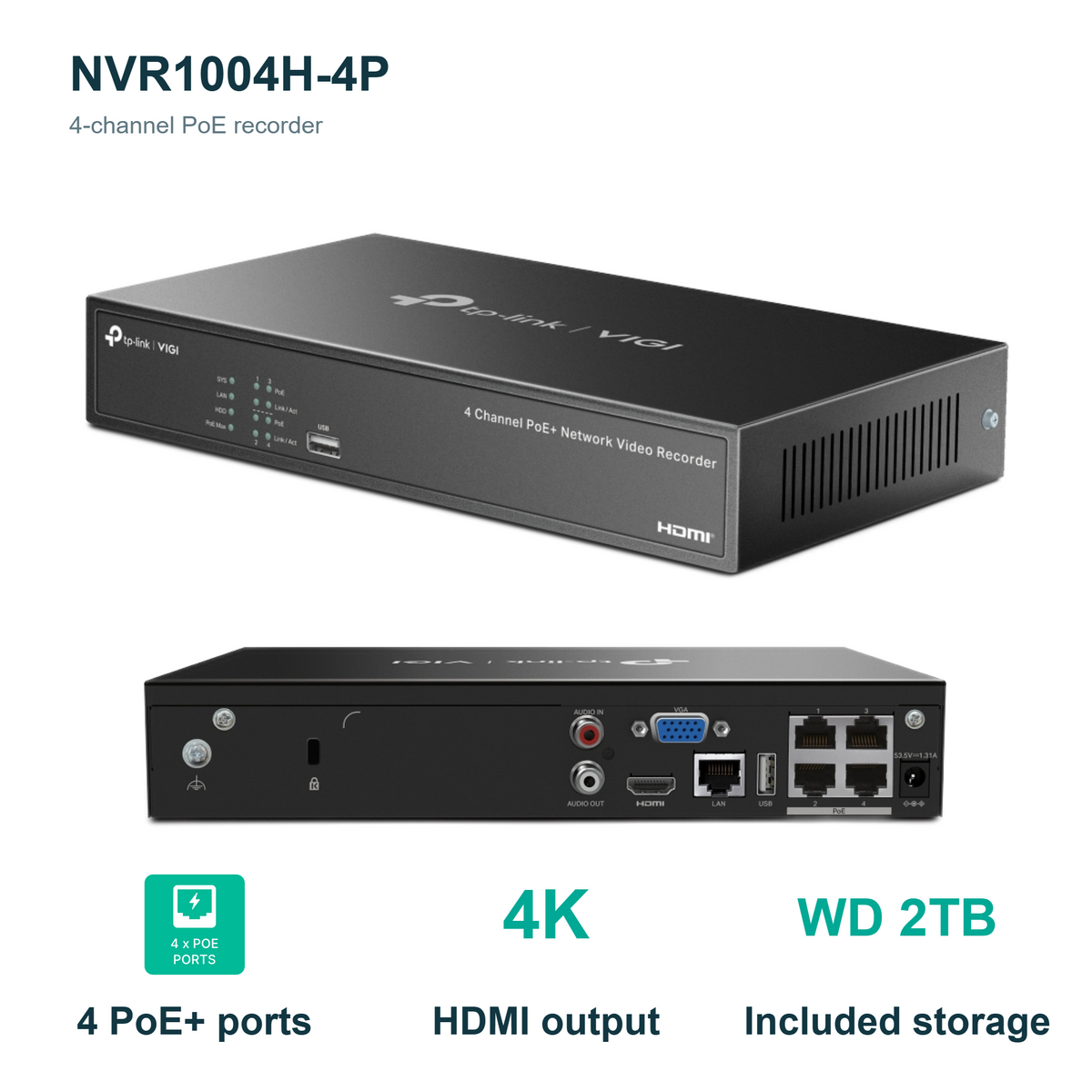

  • 1 × tp-link VIGI VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder (4ch)
  • Hard drive configuration as supplied with this kit. See the kit specifications.
Add extra cameras Insight S485(2.8mm)
+$0.00
NVR · channels ≥ your total camera count Base: 4ch · tp-link VIGI VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder
Hard Drive Fixed configuration

The hard drive configuration is fixed for this kit and cannot be changed here.

Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • TP-Link VIGI S485 4-Camera 4K CCTV Kit + 4CH NVR + WD 2TB $922.68
Total: $922.68

01Overview

What the KIT-S485-4CAM-4CH-WD2TB is

Start with four views that matter: the entrance, driveway, side access and backyard. For a shop, use the same four-camera layout around the doorway, counter, stock area and rear access. Set each view for the detail you need at the actual distance.

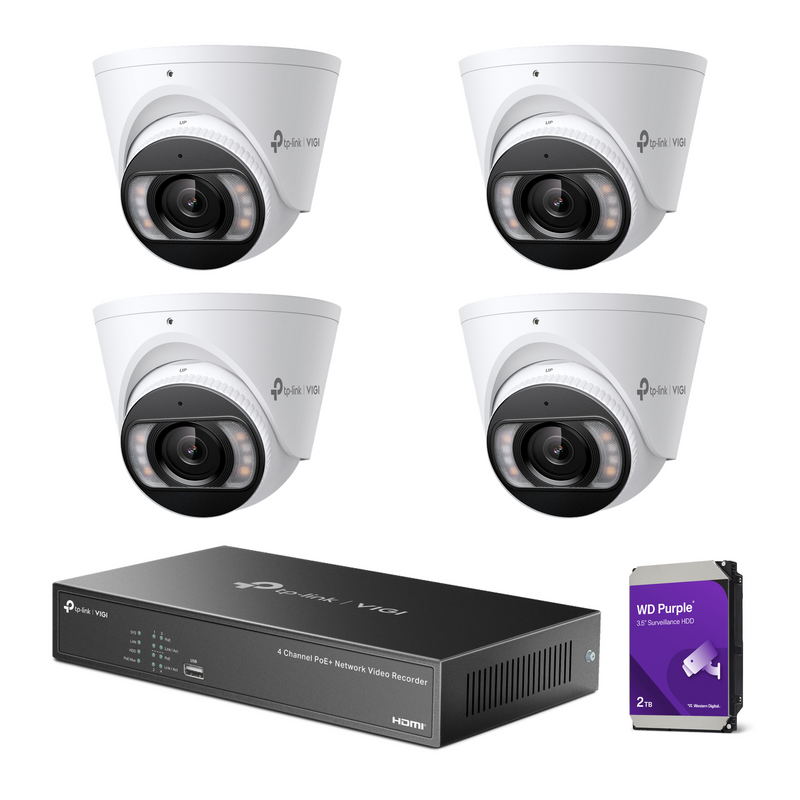

This kit contains 4 white TP-Link VIGI InSight S485 8MP turret cameras with 2.8mm fixed lenses, one NVR1004H-4P 4-channel PoE recorder and one WD 2TB surveillance hard drive. The drive is part of this package, so there is no separate storage purchase to make before configuring NVR recording.

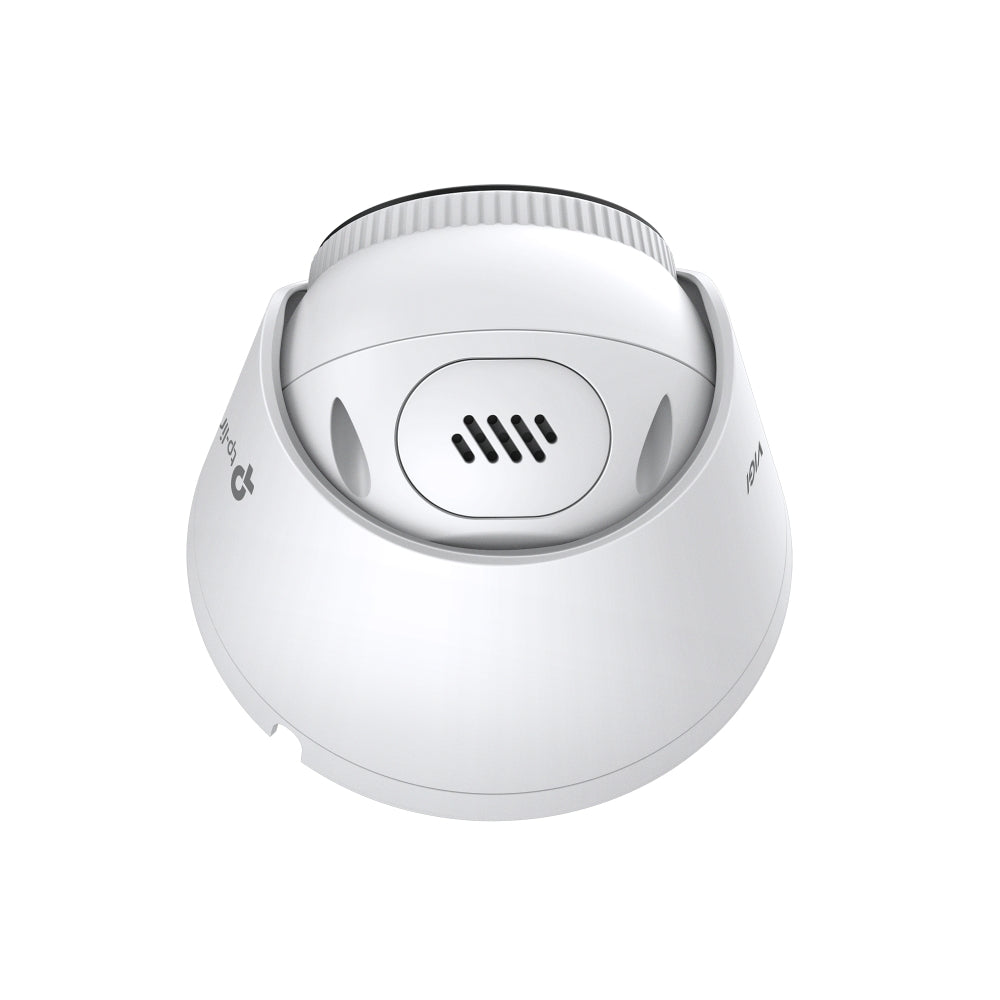

Each camera has a built-in microphone and speaker for two-way audio, human and vehicle classification, audible warning and white-light flashing. IR and white-light illumination are rated up to 30m; colour viewing after dark requires suitable ambient light or the camera's white lights.

The four supplied cameras occupy all four recorder inputs. Choose this compact configuration when you already know your four camera positions. If more views are likely, compare the six-camera kit with an 8-channel recorder.

02Engineering

KIT-S485-4CAM-4CH-WD2TB specifications

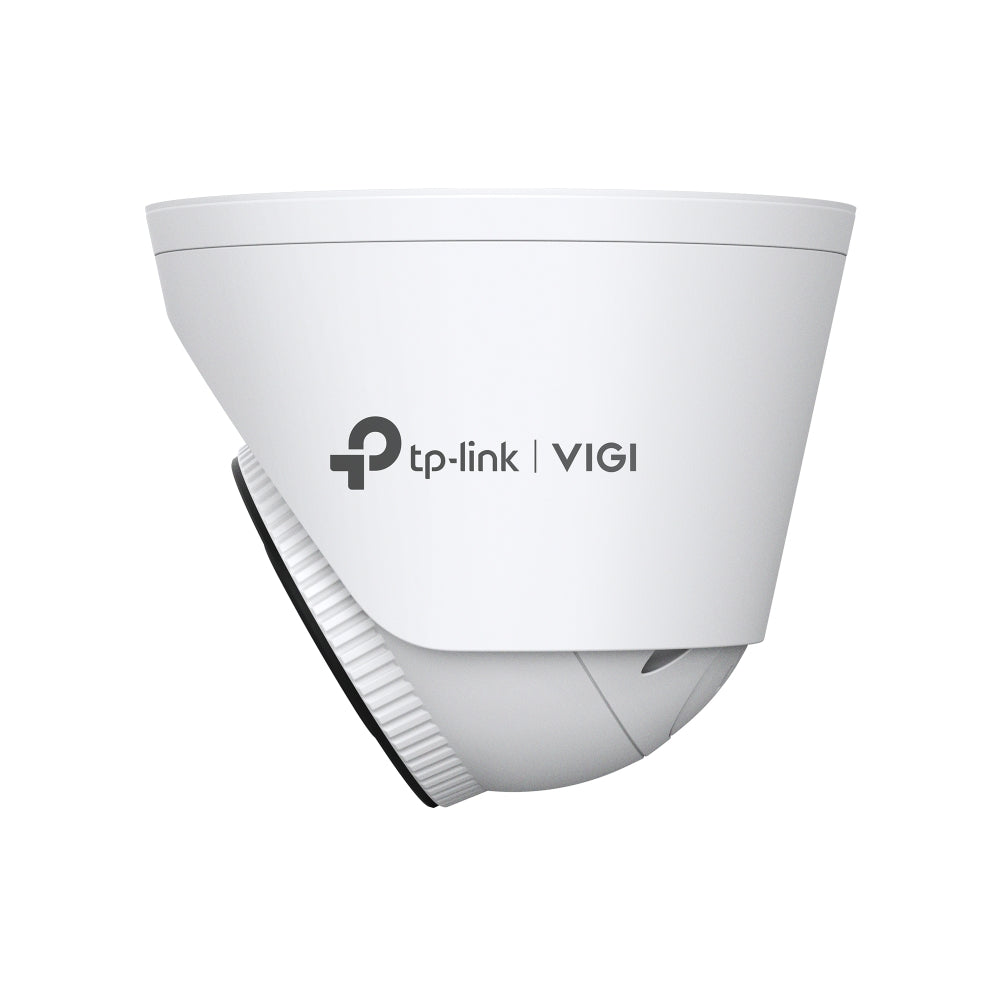

- 4 × S485 8MP cameras — up to 3840 × 2160 resolution, white turret housings and 2.8mm fixed lenses.
- WD 2TB storage included — a surveillance hard drive supplied as part of this kit.
- 4CH PoE recording — one recorder for the supplied 4 views; Ethernet carries camera power and video.
- Two-way audio — built-in microphone and speaker in every supplied camera.
- Human and vehicle classification — focus motion detection on people and vehicles.
- Active warnings — audible warning and white-light flashing, configured for the scene.
- Night viewing — up to 30m IR or white-light illumination; colour requires suitable light.
- IP67 cameras — suitable for indoor or outdoor positions with protected connections.
- Four defined camera positions — all recorder inputs are allocated.

03Full datasheet

Detailed specifications

Package

Package — TP-Link VIGI S485 4-Camera 4K CCTV Kit + 4CH NVR + WD 2TB
FeatureDetail
Cameras 4 × TP-Link VIGI InSight S485
Recorder 1 × NVR1004H-4P
Included drive 1 × WD 2TB surveillance HDD
Camera finish / lens White / 2.8mm fixed
Unused camera inputs 0
Network cabling / monitor / installation Separate

04Why choose this

Built for the way you actually use the KIT-S485-4CAM-4CH-WD2TB

The core equipment, already together

Four cameras, a matching 4-channel recorder and WD 2TB storage are combined in one fixed package. Focus on planning the cable routes and camera positions.

4K detail where it matters

Each S485 supports 8MP recording. Choose mounting angles and distances for the details you need, then check sample footage on the actual site.

See, hear and respond

Use the built-in microphone and speaker for two-way communication through supported VIGI tools. Configure audible and light warnings for the events and positions where they are useful.

Storage is part of the deal

A WD 2TB surveillance hard drive is included. Set the recording schedule and bitrate to suit your required retention.

05Where it fits

Right at home in these scenarios

Home entrances and approaches

Allocate a camera to the front entrance, driveway, side passage and backyard. Check angles for people approaching doors and for activity around access routes.

Shops and small offices

Plan views around entry, the counter, a stock area and rear access. Human and vehicle classification can help target relevant activity; configure privacy and audio settings for the site.

Indoor and outdoor positions

Use the IP67 camera housings outside or inside. Protect cable joints from weather and place the recorder in a dry, ventilated indoor location.

06Setup

Installation & setup

  1. Included in this package

    • 4 × TP-Link VIGI InSight S485 8MP turret cameras, white, 2.8mm
    • 1 × NVR1004H-4P 4-channel PoE recorder
    • 1 × WD 2TB surveillance hard drive
    • Standard manufacturer-supplied mounting and recorder accessories. Network cabling, monitor, microSD cards and installation are separate.

  2. Connect, initialise and set recording

    • Plan and label the 4 camera positions and cable routes.
    • Use one suitable Ethernet cable between each camera and the recorder's PoE ports.
    • Fit or check the included HDD as applicable, initialise the recorder and drive, set strong passwords and the correct time.
    • Configure camera streams, recording schedules, alerts and authorised remote access.

  3. Check every view before handover

    Verify day and night views, test two-way audio where enabled and play back a sample recording from each camera. Check weatherproofing and cable runs. The camera-set maximum PoE demand is 50W before cable losses against the recorder's stated 53W budget; have the installer verify the complete cable and power plan.

08Questions

Frequently asked about the KIT-S485-4CAM-4CH-WD2TB

Q.01

Is the WD hard drive included?
Yes. One WD 2TB surveillance hard drive is included with this kit. It is not an optional add-on to the advertised configuration. HDD installation and initialisation must be checked before recording is used.
Q.02

Can I add more cameras later?
The four supplied cameras use all four NVR inputs. More cameras require a larger or additional recorder. Compare the six-camera kit if you want an 8-channel starting point.
Q.03

Does full-colour mean the camera sees colour in total darkness?
Colour viewing needs suitable ambient light or the built-in white lights. The S485 also has infrared illumination for black-and-white night vision. Choose the lighting mode for the scene and check the result after dark.
Q.04

How long will the included drive record?
There is no single fixed recording duration. Retention depends on all 4 cameras, bitrate, frame rate, compression, scene activity and recording schedules. Configure these settings for the required retention and verify actual storage use.
Q.05

Can I view all cameras at full 4K quality simultaneously?
The cameras support 8MP streams, but the recorder's simultaneous decoding capacity is separate from its input count. The documented 25fps decoding examples include 2 × 8MP or 4 × 4MP. Configure suitable substreams for the multi-camera grid and main streams for the required recordings.
Q.06

What do I need for remote viewing and installation?
The package supplies the cameras, recorder and stated WD storage. Allow for Ethernet cabling, suitable mounting, a local monitor if needed and installation. Remote viewing requires the recorder to be connected to a suitable internet connection and configured with the VIGI app or supported tools.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

02

Already planning separate storage?

Our S485 four-camera No HDD kit lets you choose storage separately. This promotional package already includes WD 2TB.
