TP-Link CCTV Kit: 4 x 8MP IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR with 2TB
This TP-Link VIGI kit pairs four InSight S485 8MP (4K) full-colour turret cameras with a VIGI NVR1004H-4P 4-channel PoE recorder and a pre-installed 2TB surveillance hard drive — a ready-to-record 4K system out of the box. Each camera records in true colour around the clock to about 30 metres, classifies people and vehicles to cut false alerts, and has a built-in microphone and speaker for two-way audio and active deterrence. The PoE NVR powers and connects all four cameras over a single cable each, and recording starts the moment it is powered on.

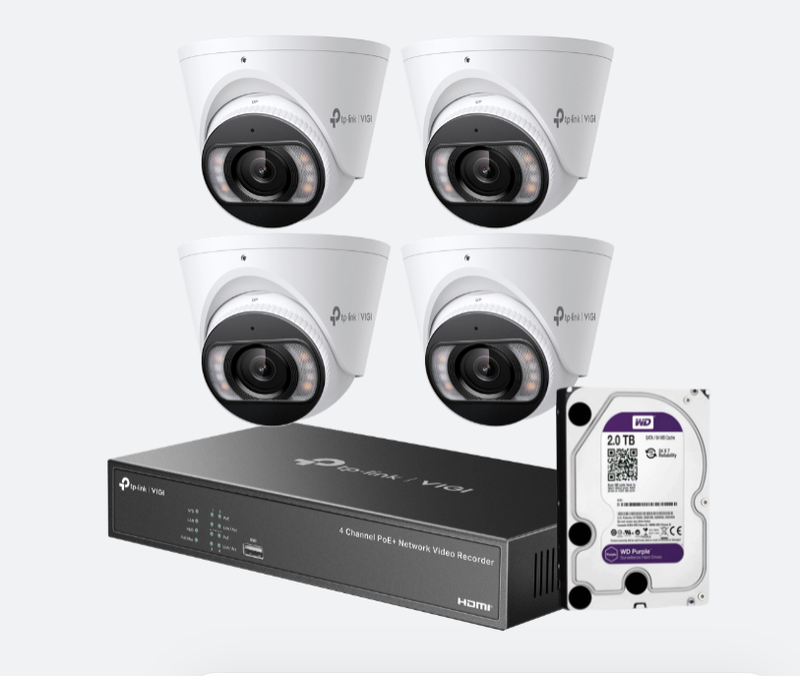

Kit includes
- 4 × VIGI InSight S485 8MP 4K full-colour turret cameras (2.8 mm), IP67
- 1 × VIGI NVR1004H-4P 4-channel PoE network video recorder
- 1 × 2TB surveillance-grade hard drive, pre-installed
- Two-way audio, active deterrence and human/vehicle AI on every camera
- NDAA compliant; 3-year warranty and local support
$891.21 AUD
BEST PRICE
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Customize this kit Kit price $948.10
- 4 × TP-Link VIGI Insight S485 8MP 4K Turret Full-Colour Fixed Lens Camera 2.8mm
- 1 × tp-link VIGI VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder (4ch)
- 1 × 2TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (2TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the kit-tp-link-vigi4x8mp4ch-FREENVR-2TB is
This TP-Link VIGI 8MP kit is a ready-to-record 4K system for a home or small business that wants evidence-grade detail.
It brings together four InSight S485 8MP full-colour turret cameras, the VIGI NVR1004H-4P 4-channel PoE recorder, and a 2TB surveillance-grade hard drive that comes pre-installed — so the system records the moment it is powered on, with no extra parts to buy first.
At 8MP (3840 × 2160) the S485 cameras capture the fine detail that makes faces, clothing and number plates usable, and you can zoom into recorded 4K footage and still keep clarity.
They record in full colour 24/7 using a high-sensitivity sensor and white LEDs to about 30 metres, with infrared on hand for a discreet view.
AI classification of people and vehicles keeps notifications meaningful, and a built-in microphone and speaker on each camera give you two-way audio and active deterrence — speak to a visitor or warn an intruder off live from your phone.
The IP67 metal housings suit outdoor use, and the NVR powers all four cameras over single PoE cables.
A couple of honest notes.
The included 2TB drive is a solid start, but 4K across four cameras fills storage faster than 1080p — if you want a month or more of continuous footage, step up to a 4TB or 6TB surveillance drive.
And the NVR is a 4-channel model, so all four ports are used; if you expect to add cameras, plan for an 8-channel recorder from the start.
The cameras ship with the 2.8 mm wide lens, with a 4 mm option on request in the order comments.
TP-Link VIGI is NDAA compliant, and the kit is genuine stock with a local 3-year warranty and support.
See it in action
What the kit-tp-link-vigi4x8mp4ch-FREENVR-2TB features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision
Dual-Light Night Vision
Full Color Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Two-Way Audio
Illustrative — simulated for demonstration
§ 02Engineering
kit-tp-link-vigi4x8mp4ch-FREENVR-2TB specifications
- VIGI NVR1004H-4P 4-channel recorder with 4 built-in PoE ports (one cable per camera)
- 2TB surveillance-grade hard drive included and pre-installed — records out of the box
- 24/7 full colour with white LEDs to about 30 m; 850 nm infrared also to 30 m
- Human and vehicle classification plus smart events to cut false alerts
- Two-way audio and active deterrence: built-in microphone, speaker and light/siren on each camera
- H.265+ compression and remote access via the VIGI app, cloud VMS or web
- NDAA compliant; genuine stock with a local 3-year warranty and support
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Product Model | InSight S485 (2.8mm/4mm) |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Day & Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range (WDR) | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Max. Resolution | 3840 X 2160 |
Lens & Distance
| Feature | Detail |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm; 2.8mm |
| Aperture | F1.6 |
| FOV | 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° | 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: Detect: 85 m (278 ft); Observe: 35 m (116 ft); Recognize: 17 m (56 ft); Identify: 8 m (28 ft) | 4 mm: Detect: 107 m (350 ft); Observe: 44 m (146 ft); Recognize: 21 m (70 ft); Identify: 11 m (35 ft) |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| IR LED | Quantity: 4; Range: 30 m; Wavelength: 850 nm |
| White LED | Quantity: 4; Range: 30 m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Feature | Detail |
|---|---|
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | Notes: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. When People & Vehicle Analytics is enabled, the frame rate can only support up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 | Notes: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. When People & Vehicle Analytics is enabled, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main stream: H.265/H.265+/H.264/H.264+; Sub-stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
Audio
| Feature | Detail |
|---|---|
| Audio Communication | Two-way audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Human & Vehicle Classification | Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. |
| Smart Detection | Line-Crossing Detection; Intrusion Detection; Abandoned Object Detection; Object Removal Detection; Region Exiting Detection; Region Entering Detection; Scene Change Detection; Loitering Detection |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| API | Open Network Video Interface (Profile S/T/G) |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web, VMS Local, VIGI Cloud VMS |
| Cloud | Yes |
| ONVIF | Yes |
Event & Alarm
| Feature | Detail |
|---|---|
| Smart Event | Human & Vehicle Classification; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection |
| Basic Event | Motion Detection; Video Tampering Detection; Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording; Message Push; Audible Warning; White Light Flashing |
| Output Notification | Message Push |
Interface
| Feature | Detail |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Reset Button | Yes |
| Power | DC Power Port |
General & Environment
| Feature | Detail |
|---|---|
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-condensing) |
| Storage Humidity | 95% or Less (Non-condensing) |
| Power Supply | 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12.5 W |
| Material | Metal |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm) |
| Package Contents | VIGI Network Camera; Quick Start Guide; Waterproof Cable Attachments; Mounting Accessories |
| Net Weight | 0.48 Kg |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
§ 04Why choose this
Built for the way you actually use the kit-tp-link-vigi4x8mp4ch-FREENVR-2TB
Evidence-grade 4K
8MP cameras capture faces and plates clearly and let you zoom into recorded footage and keep detail.
Colour all night
White LEDs hold true colour to about 30 m, so night footage stays usable rather than washed out.
Speak and deter
Built-in audio and a light/siren on every camera let you warn off an intruder live from your phone.
§ 05Where it fits
Right at home in these scenarios
Home 4K coverage
Cover the front, drive, back and side in 4K colour with two-way audio at the entry points.
Retail shopfront
Capture evidence-quality footage of the entrance and floor, with talk-down deterrence after hours.
Workshop or yard
Wide-angle IP67 cameras cover open areas and log vehicle movement in detail.
Rental or strata
A self-contained NVR kit with remote app access suits managed or shared properties.
§ 06Setup
Installation & setup
What's in the box
Four VIGI InSight S485 8MP turret cameras (2.8 mm) with mounting accessories, one VIGI NVR1004H-4P recorder with a pre-installed 2TB hard drive, and guides. Network cables and a monitor are supplied separately.
Installation requirements
Mount the four cameras over the approaches you want, run one network cable from each to the NVR's PoE ports, and connect a monitor to set up. The 2TB drive is already fitted, so recording starts on power-up; check each view, the night mode and the AI rules before relying on it.
§ 07Questions
Frequently asked about the kit-tp-link-vigi4x8mp4ch-FREENVR-2TB
Q.01
Does this kit come with a hard drive?
Q.02
How long will the 2TB drive hold footage for four 8MP cameras?
Q.03
Do the cameras record in colour at night?
Q.04
What does the active deterrence and two-way audio do?
Q.05
Can I add more cameras to this kit?
Q.06
Will the cameras work with another brand of NVR?
Q.07
Is the kit suitable for Australian outdoor use and is it NDAA compliant?
§ 09Bundles
Recommended packages
Extend the recording time
The 2TB drive is included; for a month or more of 4K footage add a larger surveillance 6TB drive or 2TB drive.
Prefer 5MP or fewer cameras?
Compare the 5MP 4-camera kit or 2-camera kit if you do not need 4K detail.
Want more 8MP cameras?
For six 8MP cameras and an 8-channel NVR, look at the VIGI C485 6-camera kit.
Add matching cameras
Expand on a larger NVR with extra InSight S485 8MP turret cameras.
