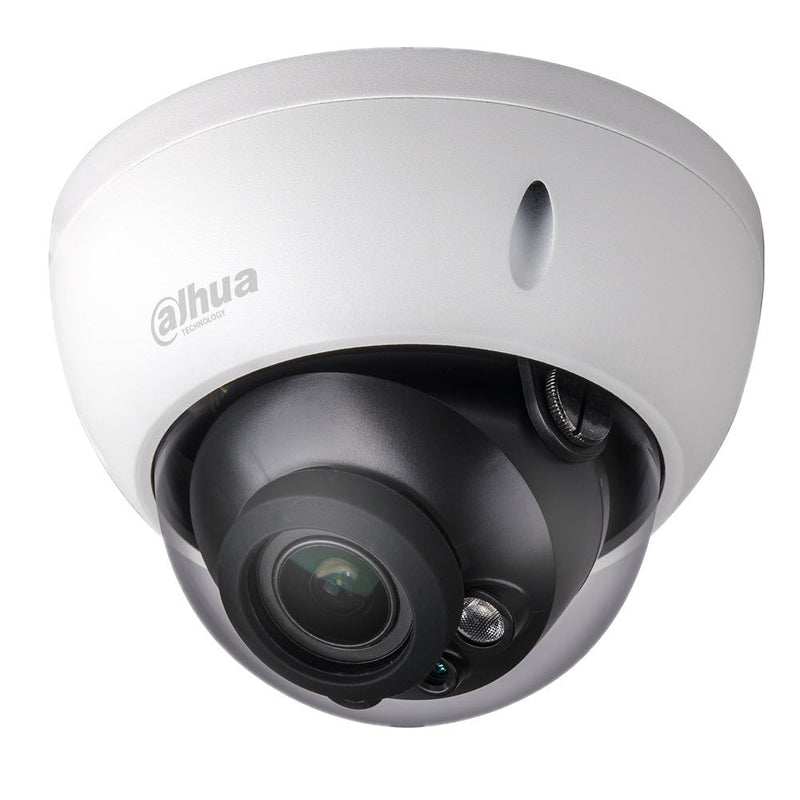

Dahua IPC-HDBW5631RP-ZE-27135 6MP Dome Motorised Network Camera, Zoom Function, WDR 50m IR
1 1
Dahua

Dahua IPC-HDBW5631RP-ZE-27135 6MP Dome Motorised Network Camera, Zoom Function, WDR 50m IR

SKU: DH-IPC-HDBW5631RP-ZE-27135
Description

6MP motorised varifocal vandal dome with Starlight low light and 50m Smart IR for high-detail outdoor and commercial coverage.

  • 1/2.9" 6MP STARVIS CMOS, 3072 x 2048
  • Motorised 2.7-13.5mm varifocal lens, F1.6, 5x zoom
  • Starlight low light and 120dB true WDR
  • Smart IR up to 50m
  • IVS tripwire, intrusion and face detection
  • Built-in microphone
  • Smart H.265+ for efficient storage
  • IP67 and IK10 metal dome; PoE or 12V DC
6MP Ultra HD 50m IR Night Vision IP67 Weatherproof Built-in Microphone
$429.20 AUD $429.20 AUD $438.00 AUD
Sale 2.01% $8.80 AUD (2.01%)
Installation in Sydney & Melbourne Through licensed local installers
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $1,024.60

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $429.20

01Overview

What the DH-IPC-HDBW5631RP-ZE-27135 is

The Dahua DH-IPC-HDBW5631RP-ZE-27135 is a 6MP motorised varifocal vandal dome that pairs a 1/2.9-inch STARVIS sensor with Starlight low-light technology and 50m Smart IR for clear, high-detail footage day and night. A 2.7-13.5mm motorised lens gives 5x optical adjustment so installers can set the field of view remotely without returning to the camera, and 120dB true WDR holds detail in high-contrast scenes such as sunlit entries and car parks.

The 6MP resolution resolves faces and licence plates for evidentiary review, while Smart H.265+ keeps storage and bandwidth down. IVS tripwire and intrusion, face detection and a built-in microphone add to the package, and an IP67, IK10 metal dome with PoE (802.3af) or 12V DC power suits exposed and public-facing positions. This is an established Eco-Savvy model; a current WizSense 8MP dome is available where on-camera human and vehicle classification is required.

See it in action

What the DH-IPC-HDBW5631RP-ZE-27135 features actually look like

Representative illustrations of how each key feature performs in a real scene.

6MP Ultra HD — 6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a fac...

6MP Ultra HD

6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (1/2)
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (2/2)

50m IR Night Vision

Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

02Engineering

DH-IPC-HDBW5631RP-ZE-27135 specifications

- Sensor and resolution: 1/2.9" 6MP STARVIS CMOS, 3072 x 2048, for fine detail on faces and licence plates

- Lens: motorised 2.7-13.5mm varifocal, F1.6, 5x optical, set zoom and focus remotely after mounting

- Low light: Starlight imaging with 120dB true WDR and 3D DNR for poor and high-contrast lighting

- Night vision: Smart IR up to 50m across 2 LEDs, adjusting intensity to avoid overexposing close subjects

- Analytics: IVS tripwire and intrusion, plus face detection, for automated event alerts

- Audio: built-in microphone records on-site sound alongside video for a fuller record

- Efficient storage: Smart H.265+ cuts bandwidth and storage; microSD up to 128GB, plus NAS

- Durability and power: IP67 and IK10 metal dome, -30C to +60C; PoE (802.3af) or 12V DC

03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua IPC-HDBW5631RP-ZE-27135 6MP Dome Motorised Network Camera, Zoom Function, WDR 50m IR
FeatureDetail
Image Sensor 1/2.9" 6Megapixel progressive scan CMOS
Effective Pixels 3072(H)x2048(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.03Lux/F1.6 (Color,1/3s,30IRE); 0.3Lux/F1.6 (Color,1/30s,30IRE); 0Lux/F1.6(IR on)
S/N Ratio More than 50dB
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)

04Why choose this

Built for the way you actually use the DH-IPC-HDBW5631RP-ZE-27135

6MP detail without rewiring the lens

A 6MP STARVIS sensor with a remote 2.7-13.5mm motorised lens captures fine detail and lets you reframe from the desk, ideal for cameras mounted at height.

Clear images in difficult light

Starlight imaging with 120dB true WDR holds detail in low light and balances bright, backlit entries that wash out simpler cameras.

Efficient on storage and bandwidth

Smart H.265+ significantly reduces file sizes, letting more cameras share existing infrastructure and extending NVR storage.

Built to take weather and impact

An IP67, IK10 metal dome handles dust, water and deliberate interference in exposed and public-facing positions.

05Where it fits

Right at home in these scenarios

Commercial entrances

6MP detail and 120dB WDR capture faces and vehicle details at building entry and exit points regardless of backlight.

Car parks and outdoor areas

IP67 weatherproofing and IK10 vandal resistance suit exposed positions, with 50m Smart IR covering bays and entries after dark.

Retail premises

High-resolution footage supports post-incident review and deters theft where detailed identification imagery matters.

Installs needing remote lens adjustment

The motorised lens suits cameras mounted at height or in awkward positions where physical lens access is impractical after install.

06Setup

Installation & setup

  1. Power over PoE or 12V DC

    Connect to an 802.3af PoE switch over a single cable, or provide a 12V DC supply. At under 8.5W the camera fits a standard PoE budget.

  2. Mount on wall, ceiling or eave

    Fix the metal dome and, for surface cabling or angled positions, add a Dahua junction box such as the PFA130-E to seal connectors.

  3. Set the lens remotely

    After mounting, set the motorised 2.7-13.5mm zoom and focus from the NVR or web interface to frame the scene without returning to the camera.

  4. Configure IVS rules

    Set tripwire and intrusion zones and face detection to suit the scene, allowing for structures or terrain that create blind spots.

08Questions

Frequently asked about the DH-IPC-HDBW5631RP-ZE-27135

Q.01

What resolution and detail does this dome capture?
It uses a 1/2.9-inch 6MP STARVIS sensor at 3072 x 2048, giving more detail than a 2MP or 4MP dome for identifying faces and licence plates. The 6MP main stream runs up to 20fps; lower resolutions support higher frame rates if you need smoother motion.
Q.02

Can I adjust the lens remotely after mounting?
Yes. The 2.7-13.5mm motorised varifocal lens gives 5x optical adjustment set from the NVR or web interface, so you can reframe from a wide area to a tighter scene without physically accessing the camera, which is valuable at height.
Q.03

How far does the night vision reach?
Smart IR reaches up to 50m across two LEDs and adjusts intensity to prevent overexposing nearby objects. Combined with Starlight low-light imaging, it keeps footage usable in darkness across entries, yards and car parks within that range.
Q.04

Does it classify people and vehicles?
This Eco-Savvy model provides IVS tripwire and intrusion plus face detection, but it does not perform on-camera human and vehicle classification. Where you need WizSense people and vehicle filtering to cut nuisance alerts, choose a current Dahua WizSense camera.
Q.05

Does it have two-way audio?
No. It has a built-in microphone to record on-site audio, but no built-in speaker, so it does not provide two-way talk. The microphone captures sound alongside video for a fuller record where local laws permit.
Q.06

Is it suitable for outdoor and vandal-prone areas?
Yes. The metal dome is IP67 weatherproof and IK10 impact-resistant across a -30C to +60C range, suiting building exteriors, car parks and public-facing positions exposed to weather and tampering.
Q.07

How is it powered?
It runs on PoE (802.3af, Class 0) over a single cable, or 12V DC where PoE is unavailable. Power consumption is low at under 8.5W, so it sits comfortably within a standard PoE budget.
Q.08

How much can it store locally?
It supports a microSD card up to 128GB for edge recording, plus NAS storage. For continuous multi-camera recording, pair it with a Dahua NVR and a surveillance hard drive.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

03

Mounting

For outdoor positions or surface cabling, add a Dahua PFA130-E junction box; confirm it suits this dome before ordering.
