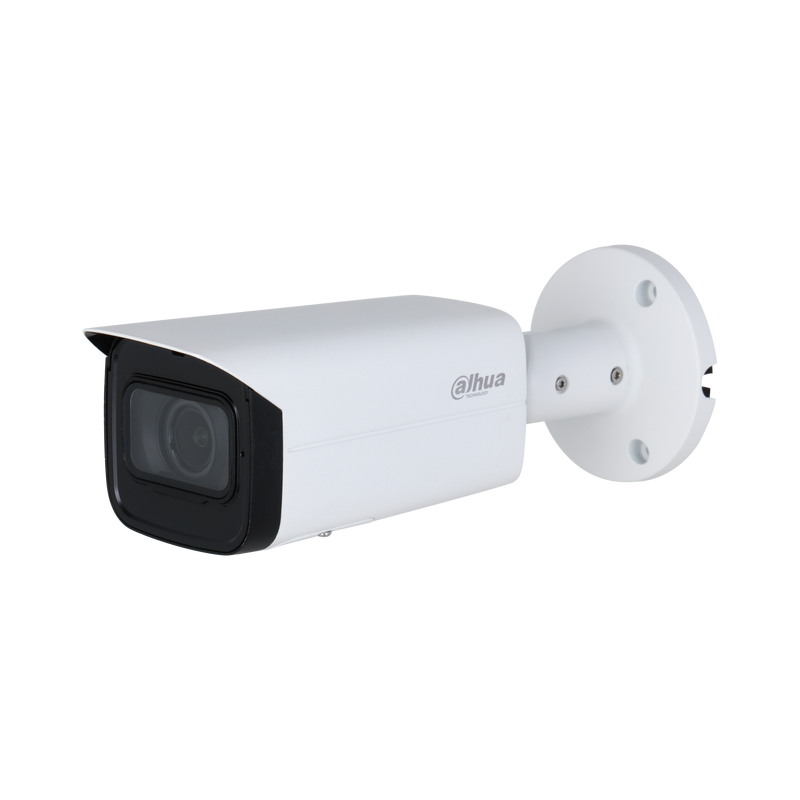

Dahua DH-IPC-HFW3666TP-ZAS-AUS 6MP Motorised Bullet Network Camera 60m IR
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-IPC-HFW3666TP-ZAS-AUS 6MP Motorised Bullet Network Camera 60m IR
SKU: DH-IPC-HFW3666TP-ZAS-AUS
Description
The Dahua DH-IPC-HFW3666TP-ZAS-AUS is a 6MP WizSense bullet with a motorised 2.7-13.5 mm zoom lens, letting you frame the exact view from the app or NVR after mounting. SMD 4.0 classifies people and vehicles to cut false alarms, and infrared night vision reaches up to 60 m for long driveways and perimeters.
Key points
- 6MP (3072 × 2048) 1/2.7" CMOS at up to 25/30 fps, 120 dB WDR
- Motorised 2.7-13.5 mm vari-focal lens; remote zoom and focus
- IR night vision up to 60 m (black & white at night)
- SMD 4.0 and IVS human/vehicle detection; built-in mic
- IP67 weatherproof; microSD up to 256 GB
- 12 VDC or PoE (802.3af) single-cable install
Regular price
$298.20 AUD
Sale price
$298.20 AUD
Regular price
$355.00 AUD
Sale
16.0%
$56.80 AUD
(16.0%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua DH-IPC-HFW3666TP-ZAS-AUS 6MP Motorised Bullet Network Camera 60m IR
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $804.53
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Dahua DH-IPC-HFW3666TP-ZAS-AUS is a 6MP WizSense bullet with a motorised zoom lens, built for driveways, car parks, perimeters and commercial frontages where you want sharp detail and the freedom to set the exact field of view. Its 1/2.7 inch CMOS sensor captures 3072 by 2048 at up to 25/30 fps, with 120 dB WDR and Starlight low-light performance to hold detail against backlight and in dim conditions.
The motorised 2.7-13.5 mm vari-focal lens is the practical headline: you zoom and focus it remotely from the Dahua app, web interface or NVR, so once the camera is mounted there is no ladder work to widen or tighten the view. At night the camera switches to infrared, lighting the scene up to 60 m in black and white, which suits longer driveways and fence lines.
SMD 4.0 and IVS analytics classify human and vehicle movement, so alerts and recording follow people and cars rather than animals, foliage or weather, and tripwire and intrusion rules add accurate perimeter cover. A built-in microphone records audio with the video. Power is by PoE (802.3af) or 12 VDC over one cable, footage records to a microSD card up to 256 GB or to a Dahua NVR, and Quick Pick works with a Dahua AI NVR to pull human and vehicle events from recordings.
Note the night image is black and white in infrared mode; this is an IR camera, not a full-colour or dual-light model.
§ 02Engineering
Technical specifications
- 6MP (3072 x 2048) 1/2.7" CMOS at up to 25/30 fps with 120 dB true WDR and Starlight low light
- Motorised 2.7-13.5 mm vari-focal lens with remote zoom and focus from the app or NVR
- IR night vision up to 60 m; image is black and white in infrared mode
- SMD 4.0 and IVS tripwire/intrusion with human and vehicle classification to cut false alarms
- Electronic image stabilisation (EIS) for steadier footage on exposed mounts
- IP67 weatherproof; built-in microphone; H.265 with microSD up to 256 GB and ONVIF
- 12 VDC or PoE (802.3af) single-cable power and data; Quick Pick with a Dahua AI NVR
- Motorised 2.7-13.5 mm vari-focal lens with remote zoom and focus from the app or NVR
- IR night vision up to 60 m; image is black and white in infrared mode
- SMD 4.0 and IVS tripwire/intrusion with human and vehicle classification to cut false alarms
- Electronic image stabilisation (EIS) for steadier footage on exposed mounts
- IP67 weatherproof; built-in microphone; H.265 with microSD up to 256 GB and ONVIF
- 12 VDC or PoE (802.3af) single-cable power and data; Quick Pick with a Dahua AI NVR
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3072 (H) × 2048 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.5 (Color, 30 IRE); 0.0005 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 99°–28°; Vertical: 71°–21°; Diagonal: 134°–35° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| DORI Distance | W: Detect 64.0 m (209.97 ft); Observe 25.6 m (83.98 ft); Recognize 12.8 m (41.99 ft); Identify 6.4 m (21.00 ft) | T: Detect 210.0 m (688.98 ft); Observe 84.0 m (275.59 ft); Recognize 42.0 m (137.80 ft); Identify 21.0 m (68.90 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–90° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 4 (IR LED) |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3072 × 2048 @ (1–25/30) fps | Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) | Sub stream 2: 1920 × 1080 @ (1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 6M (3072 × 2048); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: 300 mA 12 VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.8 W (12 VDC); 3.4 W (PoE) | Max. (WDR + IR intensity + Intelligence): 7.4W (12 VDC); 8.5 W (PoE) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% (RH) |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F) |
| Protection | IP67 |
| Casing | Metal |
| Product Dimensions | 244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 2.99") (L × W × H) |
| Net Weight | 820 g (1.81 lb) |
| Gross Weight | 1090 g (2.40 lb) |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
§ 04Why choose this
Built for the way you actually use it
Long 60 m night reach
Infrared lights the scene up to 60 m, so one camera covers a long driveway, yard or fence line rather than just a close entry.
Fewer false alarms
SMD 4.0 and WizSense classification drive alerts from confirmed human and vehicle movement, keeping notifications meaningful.
6MP detail with room to zoom
The 6MP sensor captures faces and plates with headroom to digitally zoom in on review, beyond what a 2MP or 4MP bullet delivers.
§ 05Where it fits
Right at home in these scenarios
Long driveways and car parks
Zoom the lens to cover the full length of a drive or lot, with 60 m IR for clear overnight coverage.
Perimeters and fence lines
IVS tripwire and intrusion zones flag someone crossing a boundary, with human and vehicle classification to cut nuisance alerts.
Commercial frontages
Retail, office and warehouse fronts get sharp 6MP detail and remote framing for clean evidence.
Standalone or NVR systems
Record to a 256 GB microSD for a single camera, or add it to a Dahua WizSense NVR for continuous recording and Quick Pick search.
§ 06Setup
Installation & setup
What's in the box
The IPC-HFW3666TP-ZAS-AUS bullet camera with its mounting base and fittings and a waterproofing gland for the network connector. A PoE switch or injector, network cable, microSD card and any bracket or junction box are not included.
Installation requirements
Mount the camera to a wall or eave, ideally 2.5 to 3 m high, angled down over the area you want to watch, and run Cat5e/Cat6 back to a PoE switch or Dahua NVR. Seal the connector with the supplied gland for outdoor use, power up, then set the motorised zoom and focus remotely. To angle it off a flat wall or seal the cable join, add a compatible Dahua bracket or junction box.
§ 07Questions
Frequently asked
Q.01
Can I adjust the zoom and focus from the NVR or app?
Yes. This is a motorised vari-focal camera, so you set the 2.7-13.5 mm lens remotely from the Dahua app, web interface or NVR. After mounting you can widen or tighten the view and refocus without climbing back up, which is handy on long driveways where you may want to reframe later.
Q.02
How far does the night vision reach and is it colour?
Dahua rates this camera to a maximum infrared distance of 60 m, so it suits longer driveways and perimeters. In infrared mode the image is black and white, since this is an IR camera rather than a full-colour or dual-light model. Starlight low-light performance helps it stay usable in dim, partly lit areas before full dark.
Q.03
What is the difference between this and the fixed-lens HFW3666EP?
Both are 6MP WizSense bullets. This HFW3666TP has a motorised 2.7-13.5 mm zoom lens you can adjust remotely and a longer 60 m IR reach, while the HFW3666EP has a fixed 2.8 mm or 3.6 mm lens and a shorter 30 m IR reach at a lower price. Choose the motorised model when you want to fine-tune the view or cover distance.
Q.04
Will it stop false alarms from pets and trees?
Largely, yes. SMD 4.0 and WizSense analytics classify human and vehicle movement, so alerts and recording follow people and vehicles rather than animals, blowing foliage or headlights. Tripwire and intrusion zones let you flag only the areas that matter.
Q.05
How is it powered and do I need an NVR?
It runs on PoE using the 802.3af standard, so one cable carries power and data from a PoE switch or NVR, or on a 12 VDC supply. It records to a microSD card up to 256 GB for a single camera, or connect it to a Dahua WizSense PoE NVR for continuous recording and Quick Pick search.
Q.06
Does it have two-way audio?
It has a built-in microphone that records audio with the video, but no built-in speaker, so it does not offer built-in two-way talk. It captures sound rather than letting you talk back through the camera.
Q.07
Is it good for number plates on a driveway?
The 6MP sensor plus the motorised zoom make it well suited to plate capture: zoom the lens to frame the driveway lane and the resolution holds enough detail to read plates within the camera's identify range. Aim it along the lane rather than across it and avoid pointing straight into headlights for the best results.
Q.08
Is it weatherproof for outdoor use?
Yes. It has an IP67-rated housing for dust and sustained rain, built for Australian outdoor conditions. Mounting it under an eave still helps cut direct sun and lens glare.
§ 08In motion
Dahua 3666 Camera Review | The Latest Version
§ 09Bundles
Recommended packages
Record it on a Dahua NVR
For continuous recording, multiple cameras and Quick Pick smart search, pair it with a WizSense PoE NVR such as the DHI-NVR4108HS-8P 8-channel, or the larger DHI-NVR4216-16P 16-channel for bigger sites.
Mounting accessories
To angle the camera off a flat wall add the DH-PFB204W wall bracket; where the camera calls for a junction box use the DH-PFA137 junction box.
Compare other 6MP bullets
Want a fixed lens, a dual-light model or 8MP? See the fixed IPC-HFW3666EP-AS, the dual-light IPC-HFW3667E-AS-IL dual-light, or the 8MP motorised IPC-HFW3866TP-ZAS.
