Dahua TIOC Advanced 2.0 DH-IPC-HDW3549HP-AS-PV-0280B-S3 Dahua 5MP AI Active Deterrence Full color Starlight IP Turret Camera
Dahua DH-IPC-HDW3549HP-AS-PV-0280B-S3 5MP AI Active Deterrence Full Color Starlight Turret Camera TIOC 2.0
1 1
Dahua

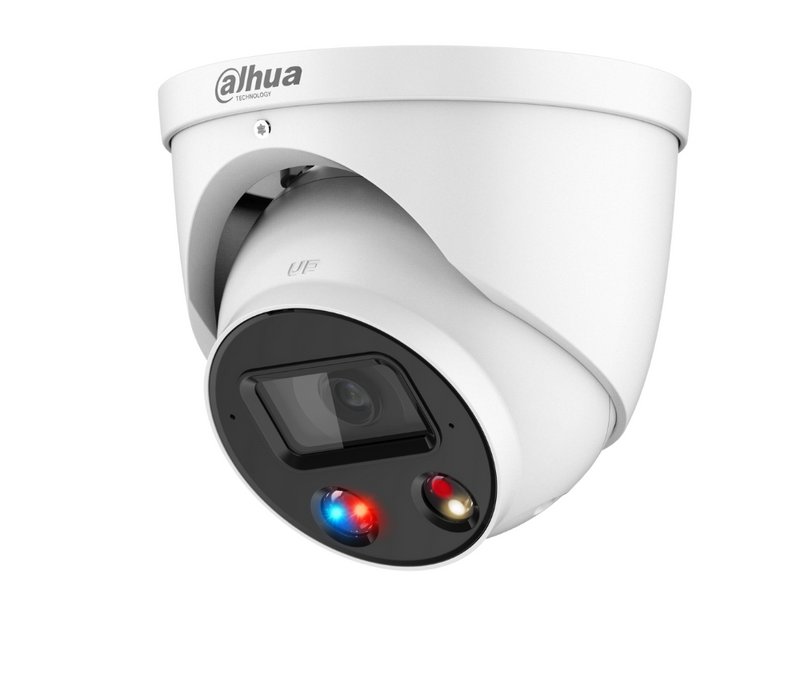

Dahua TIOC Advanced 2.0 DH-IPC-HDW3549HP-AS-PV-0280B-S3 Dahua 5MP AI Active Deterrence Full color Starlight IP Turret Camera

SKU: DH-IPC-HDW3549HP-AS-PV-0280B-S3
Description

5MP TiOC active-deterrence full-colour eyeball that combines 24/7 colour imaging, AI human and vehicle detection and a built-in light and siren deterrent.

  • 1/2.7" 5MP CMOS, fixed 2.8mm lens, F1.0
  • Smart Dual Illumination: IR up to 30m and warm light up to 30m
  • Full-colour night imaging with warm light
  • Active deterrence: red and blue strobe plus 110dB speaker
  • Two-way audio with built-in microphone and speaker
  • AI perimeter protection with human and vehicle classification
  • IP67 weatherproof housing
  • PoE or 12V DC; microSD up to 256GB
5MP Ultra HD 30m IR Night Vision Full Color Night Vision IP67 Weatherproof Human/Vehicle Detection Two-Way Audio
$286.00 AUD $286.00 AUD $366.00 AUD
Sale 21.86% $80.00 AUD (21.86%)
Member Sign in to save $5.72 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $785.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $286.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HDW3549HP-AS-PV-0280B-S3 is

The Dahua DH-IPC-HDW3549HP-AS-PV-0280B-S3 is a 5MP TiOC (Three-in-One) eyeball that brings together 24/7 full-colour monitoring, active deterrence and WizSense AI in one camera.

Smart Dual Illumination switches from IR (up to 30m) to warm light (up to 30m) when a target is detected, so footage stays in full colour at night for clear, usable evidence rather than monochrome IR.

When AI perimeter rules detect a person or vehicle, the camera responds with a red and blue strobe and a 110dB speaker carrying customisable voice alerts or a siren, actively warning intruders rather than just recording them.

A built-in microphone and speaker support two-way talk for live communication with visitors.

The IP67 housing, fixed 2.8mm lens and PoE or 12V DC power suit home entries, driveways and small commercial frontages, with microSD storage up to 256GB.

See it in action

What the DH-IPC-HDW3549HP-AS-PV-0280B-S3 features actually look like

Representative illustrations of how each key feature performs in a real scene.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDW3549HP-AS-PV-0280B-S3 specifications

- Sensor and resolution: 1/2.7" 5MP CMOS with a fixed 2.8mm F1.0 lens for a wide near-field view

- Smart Dual Illumination: IR up to 30m and warm light up to 30m, switching automatically on target detection

- Full-colour night vision: warm light delivers colour detail after dark for clearer evidence than IR alone

- Active deterrence: red and blue flashing lights plus a 110dB speaker with customisable voice alerts and a siren

- Two-way audio: built-in microphone and speaker for live talk with visitors or to warn off intruders

- AI analytics: perimeter protection (tripwire, intrusion) with human and vehicle classification to cut false alarms

- Weatherproof: IP67-rated housing for outdoor entries, driveways and frontages

- Power and storage: PoE or 12V DC over a single cable; microSD up to 256GB for edge recording

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua TIOC Advanced 2.0 DH-IPC-HDW3549HP-AS-PV-0280B-S3 Dahua 5MP AI Active Deterrence Full color Starlight IP Turret Camera
FeatureDetail
Image Sensor 1/2.7" CMOS
Max. Resolution 2592 (H) × 1944 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE) | 0.0003 lux@F1.0 (B/W, 30 IRE) | 0 lux (illuminator on)
S/N Ratio > 56 dB
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDW3549HP-AS-PV-0280B-S3

Stops incidents, not just records them

Red and blue strobe and a 110dB speaker warn off intruders the moment AI detects a person or vehicle, turning the camera into an active deterrent.

Full colour after dark

Smart Dual Illumination switches to warm light on detection, capturing clothing and vehicle detail in colour instead of monochrome IR.

Fewer false alarms

WizSense human and vehicle classification keeps deterrence and alerts focused on real threats, not animals, foliage or headlights.

Talk to visitors live

Built-in two-way audio lets you greet a visitor or challenge an intruder directly through the camera.

§ 05Where it fits

Right at home in these scenarios

Home driveways and entries

Full-colour night imaging and active deterrence warn off prowlers at the front of a property, with two-way audio to greet expected visitors.

Small business frontages

After-hours deterrence and colour footage protect shopfronts and yards, while human and vehicle filtering reduces nuisance alerts.

Yards and side access

Tripwire and intrusion rules with strobe and siren deter loitering around gates, bins and side passages.

Carports and garages

A wide 2.8mm view with warm-light colour covers vehicles and approaches, capturing identifying detail at night.

§ 06Setup

Installation & setup

01

Position for the deterrent

Mount where the strobe and speaker face the likely approach and the 2.8mm lens covers the entry or driveway, at a height that frames people clearly without excessive downward angle.

02

Power over PoE or 12V DC

Run a single PoE cable from a switch or NVR, or provide a 12V DC supply. Allow for the speaker and light load when sizing the PoE budget.

03

Set AI rules and voice alerts

Configure tripwire and intrusion zones with human and vehicle classification, and set the warning voice messages or siren and active-deterrence schedule for the site.

04

Add storage or an NVR

Fit a microSD card up to 256GB for edge recording, or connect to a Dahua NVR for continuous multi-camera recording.

§ 07Questions

Frequently asked about the DH-IPC-HDW3549HP-AS-PV-0280B-S3

Q.01

What does TiOC mean on this camera?
TiOC stands for Three-in-One Camera. It combines 24/7 full-colour monitoring, active deterrence (light and sound) and WizSense AI in a single unit, so it can see in colour at night, warn off intruders and filter alerts to people and vehicles without separate devices.
Q.02

How does the active deterrence work?
When AI perimeter rules detect a person or vehicle in a monitored zone, the camera triggers a red and blue strobe and a 110dB speaker that plays a customisable voice warning or siren. This actively deters trespassers in real time rather than only recording the event.
Q.03

How does it see in colour at night?
Smart Dual Illumination uses IR up to 30m for general darkness and switches to warm light up to 30m when a target is detected, so the scene is captured in full colour. Full-colour footage makes clothing, vehicle and other identifying detail far clearer than monochrome IR.
Q.04

Does it support two-way audio?
Yes. It has a built-in microphone and speaker, so you can listen and speak live through the camera from the app or NVR, which is useful for greeting visitors or challenging an intruder alongside the automatic deterrent.
Q.05

Will it cut down false alarms from animals and weather?
Yes. WizSense perimeter protection classifies targets as human or vehicle before triggering, so tripwire and intrusion alerts and the deterrent focus on people and vehicles rather than animals, foliage or headlights, reducing nuisance alarms.
Q.06

What area does the fixed 2.8mm lens cover?
The 2.8mm lens gives a wide near-field view suited to a driveway, entry, yard or small frontage. The focal length is fixed, so plan the mounting position and height for the area you want before ordering, as the view cannot be zoomed.
Q.07

Is it suitable for outdoor use and how is it powered?
Yes. It carries an IP67 rating for dust and water and runs on PoE over a single cable or a 12V DC supply, so it suits outdoor entries and frontages with straightforward cabling.
Q.08

Can it record without an NVR?
Yes. It supports a microSD card up to 256GB for edge recording, so it can run as a standalone deterrent camera or record locally as a backup alongside a Dahua NVR.

§ 08In motion

Dahua Tioc 2.0 - the ultimate 3-in-1 camera

Dahua Tioc 2.0 - the ultimate 3-in-1 camera

§ 09Bundles

Recommended packages

03

Mounting

Mount on wall or eave, adding a Dahua PFA130-E junction box where surface cabling or extra clearance is needed; confirm fit before ordering.
