Dahua HDW2549EMP + HDW2541EMP 6-Camera 5MP CCTV Kit + 8CH PoE NVR, No HDD
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua HDW2549EMP + HDW2541EMP 6-Camera 5MP CCTV Kit + 8CH PoE NVR, No HDD
SKU: KIT-HDW2549EMP2-HDW2541EMP4-NVR4108-NOHDD
Description

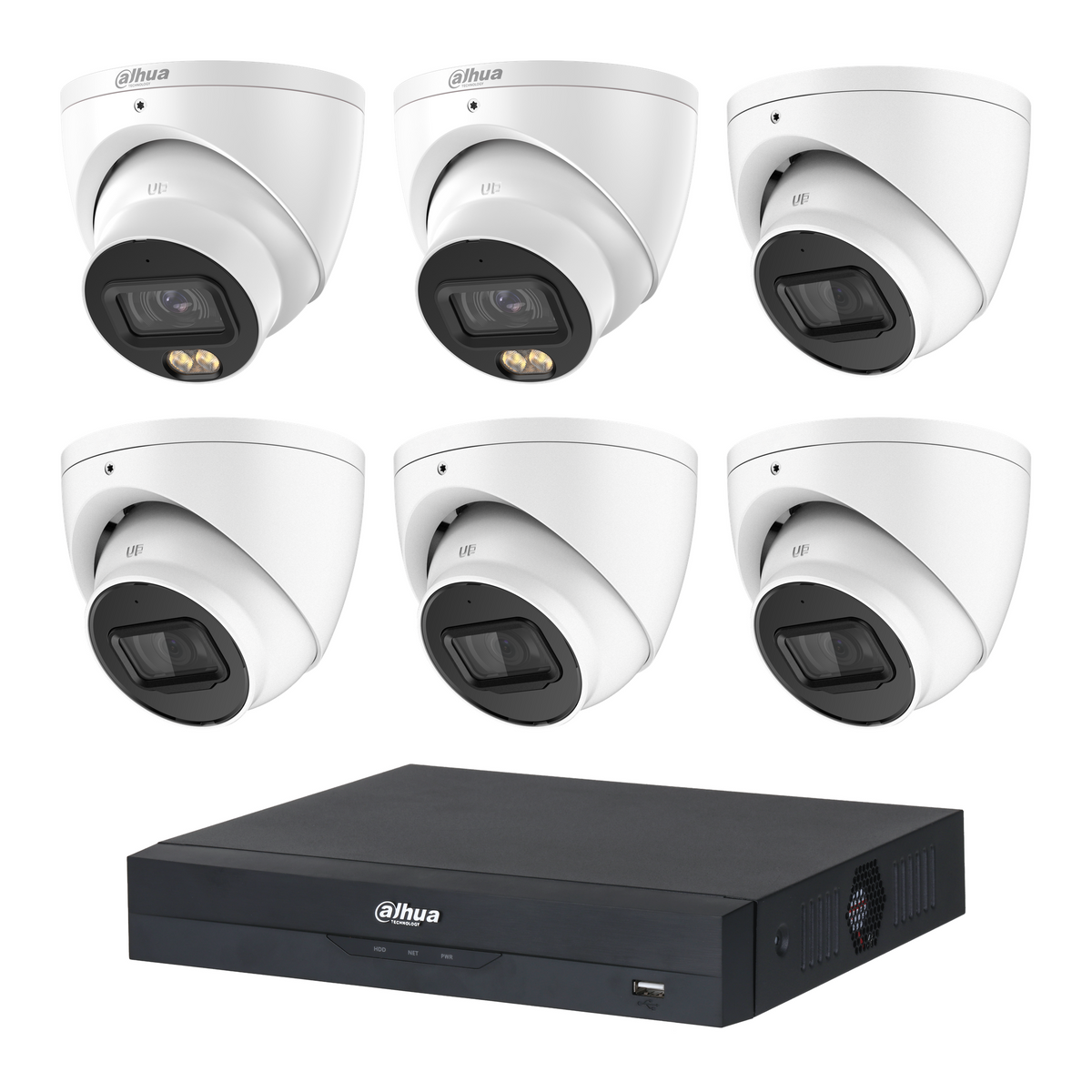

2 × HDW2549EMP 5MP WizColor + 4 × HDW2541EMP 5MP IR, supplied in white with 2.8 mm fixed lenses, plus one DHI-NVR4108HS-8P-AI/ANZ 8-channel PoE recorder.
The 2 WizColor + 4 IR combination lets you assign different camera types to different locations. HDW2549EMP: Warm light up to30m. HDW2541EMP: IR up to30m.
No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.
Regular price
$1,116.22 AUD
Sale price
$1,116.22 AUD
Regular price
$1,676.00 AUD
Sale
33.4%
$559.78 AUD
(33.4%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua HDW2549EMP + HDW2541EMP 6-Camera 5MP CCTV Kit + 8CH PoE NVR, No HDD
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Customize this kit
—
$1,116.22
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 2 × Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ 5MP WizColor Series Network Camera
- 4 × Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Network Camera 50m IR 2.8mm Wizsense
- 1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder (8ch)
- No HDD included (add one below)
Add extra cameras
DH-IPC-HDW2549EMP-S-PRO-ANZ
+$0.00
DH-IPC-HDW2541EMP-AS-ANZ
+$0.00
NVR · channels ≥ your total camera count
Base: 8ch · Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder
Add Hard Drive
Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
No hard drive selected
Without a hard drive the system cannot record footage.
01Overview
What the KIT-HDW2549EMP2-HDW2541EMP4-NVR4108-NOHDD is
Plan each position around the type of coverage it needs. This 6-camera kit combines 2 white DH-IPC-HDW2549EMP-S-PRO-ANZ 5MP turret cameras with 4 white DH-IPC-HDW2541EMP-AS-ANZ 5MP turret cameras and one DHI-NVR4108HS-8P-AI/ANZ 8-channel PoE recorder. All supplied camera lenses are 2.8 mm.
HDW2549EMP (2 included): 5MP imaging with 1/1.8-inch sensor and F1.0 fixed lens; Warm-light colour illumination rated up to30m; SMD Plus and human/vehicle intrusion and tripwire classification; Built-in microphone, 120dB WDR and IP67 housing. Colour imaging supported by the large sensor, F1.0 lens and visible warm light; configure lighting for the scene rather than assuming colour in unlit darkness.
HDW2541EMP (4 included): 5MP at up to20fps with a fixed2.8mm lens; Infrared illumination rated up to30m; SMD Plus and human/vehicle intrusion and tripwire classification; Built-in microphone, 120dB WDR and IP67 housing. Black-and-white imagery with infrared active in darkness; colour requires sufficient visible light.
The recorder provides 8 camera inputs, 8 built-in PoE ports, HDMI and VGA outputs, and one SATA drive bay. 2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.
Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 32.8 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 6 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.
02Engineering
KIT-HDW2549EMP2-HDW2541EMP4-NVR4108-NOHDD specifications
- 2 × DH-IPC-HDW2549EMP-S-PRO-ANZ — 5MP WizColor turret, white, 2.8 mm lens; Warm light up to30m.
- 4 × DH-IPC-HDW2541EMP-AS-ANZ — 5MP IR turret, white, 2.8 mm lens; IR up to30m.
- HDW2549EMP — 5MP up to20fps; 2688×1520 up to25/30fps; SMD Plus; built-in microphone; IP67.
- HDW2541EMP — 5MP up to20fps; 2688×1520 up to25/30fps; SMD Plus; built-in microphone; IP67.
- 8CH PoE recorder — DHI-NVR4108HS-8P-AI/ANZ, 8 integrated PoE ports, HDMI and VGA.
- 2 spare camera inputs — 2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
- Camera-set maximum PoE: 32.8 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
- 4 × DH-IPC-HDW2541EMP-AS-ANZ — 5MP IR turret, white, 2.8 mm lens; IR up to30m.
- HDW2549EMP — 5MP up to20fps; 2688×1520 up to25/30fps; SMD Plus; built-in microphone; IP67.
- HDW2541EMP — 5MP up to20fps; 2688×1520 up to25/30fps; SMD Plus; built-in microphone; IP67.
- 8CH PoE recorder — DHI-NVR4108HS-8P-AI/ANZ, 8 integrated PoE ports, HDMI and VGA.
- 2 spare camera inputs — 2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
- Camera-set maximum PoE: 32.8 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
03Full datasheet
Detailed specifications
Kit Configuration
| Feature | Detail |
|---|---|
| Camera composition | 2 × HDW2549EMP 5MP WizColor + 4 × HDW2541EMP 5MP IR |
| Recorder | 1 × DHI-NVR4108HS-8P-AI/ANZ |
| Hard drive included | No |
| Network cabling included | No |
| Supplied colour / lens | White / 2.8 mm fixed |
| Unused NVR channels / PoE ports | 2 / 2 |
HDW2549EMP Camera
| Feature | Detail |
|---|---|
| Included quantity | 2 |
| Model | DH-IPC-HDW2549EMP-S-PRO-ANZ |
| Resolution | 5MP |
| Image sensor | 1/1.8-inch CMOS |
| Video frame rates | 5MP up to20fps; 2688×1520 up to25/30fps |
| Supplied lens | 2.8 mm, F1.0 |
| Horizontal field of view | 112° |
| Illumination | Warm light up to30m |
| Smart motion detection | SMD Plus |
| Audio | Built-in microphone |
| Protection | IP67 |
| Maximum PoE per camera | 6.4 W |
HDW2541EMP Camera
| Feature | Detail |
|---|---|
| Included quantity | 4 |
| Model | DH-IPC-HDW2541EMP-AS-ANZ |
| Resolution | 5MP |
| Image sensor | 1/2.7-inch CMOS |
| Video frame rates | 5MP up to20fps; 2688×1520 up to25/30fps |
| Supplied lens | 2.8 mm, F1.6 |
| Horizontal field of view | 111° |
| Illumination | IR up to30m |
| Smart motion detection | SMD Plus |
| Audio | Built-in microphone |
| Protection | IP67 |
| Maximum PoE per camera | 5 W |
Recorder & Installation
| Feature | Detail |
|---|---|
| Channels | 8 |
| Integrated PoE ports | 8 |
| Video outputs | HDMI; VGA |
| Drive bays | 1 SATA; drives not included |
| Camera-set maximum PoE | 32.8 W before cable losses |
| Installation | NVR indoors; weatherproof exposed camera connections |
| Kit Configuration — Camera composition | 2 × HDW2549EMP 5MP WizColor + 4 × HDW2541EMP 5MP IR |
|---|---|
| Kit Configuration — Recorder | 1 × DHI-NVR4108HS-8P-AI/ANZ |
| Kit Configuration — Hard drive included | No |
| Kit Configuration — Network cabling included | No |
| Kit Configuration — Supplied colour / lens | White / 2.8 mm fixed |
| Kit Configuration — Unused NVR channels / PoE ports | 2 / 2 |
| HDW2549EMP Camera — Included quantity | 2 |
| HDW2549EMP Camera — Model | DH-IPC-HDW2549EMP-S-PRO-ANZ |
| HDW2549EMP Camera — Resolution | 5MP |
| HDW2549EMP Camera — Image sensor | 1/1.8-inch CMOS |
| HDW2549EMP Camera — Video frame rates | 5MP up to20fps; 2688×1520 up to25/30fps |
| HDW2549EMP Camera — Supplied lens | 2.8 mm, F1.0 |
| HDW2549EMP Camera — Horizontal field of view | 112° |
| HDW2549EMP Camera — Illumination | Warm light up to30m |
| HDW2549EMP Camera — Smart motion detection | SMD Plus |
| HDW2549EMP Camera — Audio | Built-in microphone |
| HDW2549EMP Camera — Protection | IP67 |
| HDW2549EMP Camera — Maximum PoE per camera | 6.4 W |
| HDW2541EMP Camera — Included quantity | 4 |
| HDW2541EMP Camera — Model | DH-IPC-HDW2541EMP-AS-ANZ |
| HDW2541EMP Camera — Resolution | 5MP |
| HDW2541EMP Camera — Image sensor | 1/2.7-inch CMOS |
| HDW2541EMP Camera — Video frame rates | 5MP up to20fps; 2688×1520 up to25/30fps |
| HDW2541EMP Camera — Supplied lens | 2.8 mm, F1.6 |
| HDW2541EMP Camera — Horizontal field of view | 111° |
| HDW2541EMP Camera — Illumination | IR up to30m |
| HDW2541EMP Camera — Smart motion detection | SMD Plus |
| HDW2541EMP Camera — Audio | Built-in microphone |
| HDW2541EMP Camera — Protection | IP67 |
| HDW2541EMP Camera — Maximum PoE per camera | 5 W |
| Recorder & Installation — Channels | 8 |
| Recorder & Installation — Integrated PoE ports | 8 |
| Recorder & Installation — Video outputs | HDMI; VGA |
| Recorder & Installation — Drive bays | 1 SATA; drives not included |
| Recorder & Installation — Camera-set maximum PoE | 32.8 W before cable losses |
| Recorder & Installation — Installation | NVR indoors; weatherproof exposed camera connections |
04Why choose this
Built for the way you actually use the KIT-HDW2549EMP2-HDW2541EMP4-NVR4108-NOHDD
One recorder for the supplied views
Connect the 6 cameras to the recorder's built-in PoE ports. 2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
Choose lighting deliberately
HDW2549EMP: Colour imaging supported by the large sensor, F1.0 lens and visible warm light; configure lighting for the scene rather than assuming colour in unlit darkness. HDW2541EMP: Black-and-white imagery with infrared active in darkness; colour requires sufficient visible light.
Plan recording and playback
No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 6 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.
05Where it fits
Right at home in these scenarios
Entrances and points of activity
Assign the 2 WizColor cameras to the positions that benefit most from their documented features, then use the 4 IR cameras for the remaining routes or activity areas. Test detail at the target distance and check the image after dark.
Shops, offices and warehouses
Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.
Outdoor approaches
The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.
06Setup
Installation & setup
-
01
Included in the base configuration
- 2 × DH-IPC-HDW2549EMP-S-PRO-ANZ, white, 2.8 mm turret camera
- 4 × DH-IPC-HDW2541EMP-AS-ANZ, white, 2.8 mm turret camera
- 1 × DHI-NVR4108HS-8P-AI/ANZ 8CH PoE recorder
- No HDD, microSD cards or network cabling. Optional mounting accessories are separate.
-
02
Prepare the site and cabling
- Allocate all 6 camera positions and label their intended views.
- Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
- Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.
-
03
Commission and test recording
- Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
- Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
- Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.
08Questions
Frequently asked about the KIT-HDW2549EMP2-HDW2541EMP4-NVR4108-NOHDD
Q.01
Does this kit include a hard drive?
No. The base configuration contains 2 × HDW2549EMP 5MP WizColor + 4 × HDW2541EMP 5MP IR and one DHI-NVR4108HS-8P-AI/ANZ recorder, without storage. The recorder has one SATA bay. Select compatible surveillance storage separately for bitrate, recording schedule and retention.
Q.02
How should I assign the different cameras?
Choose positions by the required image, lighting and audio. 2 × HDW2549EMP: Colour imaging supported by the large sensor, F1.0 lens and visible warm light; configure lighting for the scene rather than assuming colour in unlit darkness. 4 × HDW2541EMP: Black-and-white imagery with infrared active in darkness; colour requires sufficient visible light. Test the actual mounting angle and night scene before finalising each position.
Q.03
Can I add more cameras?
2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
Q.04
Will all cameras provide colour images in darkness?
HDW2549EMP: Colour imaging supported by the large sensor, F1.0 lens and visible warm light; configure lighting for the scene rather than assuming colour in unlit darkness. HDW2541EMP: Black-and-white imagery with infrared active in darkness; colour requires sufficient visible light.
Q.05
How are the cameras powered?
The supplied set connects to 6 of the recorder's 8 built-in PoE ports, using one suitable Ethernet cable per camera for power and video. Cabling is not included. The calculated maximum camera-set PoE demand is 32.8 W before cable losses.
Q.06
What should I check when setting recording quality?
HDW2549EMP: 5MP up to20fps; 2688×1520 up to25/30fps. HDW2541EMP: 5MP up to20fps; 2688×1520 up to25/30fps. Frame-rate limits depend on stream settings and video standard. NVR recording bandwidth, AI processing limits and simultaneous live-view decoding are separate considerations; use suitable substreams for multi-camera grids.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Compare a related configuration
See the six-camera all-WizColor kit. Compare when you want the same warm-light camera type at every position; check exact storage and current configuration on that page.
Choose the mix and recorder capacity
This base kit contains 2 × HDW2549EMP 5MP WizColor + 4 × HDW2541EMP 5MP IR and a 8-channel recorder. 2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Select a different camera count or mix if the site's required views differ.
