Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Network Camera 50m IR 2.8mm Wizsense
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Network Camera 50m IR 2.8mm Wizsense
SKU: DH-IPC-HDW2541EMP-AS-ANZ
Description
- 5MP Resolution: Captures video at 2592 × 1944 @25/30fps with low-light clarity.
- H.265 Encoding: High compression efficiency and low bit rate for optimized bandwidth/storage.
- Built-in IR LED & Mic: Infrared distance up to 30m; integrated audio recording capability.
- IP67 Weatherproof: Robust protection against harsh environmental conditions.
- SMD Plus: Advanced motion detection distinguishing humans/vehicles with high accuracy.
Regular price
$110.00 AUD
Sale price
$110.00 AUD
Regular price
$120.00 AUD
Sale
8.33%
$10.00 AUD
(8.33%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Network Camera 50m IR 2.8mm Wizsense
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $574.45
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens: 2.8mm.
Color options: White or Black.
Note: Please indicate your choice in your order message.
The Dahua DH-IPC-HDW2541EMP-AS-ANZ is a 5 Megapixel IP PoE camera for advanced security monitoring. Equipped with Starlight Technology for clear low-light footage, Smart Motion Detection Plus for accurate human and vehicle identification, and built-in mic with up to 30m IR LEDs.
§ 02Engineering
Technical specifications
- Resolution: 6MP (2592 × 1944) @25/30 fps
- H.265 codec: High compression rate and low bit rate
- Built-in IR LED: Max IR distance 30m
- Built-in Mic
- IP67 weather resistant protection
- SMD Plus: Differentiates humans and vehicles from false targets
- FPS: 25/30 fps
- H.265 codec: High compression rate and low bit rate
- Built-in IR LED: Max IR distance 30m
- Built-in Mic
- IP67 weather resistant protection
- SMD Plus: Differentiates humans and vehicles from false targets
- FPS: 25/30 fps
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" 5Megapixel progressive CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.008 Lux @ F1.6 |
| S/N Ratio | > 56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2592 × 1944 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 103° × Vertical 71° × Diagonal 132° | 3.6 mm: Horizontal 84° × Vertical 58° × Diagonal 110° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 0.9 m (2.95 ft); 3.6 mm: 1.6 m (3.61 ft) |
| DORI Distance | 2.8 mm: Detect 56 m (183.73 ft); Observe 22.4 m (73.49 ft); Recognize 11.2 m (36.75 ft); Identify 5.6 m (18.37 ft) | 3.6 mm: Detect 80 m (262.47 ft); Observe 32.0 m (104.99 ft); Recognize 16.0 m (52.49 ft); Identify 8.0 m (26.25 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 2592 × 1944 (1 fps–20 fps); 2688 × 1520 (1 fps–25/30 fps) | Sub stream: 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | G.711A; G.711Mu; G.726; AAC |
AI & Deep Learning
| Feature | Detail |
|---|---|
| General IVS Analytics | Tripwire; intrusion |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Interoperability | ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec |
| User/Host | 20 |
| Storage | Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 7.2W |
| Operating Conditions | –40°C to +60°C (–40°F to +140°F)/less than ≤ 95% |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67 |
| Casing | Metal |

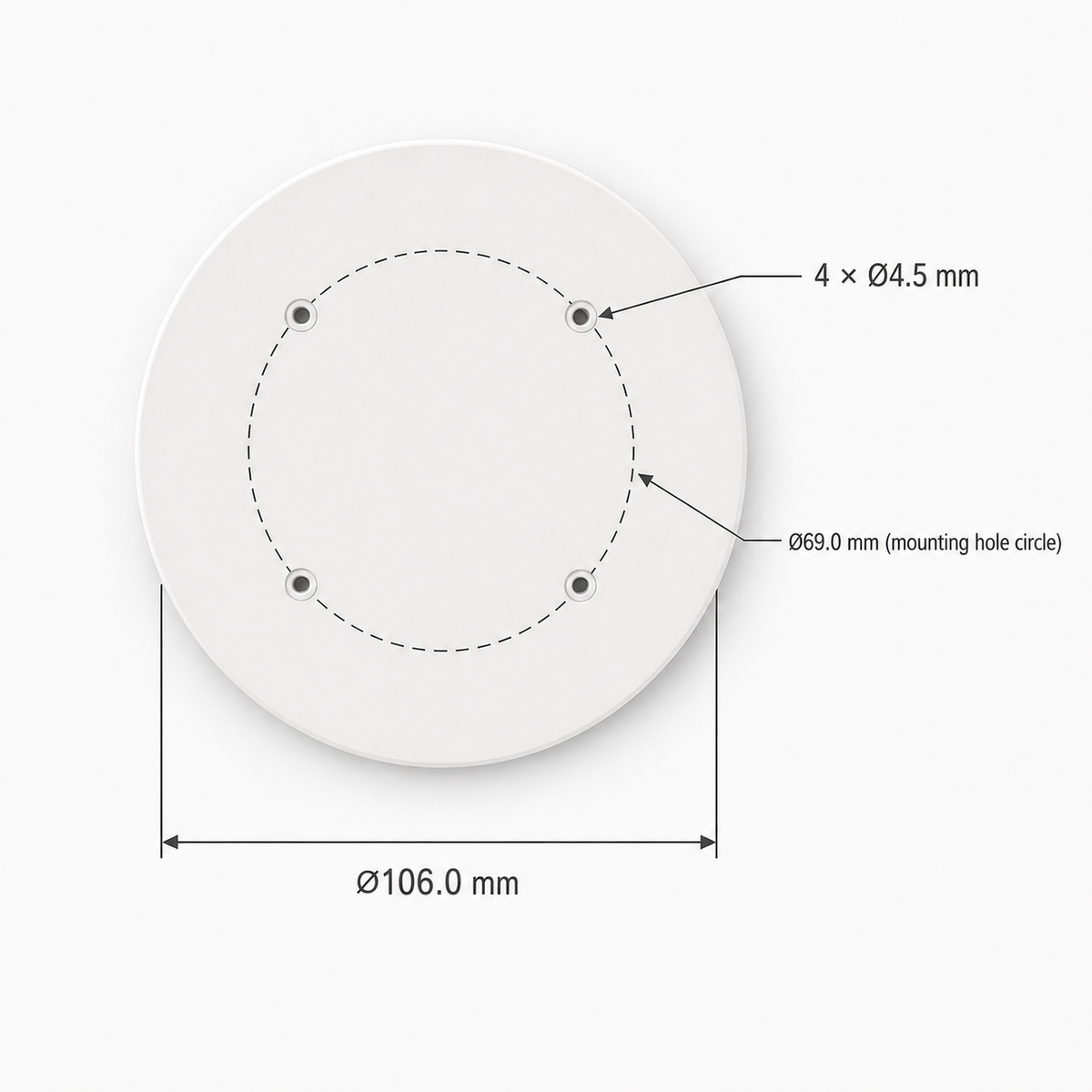

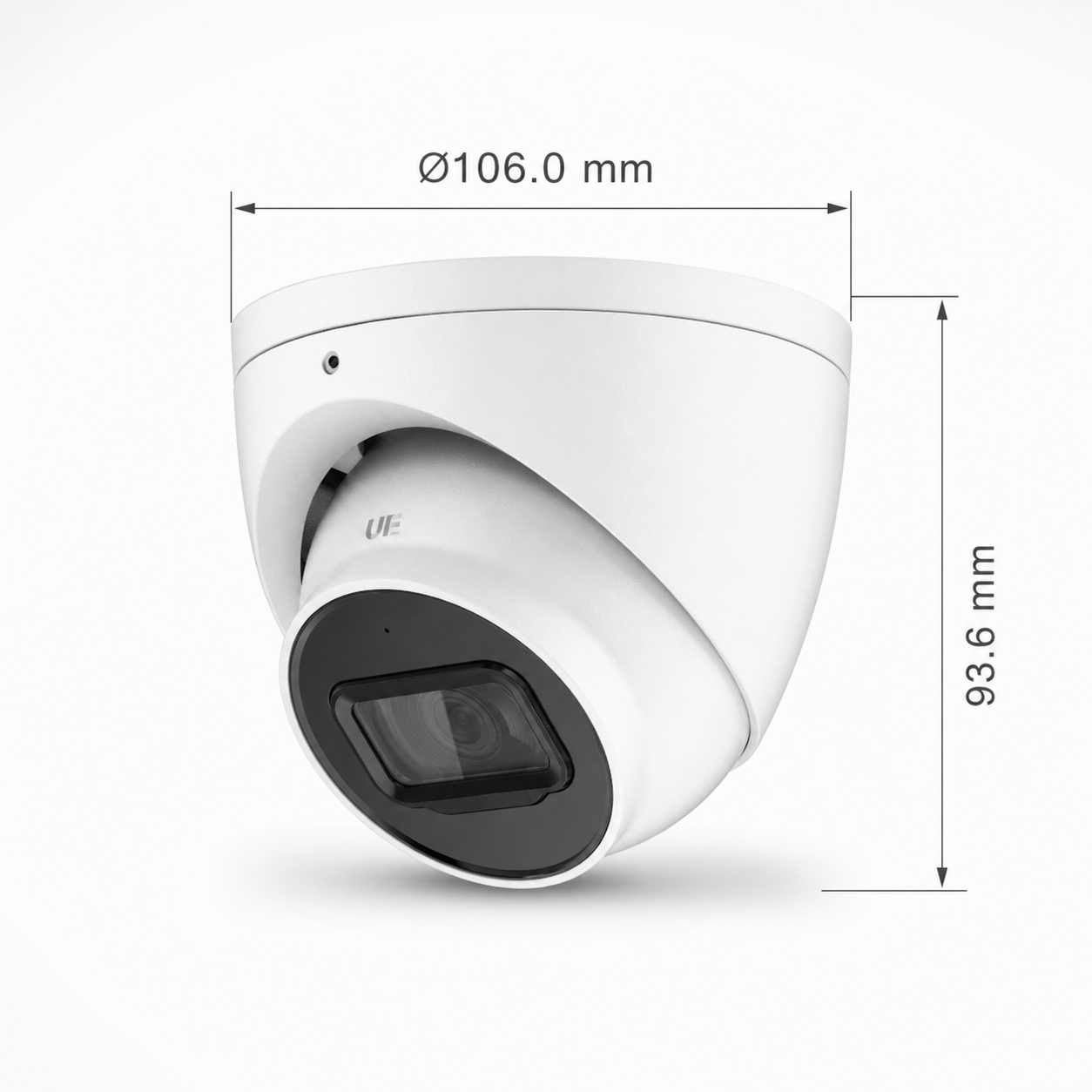

| Dimensions | 93.6 mm × Φ106 mm (3.7" × Φ4.2") |
| Net Weight | 530 g (1.1 lb) |
| Gross Weight | 800 g (1.7 lb) |
| Certifications | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
§ 04Why choose this
Built for the way you actually use it
Smart Motion Detection Eliminates False Alarms
Independent AI chip filters out leaves, shadows, and pets with 90% accuracy in good conditions, triggering alerts only for humans and vehicles crossing your defined perimeter zones.
Built-In Audio Recording for Complete Evidence
Enhanced microphone captures synchronised audio with video footage, providing crucial context for doorway conversations, vehicle sounds, and legally admissible evidence without requiring separate audio equipment.
Zero Subscription Costs with Local Storage
Records unlimited footage to microSD cards up to 256GB or NVR systems with no monthly fees, saving $180-$1,080 over three years compared to Ring or Nest cloud-dependent alternatives.
§ 05Where it fits
Right at home in these scenarios
Residential Driveway and Vehicle Monitoring
Captures licence plates readable at 15-20 metres and provides complete coverage of vehicle approaches whilst filtering alerts to ignore neighbourhood cats, possums, or footpath pedestrians when detection zones properly exclude public areas.
Front Door and Entry Point Coverage
Excels at 3-5 metre distances for facial recognition and parcel delivery documentation, with built-in microphone adding context through doorbell conversations, delivery instructions, or verbal confrontations requiring evidence.
Backyard and Property Perimeter Security
30-metre infrared range suits typical suburban backyards with IP67 weatherproofing withstanding Queensland monsoonal rain, Sydney coastal storms, and operating temperatures from minus 30°C to plus 60°C across Australian extremes.
Small Business Retail and Office Applications
5-megapixel resolution provides sufficient detail for till monitoring, stock room coverage, and reception area surveillance within typical 10-20 square metre spaces, with built-in audio for customer interaction documentation per Privacy Act requirements.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-IPC-HDW2541EMP-AS-ANZ Camera × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power Source: Requires Power over Ethernet switch or injector delivering IEEE 802.3af standard, or alternative 12-volt DC power supply with cable running to mains outlet within practical distance of mounting location. 2. Network Connection: Quality Cat6 solid copper cable required for distances up to 100 metres, with outdoor-rated UV-resistant specification for any exposed cable runs and proper junction box protecting RJ45 connection from weather infiltration. 3. Mounting Surface: Solid ceiling, soffit, or wall surface capable of supporting camera weight, with optional PFB205W wall bracket for vertical surfaces and junction boxes PFA121 or PFA122 mandatory for Australian weatherproofing compliance.
App Setup and Remote Viewing
1. Download DMSS app free from Apple App Store or Google Play, create Dahua account with strong password, and grant camera, storage, and notification permissions on your mobile device. 2. Scan the P2P QR code printed on camera label using app's scan function to establish encrypted remote access tunnel, immediately change default admin credentials, and assign meaningful device name like "Front Driveway." 3. Configure Smart Motion Detection Plus zones excluding problem areas like trees or neighbouring property, adjust sensitivity settings conservatively, and enable Perimeter Protection tripwire or intrusion zones for targeted alerts rather than full-frame motion detection.
