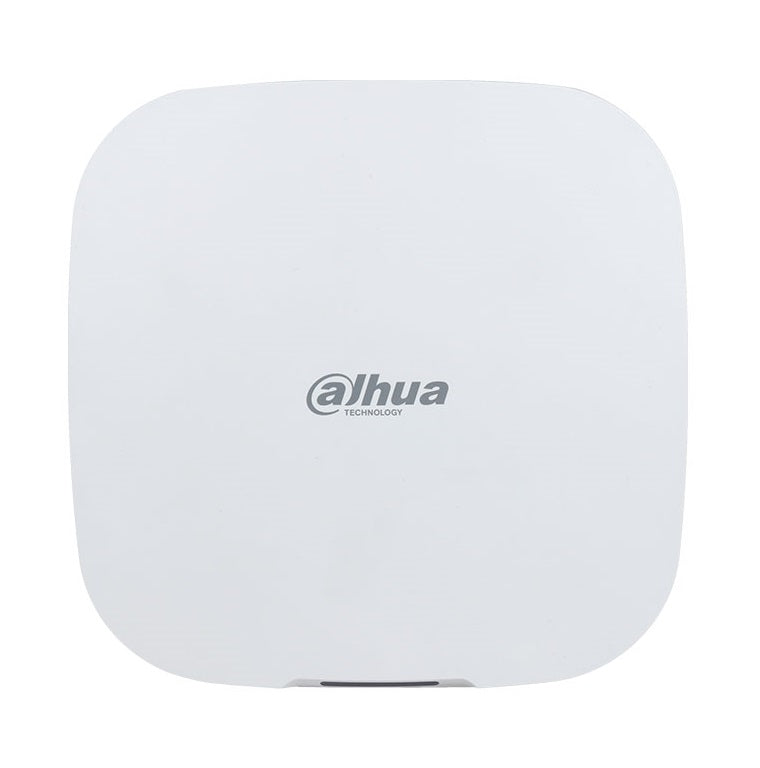

Dahua DHI-ARC3000H-FW2 Wireless Alarm Hub
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DHI-ARC3000H-FW2 Wireless Alarm Hub
SKU: DHI-ARC3000H-FW2
Description
The Dahua DHI-ARC3000H-FW2 is the wireless hub at the centre of a Dahua AirShield alarm system. It manages your wireless detectors, sirens, keypads and keyfobs, decides when to raise an alarm and notifies you through the free DMSS app. It connects three ways — Ethernet, Wi-Fi and 4G cellular — so it keeps reporting even if one network drops, and a built-in rechargeable battery keeps it running through a power cut. Wireless peripherals are required and sold separately.
Key points
- Central hub for the AirShield system; up to 150 wireless peripherals
- Supports up to 6 sirens, 64 keyfobs, 8 keypads, 8 PIR cameras and 4 repeaters
- Triple connectivity: Ethernet (RJ45), Wi-Fi 2.4G and 4G cellular (dual SIM)
- Built-in rechargeable battery for around 12 hours of backup in a power cut
- Encrypted two-way wireless to peripherals (AES128, frequency hopping)
- Alarm video verification with IP cameras; app push, SMS and phone-call alerts to up to 5 numbers
- Self-monitor free in DMSS with no monthly fees; wireless peripherals sold separately
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua DHI-ARC3000H-FW2 Wireless Alarm Hub
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DHI-ARC3000H-FW2 is
The Dahua DHI-ARC3000H-FW2 is the control hub of a Dahua AirShield wireless alarm system. Every detector, siren, keypad and keyfob talks to the hub, and the hub decides when to raise an alarm, sounds the sirens and pushes a notification to your phone through the free DMSS app. It scales well beyond a single room, supporting up to 150 wireless peripherals — including up to 6 sirens, 64 keyfobs, 8 keypads, 8 PIR cameras and 4 repeaters — so it suits anything from a flat to a large home or small business.
Staying connected is its strong point. It links three ways — wired Ethernet, Wi-Fi, and 4G cellular with dual SIM — so if the broadband drops it can keep reporting over mobile data, and automatic network replenishment fills in any messages missed during an outage. A built-in rechargeable lithium battery keeps the system alive for around 12 hours through a power cut. To its wireless peripherals it uses an encrypted two-way link with AES128 and frequency hopping at up to 2,000 m in open space, and it can link IP cameras for alarm video verification so you see what triggered an alarm in the app rather than guessing.
It is built for flexible, no-lock-in control. Arm and disarm from the DMSS app, a keyfob or an automatic schedule, and add a wireless keypad for PIN or card arming by the door; alerts go out as app push, SMS and phone calls to up to 5 numbers. You can self-monitor free in DMSS with no monthly fees. Two honest notes: the hub is the controller, not a complete alarm — you add the detectors, sirens and a way to arm it — and the 4G option needs a SIM with an active data plan. It runs from a 12 V DC adapter and is genuine Australian Dahua stock with local 3-year warranty and support.
02Engineering
DHI-ARC3000H-FW2 specifications
- Central control hub for the Dahua AirShield wireless alarm system
- Manages up to 150 peripherals: up to 6 sirens, 64 keyfobs, 8 keypads, 8 PIR cameras and 4 repeaters
- Triple connectivity: Ethernet (RJ45 10/100), Wi-Fi 2.4G (802.11b/g/n) and 4G/3G/2G cellular (dual SIM, single standby) with automatic network replenishment
- Built-in rechargeable lithium battery, around 12 hours of backup in a power cut
- Encrypted two-way wireless to peripherals (AES128, frequency hopping), up to 2,000 m in open space
- Alarm video verification by linking IP cameras, viewable in the DMSS app
- App push, SMS and phone-call alerts to up to 5 numbers; tamper and low-battery monitoring
- Arm/disarm by app, keyfob or schedule (add a keypad for PIN/card); 12 V DC powered; self-monitor free in DMSS; 3-year warranty
- Manages up to 150 peripherals: up to 6 sirens, 64 keyfobs, 8 keypads, 8 PIR cameras and 4 repeaters
- Triple connectivity: Ethernet (RJ45 10/100), Wi-Fi 2.4G (802.11b/g/n) and 4G/3G/2G cellular (dual SIM, single standby) with automatic network replenishment
- Built-in rechargeable lithium battery, around 12 hours of backup in a power cut
- Encrypted two-way wireless to peripherals (AES128, frequency hopping), up to 2,000 m in open space
- Alarm video verification by linking IP cameras, viewable in the DMSS app
- App push, SMS and phone-call alerts to up to 5 numbers; tamper and low-battery monitoring
- Arm/disarm by app, keyfob or schedule (add a keypad for PIN/card); 12 V DC powered; self-monitor free in DMSS; 3-year warranty
03Full datasheet
Detailed specifications
Network & Storage
| Feature | Detail |
|---|---|
| Network Mode | Single SIM (GSM:900/1800MHz, WCDMA:B1/B5/B8, LTE-FDD:B1/B3/B5/B7/B8/B20, LTE-TDD:B38/B40/B41); dual SIM single standby |
| Network Protocol | TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 2,000 m (6,561.68 ft) in an open space |
| Communication Mechanism | Two-way |
| Encryption Mode | AES128 |
| Wi-Fi | 2.4G |
| Frequency Hopping | Yes |
| Remote Upgrade | Cloud update |
| Cache | Max. 50 entries (ANR) |
Event & Alarm
| Feature | Detail |
|---|---|
| Wireless Zone | 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs) |
| Tamper Alarm | Yes |
| SMS | Yes (up to 5 phone numbers) |
| Calling Alarm | Yes (up to 5 phone numbers) |
| Video Linkage | Yes |
| Arm and Disarm | App; keyfob; schedule |
| Power Failure Protection for Configured Parameters | Yes |
| User Management | Share function for App users |
| Low Battery Alarm | Yes |
| Search | Search for push messages, device status, and program version, and detect signal strength |
Interface
| Feature | Detail |
|---|---|
| Network Port | 1 × RJ-45 10 M/100 M Ethernet port |
| Storage Battery | Built-in lithium battery |
| Indicator Light | 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) |
| Button | 1 × reset, 1 × power, 1 × AP |
| Buzzer | Built-in |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) |
| Operating Temperature | –10 °C to +50 °C (+14 °F to +122 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26") (L × W × H) |
| Packaging Dimensions | 219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58") (L × W × H) |
| Installation | Wall mount; Desktop |
| Net Weight | 0.38 kg (0.84 lb) |
| Gross Weight | 0.8 kg (1.76 lb) |
| Casing | PC + ABS |
| Battery Life | Storage battery standby for 12 hours |
| Certifications | CE |
| Network & Storage — Network Mode | Single SIM (GSM:900/1800MHz, WCDMA:B1/B5/B8, LTE-FDD:B1/B3/B5/B7/B8/B20, LTE-TDD:B38/B40/B41); dual SIM single standby |
|---|---|
| Network & Storage — Network Protocol | TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP |
| Network & Storage — Carrier Frequency | 868.0 MHz–868.6 MHz |
| Network & Storage — Communication Distance | Up to 2,000 m (6,561.68 ft) in an open space |
| Network & Storage — Communication Mechanism | Two-way |
| Network & Storage — Encryption Mode | AES128 |
| Network & Storage — Wi-Fi | 2.4G |
| Network & Storage — Frequency Hopping | Yes |
| Network & Storage — Remote Upgrade | Cloud update |
| Network & Storage — Cache | Max. 50 entries (ANR) |
| Event & Alarm — Wireless Zone | 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs) |
| Event & Alarm — Tamper Alarm | Yes |
| Event & Alarm — SMS | Yes (up to 5 phone numbers) |
| Event & Alarm — Calling Alarm | Yes (up to 5 phone numbers) |
| Event & Alarm — Video Linkage | Yes |
| Event & Alarm — Arm and Disarm | App; keyfob; schedule |
| Event & Alarm — Power Failure Protection for Configured Parameters | Yes |
| Event & Alarm — User Management | Share function for App users |
| Event & Alarm — Low Battery Alarm | Yes |
| Event & Alarm — Search | Search for push messages, device status, and program version, and detect signal strength |
| Interface — Network Port | 1 × RJ-45 10 M/100 M Ethernet port |
| Interface — Storage Battery | Built-in lithium battery |
| Interface — Indicator Light | 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) |
| Interface — Button | 1 × reset, 1 × power, 1 × AP |
| Interface — Buzzer | Built-in |
| General & Environment — Power Supply | 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) |
| General & Environment — Operating Temperature | –10 °C to +50 °C (+14 °F to +122 °F) (indoor) |
| General & Environment — Operating Humidity | 10%–90% (RH) |
| General & Environment — Product Dimensions | 163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26") (L × W × H) |
| General & Environment — Packaging Dimensions | 219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58") (L × W × H) |
| General & Environment — Installation | Wall mount; Desktop |
| General & Environment — Net Weight | 0.38 kg (0.84 lb) |
| General & Environment — Gross Weight | 0.8 kg (1.76 lb) |
| General & Environment — Casing | PC + ABS |
| General & Environment — Battery Life | Storage battery standby for 12 hours |
| General & Environment — Certifications | CE |
04Why choose this
Built for the way you actually use the DHI-ARC3000H-FW2
Keeps working in a blackout
A built-in rechargeable battery runs the system for around 12 hours during a power cut, so a simple outage does not leave you unprotected.
Room to grow
Up to 150 peripherals covers everything from a flat to a large home or small business, all managed from one hub and the DMSS app.
Own it, no monthly fees
Self-monitor free in the DMSS app with push, SMS and phone-call alerts — no forced subscription to use your own alarm.
05Where it fits
Right at home in these scenarios
Whole-home wireless alarm
Run detectors, sirens and keypads across a house on one hub, armed from the app, a keypad or a keyfob.
Small business and shopfront
Cover entries and rooms with up to 150 devices and cellular backup for reliable reporting.
Properties with patchy internet
Use 4G as a backup or primary path so the alarm still reports where fixed broadband is unreliable.
Video-verified alarms
Link IP cameras and AirShield PIR cameras so a trigger comes with a picture, cutting false call-outs and guesswork.
06Setup
Installation & setup
-
01
What's in the box
One DHI-ARC3000H-FW2 hub with built-in rechargeable battery and a 12 V DC power adapter. Wireless peripherals (detectors, sirens, keypads, keyfobs), a SIM for the 4G option and any IP cameras are not included.
-
02
Installation requirements
Place the hub centrally for good wireless coverage, power it from the supplied 12 V DC adapter, and connect it to your network by Ethernet or Wi-Fi (add a data SIM if you want 4G backup). Add it to the DMSS app, then enrol your detectors, sirens and arming devices. Set entry and exit delays and test each device's signal before arming. Professional installation is recommended for monitored systems.
08Questions
Frequently asked about the DHI-ARC3000H-FW2
Q.01
What exactly is the ARC3000H-FW2?
It is the wireless control hub of a Dahua AirShield alarm system. It connects your wireless detectors, sirens, keypads and keyfobs, decides when to raise an alarm and alerts you in the DMSS app. It is the part you build the system around; the detectors, sirens and arming devices are separate and added to suit your property.
Q.02
Do I need a SIM card or a monthly subscription?
No subscription is required. You can self-monitor the system free through the DMSS app over your home Ethernet or Wi-Fi, with push, SMS and phone-call alerts. The 4G cellular option is a backup path and only needs a SIM with an active data plan if you want mobile-network reporting as well.
Q.03
How many devices can it support?
Up to 150 wireless peripherals, including up to 6 sirens, 64 keyfobs, 8 keypads, 8 PIR cameras and 4 repeaters. That is enough for a single home through to a large house or small business.
Q.04
What happens if the power or internet goes out?
A built-in rechargeable battery keeps the hub running for around 12 hours during a power cut. For internet, it can fall back between Ethernet, Wi-Fi and 4G cellular, and automatic network replenishment recovers any alarm messages missed while a network was down.
Q.05
How do I arm and disarm it?
From the DMSS app, with a keyfob, or on an automatic schedule. Add a wireless keypad and you can also arm and disarm by PIN code or a contactless card by the door.
Q.06
Can it show me what set the alarm off?
Yes. It supports alarm video verification by linking IP cameras and works with AirShield PIR cameras, so when an alarm triggers you can see an image of what caused it in the app instead of just a notification.
Q.07
How is this different from the Alarm Hub 2?
Both run the same AirShield peripherals and support up to 150 devices. The larger ARC3800H-FW2 Alarm Hub 2 adds capacity such as alerts to more phone numbers and more onboard cameras for bigger sites. The ARC3000H-FW2 covers most homes and small businesses at a lower cost.
Q.08
Is the wireless link to the detectors secure?
Yes. The hub uses an encrypted two-way wireless link with AES128 and frequency hopping. Two-way communication confirms each device is reporting, and the encryption and hopping make the signal resistant to interference and jamming.
Q.09
Is this genuine Australian Dahua stock?
Yes. It is supplied as genuine Australian Dahua stock with local 3-year warranty and support, and it works with the AirShield peripherals sold here.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
09In motion
Dahua AirShield Wireless Security System
Dahua AirShield - Your Ultimate Smart Home Security System
10Bundles
Recommended packages
Add detection
Cover the property with detectors such as a ARD1233-W2 PIR detector, a ARD324-W2 door detector or a ARD512-W2 glass-break detector.
Add sirens
Make alarms heard with an ARA12-W2 indoor siren indoors and an ARA13-W2 outdoor siren outside.
Add ways to arm
Arm and disarm with the ARK30T-W2 keypad or the ARA24-W2 keyfob, using Mifare IC tags for card access.
Extend and automate
Reach distant devices with the ARA43-W2 repeater, bring in wired sensors with the ARM320-W2 input expander, or control lights with the ARM7012-W2 WallSwitch.
