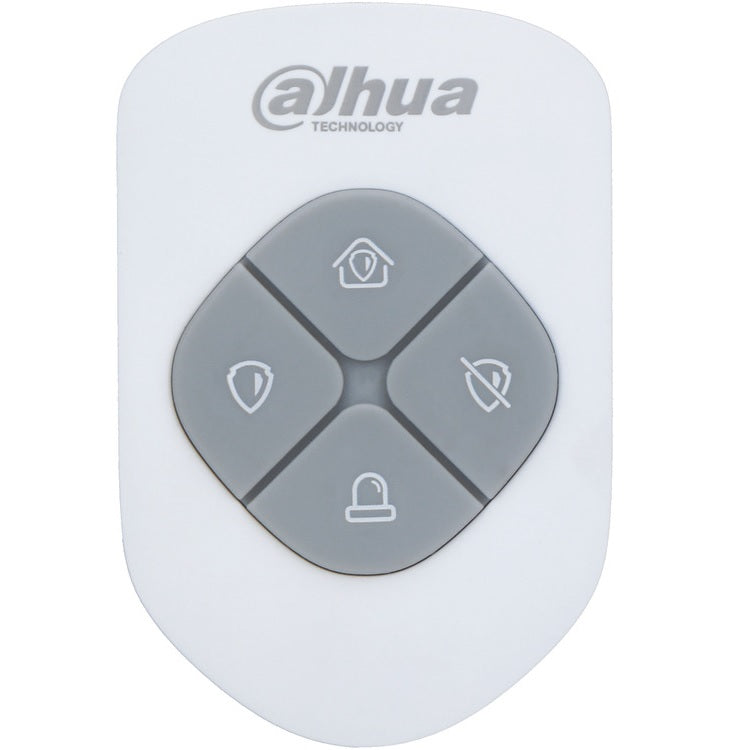

Dahua DHI-ARA24-W2 Wireless Alarm Keyfob Remote
SKU: DHI-ARA24-W2
Description
The Dahua DHI-ARA24-W2 is a four-button wireless keyfob for the Dahua AirShield alarm system. It lets you arm and disarm your alarm from your pocket and includes a dedicated SOS button to raise an emergency alert. It talks to your AirShield hub over an encrypted 868 MHz two-way link, so the keyfob confirms each command rather than firing blind. An AirShield hub is required and sold separately.
Key points
- Four buttons: Home arm, Away arm, Disarm and SOS emergency alarm
- 868 MHz two-way radio with AES128 encryption and frequency hopping
- Range up to 900 m in open space to the hub
- Two-colour status LED confirms normal or fault feedback
- CR2032 battery with around 3 years of life and low-battery warning
- Compact 60 mm keyring fob; works only with a Dahua AirShield hub
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua DHI-ARA24-W2 Wireless Alarm Keyfob Remote
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DHI-ARA24-W2 is
The Dahua DHI-ARA24-W2 is a pocket-sized remote for the Dahua AirShield wireless alarm system. Its four buttons let you arm in Away mode when you leave, arm in Home mode to protect doors and perimeter while you stay in, disarm when you return, and press SOS to raise an immediate emergency alarm. A two-colour LED flashes back so you know the command was received.
It is not a one-way remote. The keyfob uses 868 MHz two-way communication with AES128 encryption and frequency hopping, so each press is confirmed by the hub and the link resists interference and cloning, with a range of up to 900 m in open space. A single CR2032 coin cell runs it for around three years, and a low-battery warning lets you know well before it goes flat.
Worth knowing before you buy: the keyfob is an accessory, not a system on its own. It needs a Dahua AirShield hub to function, and you would normally pair it with detectors and a siren. It carries genuine Australian Dahua warranty and support, and the same system is managed from the free DMSS app on your phone.
02Engineering
DHI-ARA24-W2 specifications
- Four-button wireless keyfob for the Dahua AirShield alarm system: Home arm, Away arm, Disarm, SOS
- One-touch SOS button raises an immediate emergency alarm
- 868 MHz two-way communication with AES128 encryption and frequency hopping
- Range up to 900 m in open space to the AirShield hub
- Two-colour status LED (green normal, red fault) confirms each command
- CR2032 battery, around 3 years of life, with low-battery warning
- Compact 60 x 39.5 x 15 mm fob, 20 g, indoor use (-10 to +55 C); EN 50131 Security Grade 2
- Requires a Dahua AirShield hub; genuine Australian stock with 3-year warranty
- One-touch SOS button raises an immediate emergency alarm
- 868 MHz two-way communication with AES128 encryption and frequency hopping
- Range up to 900 m in open space to the AirShield hub
- Two-colour status LED (green normal, red fault) confirms each command
- CR2032 battery, around 3 years of life, with low-battery warning
- Compact 60 x 39.5 x 15 mm fob, 20 g, indoor use (-10 to +55 C); EN 50131 Security Grade 2
- Requires a Dahua AirShield hub; genuine Australian stock with 3-year warranty
03Full datasheet
Detailed specifications
Network & Storage
| Feature | Detail |
|---|---|
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 900 m (2,952.76 ft) in an open space |
| Communication Mechanism | Two-way |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
| Remote Upgrade | Cloud update |
Event & Alarm
| Feature | Detail |
|---|---|
| Low Battery Alarm | Yes |
| Search | Signal strength detection |
Interface
| Feature | Detail |
|---|---|
| Indicator Light | 1 × two-color status indicator (green: normal, red: abnormal) |
| Button | 4 (Home, Away, Disarm, and SOS) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | CR2032 battery |
| Power Consumption | Max. 100 mW |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H) |
| Packaging Dimensions | 135.0 mm × 98.5 mm × 27.8 mm (5.31" × 3.88" × 1.09") (L × W × H) |
| Net Weight | 20 g (0.04 lb) |
| Gross Weight | 65 g (0.14 lb) |
| Casing | PC + ABS |
| Battery Life | 3 years |
| Certifications | CE | EN 50131-1:2006+A1:2009+A2:2017+A3:2020 | EN 50131-6:2017 | EN 50131-5-3:2017 | EN 50131-3:2009 | Security Grade 2 | Environmental Class II |
| Network & Storage — Carrier Frequency | 868.0 MHz–868.6 MHz |
|---|---|
| Network & Storage — Communication Distance | Up to 900 m (2,952.76 ft) in an open space |
| Network & Storage — Communication Mechanism | Two-way |
| Network & Storage — Encryption Mode | AES128 |
| Network & Storage — Frequency Hopping | Yes |
| Network & Storage — Remote Upgrade | Cloud update |
| Event & Alarm — Low Battery Alarm | Yes |
| Event & Alarm — Search | Signal strength detection |
| Interface — Indicator Light | 1 × two-color status indicator (green: normal, red: abnormal) |
| Interface — Button | 4 (Home, Away, Disarm, and SOS) |
| General & Environment — Power Supply | CR2032 battery |
| General & Environment — Power Consumption | Max. 100 mW |
| General & Environment — Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| General & Environment — Operating Humidity | 10%–90% (RH) |
| General & Environment — Product Dimensions | 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H) |
| General & Environment — Packaging Dimensions | 135.0 mm × 98.5 mm × 27.8 mm (5.31" × 3.88" × 1.09") (L × W × H) |
| General & Environment — Net Weight | 20 g (0.04 lb) |
| General & Environment — Gross Weight | 65 g (0.14 lb) |
| General & Environment — Casing | PC + ABS |
| General & Environment — Battery Life | 3 years |
| General & Environment — Certifications | CE | EN 50131-1:2006+A1:2009+A2:2017+A3:2020 | EN 50131-6:2017 | EN 50131-5-3:2017 | EN 50131-3:2009 | Security Grade 2 | Environmental Class II |
04Why choose this
Built for the way you actually use the DHI-ARA24-W2
SOS when it matters
A dedicated SOS button raises an immediate emergency alarm, useful for medical or personal-safety situations as well as intrusion.
Confirmed, secure signalling
868 MHz two-way radio with AES128 encryption and frequency hopping confirms each command and resists interference and cloning.
Years between battery changes
A CR2032 cell lasts around three years with a low-battery warning, so it is genuinely fit-and-forget.
05Where it fits
Right at home in these scenarios
Daily arm and disarm
Keep one on the keyring to arm Away on the way out and disarm on the way back, the quickest way to use the system day to day.
Personal safety / SOS
Carry it for a one-touch emergency alarm at home, handy for elderly residents or anyone living alone.
A fob for each person
Give every family member or staff member their own keyfob, with up to 64 supported per hub.
Backup to the app
Use it when a phone is out of reach or out of charge, as a reliable physical control for the alarm.
06Setup
Installation & setup
-
01
What's in the box
One DHI-ARA24-W2 keyfob with a CR2032 battery fitted. A Dahua AirShield hub is required and not included.
-
02
Setup
Enrol the keyfob to your AirShield hub through the DMSS app by following the add-peripheral steps and scanning or entering its code. Assign it to the person or area you want, then test each button to confirm a good two-way signal before relying on it.
08Questions
Frequently asked about the DHI-ARA24-W2
Q.01
Does the ARA24-W2 keyfob work on its own?
No. It is a remote control for the Dahua AirShield alarm system and needs an AirShield hub to work. Once enrolled to a hub it arms, disarms and raises an SOS alarm wirelessly; without a hub it has nothing to talk to.
Q.02
What do the four buttons do?
Away arms the whole system when you leave, Home arms perimeter and door protection while you stay inside, Disarm turns the alarm off when you return, and SOS raises an immediate emergency alarm to the hub and your phone.
Q.03
How far does it reach the hub?
Up to 900 metres in open space. Indoors through walls the practical range is shorter, but it comfortably covers a typical home or small business where the keyfob and hub are in or near the same building.
Q.04
Is the signal secure, or can it be copied?
It uses 868 MHz two-way communication with AES128 encryption and frequency hopping. Two-way means the hub confirms each command, and the encryption and hopping make the signal very difficult to intercept or clone compared with a basic one-way remote.
Q.05
How long does the battery last and can I replace it?
It runs on a single CR2032 coin cell for around three years and gives a low-battery warning before it runs out. The battery is a standard, widely available type that you can replace yourself.
Q.06
How many keyfobs can I add to one system?
A Dahua AirShield hub supports up to 64 keyfobs, so every member of the household or staff can have their own remote, each identifiable in the system.
Q.07
Can I still use my phone to arm the system?
Yes. The keyfob is an extra, convenient way to arm and disarm. You can also control the same AirShield system from the free DMSS app on your phone, at home or away.
Q.08
Is this genuine Australian Dahua stock?
Yes. It is supplied as genuine Australian Dahua stock with local 3-year warranty and support, and it pairs with the 868 MHz AirShield hubs and peripherals sold here.
