Dahua DHI-ARK30T-W2 Wireless Keypad
SKU: DHI-ARK30T-W2
Description

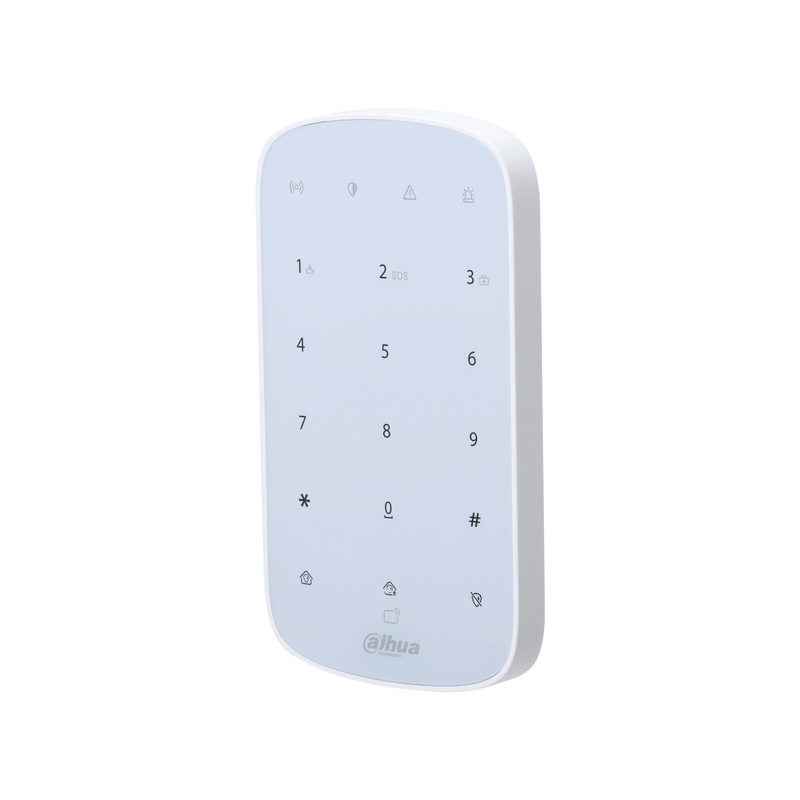

The Dahua DHI-ARK30T-W2 is a wireless keypad for the Dahua AirShield alarm system. It lets people arm and disarm by entering a PIN or tapping an IC card by the door, with support for up to 32 users so you can give everyone their own code. It is fully wireless and links to your AirShield hub over an encrypted 868 MHz two-way connection, so there is no cabling to run. An AirShield hub is required and sold separately.
Key points
- Arm and disarm by PIN code or contactless IC card
- Supports up to 32 individual users
- Emergency alarm functions (panic, fire and medical) from the keypad
- 868 MHz two-way radio with AES128 encryption and frequency hopping
- Range up to 1,600 m in open space to the hub
- Four indicator lights for communication, arm/disarm, fault and alarm
- 4 x AA batteries with around 3 years of life; tamper alarm; indoor wall mount
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua DHI-ARK30T-W2 Wireless Keypad
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DHI-ARK30T-W2 is
The Dahua DHI-ARK30T-W2 is a wireless keypad that gives a Dahua AirShield alarm a familiar by-the-door control point. Users can arm and disarm either by entering a personal PIN or by tapping a contactless IC card, and the keypad supports up to 32 users so each person can have their own code or card and the system records who armed or disarmed it. Four indicator lights show communication, arm and disarm state, faults and active alarms at a glance.
It is fully wireless. It mounts on any indoor wall and talks to the hub over 868 MHz two-way radio with AES128 encryption and frequency hopping at up to 1,600 m in open space, so there is no cabling between the keypad and the hub. A tamper alarm protects it from being prised off the wall, and the keypad can also raise emergency panic, fire and medical alarms when needed.
Practical notes: it runs on four AA batteries for around three years (about two years if you enable entry/exit delay tones and arming ringtones), with a low-battery warning. It is an accessory, not a system on its own — it needs an AirShield hub and at least a detector and siren to do its job — and to use card arming you add compatible IC cards or tags. It is genuine Australian Dahua stock with local warranty and support.
02Engineering
DHI-ARK30T-W2 specifications
- Wireless keypad for the Dahua AirShield alarm system
- Arm and disarm by personal PIN code or contactless IC card
- Supports up to 32 individual users
- Emergency panic, fire and medical alarm functions from the keypad
- 868 MHz two-way communication with AES128 encryption and frequency hopping
- Range up to 1,600 m in open space to the AirShield hub
- Four indicator lights (communication, arm/disarm, fault, alarm); tamper alarm
- 4 x AA batteries, around 3 years of life (about 2 years with delay tones/ringtones); indoor wall mount; 3-year warranty
- Arm and disarm by personal PIN code or contactless IC card
- Supports up to 32 individual users
- Emergency panic, fire and medical alarm functions from the keypad
- 868 MHz two-way communication with AES128 encryption and frequency hopping
- Range up to 1,600 m in open space to the AirShield hub
- Four indicator lights (communication, arm/disarm, fault, alarm); tamper alarm
- 4 x AA batteries, around 3 years of life (about 2 years with delay tones/ringtones); indoor wall mount; 3-year warranty
03Full datasheet
Detailed specifications
Audio
| Feature | Detail |
|---|---|
| Buzzer | 1 × built-in buzzer |
Network & Storage
| Feature | Detail |
|---|---|
| Remote Update | Cloud update |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | Limit 25 mW |
| Communication Mechanism | Two-way |
| Communication Distance | Up to 1,600 m (5,249.34 ft) in an open space |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
| User Management | 32 users |
Event & Alarm
| Feature | Detail |
|---|---|
| Arm and Disarm | Password; IC card |
| Low Battery Detection | Yes |
| Tamper | Yes |
Interface
| Feature | Detail |
|---|---|
| Indicator Light | 4 indicators (communication, arm/disarm, fault, and alarm) |
| Button | 15 buttons (0–9, *, #, arm, disarm, and home arm) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 4 × AA batteries |
| Battery Life | 3 years (if the device is used to arm and disarm once a day). | After enabling Entering/Exiting Delay Time and Arming/Disarming Ringtone function: 2 years (if the devices is used to arm and disarm once day). |
| Power Consumption | Max. 2.3 W |
| Measuring Range (Temperature) | –15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
| Measuring Accuracy | 1 °C (33.8 °F) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 146.0 mm × 82.0 mm × 22.6 mm (5.75" × 3.23" × 0.89") |
| Packaging Dimensions | 180.0 mm × 104.0 mm × 58.0 mm (7.07" × 4.09" × 2.28") |
| Net Weight | 240 g (0.529 lb) (with battery); 145 g (0.32 lb) (without battery) |
| Gross Weight | 370 g (0.816 lb) |
| Installation | Wall mount |
| Casing Material | PC + ABS |
| Certifications | CE; EN 50131-1:2006+A1:2009+A2:2017+A3:2020; EN 50131-3:2009; EN 50131-6:2017; EN 50131-5-3:2017; Security Grade 2; Environmental Class II |
| Audio — Buzzer | 1 × built-in buzzer |
|---|---|
| Network & Storage — Remote Update | Cloud update |
| Network & Storage — Carrier Frequency | 868.0 MHz–868.6 MHz |
| Network & Storage — Transmitter Power (EIRP) | Limit 25 mW |
| Network & Storage — Communication Mechanism | Two-way |
| Network & Storage — Communication Distance | Up to 1,600 m (5,249.34 ft) in an open space |
| Network & Storage — Encryption Mode | AES128 |
| Network & Storage — Frequency Hopping | Yes |
| Network & Storage — User Management | 32 users |
| Event & Alarm — Arm and Disarm | Password; IC card |
| Event & Alarm — Low Battery Detection | Yes |
| Event & Alarm — Tamper | Yes |
| Interface — Indicator Light | 4 indicators (communication, arm/disarm, fault, and alarm) |
| Interface — Button | 15 buttons (0–9, *, #, arm, disarm, and home arm) |
| General & Environment — Power Supply | 4 × AA batteries |
| General & Environment — Battery Life | 3 years (if the device is used to arm and disarm once a day). | After enabling Entering/Exiting Delay Time and Arming/Disarming Ringtone function: 2 years (if the devices is used to arm and disarm once day). |
| General & Environment — Power Consumption | Max. 2.3 W |
| General & Environment — Measuring Range (Temperature) | –15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
| General & Environment — Measuring Accuracy | 1 °C (33.8 °F) |
| General & Environment — Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| General & Environment — Operating Humidity | 10%–90% (RH) |
| General & Environment — Product Dimensions | 146.0 mm × 82.0 mm × 22.6 mm (5.75" × 3.23" × 0.89") |
| General & Environment — Packaging Dimensions | 180.0 mm × 104.0 mm × 58.0 mm (7.07" × 4.09" × 2.28") |
| General & Environment — Net Weight | 240 g (0.529 lb) (with battery); 145 g (0.32 lb) (without battery) |
| General & Environment — Gross Weight | 370 g (0.816 lb) |
| General & Environment — Installation | Wall mount |
| General & Environment — Casing Material | PC + ABS |
| General & Environment — Certifications | CE; EN 50131-1:2006+A1:2009+A2:2017+A3:2020; EN 50131-3:2009; EN 50131-6:2017; EN 50131-5-3:2017; Security Grade 2; Environmental Class II |
04Why choose this
Built for the way you actually use the DHI-ARK30T-W2
Up to 32 users
Give everyone their own code or card, see who armed or disarmed the system, and revoke one person without affecting the rest.
Wireless, by the door
A two-way 868 MHz link means it mounts on any indoor wall near the entrance with no cabling back to the hub.
Emergency at hand
Built-in panic, fire and medical alarm functions put help one press away at the main control point.
05Where it fits
Right at home in these scenarios
Front-door control
Mount it by the main entrance so the family or staff arm on the way out and disarm on the way in with a code or card.
Shops and offices
Issue cards to staff for quick, code-free arming and disarming, with each user tracked separately.
Households that prefer a keypad
Give a familiar wall control to anyone who would rather not use the phone app for everyday arming.
Card access for some users
Hand IC cards to children or casual users while keeping PIN codes for others.
06Setup
Installation & setup
-
01
What's in the box
One DHI-ARK30T-W2 wireless keypad with mounting hardware and 4 x AA batteries. A Dahua AirShield hub is required, and IC cards or tags for card arming are not included.
-
02
Installation requirements
Mount it on an indoor wall near the entrance, fit the AA batteries and enrol it to your AirShield hub through the DMSS app. Add user PINs and any IC cards, set entry and exit delays to suit, and use the signal-strength check to confirm a good two-way link before relying on it.
08Questions
Frequently asked about the DHI-ARK30T-W2
Q.01
Does the ARK30T-W2 keypad work on its own?
No. It is a control point for the Dahua AirShield system and needs an AirShield hub to work. Enrolled to a hub it arms and disarms the system; on its own it has nothing to control.
Q.02
Can I arm and disarm with a card instead of a code?
Yes. You can either enter a PIN or tap a compatible contactless IC card, whichever you prefer. Cards suit children, staff or anyone who would rather not remember a code, and you simply add compatible IC cards or tags to use them.
Q.03
How many users can it have?
Up to 32 individual users, each with their own PIN or card. Because users are separate, the system can record who armed or disarmed it and you can remove a single person's access without changing everyone else's.
Q.04
Can it raise an emergency alarm?
Yes. The keypad can trigger emergency panic, fire and medical alarms in addition to normal arming and disarming, so help can be summoned from the same point by the door.
Q.05
Does it need wiring to the hub?
No. It is fully wireless and battery powered, connecting to the hub over an encrypted 868 MHz two-way link at up to 1,600 metres in open space, so it mounts on any indoor wall with no cabling.
Q.06
How long do the batteries last?
It runs on four AA batteries for around three years in normal use, or about two years if you turn on entry and exit delay tones and arming ringtones. A low-battery warning lets you know before they run out.
Q.07
What do the indicator lights show?
Four lights show communication with the hub, the arm or disarm state, any system fault, and an active alarm, so the system status is clear at a glance whenever you pass the keypad.
Q.08
Is this genuine Australian Dahua stock?
Yes. It is the 868 MHz AirShield keypad supplied as genuine Australian Dahua stock with local 3-year warranty and support, matching the AirShield hubs and peripherals sold here.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Pair it with an AirShield hub (required)
The keypad needs a hub to work — build your system on the DHI-ARC3800H-FW2 Alarm Hub 2, or the smaller DHI-ARC3000H-FW2 hub.
Add IC cards for tap arming
To arm and disarm by card, add Dahua Mifare IC tags for staff or family members.
Add detection and a siren
Cover the property with a ARD1233-W2 PIR detector or ARD323-W2 door contact and make alarms heard with an ARA12-W2 indoor siren or ARA13-W2 outdoor siren.
Add a keyfob too
For pocket arming and an SOS button, add the ARA24-W2 keyfob.
