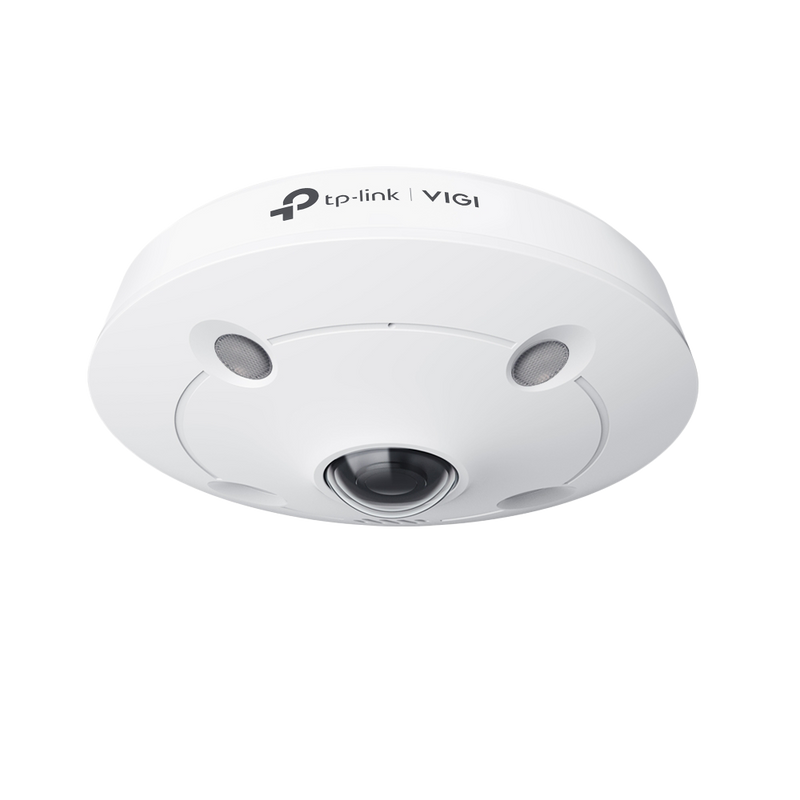

TP-Link VIGI Insight S655I 5MP Fisheye Eco Camera
SKU: Insight S655I
Description
Provides a complete 360-degree panoramic view in 5MP high definition to eliminate blind spots in large open areas with a single professional security camera.
Regular price
$379.05 AUD
Sale price
$379.05 AUD
Regular price
$399.00 AUD
Sale
5.0%
$19.95 AUD
(5.0%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
TP-Link VIGI Insight S655I 5MP Fisheye Eco Camera
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $837.55
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
TP-Link VIGI Insight S655I 5MP Fisheye Eco Camera delivers full-scene coverage for retail showrooms, lobbies, and educational organisations. It features advanced dewarping technology and a rugged IK10 vandal-resistant Model, ensuring the Model provides reliable surveillance across any open-area environment.
§ 02Engineering
Technical specifications
- 360-Degree Panoramic View: Uses fisheye lens technology to capture an entire room or open area with no blind spots using just one camera.
- 5MP Ultra-Sharp Resolution: Records in 2560 x 1920 resolution to provide high-clarity surveillance for monitoring customer movement and activity.
- Multi-View Dewarping Modes: Supports various display layouts including 180-degree panoramas and PTZ-style views to enhance situational awareness.
- Two-Way Audio Communication: Features an integrated microphone and speaker to enable real-time verbal interaction or remote instructions on-site.
- IK10 Vandal-Resistant Housing: Engineered with a rugged metal enclosure to protect the device against physical tampering and heavy impacts.
- IP67 Weatherproof Rating: Constructed to operate reliably in harsh outdoor or indoor conditions, resistant to both heavy rain and dust.
- 30-Metre Infrared Night Vision: Equipped with 4 high-performance LEDs to ensure clear visibility in complete darkness for round-the-clock security.
- Efficient H.265+ Compression: Reduces storage and bandwidth demands significantly/allowing for longer video retention on microSD cards up to 512GB.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1920 |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Min. Illumination | Color: 0.01 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| Image Settings | Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed Focal Lens |
| Focal Length | 1.44 mm |
| Aperture | F2.0 |
| Field of View | Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV: 180° |
| Lens Mount | M12*P0.5 |
| DORI Distance | Detect 28.8 m (94 ft); Observe 12 m (39 ft); Recognize 5.7 m (19 ft); Identify 2.8 m (9 ft) |
Night Vision
| Feature | Detail |
|---|---|
| Illuminator Number | 4 |
| IR Range | 10 m |
| IR Wavelength | 850 nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Feature | Detail |
|---|---|
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 640 × 480, 320 × 240 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265/H.264/H.265+/H.264+; Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
Audio
| Feature | Detail |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
AI & Deep Learning
| Feature | Detail |
|---|
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Event & Alarm
| Feature | Detail |
|---|---|
| Smart Event | Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Abnormal Sound Detection |
| Basic Event | Motion Detection; Video Tampering Detection; Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording; Message Push; Audible Warning |
| Output Notification | Message Push; Email Alarm; Upload Capture to FTP |
Interface
| Feature | Detail |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Reset Button | Yes |
| Power | DC Power Port |
General & Environment
| Feature | Detail |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Power Supply | 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug | PoE: 802.3af/at, class 0, Max. 12.14W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Material | Metal |
| Net Weight | 0.44 Kg (without Mounting Accessories) | 0.48 Kg (with Mounting Accessories) |
| Product Dimensions | 5.2 × 5.2 × 2.2 in (132 × 132 × 56mm) |
| Certifications | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
