HiLook Hikvision 8MP 4K AcuSense CCTV Kit – 6x Turret IPC-T381H-MU + 8CH PoE NVR (NVR-108MH-C-8P)
Skip to product information
1
/
of
1
Vendor:
Hilook
HiLook Hikvision 8MP 4K AcuSense CCTV Kit – 6x Turret IPC-T381H-MU + 8CH PoE NVR (NVR-108MH-C-8P)
SKU: IPC-T381H-MU
Description
- 8MP 4K Resolution: Delivers high-quality video at 3840x2160.
- AcuSense Smart Detection: Identifies human and vehicle movement only for precise alerts.
- H.265+ Compression: Saves bandwidth and storage with efficient video encoding.
- IP67 Weatherproof Rating: Ensures durability for outdoor or indoor applications.
- Built-in Microphone: Provides real-time audio monitoring capability.
Regular price
$1,035.50 AUD
Sale price
$1,035.50 AUD
Regular price
$1,450.00 AUD
Sale
28.59%
$414.50 AUD
(28.59%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
HiLook Hikvision 8MP 4K AcuSense CCTV Kit – 6x Turret IPC-T381H-MU + 8CH PoE NVR (NVR-108MH-C-8P)
1
/
of
1
Customize this kit Kit price $1,035.50

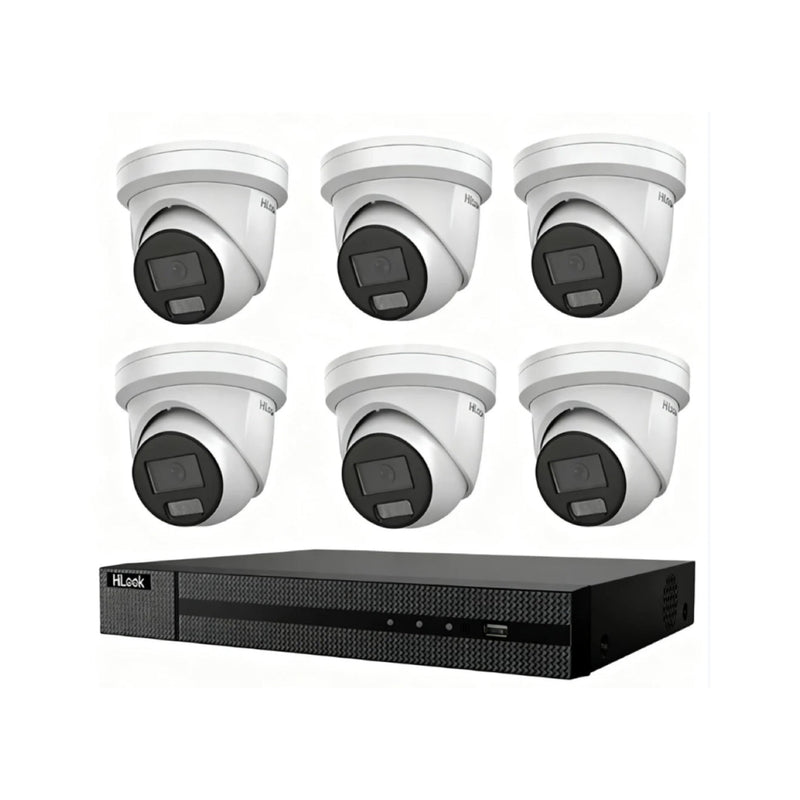

This kit includes:
- 6 × HiLook IPC-T381H-MU 8MP Acusense Turret IP Camera with Built in Mic
- 1 × HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder (8ch)
- No HDD included (add one below)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The HiLook 8MP Camera Kit is an AcuSense CCTV solution for crystal-clear surveillance and smart detection, ideal for homes, businesses, and warehouses.
Equipped with AcuSense technology for human and vehicle movement only, 30m IR night vision, 120dB WDR backlight clarity, IP67 weatherproof rating, and an 8-channel PoE NVR with HDMI 4K output.
§ 02Engineering
Technical specifications
- AcuSense Technology: Detects human and vehicle movements while minimizing false alarms from irrelevant motion.
- 8MP/4K Resolution: Delivers crystal-clear imaging with 3840 × 2160 ultra-HD quality.
- H.265+ Compression: Efficiently saves bandwidth and storage space.
- IP67 Weatherproof: Suitable for both outdoor and indoor use in all conditions.
- Built-in Microphone: Enables real-time audio monitoring for enhanced surveillance.
- 30m IR Night Vision: Provides clear footage in low-light or total darkness.
- 120dB True WDR: Ensures clarity against strong backlighting or challenging lighting.
- 8MP/4K Resolution: Delivers crystal-clear imaging with 3840 × 2160 ultra-HD quality.
- H.265+ Compression: Efficiently saves bandwidth and storage space.
- IP67 Weatherproof: Suitable for both outdoor and indoor use in all conditions.
- Built-in Microphone: Enables real-time audio monitoring for enhanced surveillance.
- 30m IR Night Vision: Provides clear footage in low-light or total darkness.
- 120dB True WDR: Ensures clarity against strong backlighting or challenging lighting.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127° | 4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.7 m to ∞ | 4 mm: 2.6 m to ∞ |
| DORI | 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m | 4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 20 fps (3840 × 2160); 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ | Sub-stream: H.265/H.264/MJPEG | Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Target Cropping | Yes |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -2U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -2U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Perimeter Protection | Line crossing, intrusion; Support alarm triggering by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 11 | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ | Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | -2U: Arrayed dual-microphone |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.66 A, max. 8 W, Ø 5.5 mm coaxial power plug, reverse polarity protection | PoE: IEEE 802.3af, Class 3, max. 9.5 W |
| Material | Metal |
| Dimension | Ø 127.3 mm × 96.3 mm (Ø 5.0" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5") |
| Weight | Approx. 515 g (1.1 lb.) |
| With Package Weight | Approx. 755 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 | RCM: AS/NZS CISPR 32: 2015 | IC: ICES-003: Issue 7 | KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11 | CE-LVD: EN 62368-1: 2014/A11: 2017 | BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 | LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU | WEEE: 2012/19/EU | Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
§ 04Why choose this
Built for the way you actually use it
AcuSense AI Human & Vehicle Detection
Deep-learning AI filters possums, birds, and windblown debris, reducing false alerts by 90% whilst detecting genuine human and vehicle intrusions across your property.
Built-in Microphone Audio Recording
Integrated dual-microphone captures conversations and sounds up to 8 metres, providing crucial context for disputes, incidents, and insurance claims under Australian conditions.
Plug-and-Play PoE System
Single ethernet cables deliver both power and data to each camera, eliminating electrician costs and simplifying DIY installation for Australian homes and businesses.
§ 05Where it fits
Right at home in these scenarios
Front Verandah Package Security
Monitor parcel deliveries, identify visitors before answering, and deter porch theft with clear facial recognition and audio recording of delivery interactions.
Driveway & Garage Protection
Capture vehicle movements, document number plates, and monitor car bay access with 8MP clarity across typical Australian suburban driveway dimensions.
Backyard & Pool Area Monitoring
Supervise outdoor entertaining spaces, pool safety compliance, and rear boundary security with AI detection filtering native wildlife false alarms.
Small Business Premises Security
Document customer interactions, deter shoplifting, monitor after-hours activity, and provide WorkSafe incident evidence for Australian retail and trade businesses.
§ 06Setup
Installation & setup
What's in the Box
1. HiLook IPC-T381H-MU Camera × 6 2. HiLook NVR-108MH-C-8P Network Video Recorder × 1 3. Quick Start Guide & Mounting Hardware × 1
Installation Requirements
1. Power Source: NVR requires standard 240V Australian mains power outlet; cameras powered via PoE through ethernet cables up to 100 metres. 2. Network Connection: Ethernet cable from NVR to home or business router; compatible with all NBN connection types including FTTP, FTTN, FTTC, and HFC. 3. Hard Drive: Surveillance-grade 2TB to 6TB SATA drive required separately; Western Digital Purple or Seagate SkyHawk recommended for Australian conditions. 4. Cabling: CAT5e or CAT6 ethernet cables required for each camera run; calculate distances from NVR location to mounting positions plus 15% extra. 5. Mounting Requirements: Solid brick, concrete, or timber surfaces at 2.5 to 3.5 metres height; IP67 weatherproofing handles Australian extreme temperatures and coastal conditions.
App Setup
1. Download the HiLookVision app from Google Play Store or Apple App Store and create your account using Australian mobile number with +61 country code. 2. Connect NVR to router via ethernet cable, power on system, and cameras auto-discover within two minutes on connected monitor display. 3. Scan the QR code displayed on NVR screen using HiLookVision app, enter verification code, and device registers for remote access across all NBN types. 4. Configure motion detection zones and enable AcuSense human or vehicle classification to filter Australian wildlife and environmental false alerts effectively.
