Hikvision DS-2CD2186G2-ISU 8MP Acusense Outdoor Dome CCTV Camera, 30m IR, 2.8mm MIC + I/O
1 5
Hikvision

Hikvision DS-2CD2186G2-ISU 8MP Acusense Outdoor Dome CCTV Camera, 30m IR, 2.8mm MIC + I/O

SKU: DS-2CD2186G2-ISU
Description

This product has been discontinued – click here to view the replacement model Hikvision DS-2CD2186G2H-ISU

The Hikvision DS-2CD2186G2-ISU is an 8MP 4K AcuSense fixed dome with a built-in microphone and audio/alarm interface. Its deep-learning engine classifies people and vehicles to cut false alarms, DarkFighter handles low light and the tough IP67 and IK10 housing suits exposed eaves, ceilings and walls.

Key points
- 8MP 4K (3840 x 2160) resolution for fine identification detail
- AcuSense human and vehicle classification to reduce false alarms
- Built-in microphone plus an audio and alarm input/output interface
- 30m infrared night vision with Smart IR; 120dB true WDR; DarkFighter
- 2.8mm or 4mm fixed lens (chosen at checkout)
- IP67 weatherproof and IK10 vandal-resistant; PoE (802.3af) or 12V DC
8MP Ultra HD 30m IR Night Vision False Alarm Reduction Human/Vehicle Detection Built-in Microphone Two-Way Audio
$325.90 AUD $325.90 AUD $401.00 AUD
Sale 18.73% $75.10 AUD (18.73%)
Installation in Sydney & Melbourne Through licensed local installers
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

Out of stock
Build your setup Build a complete CCTV system Complete setup from $1,370.05

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
Not sure? Read the guide →
0
0
0
0
0
0
0
Bundle total: $325.90

01Overview

What the DS-2CD2186G2-ISU is

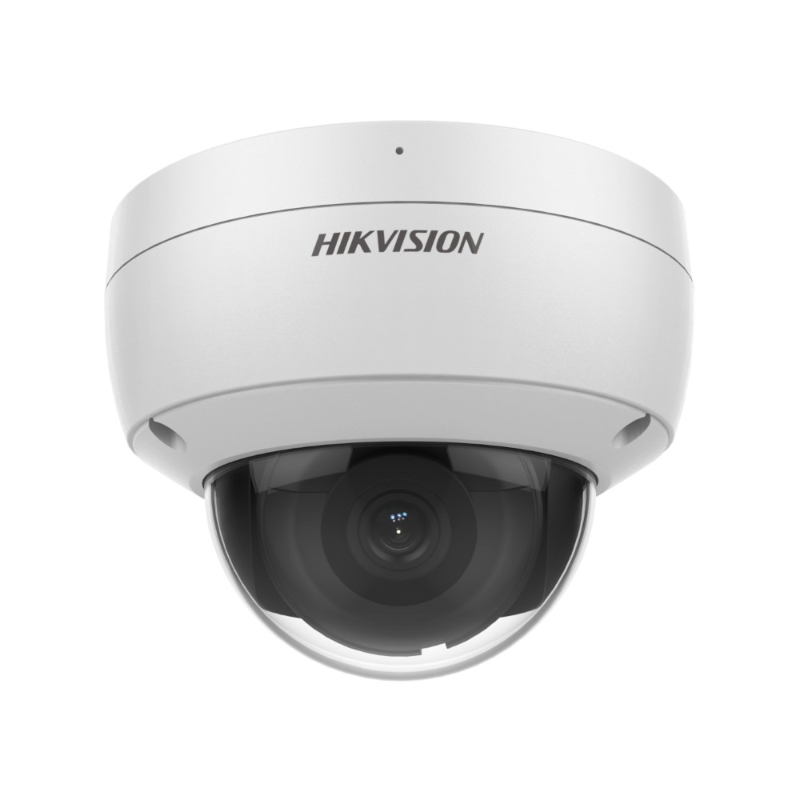

The Hikvision DS-2CD2186G2-ISU is an 8MP 4K AcuSense fixed dome camera for outdoor and undercover use. Its 8MP sensor (3840 x 2160) captures identification-grade detail of faces and vehicles within range, and AcuSense gen 2 deep learning classifies people and vehicles, so motion and perimeter events come from real targets rather than animals, shadows or headlights, and recorded footage is quick to search by target type.

DarkFighter low-light processing keeps the picture usable in dim conditions, and 120dB true WDR balances bright and shadowed areas such as a doorway backlit by the sky or a storefront with large windows. An 850nm infrared illuminator reaches up to 30 metres at night; as an infrared model it records in black and white in full darkness. The -ISU model adds a built-in microphone and an audio and alarm input/output interface, so you can capture sound and integrate sensors; it has a microphone but no speaker, so it is not a two-way audio camera. The fixed lens is available in 2.8mm or 4mm.

The metal housing is IP67-rated and IK10 vandal-resistant, and mounts to a wall, soffit or ceiling. The camera runs over PoE (802.3af) or 12V DC, takes a microSD card up to 256GB for on-board recording, and works with Hikvision AcuSense NVRs and Hik-Connect.

See it in action

What the DS-2CD2186G2-ISU features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Illustrative — simulated for demonstration

02Engineering

DS-2CD2186G2-ISU specifications

- 8MP 4K (3840 x 2160) resolution for identification-grade detail of faces and vehicles.

- AcuSense gen 2 deep-learning detection classifies people and vehicles and filters out animals and shadows.

- Built-in microphone plus an audio and alarm input/output interface for sound capture and sensor integration.

- 30m infrared night vision with Smart IR, DarkFighter low-light and 120dB true WDR.

- 2.8mm or 4mm fixed lens in an IK10 vandal-resistant dome housing.

- IP67 weatherproof, PoE (802.3af) or 12V DC power, and microSD recording up to 256GB.

03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CD2186G2-ISU 8MP Acusense Outdoor Dome CCTV Camera, 30m IR, 2.8mm MIC + I/O
FeatureDetail
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Shutter Speed 1/3 s to 1/100,000 s
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Day/Night Switch Day, Night, Auto, Schedule
S/N Ratio ≥ 52 dB
Target Cropping Yes
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

04Why choose this

Built for the way you actually use the DS-2CD2186G2-ISU

4K AcuSense intelligence

On-device deep learning classifies people and vehicles, cutting false alarms from animals, shadows and headlights and making footage searchable by target type.

Detail in hard light

An 8MP 1/1.8" sensor with DarkFighter and 120dB WDR holds faces and plates in backlit doorways and storefront glare that lower-resolution domes lose.

Tough where it is reachable

An IP67 and IK10 dome suits exposed eaves, ceilings and walls, and the built-in microphone adds audio context where local rules allow.

Backed locally

Supplied by an authorised dealer with a 3-year warranty and Australia-wide support.

05Where it fits

Right at home in these scenarios

Home entries and eaves

Mount under the eaves over a front door or garage to capture face-level 4K detail of visitors and deliveries.

Shops and receptions

Cover a counter, doorway or reception in a low-profile dome with audio context and IK10 toughness against tampering.

Building walls and ceilings

Fit to a wall or ceiling at a covered entry, car park or walkway where a vandal-resistant dome suits a public area.

Small business perimeters

Watch a yard boundary or side access in 8MP with AI alerts that ignore animals and moving foliage.

06Setup

Installation & setup

  1. What it is

    An 8MP 4K AcuSense outdoor dome with a 2.8mm or 4mm fixed lens; choose the lens in your order comments. Built-in microphone, no speaker.

  2. Power and cabling

    Run one Cat5e/6 cable and power it over PoE (802.3af) from a PoE switch or NVR, or use 12V DC where PoE is not available.

  3. Mounting

    Fix to a wall, soffit or ceiling at about 2.5-3 m; the three-axis gimbal lets you aim the lens after mounting, and under-eave positions limit UV exposure.

  4. Setup

    In Australia a network camera is usually fitted by a licensed security installer or a competent IT/cabling technician, who runs the Cat5e/6 cable, terminates the RJ45, mounts the camera and adds it to the NVR or app. Add it in Hik-Connect or your NVR, set human and vehicle detection zones, and check your state's audio recording rules before enabling the microphone.

07Documentation

Manuals & guides

User Manual Installation Guide Quick Start Guide App Setup Guide

08Questions

Frequently asked about the DS-2CD2186G2-ISU

Q.01

What is the difference between the -I and the -ISU model?
The -ISU model adds a built-in microphone and an audio and alarm input/output interface. The plain -I has neither. This -ISU has a microphone but no speaker, so it captures audio but is not a two-way camera.
Q.02

Which lens should I choose, 2.8mm or 4mm?
Choose 2.8mm for a wide view of an entry or room (about 111 degrees), and 4mm for more reach down a driveway or hallway. Note your choice in the order comments.
Q.03

Does it record in colour at night?
No. It is an infrared camera, so in full darkness it records in black and white using the 30m IR. DarkFighter keeps more detail where some ambient or street light is present, but it is not a ColorVu colour-at-night camera.
Q.04

Does it support PoE or do I need a power supply?
It supports PoE (IEEE 802.3af, Class 3) over one Ethernet cable, so a standard PoE switch or NVR port runs power and data. It also accepts 12V DC.
Q.05

Is it vandal-resistant?
Yes. It is IK10 impact-rated and IP67 weatherproof, which suits exposed and reachable outdoor positions such as covered car parks, walkways and public entries.
Q.06

Will it work with my existing Hikvision NVR?
Yes, with Hikvision AcuSense NVRs on current firmware. Keep the NVR firmware up to date so it recognises the human and vehicle smart-event types.
Q.07

Can it record without an NVR?
Yes. It has a microSD slot up to 256GB for standalone edge recording, and it also supports NAS storage and ANR network-loss buffering.
Q.08

Is audio recording legal in Australia?
The camera has a built-in microphone, but audio recording laws vary by state and you generally must notify people that audio is being recorded. Check your state's Surveillance Devices Act before enabling audio.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

02

Add storage for 4K

Fit a surveillance drive such as the 6TB or 8TB in the NVR; 8MP streams suit a larger drive.

03

Mount and protect cabling

Add the DS-1280ZJ-DM46 junction box for tidy, weather-protected terminations behind the dome.
