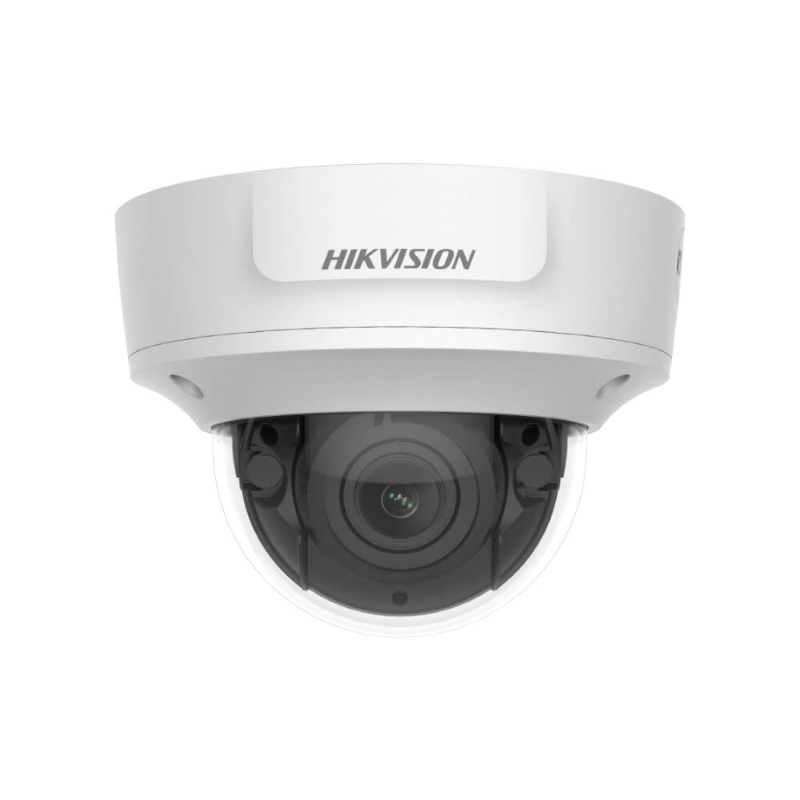

Hikvision DS-2CD2766G2T-IZS WHITE 6MP Outdoor AcuSense Gen 2 Motorised VF Dome Camera 2.8-12
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision DS-2CD2766G2T-IZS WHITE 6MP Outdoor AcuSense Gen 2 Motorised VF Dome Camera 2.8-12
SKU: DS-2CD2766G2T-IZS
Description
The Hikvision DS-2CD2766G2T-IZS is a 6MP outdoor AcuSense dome with a motorised varifocal lens. The remote 2.8-12mm zoom lets you frame the view after mounting, AcuSense classifies people and vehicles to cut false alarms, and DarkFighter keeps the picture usable as the light fades, in a tough IP67 and IK10 dome.
Key points
- 6MP (3200 x 1800) with a motorised 2.8-12mm varifocal lens, adjusted remotely
- AcuSense human and vehicle classification to reduce false alarms
- DarkFighter low-light imaging and 120dB true WDR
- 40m infrared night vision with Smart IR (black and white in full darkness)
- IP67 weatherproof and IK10 vandal-resistant metal dome
- PoE (802.3af) or 12V DC; audio and alarm interface; microSD up to 256GB
Regular price
$360.85 AUD
Sale price
$360.85 AUD
Regular price
$507.00 AUD
Sale
28.83%
$146.15 AUD
(28.83%)
Trade pricing available on Hikvision
Sign in to view your trade price, or
apply for a Trade account →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Hikvision DS-2CD2766G2T-IZS WHITE 6MP Outdoor AcuSense Gen 2 Motorised VF Dome Camera 2.8-12
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,304.45
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD2766G2T-IZS is
The Hikvision DS-2CD2766G2T-IZS is a 6MP outdoor AcuSense dome camera with a motorised varifocal lens, made for sites where the right field of view is hard to judge before mounting.
The motorised 2.8-12mm lens zooms and focuses remotely through the web interface or NVR, so you can set a wide view of a yard or zoom tighter on a gate or doorway without going back up to the camera.
AcuSense gen 2 deep learning classifies people and vehicles, so the events it records and alerts on are real targets rather than animals, shadows or headlights, and recorded footage is quick to search by target type.
DarkFighter low-light processing and 120dB true WDR keep the picture usable at dusk and against strong backlight, and an 850nm infrared illuminator reaches up to 40 metres at night with Smart IR to avoid over-exposing close subjects.
As an infrared dome it records in black and white in full darkness; it is not a ColorVu colour-at-night camera.
The camera has a line-in and line-out audio interface for an external microphone and alarm devices, rather than a built-in microphone.
The metal dome is IP67-rated and IK10 vandal-resistant for exposed and reachable mounts.
The camera runs over PoE (802.3af) or 12V DC, takes a microSD card up to 256GB for on-board recording, and works with Hikvision AcuSense NVRs and Hik-Connect.
It is normally installed by a security or cabling technician.
See it in action
What the DS-2CD2766G2T-IZS features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
40m IR Night Vision
Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD2766G2T-IZS specifications
- 6MP (3200 x 1800) resolution with a motorised 2.8-12mm varifocal lens framed remotely after mounting.
- AcuSense gen 2 deep-learning detection classifies people and vehicles and filters out animals and shadows.
- DarkFighter low-light processing and 120dB true WDR for dusk and backlit scenes.
- 40m infrared night vision with Smart IR; the camera records in black and white in full darkness.
- Line-in and line-out audio interface for an external microphone and alarm input/output integration.
- IP67 weatherproof and IK10 vandal-resistant dome, PoE (802.3af) or 12V DC, and microSD up to 256GB.
- AcuSense gen 2 deep-learning detection classifies people and vehicles and filters out animals and shadows.
- DarkFighter low-light processing and 120dB true WDR for dusk and backlit scenes.
- 40m infrared night vision with Smart IR; the camera records in black and white in full darkness.
- Line-in and line-out audio interface for an external microphone and alarm input/output integration.
- IP67 weatherproof and IK10 vandal-resistant dome, PoE (802.3af) or 12V DC, and microSD up to 256GB.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Power-off Memory | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| SNR | ≥ 52 dB |
| Target Cropping | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 99° to 35°, vertical FOV 53° to 20°, diagonal FOV 117° to 41° |
| Aperture | F1.4 |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| DORI | 2.8 to 12 mm: Wide: D: 80 m, O: 31 m, R: 16 m, I: 8 m | Tele: D: 210 m, O: 83 m, R: 42 m, I: 21 m |
| Pan Range | 0° to 355° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 355° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Range | Up to 40 m |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) | 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection. Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR). Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning |
Interface
| Feature | Detail |
|---|---|
| Audio Input | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium |
| Audio Output | 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm Input | 1 input |
| Alarm Output | 1 output (max. 24 VDC/24 VAC, 1 A) |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Hardware Reset | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC ± 25%; PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.88 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Camera Material | Metal |
| Camera Dimension | Ø153.3 mm × 111.6 mm (Ø6.0" × 4.4") |
| Package Dimension | 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8") |
| Camera Weight | Approx. 865 g (1.9 lb.) |
| With Package Weight | Approx. 1490 g (3.3 lb.) |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Software Reset | Yes |
| Firmware Version | V5.5.113 |
| Web Client Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
§ 04Why choose this
Built for the way you actually use the DS-2CD2766G2T-IZS
Fewer false alerts
AcuSense gen 2 only flags people and vehicles, so insects, rain, animals and moving branches stop triggering your phone and footage is searchable by target type.
Tough, discreet dome
An IP67 and IK10 dome suits exposed eaves, ceilings and reachable public areas, with DarkFighter holding detail as the light fades.
Backed locally
Supplied by an authorised dealer with a 3-year warranty and Australia-wide support.
§ 05Where it fits
Right at home in these scenarios
Driveways and gates
Zoom the lens to frame a driveway or gate exactly, with 40m IR and AI alerts aimed at people and vehicles.
Car parks and walkways
Cover a car park, walkway or covered entry with a vandal-resistant dome and a field of view tuned after mounting.
Shopfronts and entries
Set the zoom to a doorway or counter and hold detail against bright window backlight with 120dB WDR.
Yard and perimeter coverage
Watch a yard boundary or side access, zooming to the span you need without swapping lenses.
§ 06Setup
Installation & setup
What it is
A 6MP AcuSense outdoor dome with a motorised 2.8-12mm varifocal lens; the zoom is adjustable, so no order-comment lens choice is needed. Audio is via line-in, not a built-in microphone.
Power and cabling
Run one Cat5e/6 cable and power it over PoE (802.3af) from a PoE switch or NVR, or use 12V DC where PoE is not available.
Framing the lens
After mounting, zoom and focus the motorised lens remotely through the web interface or NVR, so you set the view without re-accessing the camera.
Setup
In Australia a network camera is usually fitted by a licensed security installer or a competent IT/cabling technician, who runs the Cat5e/6 cable, terminates the RJ45, mounts the camera and adds it to the NVR or app. Add it in Hik-Connect or your NVR, then set human and vehicle detection zones and the Smart IR night mode.
§ 07Questions
Frequently asked about the DS-2CD2766G2T-IZS
Q.01
Do I adjust the zoom after mounting?
Yes. The 2.8-12mm lens is motorised, so you zoom and focus it remotely through the web interface or NVR. You do not need to touch the camera again, which suits high or awkward mounts.
Q.02
Does it record in colour at night?
No. It is an infrared dome with DarkFighter low-light imaging, so in full darkness it records in black and white using the 40m IR. It is not a ColorVu colour-at-night camera.
Q.03
Does it have a built-in microphone?
No. This model has a line-in and line-out audio interface for an external microphone and alarm devices, rather than a built-in microphone. Add a powered microphone to the line-in if you need audio.
Q.04
Does it support PoE or do I need a power supply?
It supports PoE (IEEE 802.3af, Class 3) over one Ethernet cable, so a standard PoE switch or NVR port runs power and data. It also accepts 12V DC.
Q.05
Is it vandal-resistant?
Yes. It is IK10 impact-rated and IP67 weatherproof, which suits exposed and reachable outdoor positions such as covered car parks, walkways and public entries.
Q.06
Will it work with my existing Hikvision NVR?
Yes, with Hikvision AcuSense NVRs on current firmware. Keep the NVR firmware up to date so it recognises the human and vehicle smart-event types.
Q.07
Can it record without an NVR?
Yes. It has a microSD slot up to 256GB for standalone edge recording, and it also supports NAS storage and ANR network-loss buffering.
Q.08
How far does the lens reach?
The motorised 2.8-12mm lens runs from a wide roughly 99-degree view at 2.8mm to a tighter, longer view at 12mm, so you can frame a wide yard or zoom to a gate or doorway after mounting.
§ 09Bundles
Recommended packages
Record it on an NVR
Pair it with a Hikvision PoE NVR such as the DS-7604NI-M1/4P, DS-7608NI-M2/8P or DS-7616NI-M2/16P for one-cable power and recording.
Add storage
Fit a surveillance-grade drive such as the 6TB or 2TB in the NVR for continuous 6MP recording.
Mount and protect cabling
Add the DS-1280ZJ-DM46 junction box for tidy, weather-protected terminations behind the dome.
Compare the range
Want a fixed-lens dome or a varifocal bullet? See the DS-2CD2186G2-ISU 4K dome or the DS-2CD2667G2HT ColorVu bullet.
