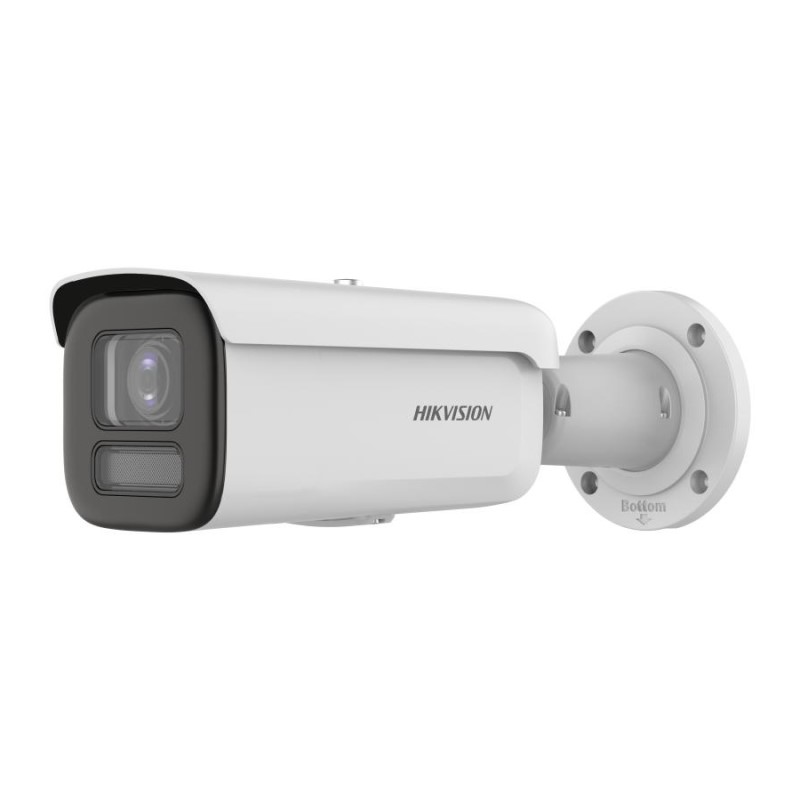

Hikvision DS-2CD2667G2HT-LIZS 6MP Smart Hybrid Light ColorVu Motorised VF Bullet Camera 2.8-12 mm
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision DS-2CD2667G2HT-LIZS 6MP Smart Hybrid Light ColorVu Motorised VF Bullet Camera 2.8-12 mm
SKU: DS-2CD2667G2HT-LIZS
Description
- 6MP resolution: with 130dB WDR for clear imaging against backlight.
- Built-in white LED: in Smart Hybrid Light for 24/7 color surveillance in low light.
- Motorised varifocal lens: 2.8-12mm range for easy installation and monitoring.
- IP67 weatherproof: durable protection for all-weather outdoor use.
Regular price
$529.75 AUD
Sale price
$529.75 AUD
Regular price
$666.00 AUD
Sale
20.46%
$136.25 AUD
(20.46%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Hikvision DS-2CD2667G2HT-LIZS 6MP Smart Hybrid Light ColorVu Motorised VF Bullet Camera 2.8-12 mm
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $1,473.35
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens options: 2.8mm or 4mm focal length.
Color options: White or Black.
Note: Please indicate your choice in your order message.
Hikvision HIK-2CD2667HTZS outdoor bullet security camera offers 6MP high-resolution surveillance with motorised varifocal zoom 2.8-12mm
Experience 24/7 colour video day or night using Smart Hybrid Light technology and ColorVu for enhanced low light performance
§ 02Engineering
Technical specifications
- 6MP ultra HD resolution for clear distant identification
- Smart Hybrid Light technology for superior day/night long-range visibility
- 130dB WDR handles strong backlight conditions like direct sunlight
- Motorised varifocal lens enables easy adjustment during installation
- Deep learning AI accurately classifies human and vehicle targets
- 24/7 full-color nighttime imaging in low-light conditions
- IP67 weatherproof and IK10 vandal-proof outdoor-rated protection
- Smart Hybrid Light technology for superior day/night long-range visibility
- 130dB WDR handles strong backlight conditions like direct sunlight
- Motorised varifocal lens enables easy adjustment during installation
- Deep learning AI accurately classifies human and vehicle targets
- 24/7 full-color nighttime imaging in low-light conditions
- IP67 weatherproof and IK10 vandal-proof outdoor-rated protection
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.0028 Lux @ (F1.2, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100, 000 s |
| Day & Night | IR cut filter |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 130 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3° |
| Lens Mount | Integrated |
| Iris Type | Fixed |
| Aperture | F1.2 |
| Depth of Field | 1 m to ∞ |
| DORI | Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m | Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m |
| Pan Range | 0° to 355° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps(3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 1.21 A, max. 14.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W |
| Material | Front cover: Metal, body: Metal, bracket: Metal |
| Dimension | 298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8") |
| Package Dimension | 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | Approx. 1085 g (2.4 lb.) |
| With Package Weight | Approx. 1639 g (3.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
§ 07Questions
Frequently asked
Q.01
Does the white light flash every time it detects motion at night?
By default, the camera ships in Smart Mode — it uses IR (invisible, black & white) continuously, and only triggers the white light when a person or vehicle is detected. You can change this to IR-only, white light always-on, or Smart Mode via the camera's web interface or NVR settings.
Q.02
Can I use this camera with my existing Hikvision NVR?
Yes, it is compatible with Hikvision NVRs that support AcuSense and Smart Hybrid Light cameras. Ensure your NVR firmware is up to date, as older firmware versions may not recognise the smart event and human/vehicle detection features of this camera.
Q.03
Does this camera require a PoE switch, or can it run off my NVR's PoE ports?
This camera draws up to 18 W over PoE (IEEE 802.3at, Class 4). Most standard NVR PoE ports are limited to 15.4 W per port (802.3af), which is insufficient. You'll need an 802.3at (PoE+) capable NVR or a dedicated PoE+ switch to power it reliably.
Q.04
How do I adjust the motorised zoom lens after installation?
The lens can be adjusted remotely through the NVR interface or camera web browser — no physical access to the camera is needed after mounting. This makes it easy to fine-tune the field of view from 112° (wide) down to 41° (telephoto) without getting on a ladder.
Q.05
Will this camera still record in colour at night without the white light on?
No. Without the white light active, the camera switches to IR mode and records in black and white. Full-colour night footage requires either the white light mode or Smart Mode, which triggers the white light upon detecting a person or vehicle.
Q.06
Can I reduce false alarms from trees and animals moving at night?
Yes. The built-in AcuSense deep learning feature filters motion events to only alert on humans and vehicles. Events like swaying trees, insects, or passing animals will not trigger notifications, significantly reducing unwanted alerts.
Q.07
Is this camera suitable for outdoor installation in Australian conditions?
Yes. It carries an IP67 rating (fully dust-tight and protected against water jets) and IK10 vandal resistance (withstands significant impact). It operates from -30°C to 60°C, making it well suited to Australian outdoor environments including harsh summers.
Q.08
Can this camera record locally without a NVR?
Yes. It has a built-in microSD card slot supporting cards up to 512 GB, allowing standalone local recording. It also supports ANR (Auto Network Replenishment), which automatically backs up locally stored footage to the NVR once the network connection is restored after an outage.
