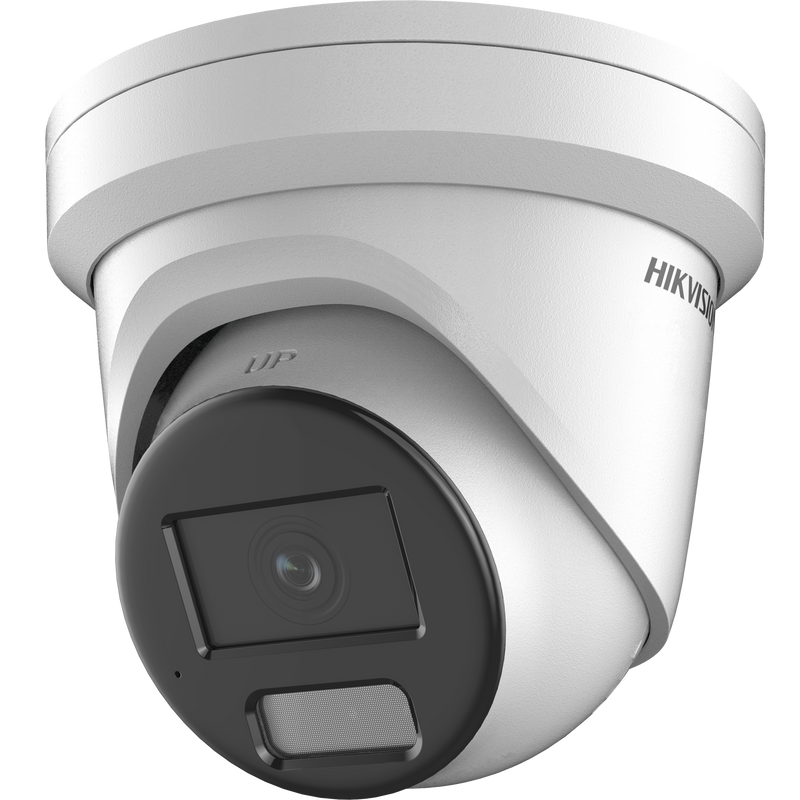

Hikvision DS-2CD2367G2-LU 6MP Gen2 ColorVu Turret Camera with Acusense & Mic 30m White LED 2.8mm
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision DS-2CD2367G2-LU 6MP Gen2 ColorVu Turret Camera with Acusense & Mic 30m White LED 2.8mm
SKU: DS-2CD2367G2-LU
Description
Provides high-definition 6MP colour video around the clock to ensure critical details are never lost in the dark.
Regular price
$353.95 AUD
Sale price
$353.95 AUD
Regular price
$445.00 AUD
Sale
20.46%
$91.05 AUD
(20.46%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Hikvision DS-2CD2367G2-LU 6MP Gen2 ColorVu Turret Camera with Acusense & Mic 30m White LED 2.8mm
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $1,297.55
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Hikvision Model DS-2CD2367G2-LU 6MP ColorVu Turret Camera is a high-performance Product designed for superior 24/7 colour surveillance. This camera features smart AI detection and integrated audio, making it an ideal security choice for Australian residential driveways and commercial perimeters.
§ 02Engineering
Technical specifications
- 6MP High Resolution: Captures crystal-clear 6-megapixel imagery to provide greater detail and better evidence when reviewing footage.
- 24/7 Colour Surveillance: Uses ColorVu technology and a warm supplemental light to record vivid colour video even in complete darkness.
- AcuSense AI Detection: Smartly distinguishes between human or vehicle targets and irrelevant objects like rain or leaves to reduce false alerts.
- 130dB True WDR: Ensures clear and balanced images in scenes with strong backlight or deep shadows, common in the harsh Australian sun.
- Built-in Microphone: Includes an integrated microphone for real-time audio security to provide a more complete record of every event.
- 40m White Light Range: Features a soft LED light that illuminates areas up to 40 metres away to maintain colour imaging throughout the night.
- Weatherproof Durability: Built with a rugged outdoor-rated housing to operate reliably against heavy rain, dust, and extreme temperatures.
- 24/7 Colour Surveillance: Uses ColorVu technology and a warm supplemental light to record vivid colour video even in complete darkness.
- AcuSense AI Detection: Smartly distinguishes between human or vehicle targets and irrelevant objects like rain or leaves to reduce false alerts.
- 130dB True WDR: Ensures clear and balanced images in scenes with strong backlight or deep shadows, common in the harsh Australian sun.
- Built-in Microphone: Includes an integrated microphone for real-time audio security to provide a more complete record of every event.
- 40m White Light Range: Features a soft LED light that illuminates areas up to 40 metres away to maintain colour imaging throughout the night.
- Weatherproof Durability: Built with a rugged outdoor-rated housing to operate reliably against heavy rain, dust, and extreme temperatures.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 color imaging |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Privacy Mask | 4 regions of privacy mask |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8mm, Horizontal FOV: 109°, Vertical FOV: 59°, Diagonal FOV: 130° | 4 mm, Horizontal FOV: 93°, Vertical FOV: 49°, Diagonal FOV: 111° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 3.1 m to ∞ | 4 mm: 3.5 m to ∞ |
| DORI | 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m | 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3200 × 1800); 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | -U: Mono sound |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, supplement light |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | -U: Yes |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W |
| Material | Metal |
| Dimension | Ø138.3 mm × 115.2 mm (Ø5.4" × 4.5") |
| Package Dimension | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
| Weight | Approx. 800 g (1.8 lb.) |
| With Package Weight | Approx. 1090 g (2.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams |
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
