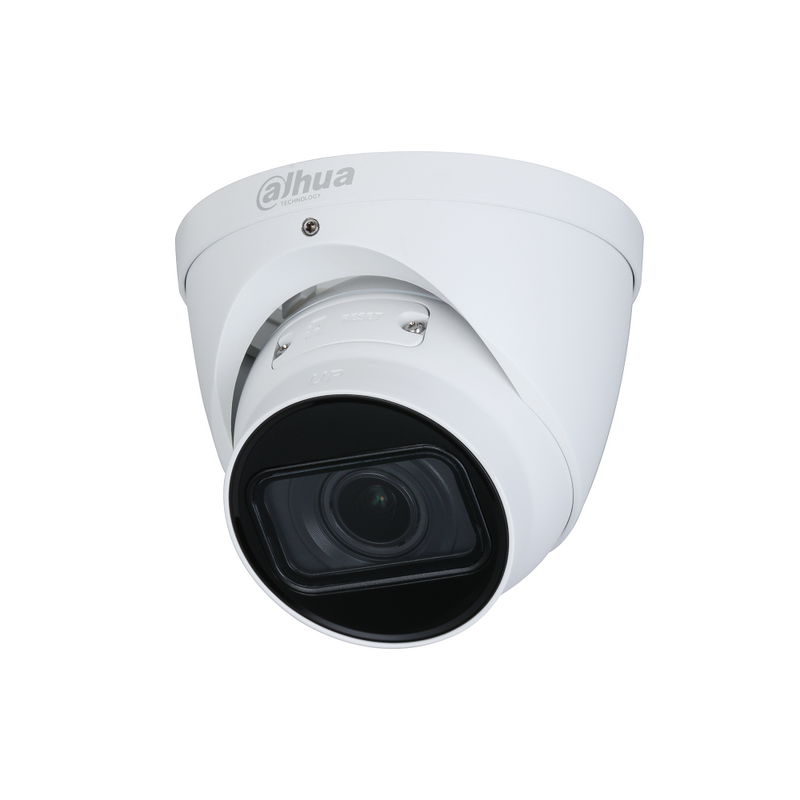

Dahua DH-IPC-HDW3841TP-ZAS | 8MP WizSense VF Eyeball

Name: Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Brand: Dahua
Price: 340.0 AUD
Availability: InStock

Build your setup Build a complete CCTV system Complete setup from $839.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count

None

Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder ~~$282.00~~$230.00

Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder ~~$356.00~~$286.00

Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder ~~$695.00~~$576.00

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7

None

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB $269.45

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB ~~$418.00~~$405.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB ~~$616.00~~$545.15

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB ~~$792.00~~$699.00

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.

Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder ~~$695.00~~$576.00

1

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR ~~$616.00~~$545.15

1

Dahua DH-CS4218-16ET-240-V2 18-Port Cloud Managed Desktop Switch with 16-Port PoE ~~$350.00~~$327.75

1

Dahua Cat6 Network Cable 305 meter Roll with RJ-45 Connector & Crimp Thru Tool Kit $269.00

1

Dahua DH-PFA130-E Dahua Water proof Junction Box $21.00

1

Cable · 10m $13.00

1

Cable · 20m $28.00

1

Cable · 30m $40.00

1

Cable · 50m $65.00

1

§ 01Overview

What the DH-IPC-HDW3841TP-ZAS is

The Dahua DH-IPC-HDW3841TP-ZAS is an 8MP (4K) WizSense motorised varifocal turret that pairs high 4K detail with a remote-adjustable lens.

A 1/2.8-inch 8MP sensor resolves faces and licence plates across wide scenes, with Starlight low-light imaging and 120dB WDR for difficult lighting, and the 2.7-13.5mm motorised lens lets you reframe from a wide area to a tighter view remotely.

WizSense analytics classify humans and vehicles, so SMD Plus and perimeter protection (tripwire and intrusion) raise relevant alerts and filter out animals and weather.

Quick Pick, with a compatible Dahua AI NVR, speeds up finding targets in recorded footage.

Note that at full 4K the main stream runs at 20fps with AI enabled and 25/30fps with AI disabled.

A built-in microphone, 50m Smart IR and an IP67 housing with PoE or 12V DC power suit demanding commercial and residential sites.

See it in action

What the DH-IPC-HDW3841TP-ZAS features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (1/2) — 50m IR Night Vision
Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.

50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (2/2) — 50m IR Night Vision
Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h... — IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDW3841TP-ZAS specifications

- Sensor and resolution: 1/2.8" 8MP CMOS, 3840 x 2160 (4K), for wide coverage with fine detail

- Frame rate note: 4K main stream at 20fps with AI on, or 25/30fps with AI off; plan to suit your priority

- Lens: motorised 2.7-13.5mm varifocal, F1.5, set zoom and focus remotely after mounting

- Low light: Starlight imaging with 120dB WDR and 3D DNR for poor and high-contrast lighting

- Night vision: Smart IR up to 50m across 2 LEDs, adjusting intensity to avoid overexposing close subjects

- Classification: SMD Plus and perimeter protection (tripwire, intrusion) with human and vehicle classification

- Quick Pick: with a compatible Dahua AI NVR, quickly finds human and vehicle targets in recorded footage

- Audio, durability and power: built-in microphone; IP67 metal housing; PoE or 12V DC; microSD up to 256GB

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
Image Sensor	1/2.8" 8Megapixel progressive CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.007 Lux@F1.5 (Color, 30IRE); 0.0007 Lux@F1.5 (B/W, 30IRE); 0 Lux (Illuminator on)
S/N Ratio	> 56 dB
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror	Yes
Privacy Masking	4 areas

Lens & Distance

Lens & Distance — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
Lens Type	Motorized vari-focal
Mount Type	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	Horizontal: 113°–31°; Vertical: 58°–17°; Diagonal: 138°–36°
Iris Type	Fixed
Close Focus Distance	0.8 m (2.6 ft)
DORI Distance	W: Detect 85.3 m (279.9 ft); Observe 34.1 m (111.9 ft); Recognize 17.0 m (55.8 ft); Identify 8.5 m (27.9 ft) \| T: Detect 280.0 m (918.6 ft); Observe 112.0 m (367.5 ft); Recognize 56.0 m (183.7 ft); Identify 28.0 m (91.9 ft)
Pan Range	0°–360°
Tilt Range	0°–78°
Rotation Range	0°–360°

Night Vision

Night Vision — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
Illumination Distance	50 m (164 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (IR LED)
Smart Illumination	Yes

Video

Video — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+/ Smart H.264+
Video Frame Rate	Main stream: 3840 × 2160 @(1–20 fps by default); 3840 × 2160 @(1–25/30 fps when AI function disabled) \| sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps) \| third stream: 1920 × 1080 @(1–25/30 fps)
Stream Capability	3 streams
Resolution	8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps

Audio

Audio — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; G726

AI & Deep Learning

AI & Deep Learning — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
Perimeter Protection	Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Network & Storage

Network & Storage — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
SDK and API	Yes
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security	Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20 (Total bandwidth: 72 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE: IE8; IE9; IE11; Chrome; Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android

Event & Alarm

Event & Alarm — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
Alarm Event	No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception

Interface

Interface — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
Network Port	RJ-45 (10/100 Base-T)

General & Environment

General & Environment — Dahua 8MP DH-IPC-HDW3841TP-ZAS (4K) Starlight IP Turret Motorised [Optical Zoom], WDR, IR 50m, IP67, POE
Feature	Detail
Power Supply	12V DC/PoE (802.3af)
Power Consumption	Basic power consumption: 2.6W (12V DC); 3.3W (PoE) \| Max. power consumption (WDR + H.265 + IR LED intensity): 6W (12V DC); 7.3W (PoE)
Operating Conditions	–30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions	–40°C to +60°C (–40°F to +140°F)
Protection Grade	IP67
Casing	Metal
Dimensions	108.3 mm × Φ122 mm (4.3" × Φ4.8")
Net Weight	685g (1.5 lb)
Gross Weight	828 g (1.8 lb)
Certifications	CE-LVD: EN62368-1 \| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU \| FCC: 47 CFR FCC Part 15, Subpart B \| UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDW3841TP-ZAS

4K detail with a remote lens

An 8MP sensor resolves faces and plates across wide scenes, and the motorised 2.7-13.5mm lens lets you reframe from the desk after mounting.

Accurate, filtered alerts

SMD Plus and perimeter protection classify humans and vehicles, cutting nuisance alerts from animals, foliage and weather.

Clear in difficult light

Starlight imaging with 120dB WDR holds detail in low light and high-contrast scenes such as entries and forecourts.

Faster review with an AI NVR

Quick Pick, on a compatible Dahua AI NVR, helps operators find human and vehicle targets in recorded footage quickly.

§ 05Where it fits

Right at home in these scenarios

Commercial perimeters

4K detail with human and vehicle filtering covers wide boundaries and entries, with 50m Smart IR for darkness.

Car parks and forecourts

8MP resolution with a remote lens covers bays and lanes, focusing on an entry point or approach as needed.

Larger residential properties

High detail across driveways and yards, with perimeter rules filtered to people and vehicles to reduce false alerts.

Sites needing evidentiary detail

4K resolution supports post-incident review where reading plates and identifying individuals at distance matters.

§ 06Setup

Installation & setup

01

Choose 4K or frame rate priority

Decide whether 4K with AI at 20fps or a higher frame rate with AI off suits the scene, and set the resolution and stream accordingly during commissioning.

02

Power over PoE or 12V DC

Connect to a PoE switch or NVR over a single cable, or provide a 12V DC supply where PoE is unavailable.

03

Mount and set the lens

Fix the turret on wall, eave or ceiling with a Dahua junction box such as the PFA130-E where needed, then set the motorised zoom and focus remotely.

04

Configure WizSense rules

Set SMD Plus and perimeter tripwire and intrusion rules with human and vehicle classification, and pair an AI NVR for Quick Pick search.

§ 07Questions

Frequently asked about the DH-IPC-HDW3841TP-ZAS

Q.01

Why does the 4K stream run at 20fps?

At full 8MP (4K) the main stream runs at up to 20fps when AI functions are enabled, and up to 25/30fps when AI is disabled. This is normal for this model. Decide whether 4K detail with AI or a higher frame rate matters more for the scene, or run a lower resolution for smoother motion.

Q.02

Can I adjust the lens after mounting?

Yes. The 2.7-13.5mm motorised varifocal lens is set remotely from the NVR or app, so you can reframe from a wide area to a tighter scene without returning to the camera, which is useful at height.

Q.03

What do SMD Plus and perimeter protection do?

SMD Plus classifies movement as human or vehicle before alerting, and perimeter protection adds tripwire and intrusion rules filtered to those targets. Together they cut nuisance alerts from animals, foliage and lighting changes.

Q.04

What is Quick Pick and what does it need?

Quick Pick lets operators quickly find human and vehicle targets in recorded video. It works with the camera paired to a compatible Dahua AI NVR, which performs the search, rather than running on the camera alone.

Q.05

How far does the night vision reach?

Smart IR reaches up to 50m across two LEDs and adjusts intensity to avoid overexposing nearby objects. With Starlight imaging, footage stays usable in darkness across larger yards, car parks and approaches.

Q.06

Does it have two-way audio?

No. It has a built-in microphone to record on-site audio, but no built-in speaker, so it does not provide two-way talk. The microphone captures sound alongside video where local laws permit.

Q.07

Is it suitable for outdoor use and how is it powered?

Yes. The metal turret is IP67-rated for dust and water, and runs on PoE over a single cable or a 12V DC supply, suiting eave, wall and outdoor positions with straightforward cabling.

Q.08

Will it work with a third-party recorder?

Video works over ONVIF. WizSense events such as SMD Plus and perimeter protection are fully managed with a compatible Dahua NVR; on a third-party platform, confirm which AI events it can receive before specifying the system.

§ 09Bundles

Recommended packages

01

Recorders and storage

Record to a Dahua NVR such as the 16-channel NVR4216-16P, fitted with an 8TB surveillance hard drive to hold the higher 4K data rate.

02

PoE power and cabling

Distribute power and data with a Dahua PoE switch and quality Cat6 cable, one run per camera.

03

Mounting

For outdoor positions or surface cabling, add a Dahua PFA130-E junction box; confirm it suits this turret before ordering.
