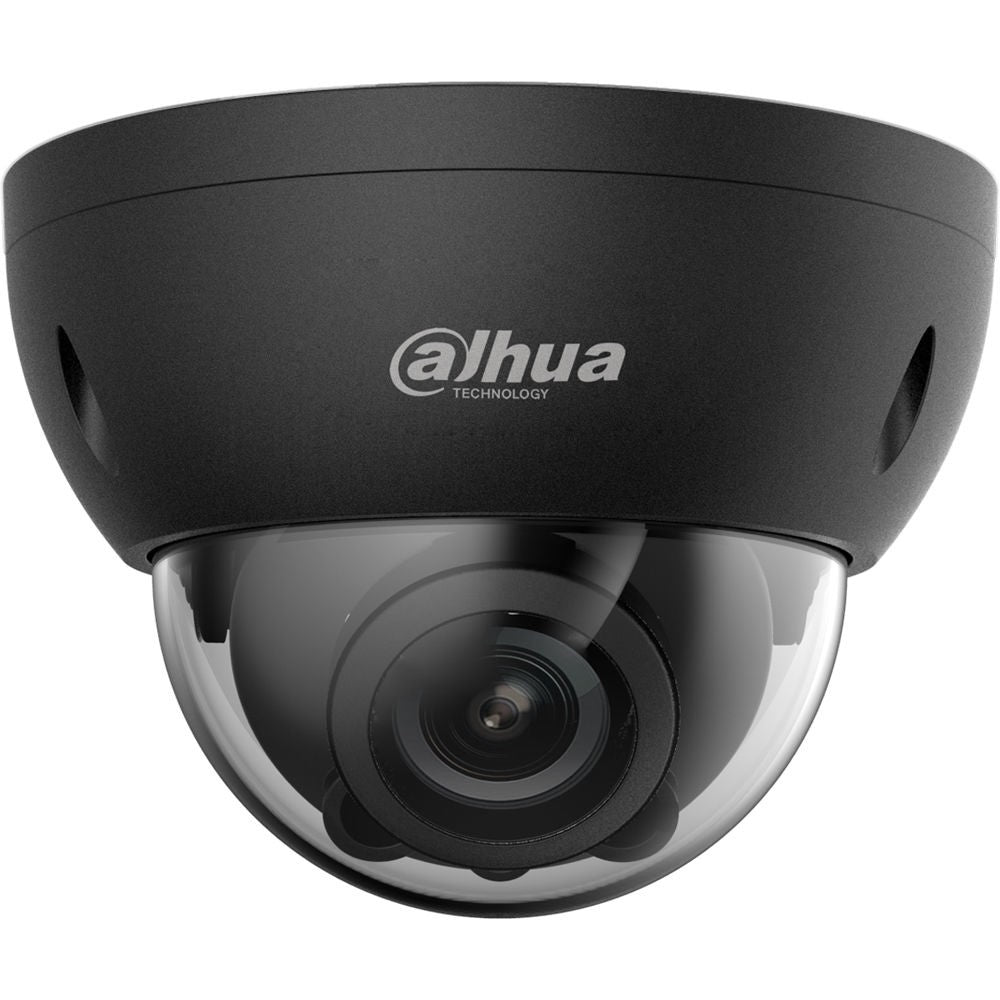

Dahua DH-IPC-HDBW5631RP-ZE-27135-BLK 6MP Dome Motorised Network Camera (Black), Zoom Function, WDR IR
Dahua DH-IPC-HDBW5631RP-ZE-27135-BLK 6MP Black Motorized Dome Network Camera WDR IR
1 1
Dahua

Dahua DH-IPC-HDBW5631RP-ZE-27135-BLK 6MP Dome Motorised Network Camera (Black), Zoom Function, WDR IR

SKU: DH-IPC-HDBW5631RP-ZE-27135-1
Description

6MP motorised varifocal vandal dome with Starlight low light and 50m Smart IR for high-detail outdoor and commercial coverage.

  • 1/2.9" 6MP STARVIS CMOS, 3072 x 2048
  • Motorised 2.7-13.5mm varifocal lens, F1.6, 5x zoom
  • Starlight low light and 120dB true WDR
  • Smart IR up to 50m
  • IVS tripwire, intrusion and face detection
  • Built-in microphone
  • Smart H.265+ for efficient storage
  • Finished in black to sit discreetly against dark ceilings, soffits and shopfronts, this is the black housing of the same camera. IP67 and IK10 metal dome; PoE or 12V DC
6MP Ultra HD 50m IR Night Vision IP67 Weatherproof Built-in Microphone
$452.00 AUD $452.00 AUD $452.00 AUD
Member Sign in to save $9.04 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $951.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $452.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HDBW5631RP-ZE-27135-1 is

The Dahua DH-IPC-HDBW5631RP-ZE-27135 is a 6MP motorised varifocal vandal dome that pairs a 1/2.9-inch STARVIS sensor with Starlight low-light technology and 50m Smart IR for clear, high-detail footage day and night.

A 2.7-13.5mm motorised lens gives 5x optical adjustment so installers can set the field of view remotely without returning to the camera, and 120dB true WDR holds detail in high-contrast scenes such as sunlit entries and car parks.

Finished in black to sit discreetly against dark ceilings, soffits and shopfronts, this is the black housing of the same camera.

The 6MP resolution resolves faces and licence plates for evidentiary review, while Smart H.265+ keeps storage and bandwidth down.

IVS tripwire and intrusion, face detection and a built-in microphone add to the package, and an IP67, IK10 metal dome with PoE (802.3af) or 12V DC power suits exposed and public-facing positions.

This is an established Eco-Savvy model; a current WizSense 8MP dome is available where on-camera human and vehicle classification is required.

See it in action

What the DH-IPC-HDBW5631RP-ZE-27135-1 features actually look like

Representative illustrations of how each key feature performs in a real scene.

6MP Ultra HD — 6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a fac...

6MP Ultra HD

6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (1/2)
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (2/2)

50m IR Night Vision

Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDBW5631RP-ZE-27135-1 specifications

- Sensor and resolution: 1/2.9" 6MP STARVIS CMOS, 3072 x 2048, for fine detail on faces and licence plates

- Lens: motorised 2.7-13.5mm varifocal, F1.6, 5x optical, set zoom and focus remotely after mounting

- Low light: Starlight imaging with 120dB true WDR and 3D DNR for poor and high-contrast lighting

- Night vision: Smart IR up to 50m across 2 LEDs, adjusting intensity to avoid overexposing close subjects

- Analytics: IVS tripwire and intrusion, plus face detection, for automated event alerts

- Audio: built-in microphone records on-site sound alongside video for a fuller record

- Efficient storage: Smart H.265+ cuts bandwidth and storage; microSD up to 128GB, plus NAS

- Durability and power: IP67 and IK10 metal dome, -30C to +60C; PoE (802.3af) or 12V DC

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-IPC-HDBW5631RP-ZE-27135-BLK 6MP Dome Motorised Network Camera (Black), Zoom Function, WDR IR
FeatureDetail
Image Sensor 1/2.9" 6Megapixel progressive scan CMOS
Effective Pixels 3072(H)x2048(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.03Lux/F1.6 (Color,1/3s,30IRE); 0.3Lux/F1.6 (Color,1/30s,30IRE); 0Lux/F1.6(IR on)
S/N Ratio More than 50dB
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDBW5631RP-ZE-27135-1

6MP detail without rewiring the lens

A 6MP STARVIS sensor with a remote 2.7-13.5mm motorised lens captures fine detail and lets you reframe from the desk, ideal for cameras mounted at height.

Clear images in difficult light

Starlight imaging with 120dB true WDR holds detail in low light and balances bright, backlit entries that wash out simpler cameras.

Efficient on storage and bandwidth

Smart H.265+ significantly reduces file sizes, letting more cameras share existing infrastructure and extending NVR storage.

Built to take weather and impact

An IP67, IK10 metal dome handles dust, water and deliberate interference in exposed and public-facing positions.

§ 05Where it fits

Right at home in these scenarios

Commercial entrances

6MP detail and 120dB WDR capture faces and vehicle details at building entry and exit points regardless of backlight.

Car parks and outdoor areas

IP67 weatherproofing and IK10 vandal resistance suit exposed positions, with 50m Smart IR covering bays and entries after dark.

Retail premises

High-resolution footage supports post-incident review and deters theft where detailed identification imagery matters.

Installs needing remote lens adjustment

The motorised lens suits cameras mounted at height or in awkward positions where physical lens access is impractical after install.

§ 06Setup

Installation & setup

01

Power over PoE or 12V DC

Connect to an 802.3af PoE switch over a single cable, or provide a 12V DC supply. At under 8.5W the camera fits a standard PoE budget.

02

Mount on wall, ceiling or eave

Fix the metal dome and, for surface cabling or angled positions, add a Dahua junction box such as the PFA130-E to seal connectors.

03

Set the lens remotely

After mounting, set the motorised 2.7-13.5mm zoom and focus from the NVR or web interface to frame the scene without returning to the camera.

04

Configure IVS rules

Set tripwire and intrusion zones and face detection to suit the scene, allowing for structures or terrain that create blind spots.

§ 07Questions

Frequently asked about the DH-IPC-HDBW5631RP-ZE-27135-1

Q.01

What resolution and detail does this dome capture?
It uses a 1/2.9-inch 6MP STARVIS sensor at 3072 x 2048, giving more detail than a 2MP or 4MP dome for identifying faces and licence plates. The 6MP main stream runs up to 20fps; lower resolutions support higher frame rates if you need smoother motion.
Q.02

Can I adjust the lens remotely after mounting?
Yes. The 2.7-13.5mm motorised varifocal lens gives 5x optical adjustment set from the NVR or web interface, so you can reframe from a wide area to a tighter scene without physically accessing the camera, which is valuable at height.
Q.03

How far does the night vision reach?
Smart IR reaches up to 50m across two LEDs and adjusts intensity to prevent overexposing nearby objects. Combined with Starlight low-light imaging, it keeps footage usable in darkness across entries, yards and car parks within that range.
Q.04

Does it classify people and vehicles?
This Eco-Savvy model provides IVS tripwire and intrusion plus face detection, but it does not perform on-camera human and vehicle classification. Where you need WizSense people and vehicle filtering to cut nuisance alerts, choose a current Dahua WizSense camera.
Q.05

Does it have two-way audio?
No. It has a built-in microphone to record on-site audio, but no built-in speaker, so it does not provide two-way talk. The microphone captures sound alongside video for a fuller record where local laws permit.
Q.06

Is it suitable for outdoor and vandal-prone areas?
Yes. The metal dome is IP67 weatherproof and IK10 impact-resistant across a -30C to +60C range, suiting building exteriors, car parks and public-facing positions exposed to weather and tampering.
Q.07

How is it powered?
It runs on PoE (802.3af, Class 0) over a single cable, or 12V DC where PoE is unavailable. Power consumption is low at under 8.5W, so it sits comfortably within a standard PoE budget.
Q.08

How much can it store locally?
It supports a microSD card up to 128GB for edge recording, plus NAS storage. For continuous multi-camera recording, pair it with a Dahua NVR and a surveillance hard drive.

§ 09Bundles

Recommended packages

03

Mounting

For outdoor positions or surface cabling, add a Dahua PFA130-E junction box; confirm it suits this dome before ordering.
