Dahua 4MP WizSense Thermal Network Mini Hybrid Eyeball Camera, DH-TPC-DF1241 / DHI- TPC- DF1241-TB2F2-DW-S2
1 1
Dahua

Dahua 4MP WizSense Thermal Network Mini Hybrid Eyeball Camera, DH-TPC-DF1241 / DHI- TPC- DF1241-TB2F2-DW-S2

SKU: DH-TPC-DF1241 / DH-TPC-DF1241P-D2F2
Description

Hybrid thermal and visible-light eyeball camera with fire and smoking detection, pairing an uncooled thermal imager with a 4MP visible sensor.

  • Uncooled VOx thermal detector, 256 x 192
  • Athermalized, focus-free thermal lens; thermal sensitivity below 50mK
  • 1/2.7" 4MP visible CMOS with Smart IR to 30m
  • Fire detection and alarm; smoking and call detection
  • Cold and hot spot trace; 18 thermal palettes
  • IVS tripwire and intrusion with human and vehicle classification
  • Dual image fusion of thermal and visible channels
  • IP67, 6kV surge protection; 12V DC or PoE
4MP Ultra HD 30m IR Night Vision IP67 Weatherproof False Alarm Reduction Human/Vehicle Detection
$1,346.50 AUD $1,346.50 AUD $1,480.00 AUD
Sale 9.02% $133.50 AUD (9.02%)
Installation in Sydney & Melbourne Through licensed local installers
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $1,941.90

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $1,346.50

01Overview

What the DH-TPC-DF1241 / DH-TPC-DF1241P-D2F2 is

The Dahua DH-TPC-DF1241 is a hybrid thermal eyeball camera that combines an uncooled VOx thermal imager (256 x 192, sensitivity below 50mK) with a 1/2.7-inch 4MP visible sensor in one housing. The thermal channel sees in total darkness and through rain, fog and smoke for early heat and fire detection, while the visible channel with Smart IR to 30m confirms detail. Dual image fusion can merge both channels so operators see heat signatures and visual context together.

Built-in fire detection raises an alarm on small heat sources, and AI smoking and call detection trigger a light and sound warning to deter behaviour in restricted areas. IVS tripwire and intrusion classify humans and vehicles to reduce false alarms. The IP67 housing with 6kV surge protection, rated -30C to +60C, suits warehouses, plant rooms, schools and other fire-sensitive sites. This is a special-order item with a 6 to 10 week lead time.

See it in action

What the DH-TPC-DF1241 / DH-TPC-DF1241P-D2F2 features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

02Engineering

DH-TPC-DF1241 / DH-TPC-DF1241P-D2F2 specifications

- Thermal imaging: uncooled VOx detector, 256 x 192, 12 micron pitch, 8-14 micron band, thermal sensitivity below 50mK for fine heat detail

- Thermal lens: 2mm athermalized, focus-free, F1.0, with an 87.8-degree wide thermal field of view

- Visible imaging: 1/2.7" 4MP CMOS, 2336 x 1752, with Smart IR illumination up to 30m for visual confirmation in darkness

- Fire detection and alarm: thermal-based detection of small heat sources, more reliable than visible-only smoke detection

- Smoking and call detection: AI behaviour analytics trigger a white-light and audio warning to deter activity in restricted zones

- Perimeter analytics: IVS tripwire and intrusion with human and vehicle classification, plus cold and hot spot trace

- Image fusion: merges thermal and visible channels into one image, with 18 selectable thermal palettes

- Durability and power: IP67 housing, 6kV surge protection, -30C to +60C; 12V DC or PoE; microSD up to 256GB

03Full datasheet

Detailed specifications

Thermal

Thermal — Dahua 4MP WizSense Thermal Network Mini Hybrid Eyeball Camera, DH-TPC-DF1241 / DHI- TPC- DF1241-TB2F2-DW-S2
FeatureDetail
Detector Type Vanadium Oxide Uncooled FPA
Max. Resolution 256 × 192
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Thermal Sensitivity (NETD) < 50 mK (@f/1.0, 25 Hz, 300 K)
Lens Type Athermalized, focus-free
Focal Length 2 mm
Field of View H: 87.8°; V: 63.8°
Close Focus Distance 0.3 m (0.98 ft)
Aperture F1.0
Digital Zoom 16×
DDE Yes
AGC Auto; Manual
Noise Reduction 2D NR; 3D NR
Image Flip 90°; 180°; 270°
Color Palettes 18 (white hot/black hot/iron red/icefire/fusion/rainbow, etc.)
Fusion Mode 3 (warm colour; cool colour; iron red)

04Why choose this

Built for the way you actually use the DH-TPC-DF1241 / DH-TPC-DF1241P-D2F2

Early fire and heat warning

A thermal imager detects developing heat sources and fire earlier than visible cameras, giving valuable warning time in warehouses, plant rooms and other fire-sensitive sites.

Sees where normal cameras cannot

The thermal channel works in total darkness and through smoke, fog and rain, while the 4MP visible channel adds detail and context when light allows.

Behaviour deterrence built in

AI smoking and call detection trigger a light and sound warning automatically, helping enforce no-smoking and safety policies in restricted zones.

One camera, two channels

Dual image fusion combines heat and visible imaging in a single unit, simplifying installation compared with separate thermal and optical cameras.

05Where it fits

Right at home in these scenarios

Warehouses and storage facilities

Thermal fire detection gives early warning over racking, baling and storage areas where a developing hot spot can go unseen by visible cameras.

Recycling and waste sites

Heat monitoring over stockpiles helps spot self-heating and ignition risk before it becomes a fire, day or night.

Schools, hospitals and offices

Smoking and call detection support policy enforcement in stairwells, restrooms and restricted areas, with a light and sound deterrent warning.

Perimeters in darkness

The thermal channel detects people and vehicles in total darkness, with IVS classification keeping tripwire and intrusion alerts relevant.

06Setup

Installation & setup

  1. Plan thermal placement

    Position the camera so the area to monitor falls within the thermal field of view and follow Dahua's commissioning guidance for fire and smoking detection so distances and angles suit reliable detection.

  2. Power over PoE or 12V DC

    Run a single PoE cable or provide a 12V DC supply. Allow for the heater and LED load when sizing PoE budget for cold or busy sites.

  3. Mount and seal the cabling

    Use a Dahua wall bracket such as the PFB203W with a PFA130-E junction box to route and seal cabling on the IP67 housing for outdoor positions.

  4. Allow for lead time

    As a special-order item with a 6 to 10 week lead time, order early and confirm availability before scheduling commissioning.

08Questions

Frequently asked about the DH-TPC-DF1241 / DH-TPC-DF1241P-D2F2

Q.01

What is the DH-TPC-DF1241 built for?
It is a hybrid thermal and visible camera for early fire warning and specialised heat monitoring. The thermal channel detects heat and fire in total darkness and through smoke or fog, while the 4MP visible channel confirms what is happening. It suits warehouses, plant rooms, recycling sites and other fire-sensitive areas.
Q.02

How does fire detection work on a thermal camera?
The thermal imager is sensitive to temperature, so it can detect a developing heat source and raise an alarm earlier and more reliably than a visible camera relying on visible smoke or flame. Detection range depends on the heat source size and site conditions; follow Dahua's commissioning guidance for placement.
Q.03

Can it see in complete darkness?
Yes. The thermal channel needs no light at all and images purely from heat, so it works in total darkness and through rain, fog and smoke. The visible channel adds Smart IR up to 30m so you also get a conventional picture for identification when there is some detail to resolve.
Q.04

What is smoking detection and how does it respond?
Using AI, the camera detects smoking behaviour in monitored zones and triggers an intelligent light and sound warning through its white light and audio linkage to deter the behaviour. It also supports call (phone use) detection for the same kind of policy monitoring.
Q.05

Does it have two-way audio or a built-in speaker?
The datasheet lists an audio input and an audio output interface for connecting external devices, rather than a self-contained two-way intercom. Connect an external microphone or speaker to the audio ports if you need on-site audio, and use the alarm output for linked sirens or strobes.
Q.06

Does it classify people and vehicles?
Yes. Its IVS tripwire and intrusion analytics support human and vehicle classification, so perimeter alerts focus on people and vehicles rather than animals or moving foliage, alongside the thermal fire and behaviour analytics.
Q.07

How is it powered and mounted?
It runs on 12V DC or PoE over a single cable and carries an IP67 rating with 6kV surge protection for outdoor use. Mount it with a Dahua bracket such as the PFB203W wall mount and a PFA130-E junction box for tidy, sealed cabling.
Q.08

Is there a lead time on this camera?
Yes. It is a special-order item with a 6 to 10 week lead time, so plan project schedules accordingly and confirm current availability before committing to a fixed install date.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

09In motion

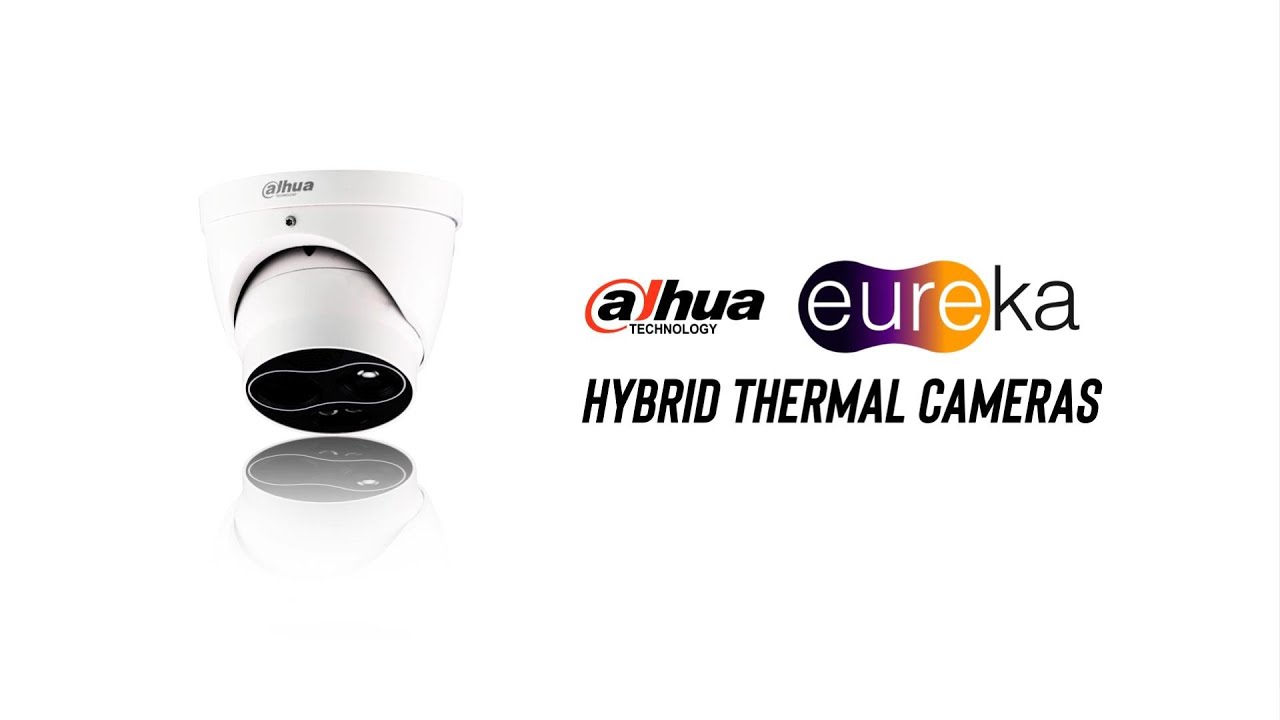

Dahua New Thermal Camera - EUREKA

Dahua New Thermal Camera - EUREKA

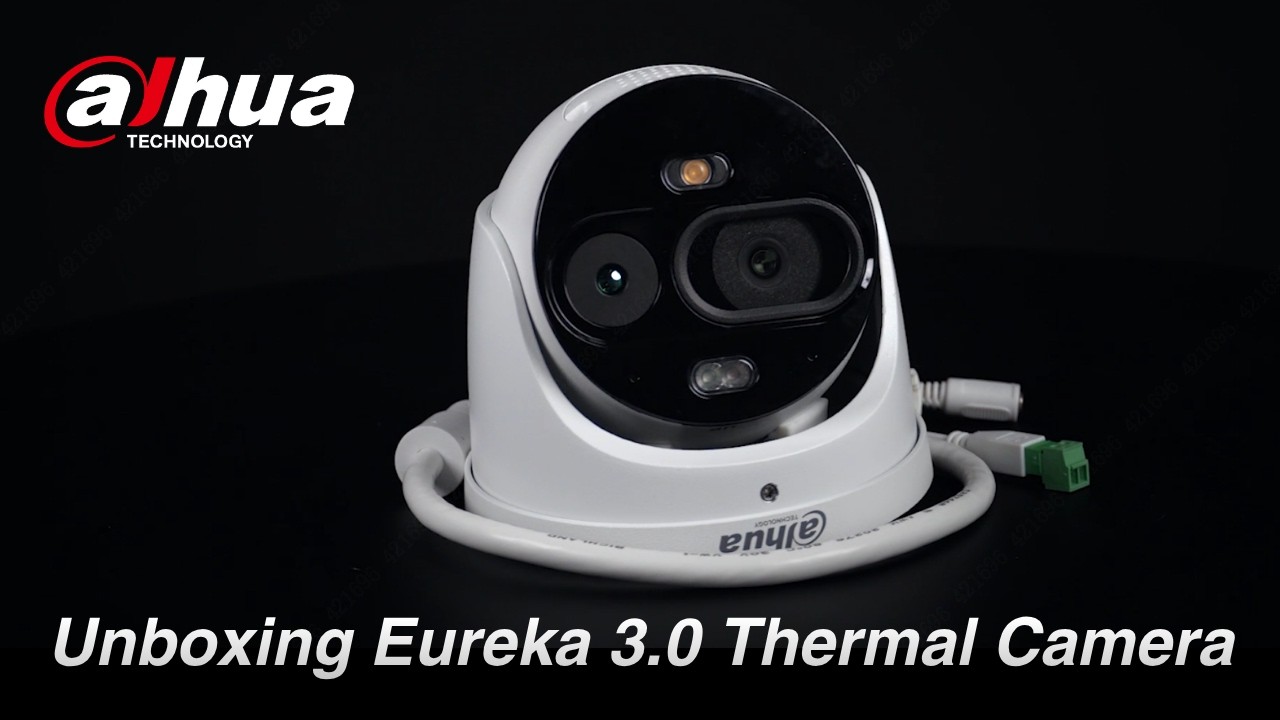

Unboxing Eureka 3.0 Thermal Camera

Unboxing Eureka 3.0 Thermal Camera

10Bundles

Recommended packages
