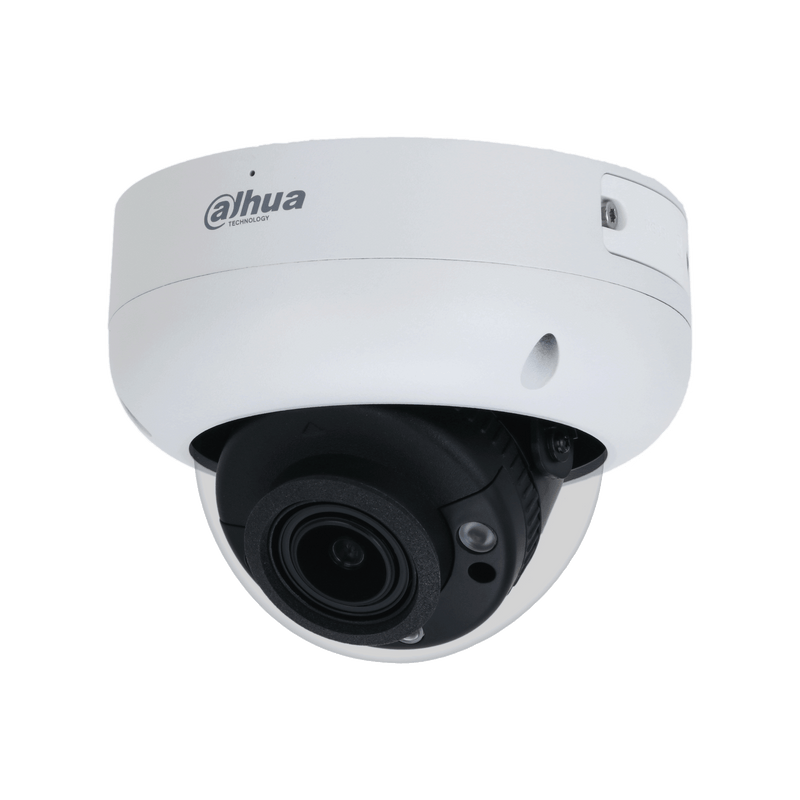

DAHUA DH-IPC-HDBW3466RP-ZAS-AUS 4MP WizSense Motorised Starlight Dome
Dahua DH-IPC-HDBW3466RP-ZAS-AUS 4MP WizSense Motorised Starlight Dome
1 1
Dahua

DAHUA DH-IPC-HDBW3466RP-ZAS-AUS 4MP WizSense Motorised Starlight Dome

SKU: DH-IPC-HDBW3466RP-ZAS-AUS
Description

4MP WizSense Starlight motorised varifocal vandal dome with SMD 4.0 and human and vehicle classification.

  • 1/2.9" 4MP CMOS, 2688 x 1520 at 25/30 fps
  • Motorised 2.7-13.5mm varifocal lens, F1.5
  • IR up to 40m, 120dB WDR, Starlight low light
  • SMD 4.0 and perimeter protection with human/vehicle classification
  • Quick Pick target search with a Dahua AI NVR
  • AI SSA and AFSA anti-flicker
  • Built-in microphone; audio and alarm I/O (-ZAS)
  • IP67 and IK10 metal housing; 12V DC or PoE
4MP Ultra HD 40m IR Night Vision IP67 Weatherproof Human/Vehicle Detection Built-in Microphone
$267.00 AUD $267.00 AUD $318.00 AUD
Sale 16.04% $51.00 AUD (16.04%)
Member Sign in to save $5.34 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $766.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $267.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HDBW3466RP-ZAS-AUS is

The Dahua DH-IPC-HDBW3466RP-ZAS-AUS is a 4MP WizSense Starlight motorised varifocal dome for everyday perimeter, car park and building-entry monitoring.

A 2.7-13.5mm motorised lens sets zoom and focus remotely, and Starlight imaging with 120dB WDR keeps footage usable in low light, with IR reaching 40m.

SMD 4.0 and perimeter protection classify humans and vehicles to filter false alarms, AI SSA adapts image settings to changing scenes, and Quick Pick with a Dahua AI NVR helps operators pick targets from SMD events.

A built-in microphone records audio, and the IP67 and IK10 metal housing suits exposed and vandal-prone outdoor positions, with 12V DC or PoE power.

See it in action

What the DH-IPC-HDBW3466RP-ZAS-AUS features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.
40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (1/2)
40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (2/2)

40m IR Night Vision

Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDBW3466RP-ZAS-AUS specifications

- Sensor and resolution: 1/2.9" 4MP CMOS, 2688 x 1520 at up to 25/30 fps, with Starlight low-light imaging

- Lens: motorised 2.7-13.5mm varifocal, F1.5, for remote framing from wide entries to tighter, longer-range scenes

- Night vision: built-in IR up to 40m across 3 LEDs for clear footage in complete darkness

- AI: SMD 4.0 and perimeter protection (tripwire, intrusion) with human and vehicle classification

- Quick Pick: with a Dahua AI NVR, quickly picks human and vehicle targets from SMD events

- Image processing: 120dB WDR, 3D NR, HLC, BLC, AI SSA scene adaptation and AFSA anti-flicker

- Audio and alarm: built-in microphone, plus RCA audio and alarm in/out on the -ZAS model

- Durability and power: IP67 and IK10 metal housing; 12V DC or PoE (802.3af); microSD up to 256GB

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — DAHUA DH-IPC-HDBW3466RP-ZAS-AUS 4MP WizSense Motorised Starlight Dome
FeatureDetail
Image Sensor 1/2.9" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 lux@F1.5 (Color, 30 IRE); 0.0005 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio >56 dB
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDBW3466RP-ZAS-AUS

Flexible framing

A motorised 2.7-13.5mm varifocal lens sets zoom and focus remotely, so one camera covers a wide entry or a tighter, longer-range scene as the site needs.

Relevant alerts

SMD 4.0 and perimeter protection classify humans and vehicles, so notifications focus on real activity rather than animals, rain or moving foliage.

Faster target search

Quick Pick with a Dahua AI NVR helps operators pick human and vehicle targets out of events quickly, reducing review time.

Built for outdoor and impact

An IK10 dome and IP67 housing handle dust, water and tampering on exposed and public-facing walls.

§ 05Where it fits

Right at home in these scenarios

Building entries and walls

The motorised lens frames doorways and approaches, with 40m IR and classification keeping alerts relevant after dark.

Car parks and forecourts

Human and vehicle classification with WDR suits lit areas with shadow zones and mixed lighting, framed precisely by the varifocal lens.

Commercial perimeters

Starlight imaging and remote zoom suit fence lines and yards where the field of view needs tuning to the scene.

Retail and public areas

IK10 impact resistance and IP67 sealing handle public-facing walls where weather and tampering are concerns.

§ 06Setup

Installation & setup

01

Power over PoE or 12V DC

Run a single cable for PoE (802.3af) or provide a 12V DC supply. PoE keeps cabling simple on most sites.

02

Set the motorised lens

After mounting, set the zoom and focus remotely to frame the scene, taking advantage of the 2.7-13.5mm range for wide or longer-range coverage.

03

Mount on wall or ceiling

The dome suits wall or ceiling positions. Use a Dahua junction box such as the PFB203W where surface cabling or clearance is needed; confirm bracket fit for the model.

04

Pair an AI NVR for Quick Pick

To use Quick Pick, connect the camera to a compatible Dahua AI NVR so target search runs across recorded events.

§ 07Questions

Frequently asked about the DH-IPC-HDBW3466RP-ZAS-AUS

Q.01

How far does the IR reach on the HDBW3466RP-ZAS-AUS?
Built-in IR reaches up to 40m across three LEDs for clear black-and-white footage in complete darkness, suiting driveways, entries, car parks and perimeters within that range.
Q.02

Can I adjust the lens after installation?
Yes. The motorised 2.7-13.5mm varifocal lens sets zoom and focus remotely, so you can reframe from a wide entrance to a tighter, longer-range scene without returning to the camera, then lock the view.
Q.03

Does it classify people and vehicles?
Yes. SMD 4.0 and perimeter protection classify detections as human or vehicle, so tripwire and intrusion alerts focus on people and vehicles and filter out animals, foliage and weather, reducing nuisance alarms.
Q.04

What is Quick Pick and what do I need for it?
Quick Pick works with a Dahua AI NVR to quickly pick human and vehicle targets out of SMD events. It is a recorder-side search feature, so you need a compatible Dahua AI NVR to use it.
Q.05

Does it have two-way audio?
No. The -ZAS model has a built-in microphone and RCA audio in and out for external devices, but no built-in speaker, so it does not provide self-contained two-way talk.
Q.06

Is it suitable for vandal-prone areas?
Yes. The metal dome is IK10 impact-resistant and IP67 weatherproof, suiting public areas, building entries and exposed exteriors where tampering and weather are concerns.
Q.07

How is it powered?
It runs on 12V DC or PoE (802.3af) over a single network cable, fitting standard PoE switches and recorders, with microSD up to 256GB for edge recording.
Q.08

What does AI SSA add?
AI SSA, or Scene Self-adaptation, automatically optimises image settings for changing conditions such as rain, fog and backlight, helping keep footage clear without manual tuning across the day and night.

§ 08In motion

Dahua 3466 Camera - High-Quality Surveillance for Your Home or Business

Dahua 3466 Camera - High-Quality Surveillance for Your Home or Business

§ 09Bundles

Recommended packages

03

Mounting

For concealed cabling or angled walls, add a Dahua mount such as the PFB203W bracket; confirm it suits this dome before ordering.
