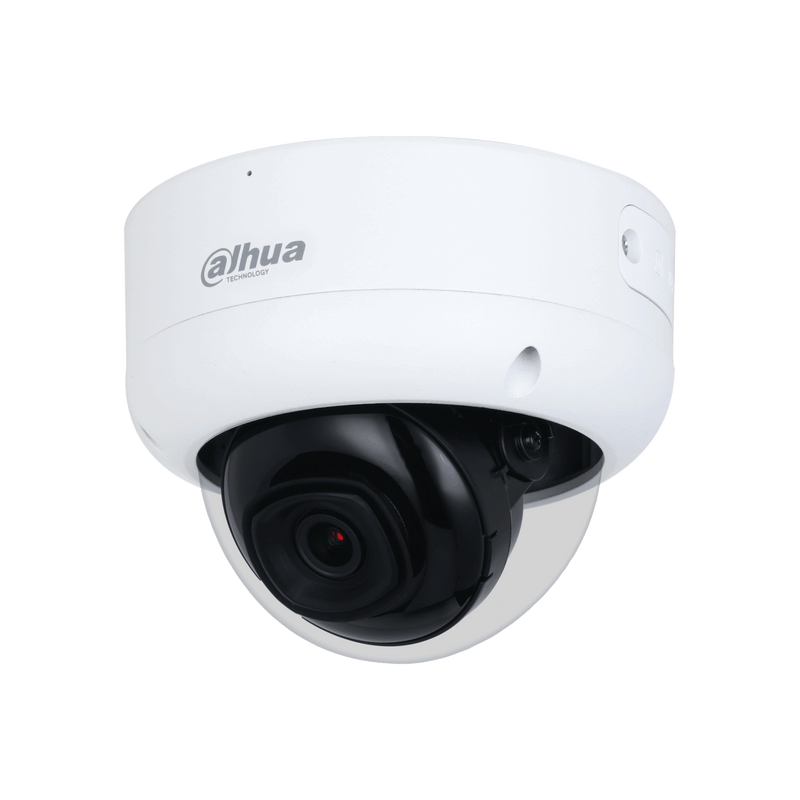

DAHUA DH-IPC-HDBW3466EP-AS-AUS 4MP WizSense Starlight Dome
Skip to product information
1
/
of
1
Vendor:
Dahua
DAHUA DH-IPC-HDBW3466EP-AS-AUS 4MP WizSense Starlight Dome
SKU: DH-IPC-HDBW3466EP-AS-AUS
Description
4MP AI-powered dome camera featuring 50-metre infrared night vision, accurate human and vehicle classification, and a vandal-resistant housing for high-security outdoor monitoring.
Regular price
$153.72 AUD
Sale price
$153.72 AUD
Regular price
$183.00 AUD
Sale
16.0%
$29.28 AUD
(16.0%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
DAHUA DH-IPC-HDBW3466EP-AS-AUS 4MP WizSense Starlight Dome
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $660.05
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Dahua 4MP WizSense Fixed-focal Dome is a professional-grade security solution engineered to provide high-definition surveillance for Australian homes and businesses. It features advanced AI algorithms that distinguish between genuine threats and irrelevant motion, ensuring you only receive important notifications on your device. With its robust build and intelligent monitoring features, this product is ideal for securing perimeters, car parks, and building entrances.
§ 02Engineering
Technical specifications
- Resolution: 4MP (2688 x 1520) video at 30 fps to ensure clear identification of faces and licence plates.
- AI Intelligence: This brand offering includes SMD 3.0 and perimeter protection to accurately classify humans and vehicles while reducing false alerts from animals or weather.
- Long-Range Night Vision: Features built-in IR LEDs with a maximum distance of 50 metres for reliable monitoring in total darkness.
- Face Detection: This model supports advanced face tracking and snapshot capabilities with quality priority strategies for easier forensic identification.
- Durable Construction: Engineered with an IP67 weatherproof and IK10 vandal-resistant rating to withstand the harsh Australian climate and physical tampering.
- Audio Integration: Includes a built-in microphone plus dedicated audio input/output ports for flexible sound recording and site communication.
- Image Optimisation: Utilises 120dB Wide Dynamic Range (WDR) and 3D Noise Reduction features to maintain clear footage in high-contrast or low-light environments.
- Storage and Power: Supports high-capacity recording on a microSD card up to 256GB and offers PoE power to simplify the installation process.
- AI Intelligence: This brand offering includes SMD 3.0 and perimeter protection to accurately classify humans and vehicles while reducing false alerts from animals or weather.
- Long-Range Night Vision: Features built-in IR LEDs with a maximum distance of 50 metres for reliable monitoring in total darkness.
- Face Detection: This model supports advanced face tracking and snapshot capabilities with quality priority strategies for easier forensic identification.
- Durable Construction: Engineered with an IP67 weatherproof and IK10 vandal-resistant rating to withstand the harsh Australian climate and physical tampering.
- Audio Integration: Includes a built-in microphone plus dedicated audio input/output ports for flexible sound recording and site communication.
- Image Optimisation: Utilises 120dB Wide Dynamic Range (WDR) and 3D Noise Reduction features to maintain clear footage in high-contrast or low-light environments.
- Storage and Power: Supports high-capacity recording on a microSD card up to 256GB and offers PoE power to simplify the installation process.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.4 |
| Field of View | 2.8 mm: Horizontal: 107°; vertical: 56°; diagonal: 127° | 3.6 mm: Horizontal: 88°; vertical: 44°; diagonal: 105° | 6 mm: Horizontal: 54°; vertical: 29°; diagonal: 63° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft); 3.6 mm: 1.3 m (4.27 ft); 6 mm: 2.6 m (8.53 ft) |
| DORI Distance | 2.8 mm: Detect 63.6 m (208.66 ft); Observe 25.4 m (83.33 ft); Recognize 12.7 m (41.67 ft); Identify 6.4 m (21.00 ft) | 3.6 mm: Detect 85.4 m (280.18 ft); Observe 34.2 m (112.20 ft); Recognize 17.1 m (56.10 ft); Identify 8.5 m (27.89 ft) | 6 mm: Detect 124 m (406.82 ft); Observe 49.6 m (162.72 ft); Recognize 24.8 m (81.36 ft); Identify 12.4 m (40.68 ft) |
| Pan Range | 0°–355° |
| Tilt Range | 0°–80° |
| Rotation Range | 0°–355° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 50 m (164.04 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 3 (IR LED) |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 2688 × 1520 @ (1–25/30) fps | Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) | Sub stream 2: 1920 × 1080 @ (1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | IOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | - AS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception | -S: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) (Only - AS supports) |
| Audio Output | 1 channel (RCA port) (Only - AS supports) |
| Alarm Input | 1 channel in: 5 mA 3–5 VDC (Only - AS supports) |
| Alarm Output | 1 channel out: 300 mA 12 VDC (Only - AS supports) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.8 W (12 VDC); 3.5 W (PoE) | Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 8.3 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH |
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
| Protection | IP67; IK10 |
| Casing | Metal |
| Product Dimensions | 89.1 mm × Φ111.7 mm (3.51" × Φ4.40") |
| Net Weight | 516 g (1.14 lb) |
| Gross Weight | 670 g (1.48 lb) |
| Certifications | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
