Dahua 4 x 6MP+ 8 Channels Kit:4x Smart Dual Light Turret Cameras with SMD 4.0 & Mic + 8CH PoE NVR+ 4TB HDD
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua 4 x 6MP+ 8 Channels Kit:4x Smart Dual Light Turret Cameras with SMD 4.0 & Mic + 8CH PoE NVR+ 4TB HDD
SKU: DH-IPC-HDW3667EM-S-IL-ANZ
Description
1 x DHI-NVR4108HS-8P-AI/ANZ with 4TB HDD,
4 x DH-IPC-HDW3667EM-S-IL-ANZ.
Regular price
$1,239.45 AUD
Sale price
$1,239.45 AUD
Regular price
$1,106.50 AUD
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua 4 x 6MP+ 8 Channels Kit:4x Smart Dual Light Turret Cameras with SMD 4.0 & Mic + 8CH PoE NVR+ 4TB HDD
1
/
of
1
Customize this kit Kit price $1,239.45

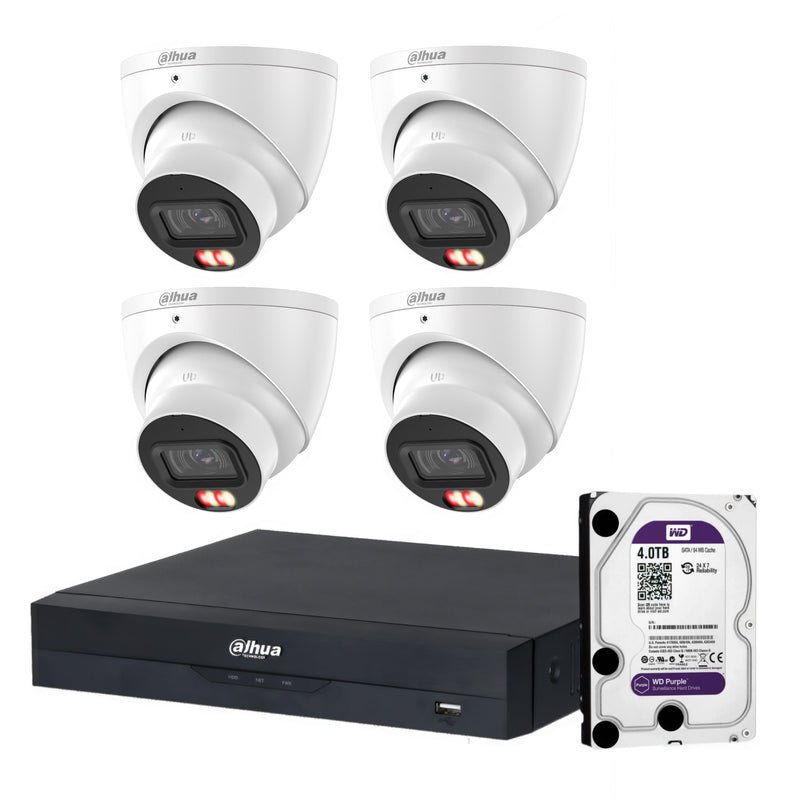

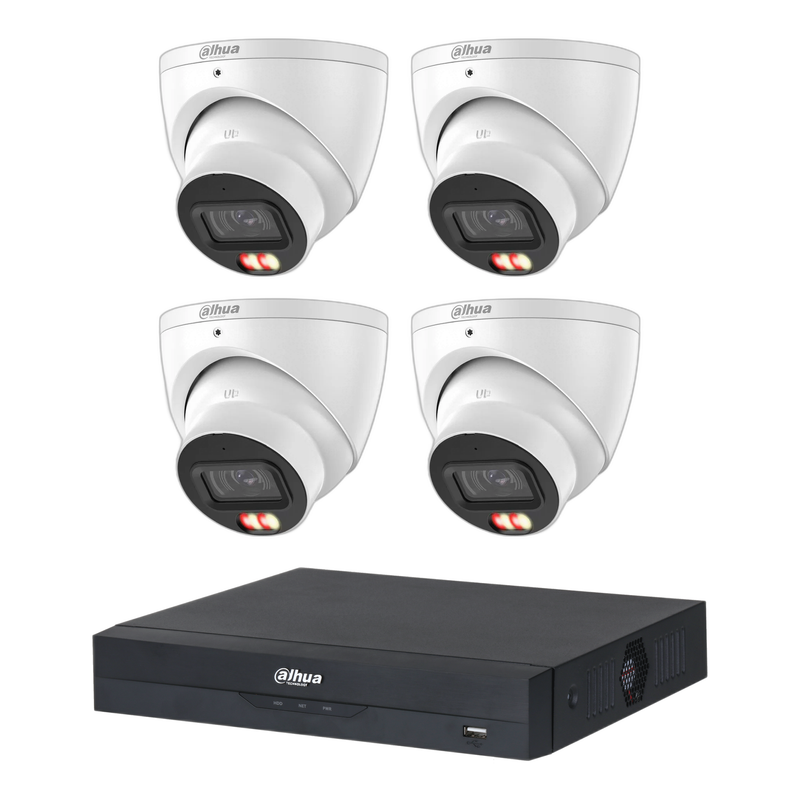

This kit includes:
- 4 × Dahua DH-IPC-HDW3667EM-S-IL-ANZ 6MP Dual Light Turret Network Camera Acupick Wizsense
- 1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The DH-IPC-HDW3667EM-S-IL-ANZ & DHI-NVR4108HS-8P-AI/ANZ 6MP Camera Kit delivers a high-performance surveillance solution for Australian homes and organisations. It ensures reliable 24/7 security by combining intelligent AI detection with superior image clarity to protect multiple entry points.
§ 02Engineering
Technical specifications
- 4 x 6MP Cameras: Turret-style outdoor AI cameras with 3288 × 1850 resolution, featuring Smart Dual Light technology for clear night imaging and built-in mic.
- Smart Dual Light: Switches between infrared and warm LED illumination to capture full-colour video evidence when motion is detected at night.
- SMD 4.0 AI: Accurately identifies humans and vehicles while filtering out false alerts caused by pets, insects, or weather conditions.
- Integrated Audio: Built-in microphones on every camera capture situational sound alongside video to provide essential context during security incidents.
- IP67 Weather Resistance: Robust camera housing designed to withstand harsh Australian outdoor conditions, ensuring long-term durability.
- Smart H.265+ Compression: Optimises bandwidth and storage efficiency, allowing for extended recording periods without losing high-resolution quality.
- Intelligent Search: Supports AI-driven playback and perimeter protection to help users quickly locate relevant footage during review.
- 8CH NVR System: Base setup supports four cameras, expandable with four additional PoE channels and additional HDD storage.
- Smart Dual Light: Switches between infrared and warm LED illumination to capture full-colour video evidence when motion is detected at night.
- SMD 4.0 AI: Accurately identifies humans and vehicles while filtering out false alerts caused by pets, insects, or weather conditions.
- Integrated Audio: Built-in microphones on every camera capture situational sound alongside video to provide essential context during security incidents.
- IP67 Weather Resistance: Robust camera housing designed to withstand harsh Australian outdoor conditions, ensuring long-term durability.
- Smart H.265+ Compression: Optimises bandwidth and storage efficiency, allowing for extended recording periods without losing high-resolution quality.
- Intelligent Search: Supports AI-driven playback and perimeter protection to help users quickly locate relevant footage during review.
- 8CH NVR System: Base setup supports four cameras, expandable with four additional PoE channels and additional HDD storage.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3288 (H) × 1850 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) | 0.0005 lux@F1.4 (B/W, 30 IRE) | 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.4 |
| Field of View | 2.8 mm: H: 110°; V: 58°; D: 132° | 3.6 mm: H: 86°; V: 49°; D: 100° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.4 m (4.59 ft) | 3.6 mm: 1.9 m (6.23 ft) |
| DORI Distance | 2.8 mm: Detect 84.8 m (278.22 ft); Observe 33.9 m (111.22 ft); Recognize 17.0 m (55.77 ft); Identify 8.5 m (27.89 ft) | 3.6 mm: Detect 98.7 m (323.82 ft); Observe 39.5 m (129.59 ft); Recognize 19.7 m (64.63 ft); Identify 9.9 m (32.48 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–80° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Up to 30 m (98.43 ft) (IR) | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3288 × 1850@(1–25/30 fps) | Sub stream: 1920 × 1080@(1–25/30 fps) | Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 6M (3288 × 1850/3200 × 1800); 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR;ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android |
| Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.7 W (12 VDC); 5.3 W (PoE); | Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | 93.6 mm × Φ106.0 mm (3.69" × Φ4.17") |
| Net Weight | 0.53 kg (1.17 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
| Certifications | CE-LVD: EN62368-1; | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
§ 08In motion
