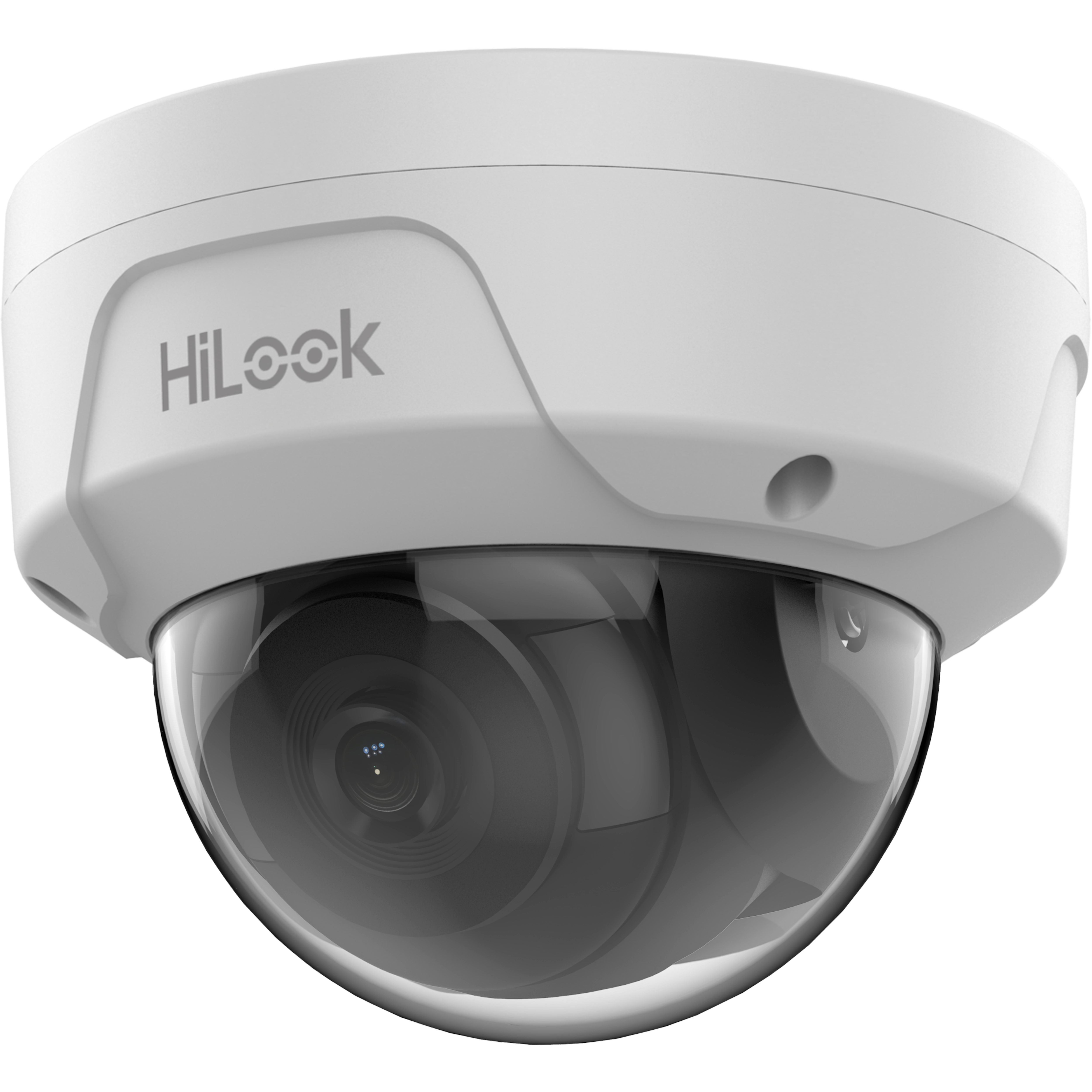

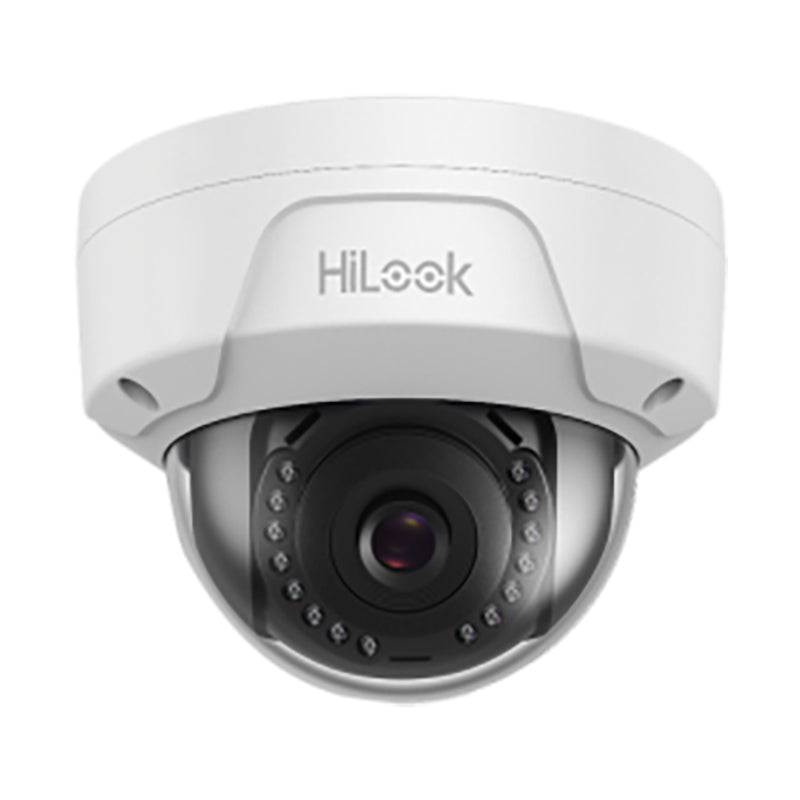

HiLook 4MP IPC-D140H Vandal Dome Network Camera
Skip to product information
1
/
of
1
Vendor:
Hilook
HiLook 4MP IPC-D140H Vandal Dome Network Camera
SKU: IPC-D140H
Description
- 4MP Resolution: Captures high-definition video at 2560x1440 @20fps.
- H.265+ Compression: Efficient technology saving bandwidth and storage.
- IP67 Rated: Water and dust resistant for robust durability.
- Motion Detection: Triggers alarms for detected events.
Regular price
$141.55 AUD
Sale price
$141.55 AUD
Regular price
$160.00 AUD
Sale
11.53%
$18.45 AUD
(11.53%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
HiLook 4MP IPC-D140H Vandal Dome Network Camera
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $582.00
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the IPC-D140H is
The IPC-D140H is a vandal-resistant dome network camera for reliable surveillance.
Equipped with 4MP high-resolution imaging, H.265+ compression technology, 120 dB true WDR for backlight clarity, IP67 dust/water resistance, IK10 vandal protection, and PoE for easy installation.
§ 02Engineering
IPC-D140H specifications
- Resolution: 4MP (2560 × 1440) for high-quality imaging.
- H.265+ Compression: Saves bandwidth and storage efficiently.
- FPS: Up to 20fps at 2560 × 1440 resolution.
- IP67 & IK10 Protection: Water, dust, and vandal resistant.
- SMD: Motion detection for smart alerts.
- True WDR (120 dB): Ensures clear imaging against strong backlight.
- 3D DNR: Delivers clean and sharp images in low light.
- PoE Support: Simplifies installation with Power over Ethernet.
- IR Night Vision: Up to 30m range with 850nm wavelength.
- H.265+ Compression: Saves bandwidth and storage efficiently.
- FPS: Up to 20fps at 2560 × 1440 resolution.
- IP67 & IK10 Protection: Water, dust, and vandal resistant.
- SMD: Motion detection for smart alerts.
- True WDR (120 dB): Ensures clear imaging against strong backlight.
- 3D DNR: Delivers clean and sharp images in low light.
- PoE Support: Simplifies installation with Power over Ethernet.
- IR Night Vision: Up to 30m range with 850nm wavelength.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Image Enhancement | BLC, 3D DNR |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° | 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
Night Vision
| Feature | Detail |
|---|---|
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50 Hz: 20 fps (2560 × 1440); 25 fps (1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (2560 × 1440); 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) | 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+ | Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Feature | Detail |
|---|
AI & Deep Learning
| Feature | Detail |
|---|
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+ | Plug-in free live view: Chrome 57.0+, Firefox 52.0+ | Local service: Chrome 57.0+, Firefox 52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, exception |
| Linkage Method | Upload to FTP, notify surveillance center, send email |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
General & Environment
| Feature | Detail |
|---|---|
| Material | Aluminum alloy body |
| Dimension | Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2") |
| Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Weight | Approx. 360 g (0.8 lb.) |
| With Package Weight | Approx. 560 g (1.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | V5.5.120 |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W | PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25% | PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
§ 07Questions
Frequently asked about the IPC-D140H
Q.01
Does the IPC-D140H work with my existing Hikvision NVR?
Yes, it is fully compatible with Hikvision NVRs and other ONVIF-compliant recorders. It also integrates with HiLook NVRs and the iVMS-4200 client software.
Q.02
Can I view this camera remotely on my phone?
Yes, it supports the Hik-Connect app for remote viewing on iOS and Android. You'll need to add the device via the app using either a verification code or QR scan during setup.
Q.03
Does this camera have a built-in microphone or audio recording?
No, the IPC-D140H does not have a built-in microphone or audio input/output. If audio recording is required, you'll need to consider a different model.
Q.04
Does it have onboard SD card storage?
No, this model does not support a microSD card. It must be used with an NVR or network storage for recording.
Q.05
How well does it perform in hot Australian summers?
It is rated to operate from -30°C to 60°C, so it handles extreme Australian summer heat well. The IP67 rating also protects against dust and heavy rain, making it suitable for most Australian outdoor installations.
Q.06
Which lens should I choose — 2.8mm or 4mm?
The 2.8mm lens gives a wider 98° horizontal field of view, better for covering entrances or open areas. The 4mm lens provides a narrower 78.7° view with slightly more detail at distance, better suited for driveways or corridors.
Q.07
How far does the night vision reach?
The built-in IR illuminator covers up to 30 metres in complete darkness. It automatically switches between colour and black-and-white mode via the IR cut filter.
Q.08
Does it require a power supply or can it run on PoE?
It supports both 12V DC and Power over Ethernet (PoE 802.3af, Class 3). Most Australian installers use PoE, which simplifies cabling by delivering power and data through a single Ethernet cable.
