HiLook IPC-T289H-MU/SL | 8MP AcuSense Deterrence Kit

Name: HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Brand: Hilook
Price: 1348.0 AUD
Availability: InStock

Customize this kit Kit price $1,348.00

This kit includes: Cabling not included — add cables in the accessories below (one per camera).

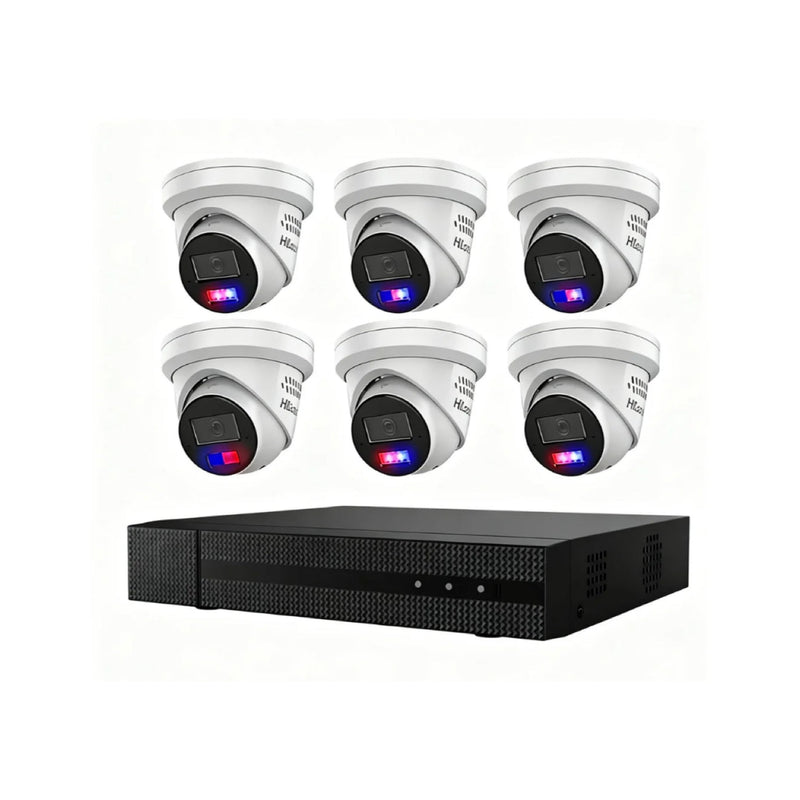

6 × HiLook by Hikvision 8MP IPC-T289-MU/SL All in One Camera with Blue / Red Strobe / Audio (ACDC)
1 × HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder (8ch)
No HDD included (add one below)

Add extra cameras HiLook by Hikvision 8MP IPC-T289-MU/SL All in One Camera with Blue / Red Strobe / Audio (ACDC) · Max 16 · Each extra camera uses one NVR channel

+$0.00

NVR · channels ≥ your total camera count Base: 8ch · HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder

8ch HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI,... Base (included)

HiLook NVR-216MH-C-16P 16CH NVR, 16x PoE NVR Network Video Recorder

16ch HiLook NVR-216MH-C-16P 16CH NVR, 16x PoE NVR Ne... +$116.60

Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7

No HDD

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB 4TB HDD – WD Purple / Seagate Surveillance HDD ... $269.45

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB 6TB HDD – WD Purple / Seagate Surveillance HDD ... $405.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB 8TB HDD – Purple / Skyhawk Surveillance Hard Dr... $545.15

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB 10TB HDD – Purple Surveillance Hard Drive for D... $699.00

Add accessories

HiLook by Hikvision 8MP 4K Acusense 8 Camera , 8CH NVR Kit – ACDC All in one Camera with Colour Deterrance ~~$2,236.00~~$1,732.00

1

HiLook by Hikvision 6MP AcuSense 8CH CCTV Kit with 8 Colour Deterrence Cameras IPC-T269-MU/SL ~~$2,036.00~~$1,556.00

1

HiLook by Hikvision 8MP 4K Acusense 4 Camera , 4CH NVR Kit – ACDC All in one Camera with Colour Deterrance ~~$1,095.00~~$908.00

1

HiLook by Hikvision 8MP IPC-T289-MU/SL All in One Camera with Blue / Red Strobe / Audio (ACDC) ~~$300.00~~$192.00

1

HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder ~~$323.40~~$188.00

1

Cable · 10m $13.00

1

Cable · 20m $28.00

1

Cable · 30m $40.00

1

Cable · 50m $65.00

1

Notes for warehouse (optional)

§ 01Overview

What the IPC-T289H-MU/SL is

This HiLook 8MP kit is a six-camera, 4K active-deterrence system for sites that want both evidence-grade detail and the ability to warn an intruder off, with two channels left for later.

Six IPC-T289H-MU/SL all-in-one cameras run from a HiLook NVR-108MH-C/8P, an 8-channel recorder with eight built-in PoE ports, so each camera connects over a single network cable that carries power and data.

At 8MP (3840 × 2160) the T289H captures the fine detail that makes faces, clothing and number plates usable as evidence, and you can zoom into recorded 4K footage and keep clarity.

Each camera uses Smart Hybrid Light, switching between infrared and a warm white light so you get colour at night when it is needed.

As an all-in-one deterrence camera it also has a red and blue strobe, a customisable audio alarm and two-way audio through a built-in microphone array and speaker, so on an AcuSense person or vehicle detection it can flash, sound and let you speak in real time.

The IP67 metal housings suit outdoor use and H.265+ keeps the 4K streams efficient.

Two honest notes.

The recorder ships without a hard drive, and 4K across six cameras fills storage faster than lower resolutions — add a 6TB surveillance drive for a useful retention window; the NVR takes a single drive up to 8TB.

And while the recorder is 8-channel, this kit uses six of those channels, leaving two spare for more cameras later.

The full strobe and alarm linkage is configured through the HiLook NVR and the HiLookVision app.

This is genuine HiLook stock with a local 3-year warranty and support.

See it in action

What the IPC-T289H-MU/SL features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d... — Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h... — IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s... — Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Blue/Red Strobe — When activity is detected after dark, the camera can flash a bright red-and-blue strobe t... — Blue/Red Strobe
When activity is detected after dark, the camera can flash a bright red-and-blue strobe to warn intruders they've been seen — active deterrence, not just a recording for later.

Illustrative — simulated for demonstration

§ 02Engineering

IPC-T289H-MU/SL specifications

- 6 × IPC-T289H-MU/SL 8MP 4K all-in-one cameras (3840 x 2160): strobe, audio alarm, two-way audio
- Smart Hybrid Light: automatic infrared / warm-white switching for colour night footage on demand
- HiLook NVR-108MH-C/8P 8-channel recorder with 8 built-in PoE ports (one cable per camera)
- AcuSense human and vehicle classification triggers deterrence only on people and vehicles
- 120 dB true WDR and H.265+ compression; IP67 metal housings
- Up to 4K HDMI output; remote access via the HiLookVision app and Hik-Connect
- No hard drive included; 1 SATA bay supports a drive up to 8TB; two spare channels
- Genuine HiLook (Hikvision sub-brand) stock with a local 3-year warranty

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Image Parameters Switch	Yes
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	8 programmable polygon privacy masks

Lens & Distance

Lens & Distance — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127° \| 4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.6
Depth of Field	2.8 mm: 1.7 m to ∞ \| 4 mm: 2.6 m to ∞
DORI	2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m \| 4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m
Pan Range	0° to 360°
Tilt Range	0° to 75°
Rotation Range	0° to 360°

Night Vision

Night Vision — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Supplement Light Type	IR, White Light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm

Video

Video — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Main Stream	50 Hz: 20 fps (3840 × 2160); 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) \| 60 Hz: 20 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); Third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.264+/H.265+ \| Sub-stream: H.265/H.264/MJPEG \| Third stream: H.265/H.264; Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Bit Rate Control	CBR, VBR
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Target Cropping	Yes

Audio

Audio — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering	Yes
Built-in Microphone	Arrayed dual-microphone
Built-in Speaker	1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.

AI & Deep Learning

AI & Deep Learning — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Perimeter Protection	Line crossing, intrusion; Support alarm triggering by specified target types (human and vehicle)

Network & Storage

Network & Storage — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View	Up to 6 channels
API	ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
User/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Network Storage	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client	iVMS-4200, HLokkVision
Web Browser	Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ \| Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Event & Alarm

Event & Alarm — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing

Interface

Interface — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key	Yes

General & Environment

General & Environment — HiLook Hikvision 4K 8MP Active Colour Deterrence 8CH CCTV Kit 6 x IP Active Colour Camera+ 8CH NVR
Feature	Detail
Power	12 VDC ± 25%, 1.25 A, max. 15 W, Ø 5.5 mm coaxial power plug, reverse polarity protection \| PoE: IEEE 802.3at, Class 4, max. 18 W
Material	Metal
Dimension	Ø 127.3 mm × 96.3 mm (Ø 5" × 3.8")
Package Dimension	150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")
Weight	Approx. 590 g (1.1 lb.)
With Package Weight	Approx. 820 g (1.7 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 \| RCM: AS/NZS CISPR 32: 2015 \| IC: ICES-003: Issue 7 \| KC: KN32: 2015, KN35: 2015
Safety	CB: IEC 62368-1: 2014+A11 \| CE-LVD: EN 62368-1: 2014/A11: 2017 \| LOA: IEC/EN 60950-1
Environment	CE-RoHS: 2011/65/EU \| WEEE: 2012/19/EU \| Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013

§ 04Why choose this

Built for the way you actually use the IPC-T289H-MU/SL

Evidence-grade 4K

8MP cameras capture faces and plates clearly and let you zoom into recorded footage and keep detail.

Deterrence on every camera

A strobe, audio alarm and talk-back let you warn an intruder off across all six channels.

Colour at night on demand

Smart Hybrid Light switches to warm white for colour footage when motion needs it.

Room to grow

An 8-channel recorder runs six cameras and leaves two spare channels for later.

§ 05Where it fits

Right at home in these scenarios

Homes wanting 4K and deterrence

Cover the main approaches in 4K colour with strobe and talk-back at each one, and keep two channels spare.

Retail shopfronts

Capture evidence-quality 4K of the entrance and floor, with talk-down deterrence after hours.

Yards and workshops

High-detail 4K coverage of open areas with active warning on intrusion.

Larger premises

Use 4K detail and active deterrence across six positions with room to add two more.

§ 06Setup

Installation & setup

01

What's in the box

Six IPC-T289H-MU/SL 8MP cameras, one NVR-108MH-C/8P recorder and mounting accessories with guides. A hard drive, network cables and a monitor are supplied separately.

02

Installation requirements

Mount each camera over the approach you want, run one network cable from each to the NVR's PoE ports, and fit a 6TB or larger surveillance drive before recording. Set up in the HiLookVision app or on a monitor, configure the deterrence zones and AcuSense rules, and test each view and the night colour before relying on it.

§ 07Questions

Frequently asked about the IPC-T289H-MU/SL

Q.01

Is a hard drive included with this 8MP kit?

No. The NVR-108MH-C/8P is supplied without a hard drive. Because 4K across six cameras uses storage quickly, add a surveillance-grade 6TB drive for a useful retention window; the recorder takes a single drive up to 8TB. WD Purple and Seagate Skyhawk are good choices.

Q.02

What does 8MP 4K give me over the 6MP kits?

More detail. At 3840 x 2160 the T289H captures sharper faces, clothing and number plates, and you can zoom further into recorded footage and keep it usable as evidence. The trade-off is that 4K fills storage faster, so size your hard drive accordingly.

Q.03

How does the night vision and deterrence work?

Each camera uses Smart Hybrid Light to switch between infrared and a warm white light for colour footage when needed. As an all-in-one deterrence camera it also has a red and blue strobe, an audio alarm and two-way audio, so on an AcuSense person or vehicle detection it can flash, sound and let you speak in real time.

Q.04

Do all six cameras have two-way audio?

Yes. Every IPC-T289H-MU/SL has a built-in microphone array and a speaker, so two-way audio and the audio alarm work on all six channels through the HiLookVision app and a HiLook NVR.

Q.05

Can I add more cameras later?

Yes. This 8-channel recorder runs six cameras, leaving two spare channels. You can add up to two more HiLook or Hikvision IP cameras, each connecting to a spare PoE port over a single cable.

Q.06

Do the deterrence features need a HiLook NVR and app?

The included HiLook NVR and the free HiLookVision app give you the full strobe, audio-alarm and smart-event linkage, plus remote viewing and push alerts. The cameras support ONVIF for third-party recorders, but the complete active-deterrence and alarm management is built around HiLook hardware and the app.

Q.07

Are the cameras suitable for outdoor use?

Yes. Every camera has an IP67-rated metal housing for rain, dust, heat and sun, with white-light colour night vision to about 30 metres. The kit is genuine HiLook stock with a local 3-year warranty and support.

§ 09Bundles

Recommended packages

01

Add a hard drive to record

This NVR ships without a hard drive, so add a surveillance-grade 2TB drive or 6TB drive sized to how long you want to keep footage; for six cameras recording continuously a 6TB drive suits 4K retention, and the recorder takes a single drive up to 8TB.

02

Need eight cameras of 4K deterrence

Step up to the 8-camera T289H 4K kit, which fills all eight channels.

03

Prefer 6MP at a lower price

Compare the 8-camera T269 6MP kit for full-colour 6MP deterrence.

04

Add matching cameras

Use the two spare channels for extra IPC-T289H-MU/SL 8MP deterrence cameras.
