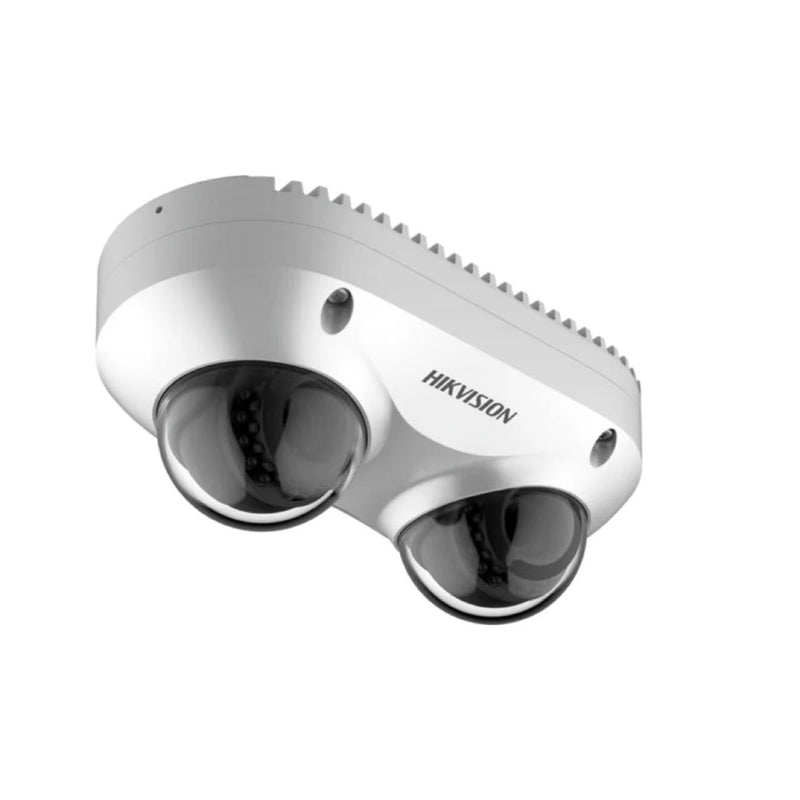

Hikvision DS-2CD6D52G0-IH(S) 5MP Dual Lens Panovu Camera, 2x 5MP Sensor
SKU: DS-2CD6D52G0-IH(S)
Description
The Hikvision DS-2CD6D52G0-IH(S) is a dual-lens PanoVu camera that uses two 5 MP sensors to cover a wide area or two directions from a single housing. Each lens captures a 2560 x 1920 image, the dual-directional design lets you angle the two views to suit the site, and a built-in microphone, 120 dB WDR and a microSD slot round it out. It is an IP67 PoE camera for outdoor and large-area coverage.
Key points
- Two 5 MP (2560 x 1920) 1/2.7" CMOS sensors
- Dual-lens, dual-directional design for wide or two-way coverage
- Adjustable lens angles to suit corners, perimeters and open areas
- Built-in microphone plus audio line-in and line-out
- 120 dB WDR and 3D DNR for mixed lighting
- microSD on-board storage up to 256 GB
- IP67 weatherproof; PoE powered
Regular price
$683.85 AUD
Sale price
$683.85 AUD
Regular price
$705.00 AUD
Sale
3.0%
$21.15 AUD
(3.0%)
Member
Sign in to save $13.68 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2CD6D52G0-IH(S) 5MP Dual Lens Panovu Camera, 2x 5MP Sensor
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,627.45
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD6D52G0-IH(S) is
The Hikvision DS-2CD6D52G0-IH(S) is a PanoVu dual-lens camera that does the work of two cameras in one.
It carries two 5 MP sensors, each capturing a 2560 x 1920 image, and its dual-directional design lets you angle the two lenses independently - point them along two sides of a building corner, down both directions of a corridor or fence line, or spread them for a wide panorama of an open area.
That makes it a tidy way to remove blind spots and cut camera count on perimeters, car parks, plazas and large yards.
It balances mixed lighting with 120 dB WDR and 3D DNR, captures sound through a built-in microphone, and takes a microSD card up to 256 GB for on-board recording if the network drops.
PoE means a single cable carries power and data, and the IP67 housing suits outdoor positions.
Two honest notes so you position it well.
Its infrared reaches about 10 m, so it is built to give a wide overview of an area rather than long-range night detail - pair it with dedicated night cameras where you need reach in the dark.
And it has a built-in microphone to record audio but no built-in speaker, so on its own it records sound rather than offering two-way talk.
See it in action
What the DS-2CD6D52G0-IH(S) features actually look like
Representative illustrations of how each key feature performs in a real scene.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD6D52G0-IH(S) specifications
- Two 5 MP (2560 x 1920) 1/2.7" CMOS sensors in one housing
- Dual-lens, dual-directional design for wide or two-way coverage
- Lens angles adjustable to suit corners, fence lines and open areas
- Built-in microphone plus audio line-in and line-out (no built-in speaker)
- 120 dB WDR and 3D DNR for mixed and high-contrast lighting
- 10 m infrared for a wide area overview (black-and-white at night)
- microSD on-board storage up to 256 GB
- IP67 weatherproof; PoE powered
- Dual-lens, dual-directional design for wide or two-way coverage
- Lens angles adjustable to suit corners, fence lines and open areas
- Built-in microphone plus audio line-in and line-out (no built-in speaker)
- 120 dB WDR and 3D DNR for mixed and high-contrast lighting
- 10 m infrared for a wide area overview (black-and-white at night)
- microSD on-board storage up to 256 GB
- IP67 weatherproof; PoE powered
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 2560 x 1920 |
| Min. Illumination | Color: 0.009 Lux @ (F1.6, AGC ON) | B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | ICR Cut |
| Angle Adjustment | P: -90 to 90°; T: 0 to 60° (2.8mm), 0 to 70° (4/6mm); R: 0 to 355° |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, Defog, EIS, 3D DNR |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, white balance | *Rotate and perimeter protection events (line crossing detection, intrusion detection, region entrance detection, region exiting detection) cannot be enabled at the same time. |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule, Triggered by Alarm In (-S) |
| Privacy Mask | Yes |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length & FOV | 2.8mm @ F1.6 horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128° | 4 mm @ F1.6, horizontal FOV 79°, vertical FOV 57°, diagonal FOV 104° | 6 mm @ F1.6, horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63° |
| Lens Mount | M12 |
| Aperture | F1.6 |
| DORI | 2.8 mm: D: 61.1 m, O: 24.2 m, R: 12.2 m, I: 6.1 m | 4 mm: D: 85.4 m, O: 33.9, R: 17.1 m, I: 8.5 m | 6 mm: D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 10 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (2560 × 1920, 2048 × 1536) | 60 Hz: 30 fps (2560 × 1920, 2048 × 1536) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 704 × 576) | 60 Hz: 30 fps (640 × 480, 704 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 576) | 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 480) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Stereo |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
AI & Deep Learning
| Feature | Detail |
|---|
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Smooth Streaming | No |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, TLS 1.2 |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE8+ | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ | Local service: Chrome 41.0+, Firefox 30.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection | Scene change detection, audio exception detection |
| Linkage | Upload to FTP/NAS/memory card, send email |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-in Microphone | Without -S: 2 built-in mics | -S: 2 built-in mics |
| Audio Input | -S: 1 line in |
| Audio Output | -S: 1 line out |
| Alarm Input | -S: 1 input (max. 36 VDC, 30mA) |
| Alarm Output | -S: 1 output (max. 36 VDC, 30mA) |
| RS-485 | -S: 1 RS-485 interface, half duplex |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug | PoE: 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 11 W |
| Dimension | 164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7") |
| Package Dimension | 227 × 172 × 125 mm (8.9" × 6.8" × 4.9") |
| Weight | Approx. 770 g (1.7 lb.) |
| With Package Weight | Approx. 1053 g (2.3 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Mirror, anti-flicker, heartbeat |
| Heater | Yes |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | Ingress protection: IP67, IK10 |
§ 04Why choose this
Built for the way you actually use the DS-2CD6D52G0-IH(S)
Aim each lens to suit the site
The dual-directional design angles the two views independently for corners, fence lines and open areas.
Fewer blind spots
One unit gives broad overlapping coverage where a single fixed camera would leave gaps.
Tidy single-cable install
PoE carries power and data over one cable, with on-board microSD recording as backup.
§ 05Where it fits
Right at home in these scenarios
Building corners
Angle the two lenses along two walls to watch both approaches from one mounting point.
Car parks and plazas
Spread the lenses for a wide overview of an open area with fewer cameras.
Perimeters and fence lines
Point the two views in opposite directions to cover a long boundary.
Corridors and walkways
Watch both directions of a passage or laneway from a single unit.
§ 06Setup
Installation & setup
What's in the box
One DS-2CD6D52G0-IH(S) 5MP dual-lens PanoVu camera with mounting hardware and documentation. The PoE switch or NVR, network cable, microSD card and any bracket are supplied separately.
Installation requirements
Mount it on a wall, soffit, ceiling or pole at a corner or central point, and angle the two lenses to cover the directions or area you want. Run a single network cable back to a PoE switch or NVR, fit a microSD card for on-board recording, and add it to a Hikvision NVR allowing for the higher bandwidth of a dual-sensor camera.
§ 07Questions
Frequently asked about the DS-2CD6D52G0-IH(S)
Q.01
How does the DS-2CD6D52G0-IH(S) cover a wide area with one camera?
It has two 5 MP lenses in one housing that you can angle independently. You can point them along two sides of a corner, both ways down a corridor or fence line, or spread them for a wide panorama, so one camera removes blind spots that would otherwise need two.
Q.02
What is its total resolution?
It uses two 5 MP sensors, each capturing 2560 x 1920, which is why it is often described as a 10 MP (2 x 5 MP) camera. Each lens records its own high-definition stream.
Q.03
Can I aim the two lenses separately?
Yes. The dual-directional design lets you adjust the angle of each lens independently to suit the scene, which is what makes it flexible for corners, perimeters and irregular areas rather than a single fixed panorama.
Q.04
How far does the night vision reach?
Its infrared reaches about 10 m, which suits a wide-area overview rather than long-range night detail. For reach in the dark, pair it with dedicated night-vision cameras. Like any infrared camera the night image is black-and-white.
Q.05
Does it have two-way audio?
It has a built-in microphone that records audio and audio line terminals, but it does not have a built-in speaker, so on its own it records sound rather than offering two-way talk. You can add an external speaker via the line-out if you need talk-back.
Q.06
Is it suitable for outdoors?
Yes. It has an IP67-rated weatherproof housing against dust and heavy rain, so it can be mounted outdoors on walls, soffits and poles.
Q.07
Does it record on board if the network drops?
Yes. It has a microSD slot that takes a card up to 256 GB, so each stream can keep recording locally during a network interruption and you can retrieve that footage later.
Q.08
How is it powered?
It runs on PoE, so a single network cable carries both power and data back to a PoE switch or NVR. Allow for the higher bandwidth of a dual-sensor camera when you plan the recorder.
§ 09Bundles
Recommended packages
Record both streams
Connect it to a Hikvision DS-7608NI-M2/8P NVR, or a larger DS-7616NI-M2/16P, with enough channels and storage for its dual high-definition streams.
Add night-vision detail
Pair the wide overview with a long-range night camera such as the 6MP DS-2CD2167G3-LIS2UY ColorVu dome for reach in the dark.
Add a moving camera
Combine it with the DS-2DE7A412MCG-EB ColorVu PTZ to zoom in on activity the panoramic view detects.
