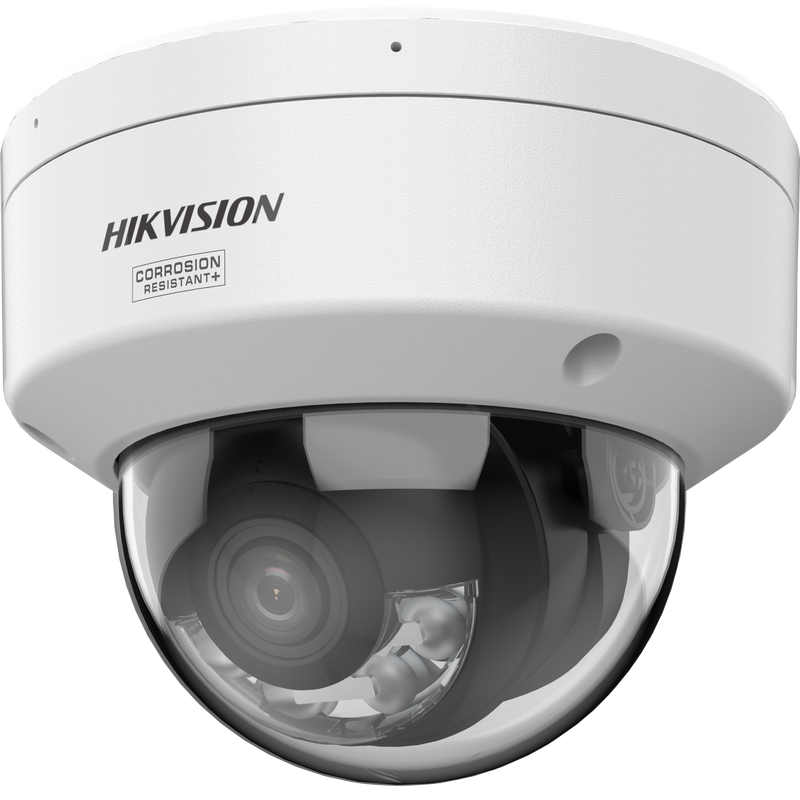

Hikvision DS-2CD2167G3-LIS2UY 6MP Smart Hybrid Light Dome 2.8 mm / 4 mm Lens Options
Hikvision DS-2CD2167G3-LIS2UY 6MP Smart Hybrid Light Dome 2.8mm 4mm
1 1
Hikvision

Hikvision DS-2CD2167G3-LIS2UY 6MP Smart Hybrid Light Dome 2.8 mm / 4 mm Lens Options

SKU: DS-2CD2167G3-LIS2UY
Description

The Hikvision DS-2CD2167G3-LIS2UY is a 6 MP ColorVu 3.0 dome camera that keeps footage in full colour around the clock and switches its lighting to suit the scene. An F1.0 super-aperture lens and a 1/1.8" sensor give strong low-light colour, Smart Hybrid Light moves between infrared and white light up to 30 m, and AcuSense deep-learning analytics flag people and vehicles. The housing is IP67 weatherproof and IK10 vandal resistant.

Key points
- 6 MP (3200 x 1800) 1/1.8" CMOS, 130 dB WDR
- ColorVu 3.0 with F1.0 super-aperture for full-colour low light
- Smart Hybrid Light: IR by default, white light up to 30 m on detection
- AcuSense human and vehicle classification to cut false alarms
- Built-in microphone for clear audio (no built-in speaker)
- IP67 weatherproof, IK10 vandal resistant
- Fixed 2.8 or 4 mm lens; PoE or 12 VDC
6MP Ultra HD 30m IR Night Vision Dual-Light Night Vision Full Color Night Vision False Alarm Reduction Human/Vehicle Detection Audio Alarm Strobe Light Built-in Microphone Built-in Speaker Two-Way Audio
$305.55 AUD $305.55 AUD $390.00 AUD
Sale 21.65% $84.45 AUD (21.65%)
Member Price$296.38 AUD
to save $9.17 AUD · Free to join
Business or bulk buyer? Apply for trade pricing →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,249.15

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
Bundle total: $305.55
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-2CD2167G3-LIS2UY is

The Hikvision DS-2CD2167G3-LIS2UY is a third-generation ColorVu dome that gives you reliable 6 MP coverage in any light.

It captures 3200 x 1800 detail through an F1.0 super-aperture lens, and HikAI-ISP imaging with 130 dB WDR keeps faces and number plates readable against glare and deep shadow.

Its defining feature is Smart Hybrid Light.

By default the camera uses discreet infrared at night for black-and-white images, and the moment it detects a person or vehicle it switches to white light for full-colour footage, with supplementary lighting reaching up to 30 m.

You get colour and a visible deterrent when it matters, without leaving a floodlight burning all night.

AcuSense deep-learning analytics classify human and vehicle targets, so perimeter rules - line crossing, intrusion, region entry and exit - and motion alarms stay focused on real activity rather than animals, rain or moving foliage.

Two honest notes so you set it up correctly.

It has a built-in microphone to record audio with the video, but no built-in speaker, so it is not a two-way talk camera on its own.

And at night it uses infrared, switching to white light only when it detects a target, so the picture is black-and-white until that happens.

Choose 2.8 mm for a wide 108.8° view or 4 mm for a tighter reach, power it from PoE or 12 VDC, and record it to a Hikvision AcuSense NVR.

See it in action

What the DS-2CD2167G3-LIS2UY features actually look like

Representative illustrations of how each key feature performs in a real scene.

6MP Ultra HD — 6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a fac...

6MP Ultra HD

6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Dual-Light Night Vision — Combines infrared with a warm spotlight so it can light a scene in colour at nigh...

Dual-Light Night Vision

Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Strobe Light — On detecting activity, the camera can trigger a bright flashing strobe to make an intruder a...

Strobe Light

On detecting activity, the camera can trigger a bright flashing strobe to make an intruder aware they've been spotted — a visible warning rather than silent recording.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CD2167G3-LIS2UY specifications

- 6 MP (3200 x 1800) 1/1.8" CMOS with ColorVu 3.0
- F1.0 super-aperture lens for strong full-colour low-light images
- Smart Hybrid Light: IR by default, white light on human/vehicle detection, up to 30 m
- AcuSense deep-learning human and vehicle classification
- 130 dB WDR with HikAI-ISP imaging for high-contrast scenes
- Built-in microphone for clear audio (no built-in speaker)
- IP67 weatherproof and IK10 vandal resistant housing
- Fixed 2.8 or 4 mm lens; powered by PoE or 12 VDC

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CD2167G3-LIS2UY 6MP Smart Hybrid Light Dome 2.8 mm / 4 mm Lens Options
FeatureDetail
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 130 dB
Image Stabilization EIS
Privacy Mask 8 programmable polygon privacy masks

§ 04Why choose this

Built for the way you actually use the DS-2CD2167G3-LIS2UY

Smart light, not a floodlight

Smart Hybrid Light stays in IR until it sees a person or vehicle, then switches to full-colour white light up to 30 m.

6 MP detail in low light

A 1/1.8" sensor and F1.0 ColorVu 3.0 lens keep detail and colour where ordinary cameras struggle.

Built to last outside

IP67 weatherproofing and IK10 impact resistance suit exposed and high-traffic positions.

Alerts that matter

AcuSense human and vehicle classification keeps motion and perimeter alarms on real threats.

§ 05Where it fits

Right at home in these scenarios

Shopfronts and entrances

Full-colour detail of a doorway or shopfront with white light on demand for deterrence.

Driveways and forecourts

Catch people and vehicles in colour overnight without lighting up the whole yard.

Car parks

Read faces and plates in 6 MP with AcuSense vehicle alerts in an IK10 housing.

Building entrances

Cover a busy entry where the IK10 dome resists tampering and the mic records audio.

§ 06Setup

Installation & setup

01

What's in the box

One DS-2CD2167G3-LIS2UY 6MP ColorVu dome with mounting template and fixings. Power supply, network cable and any NVR are supplied separately.

02

Installation requirements

Mount it on a wall, eave or ceiling over the area to cover and power it from a PoE switch or NVR or a 12 VDC supply. Connect the network, set the Smart Hybrid Light day/night behaviour and the AcuSense perimeter rules in the software, and add it to a Hikvision NVR for recording and event search.

§ 07Questions

Frequently asked about the DS-2CD2167G3-LIS2UY

Q.01

Does the white light on the DS-2CD2167G3-LIS2UY stay on all night?
No. Smart Hybrid Light uses discreet infrared by default and only switches to white light for full-colour footage when it detects a person or vehicle, up to 30 m. You can configure the behaviour, so you get colour and deterrence when it counts without a floodlight burning all night.
Q.02

Is it full colour at night?
It is a ColorVu 3.0 hybrid camera. Its F1.0 lens holds colour in very low light, and when white light is active it gives full-colour images in the dark. Left in infrared mode the night picture is black-and-white, so you choose detail or stealth per scene.
Q.03

Does it have two-way audio?
No. It has a built-in microphone that records audio with the video, but it does not have a built-in speaker, so it is not a two-way talk camera on its own. If you need talk-back, choose a camera with a built-in speaker.
Q.04

Does it tell people and vehicles apart from other movement?
Yes. AcuSense uses deep learning to classify human and vehicle targets, so motion alarms and perimeter rules such as line crossing and intrusion trigger on people and cars and ignore animals, rain and moving foliage.
Q.05

What is the difference between the 2.8 mm and 4 mm lens?
The 2.8 mm lens gives a wider 108.8 degree field for covering a broad area like a yard or shopfront, while the 4 mm reaches a little further with a narrower 93.3 degree view for a driveway or entrance.
Q.06

How tough is the housing?
It is rated IP67 against dust and heavy rain and IK10 against impact, so it stands up to the weather and to tampering on outdoor walls, eaves and entrances in the Australian climate.
Q.07

How is it powered?
It runs on standard PoE or a 12 VDC supply, so you can power and network it over one cable from a PoE NVR or switch, or use a local 12 VDC source.
Q.08

Which recorder should I use with it?
Use a Hikvision AcuSense-compatible NVR so the human and vehicle event data is kept for faster searching. An 8-channel PoE NVR suits a small site; choose 16 channels for larger jobs.

§ 09Bundles

Recommended packages

02

Add a moving overview

Pair the fixed dome with the DS-2DE7A412MCG-EB ColorVu PTZ to sweep and zoom across a wide area.

03

Tidy the cabling

Add a DS-1280ZJ-DM46 junction box to conceal and protect the cable behind the dome.
