Hikvision DS-2CD2H66G2T-IZS 6MP Outdoor Motorised VF Turret CCTV Camera 2.8-12mm with Acusense
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision DS-2CD2H66G2T-IZS 6MP Outdoor Motorised VF Turret CCTV Camera 2.8-12mm with Acusense
SKU: DS-2CD2H66G2T-IZS
Description
Provides ultra-high-definition 6MP video with a motorised zoom lens and intelligent detection to filter out up to 95% of false alarms.
Regular price
$410.30 AUD
Sale price
$410.30 AUD
Regular price
$517.00 AUD
Sale
20.64%
$106.70 AUD
(20.64%)
Member
Sign in to save $8.21 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2CD2H66G2T-IZS 6MP Outdoor Motorised VF Turret CCTV Camera 2.8-12mm with Acusense
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,353.90
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD2H66G2T-IZS is
The Hikvision DS-2CD2H66G2T-IZS is a 6 MP AcuSense Powered-by-DarkFighter motorized varifocal turret camera for outdoor use.
Its 2.8-12 mm motorized lens sets the field of view remotely after mounting, while AcuSense deep learning classifies people and vehicles to cut false alarms.
Lens: motorized varifocal 2.8-12 mm (remote zoom and focus; this is not a PTZ).
Night vision: Smart IR up to 40 m (black and white at night).
Audio/alarm: line-in / line-out audio and alarm in/out terminals (no built-in microphone).
A compact turret on a 1/2.4" sensor with 120 dB WDR, H.265+, microSD up to 512 GB and a rugged IP67 + IK10 metal housing rated -30C to 60C; powered by PoE (802.3af) or 12 V DC.
3-year Australian warranty.
See it in action
What the DS-2CD2H66G2T-IZS features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
40m IR Night Vision
Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD2H66G2T-IZS specifications
- 6 MP resolution (3200 x 1800): detailed footage; recognises a person to about 16 m wide or 42 m zoomed in.
- Motorized 2.8-12 mm varifocal lens: set the view remotely from wide to zoomed after mounting (zoom and focus only - not a PTZ).
- AcuSense deep learning: classifies people and vehicles and filters nuisance motion from animals, rain and foliage (Hikvision rates up to 95% fewer false alarms).
- Powered-by-DarkFighter: usable low-light images down to 0.003 lux before the IR switches on.
- Smart IR to 40 m: even night illumination; footage is black and white at night.
- 120 dB true WDR: balances bright and dark areas in backlit and high-contrast scenes.
- Audio and alarm interfaces: line-in / line-out and alarm in/out terminals for an external mic, speaker or alarm device (no built-in microphone).
- Compact IP67 + IK10 metal turret rated -30C to 60C; PoE 802.3af (Class 3) or 12 V DC; microSD up to 512 GB with NAS / ANR.
- Motorized 2.8-12 mm varifocal lens: set the view remotely from wide to zoomed after mounting (zoom and focus only - not a PTZ).
- AcuSense deep learning: classifies people and vehicles and filters nuisance motion from animals, rain and foliage (Hikvision rates up to 95% fewer false alarms).
- Powered-by-DarkFighter: usable low-light images down to 0.003 lux before the IR switches on.
- Smart IR to 40 m: even night illumination; footage is black and white at night.
- 120 dB true WDR: balances bright and dark areas in backlit and high-contrast scenes.
- Audio and alarm interfaces: line-in / line-out and alarm in/out terminals for an external mic, speaker or alarm device (no built-in microphone).
- Compact IP67 + IK10 metal turret rated -30C to 60C; PoE 802.3af (Class 3) or 12 V DC; microSD up to 512 GB with NAS / ANR.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Max. Resolution | 3200 × 1800 |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day ＆ Night | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| SNR | ≥ 52 dB |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length ＆ FOV | 2.8 to 12 mm, horizontal FOV 99° to 35°, vertical FOV 53° to 20°, diagonal FOV 117° to 41° |
| Aperture | F1.4 |
| Lens Mount | Ø 14 |
| Iris Type | Fixed |
| DORI | 2.8 to 12 mm: Wide: D: 80 m, O: 31 m, R: 16 m, I: 8 m | Tele: D: 210 m, O: 83 m, R: 42 m, I: 21 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Range | Up to 40 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Supplement Light Type | IR |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Target Cropping | Yes |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning |
Interface
| Feature | Detail |
|---|---|
| Alarm Input | 1 input |
| Alarm Output | 1 output (max. 24 VAC/24 VDC, 1 A) |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Audio Input | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium |
| Audio Output | 1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 100 Ω, interface type: non-equilibrium |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.92 A, max. 11.04 W,Ø 5.5 mm coaxial power plug,reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 12.5 W |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Material | Metal |
| Dimension | Ø 138.3 mm × 126 mm (Ø 5.5" × 5.0") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Weight | Approx. 850 g (1.9 lb.) |
| With Package Weight | Approx. 1175 g (2.6 lb.) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
§ 04Why choose this
Built for the way you actually use the DS-2CD2H66G2T-IZS
Adjust view remotely
A motorized 2.8–12 mm lens fine-tunes the view after mounting — no return visit to adjust framing.
40 m night vision
Powered-by-DarkFighter plus 40 m Smart IR for night coverage.
Compact IP67 + IK10
Glare- and vandal-resistant for exposed or reachable mounts.
Standard 802.3af PoE
Works with most PoE switches and NVRs — no high-power 802.3at needed.
Audio, storage, warranty
Audio and alarm terminals, microSD up to 512 GB, 3-year Australian warranty.
§ 05Where it fits
Right at home in these scenarios
Entrances & eaves
Where a compact, glare-resistant turret suits better than a bullet.
Perimeters & paths
AcuSense human / vehicle filtering with adjustable framing.
Vandal-prone mounts
Easily reached points where IK10 impact resistance matters.
802.3af PoE sites
Want a 6 MP varifocal without stepping up to 802.3at.
Yards & car parks
The varifocal lens balances coverage width and detail to about 40 m at night.
§ 06Setup
Installation & setup
What's in the Box
1. DS-2CD2H66G2T-IZS Camera × 1 2. Drill Template and Screw Kit × 1 3. Waterproof RJ45 Kit × 1 4. Quick Start Guide × 1
Installation Requirements
1. Power & data: a PoE 802.3af (Class 3) NVR or switch over one Ethernet cable, or a 12 V DC supply. 2. Recorder: a Hikvision NVR for full features; an AcuSense-capable NVR on current firmware to log and search human / vehicle events. 3. Storage: optional microSD up to 512 GB on the camera, or record to the NVR / NAS. 4. Mounting: wall, eave or ceiling; set the motorized lens remotely after mounting. IK10-rated, so suitable for higher-risk positions.
§ 07Questions
Frequently asked about the DS-2CD2H66G2T-IZS
Q.01
Is this a turret or a bullet, and is it a PTZ?
It is a motorized varifocal turret - a compact dome-style body. You set zoom and focus remotely, but it points one fixed direction, so it is not a PTZ. A turret sits close to the surface and resists glare and spiderwebs better than a bullet.
Q.02
Is it PoE?
Yes. It runs on PoE 802.3af (Class 3, up to 12.5 W) over one Ethernet cable, or on 12 V DC. It uses standard 802.3af, so it works with most PoE switches and NVRs - unlike some varifocal bullets that need higher-power 802.3at.
Q.03
Does it have a built-in microphone?
No. It provides audio line-in / line-out and alarm in/out terminals for an external microphone, speaker or alarm device; there is no microphone inside the camera.
Q.04
Can it see in colour at night?
No. Night vision is infrared Smart IR up to 40 m, so footage after dark is black and white. This model has no white-light ColorVu or strobe.
Q.05
How far can it recognise a person?
With the lens wide its DORI recognise distance is about 16 m; zoomed in it reaches about 42 m, so you can trade width for reach by adjusting the lens.
Q.06
How much can it record on a memory card?
It takes a microSD card up to 512 GB for on-camera recording, and also records to a NAS with ANR to fill gaps during a network dropout.
Q.07
Is it tough enough for exposed or high-risk spots?
Yes. It is rated IP67 against dust and water and IK10 against impact, and works from -30C to 60C, so it suits exposed perimeters and vandal-prone areas.
Q.08
How is this different from the DS-2CD2666G2T-IZS bullet?
This is the turret version with 40 m IR and PoE 802.3af; the 2666 is the bullet with longer 60 m IR and PoE 802.3at. Both are 6 MP AcuSense DarkFighter with the same 2.8-12 mm motorized lens, 120 dB WDR and IP67/IK10 - choose the turret for a compact, glare-resistant look or the bullet for longer night reach and a more visible deterrent.
§ 08In motion

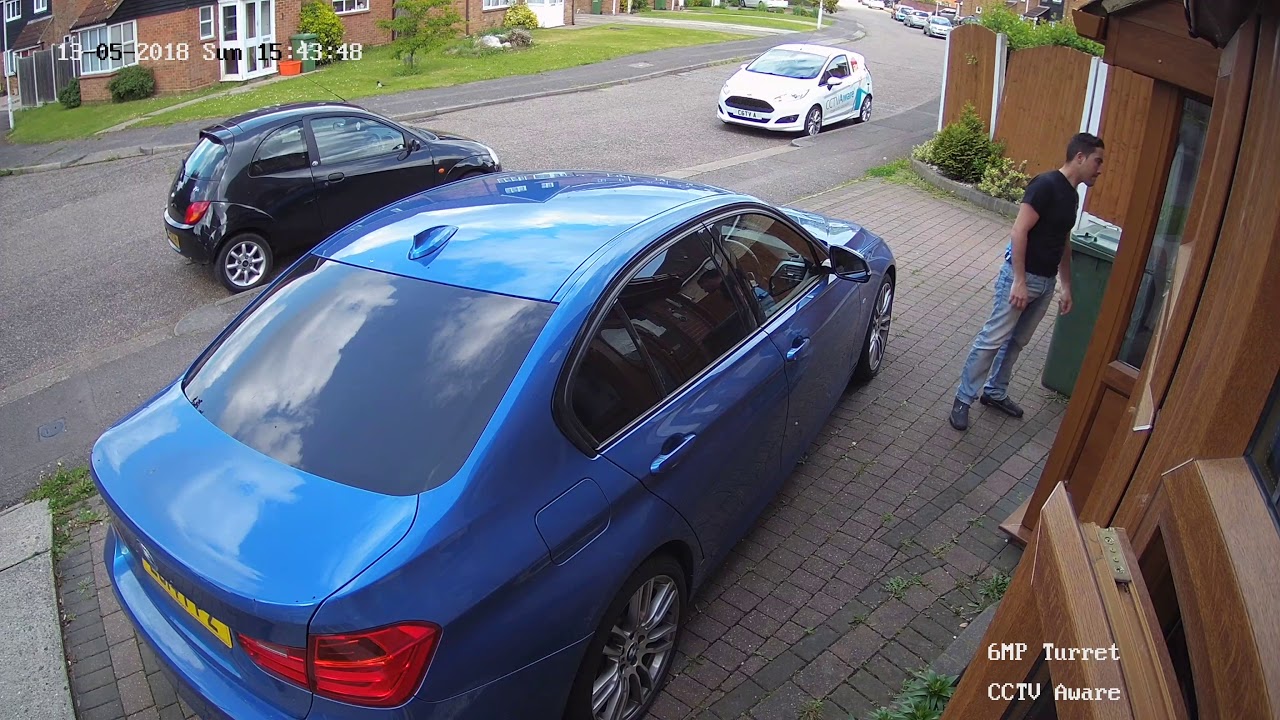

Hikvision 6MP Turret Camera - Daytime Sample Footage

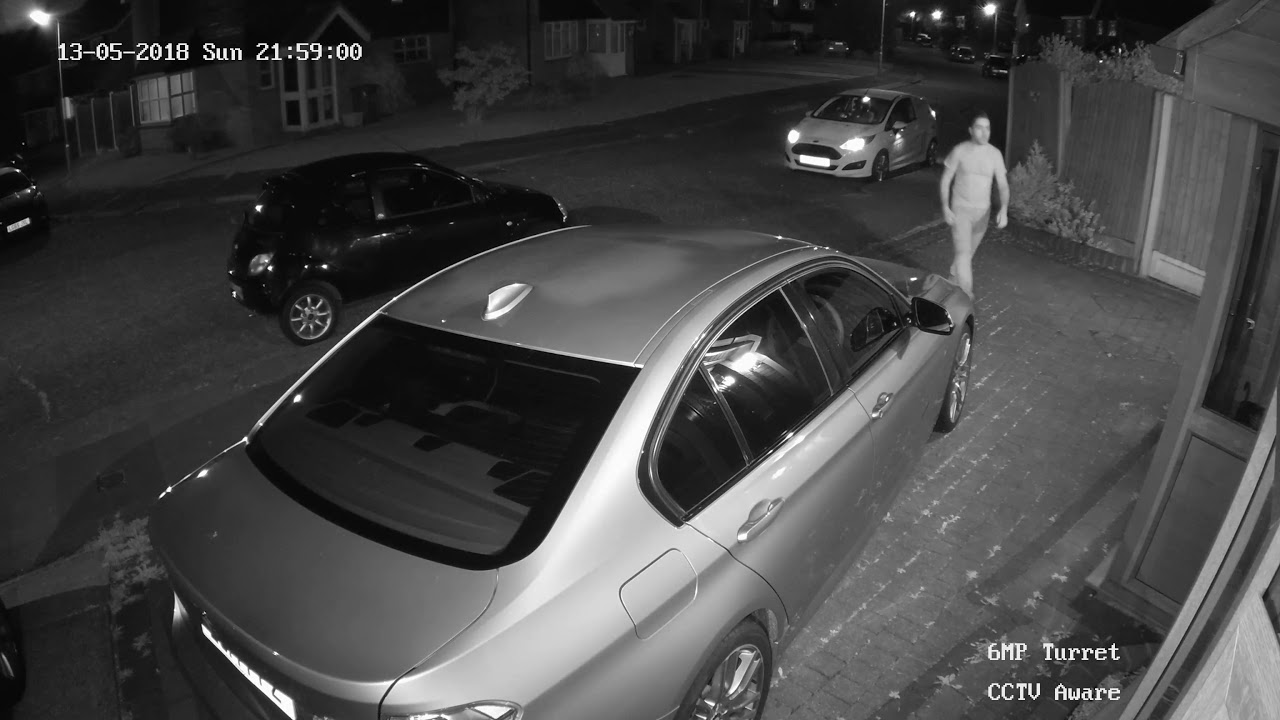

Hikvision 6MP Turret Camera - Night Sample Footage
§ 09Bundles
Recommended packages
Add a recorder
Pair it with a Hikvision AcuSense PoE NVR such as the DS-7608NI-M2/8P so human- and vehicle-event search works end to end.
Compare similar models
Prefer a bullet with longer 60 m IR? See the 6 MP DS-2CD2666G2T-IZS bullet; for more detail, the 8 MP DS-2CD2686G2T-IZS.
Mount it neatly
The DS-1273ZJ-140 wall mount sets the turret off a wall or eave.
