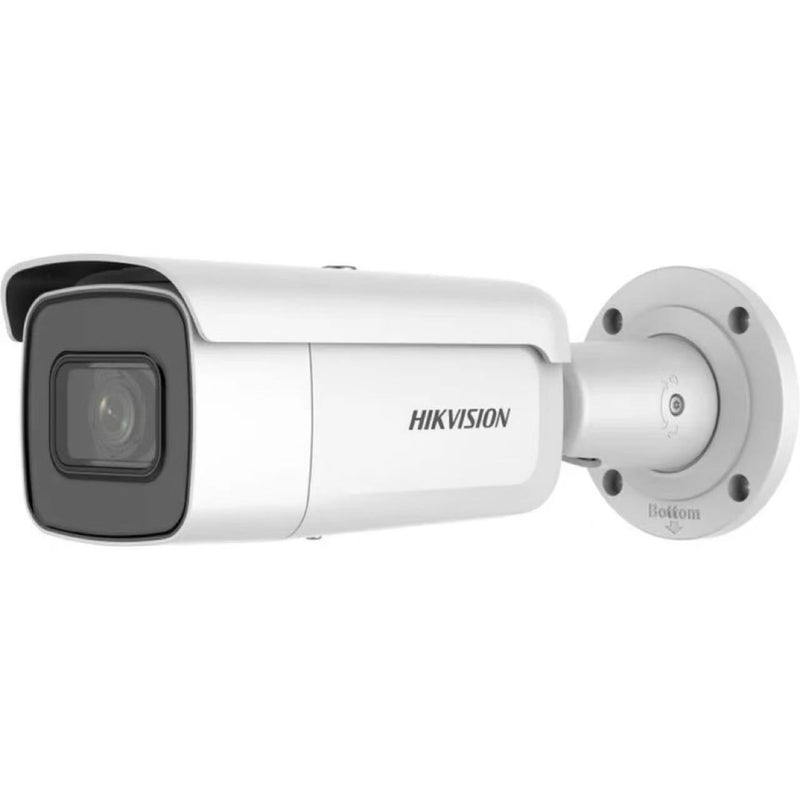

Hikvision DS-2CD2666G2T-IZS 6MP Outdoor AcuSense Gen 2 Motorised Bullet Camera
SKU: DS-2CD2666G2T-IZS
Description
Provides high-definition 6MP security video with a motorised zoom lens to capture distant details with precision.
Regular price
$411.30 AUD
Sale price
$411.30 AUD
Regular price
$518.00 AUD
Sale
20.6%
$106.70 AUD
(20.6%)
Member
Sign in to save $8.23 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2CD2666G2T-IZS 6MP Outdoor AcuSense Gen 2 Motorised Bullet Camera
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,354.90
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD2666G2T-IZS is
The Hikvision DS-2CD2666G2T-IZS is a 6 MP AcuSense Powered-by-DarkFighter motorized varifocal bullet camera for outdoor use.
Its 2.8-12 mm motorized lens lets you set the field of view remotely after mounting, while AcuSense deep learning classifies people and vehicles so alerts focus on what matters.
Lens: motorized varifocal 2.8-12 mm (remote zoom and focus; this is not a PTZ).
Night vision: Smart IR up to 60 m (black and white at night).
Audio/alarm: line-in / line-out audio and alarm in/out terminals (no built-in microphone).
Built on a 1/2.4" sensor with 120 dB WDR, H.265+, microSD up to 512 GB and a rugged IP67 + IK10 metal housing rated -30C to 60C; powered by PoE (802.3at) or 12 V DC.
3-year Australian warranty.
See it in action
What the DS-2CD2666G2T-IZS features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
60m IR Night Vision
Built-in infrared sees in total darkness up to around 60m, covering long driveways and large properties. Even well away from the house, people and vehicles remain clear in black-and-white.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD2666G2T-IZS specifications
- 6 MP resolution (3200 x 1800): detailed footage of faces and number plates; recognises a person to about 13 m wide or 40 m zoomed in.
- Motorized 2.8-12 mm varifocal lens: set the view remotely from wide to zoomed after mounting (zoom and focus only - not a PTZ).
- AcuSense deep learning: classifies people and vehicles and filters false alarms from animals, rain and moving foliage.
- Powered-by-DarkFighter: usable low-light images down to 0.003 lux before the IR switches on.
- Smart IR to 60 m: long-range night illumination; footage is black and white at night.
- 120 dB true WDR: balances bright and dark areas in backlit and high-contrast scenes.
- Audio and alarm interfaces: line-in / line-out and alarm in/out terminals for an external mic, speaker or alarm device (no built-in microphone).
- Rugged IP67 + IK10 metal housing rated -30C to 60C; microSD up to 512 GB with NAS / ANR.
- Motorized 2.8-12 mm varifocal lens: set the view remotely from wide to zoomed after mounting (zoom and focus only - not a PTZ).
- AcuSense deep learning: classifies people and vehicles and filters false alarms from animals, rain and moving foliage.
- Powered-by-DarkFighter: usable low-light images down to 0.003 lux before the IR switches on.
- Smart IR to 60 m: long-range night illumination; footage is black and white at night.
- 120 dB true WDR: balances bright and dark areas in backlit and high-contrast scenes.
- Audio and alarm interfaces: line-in / line-out and alarm in/out terminals for an external mic, speaker or alarm device (no built-in microphone).
- Rugged IP67 + IK10 metal housing rated -30C to 60C; microSD up to 512 GB with NAS / ANR.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 106° to 35°, vertical FOV 56° to 20°, diagonal FOV 127° to 41° |
| Lens Mount | Ø 14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 to 12 mm: Wide: D: 68 m, O: 27 m, R: 13 m, I: 7 m | Tele: D: 200 m, O: 79 m, R: 40 m, I: 20 m |
| Pan Range | 0° to 355° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 1.08 A, max. 13 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 15 W |
| Material | Metal |
| Dimension | 97.9 mm × 93 mm × 308.5 mm (3.9" × 3.7" × 12.1") |
| Package Dimension | 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | Approx. 1370 g (3.0 lb.) |
| With Package Weight | Approx. 2021 g (4.5 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker |
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
§ 04Why choose this
Built for the way you actually use the DS-2CD2666G2T-IZS
Adjust view remotely
A motorized 2.8–12 mm lens fine-tunes the view after mounting — no return visit to adjust framing.
60 m night vision
Powered-by-DarkFighter plus 60 m Smart IR for usable night images.
IP67 + IK10 build
Rugged metal housing for exposed, higher-risk outdoor mounts.
Audio & alarm I/O
Terminals for an external mic, speaker or alarm integration.
PoE & storage
802.3at single-cable install, microSD up to 512 GB, ONVIF; 3-year Australian warranty.
§ 05Where it fits
Right at home in these scenarios
Driveways & approaches
Wide coverage, or zoom onto a gate after mounting.
Perimeters & fence lines
AcuSense human / vehicle filtering reduces nuisance alerts.
Warehouses & yards
Detailed footage with adjustable framing over loading areas.
Car parks
The varifocal lens balances coverage width and plate-level detail.
High-risk mounts
Exposed points where IK10 impact resistance matters.
§ 06Setup
Installation & setup
What's in the Box
1. DS-2CD2666G2T-IZS Camera × 1 2. Drill Template and Screw Kit × 1 3. Waterproof RJ45 Kit × 1 4. Quick Start Guide × 1
Installation Requirements
1. Power & data: a PoE 802.3at (Class 4) NVR or switch over one Ethernet cable, or a 12 V DC supply. Confirm the switch/NVR supports 802.3at, not just 802.3af. 2. Recorder: a Hikvision NVR for full features; an AcuSense-capable NVR on current firmware to log and search human / vehicle events. 3. Storage: optional microSD up to 512 GB on the camera, or record to the NVR / NAS. 4. Mounting: solid wall or eave; set the motorized lens remotely after mounting. IK10-rated, so suitable for higher-risk positions.
§ 07Questions
Frequently asked about the DS-2CD2666G2T-IZS
Q.01
How is this different from the 8 MP DS-2CD2686G2T-IZS?
This is the 6 MP version on a 1/2.4" sensor (3200 x 1800); the 2686 is 8 MP on a larger 1/1.8" sensor (3840 x 2160). Both share the 2.8-12 mm motorized lens, 60 m IR, 120 dB WDR and IP67/IK10 housing - choose 8 MP for maximum detail, or 6 MP to save bandwidth and storage.
Q.02
Is it a PTZ camera?
No. It is a motorized varifocal bullet, so you set zoom and focus remotely, but it monitors one fixed direction once configured. Choose a PTZ if you need continuous remote pan and tilt.
Q.03
Does it have a built-in microphone?
No. It provides audio line-in / line-out and alarm in/out terminals for an external microphone, speaker or alarm device; there is no microphone inside the camera.
Q.04
Is it PoE?
Yes. It runs on PoE 802.3at (Class 4, up to 15 W) over one Ethernet cable, or on 12 V DC. Check your switch or NVR supports 802.3at, not just the lower-power 802.3af.
Q.05
Can it see in colour at night?
No. Night vision is infrared Smart IR up to 60 m, so footage after dark is black and white. This model has no white-light ColorVu or strobe.
Q.06
How far can it recognise a person?
With the lens wide its DORI recognise distance is about 13 m; zoomed in it reaches about 40 m, so you can trade width for reach by adjusting the lens.
Q.07
How much can it record on a memory card?
It takes a microSD card up to 512 GB for on-camera recording, and also records to a NAS with ANR to fill any gap during a network dropout.
Q.08
Is it tough enough for exposed outdoor spots?
Yes. It is rated IP67 against dust and water and IK10 against impact, and works from -30C to 60C, so it suits exposed perimeters and higher-risk mounting points.
§ 08In motion
Hikvision AcuSense Camera (official overview)
Hikvision AcuSense - Powerful False Alarm Reduction
§ 09Bundles
Recommended packages
Add a recorder
Pair it with a Hikvision AcuSense PoE NVR such as the DS-7608NI-M2/8P so human- and vehicle-event search works end to end.
Compare similar models
For more 4K detail see the 8 MP DS-2CD2686G2T-IZS bullet; for a compact turret form, the 6 MP DS-2CD2H66G2T-IZS turret.
Tidy outdoor cabling
The DS-1280ZJ-S junction box or DS-1260ZJ junction box gives a weather-sealed cable entry.
