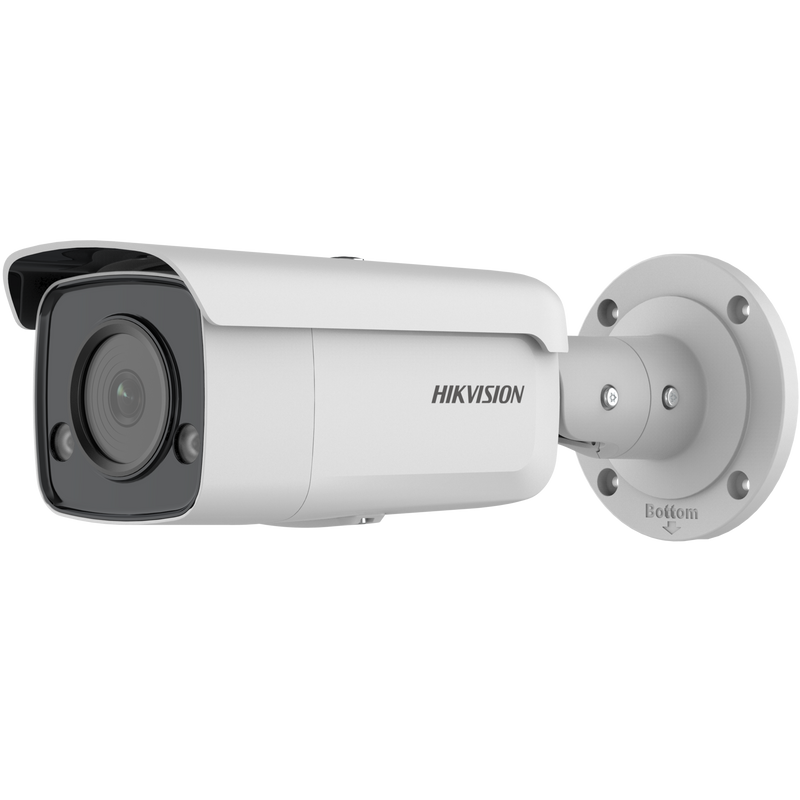

Hikvision DS-2CD2T47G2-L 4MP Gen2 Outdoor ColorVu Bullet Camera with Acusense 60m White LED 2.8mm
SKU: DS-2CD2T47G2-L
Description
The Hikvision DS-2CD2T47G2-L is a 4 MP Gen 2 ColorVu bullet camera that films in full colour 24/7, even in near-total darkness. A large F1.0 aperture and a white supplement light up to 60 m keep faces, clothing and vehicle colours visible at night, while AcuSense classifies people and vehicles so alerts stay meaningful.
Key points
- 4 MP (2688 x 1520) 1/1.8" CMOS, F1.0 ColorVu aperture
- 24/7 full colour; white supplement light up to 60 m
- AcuSense human and vehicle classification, 130 dB WDR
- 2.8, 4 or 6 mm fixed lens; microSD up to 512 GB
- IP67 metal body; PoE (802.3af) or 12 VDC
Regular price
$257.05 AUD
Sale price
$257.05 AUD
Regular price
$379.00 AUD
Sale
32.18%
$121.95 AUD
(32.18%)
Member
Sign in to save $5.14 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2CD2T47G2-L 4MP Gen2 Outdoor ColorVu Bullet Camera with Acusense 60m White LED 2.8mm
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,200.65
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD2T47G2-L is
The Hikvision DS-2CD2T47G2-L is a 4 MP ColorVu fixed bullet that keeps footage in colour right through the night.
A 1/1.8" sensor and an F1.0 aperture gather enough light to hold detail in the dark, and a discreet white supplement light reaches up to 60 m so a driveway, yard or car park stays lit in colour rather than the black and white of an infrared camera.
Because colour footage records the actual hue of a jacket, a car or a number plate, it gives you stronger evidence than a grey night-time image.
130 dB WDR holds detail when a bright sky or a security light sits behind a shaded entrance, and AcuSense deep-learning analytics classify human and vehicle targets so motion, line-crossing and intrusion rules trigger on people and cars while skipping animals, rain and swaying branches.
This is a compact metal bullet rated IP67 for Australian sun, dust and driving rain.
Choose a 2.8 mm wide lens for a broad view, or a 4 mm or 6 mm lens to reach further down a driveway or boundary.
Power and network it over one PoE cable (802.3af) or use 12 VDC, and record it to a Hikvision AcuSense NVR so the human and vehicle events stay quick to search.
Note this -L model has no microphone or speaker; for two-way audio and an active strobe and siren, choose the DS-2CD2T47G2-LSU/SL instead.
See it in action
What the DS-2CD2T47G2-L features actually look like
Representative illustrations of how each key feature performs in a real scene.
4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.
Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD2T47G2-L specifications
- 4 MP (2688 x 1520) 1/1.8" CMOS with F1.0 ColorVu aperture
- 24/7 full-colour imaging; white supplement light up to 60 m
- AcuSense deep-learning human and vehicle classification
- 130 dB WDR for high-contrast entrances and driveways
- 2.8, 4 or 6 mm fixed lens; H.265+ compression; microSD up to 512 GB
- Face capture, line crossing and intrusion detection
- IP67 weatherproof metal bullet; PoE (802.3af) or 12 VDC
- No built-in audio (choose the -LSU/SL for two-way talk and strobe)
- 24/7 full-colour imaging; white supplement light up to 60 m
- AcuSense deep-learning human and vehicle classification
- 130 dB WDR for high-contrast entrances and driveways
- 2.8, 4 or 6 mm fixed lens; H.265+ compression; microSD up to 512 GB
- Face capture, line crossing and intrusion detection
- IP67 weatherproof metal bullet; PoE (802.3af) or 12 VDC
- No built-in audio (choose the -LSU/SL for two-way talk and strobe)
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 130 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Iris Type | Fixed |
| Lens Type & FOV | 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° | 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° | 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° |
| Depth of Focus | 2.8 mm, 2.5 m to ∞ | 4 mm, 3.5 m to ∞ | 6 mm, 7.5 m to ∞ |
| Aperture | F1.0 |
| Lens Mount | M16 |
| DORI | 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m | 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m | 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | White Light |
| White Light Range | 60 m |
| Smart Supplement Light | Yes |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
Network & Storage
| Feature | Detail |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/SDHC/SDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR). Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage Method | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email |
Interface
| Feature | Detail |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC ± 25%; PoE: 802.3af |
| Power Consumption and Current | 12 VDC, 0.7 A, max. 8.5 W; PoE (802.3af, 36 V to 57 V), 0.30 A to 0.18 A, max. 10.5 W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Material | Front cover: metal, back cover: metal |
| Screw Material | SUS304 |
| Dimension | Ø105 mm × 289.5 mm (Ø4.1″ × 11.4″) |
| Package Dimension | 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | Approx. 1170 g (2.4 lb.) |
| With Package Weight | Approx. 1689 g (3.5 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Software Reset | Yes |
| Firmware Version | V5.5.112 |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
§ 04Why choose this
Built for the way you actually use the DS-2CD2T47G2-L
Alerts that matter
AcuSense human and vehicle classification keeps motion and perimeter alarms focused on people and cars.
Clear in harsh light
130 dB WDR holds detail when a bright sky or security light sits behind a shaded entrance.
Built to last outdoors
An IP67 metal body handles Australian sun, dust and driving rain year round.
§ 05Where it fits
Right at home in these scenarios
Home driveways and entrances
Keep a colour record of who comes and goes, with the night scene lit in colour instead of grey.
Shopfronts and car parks
Capture vehicle colours and clothing detail across a forecourt or boundary after closing time.
Side gates and boundaries
Use the 4 mm or 6 mm lens down a fence line and let AcuSense flag people rather than passing animals.
Small business frontages
Record clear colour evidence and human or vehicle events that are quick to review the next morning.
§ 06Setup
Installation & setup
What's in the box
One DS-2CD2T47G2-L bullet camera with a mounting template, fixings and a quick guide. The PoE switch or NVR, network cable, microSD card and any junction box are supplied separately.
Installation requirements
Mount it on a wall or eave overlooking the area you want to cover and run one network cable back to a PoE switch or NVR, or use a 12 VDC supply. Set the lighting and AcuSense rules in the software, and add it to a Hikvision AcuSense NVR for recording and event search.
§ 07Questions
Frequently asked about the DS-2CD2T47G2-L
Q.01
Does the DS-2CD2T47G2-L record in colour at night?
Yes. It is a ColorVu camera, so a large F1.0 aperture and a white supplement light up to 60 m keep footage in full colour around the clock. The night scene is lit in colour rather than the black and white you get from an infrared camera.
Q.02
Will the white light stay on all night?
By default the camera keeps a low level of white light at night so it can hold colour. You can switch the supplement light between always-on, smart and schedule modes and adjust its brightness in the settings, so you can soften it if it faces a bedroom window or a neighbour.
Q.03
Does this camera have a microphone or two-way audio?
No. The -L model has no built-in microphone or speaker. If you need to listen to a scene or talk through the camera, choose the DS-2CD2T47G2-LSU/SL, which adds two-way audio plus an active strobe light and audible warning.
Q.04
How does it cut down false alarms?
AcuSense deep-learning analytics classify human and vehicle targets, so motion, line-crossing and intrusion events trigger on people and cars and skip animals, rain and moving plants. That keeps notifications meaningful and makes recorded footage far faster to search.
Q.05
Can I power it with PoE?
Yes. It runs on standard PoE (802.3af) over a single network cable from a PoE switch or PoE NVR, which carries both power and data, or on 12 VDC if you prefer a separate plug pack.
Q.06
Which lens should I choose?
The 2.8 mm gives a wide view for a front entrance, carport or small yard. The 4 mm and 6 mm narrow the field of view to reach further down a driveway or along a boundary. Pick 2.8 mm for coverage and 4 mm or 6 mm for distance.
Q.07
Does it do facial recognition?
It supports face capture, which detects and records faces, but it does not match faces against a watch list on its own. For identification you rely on the clear colour image plus AcuSense human and vehicle events.
Q.08
Does it need a Hikvision NVR?
It works with ONVIF recorders, but AcuSense search, smart events and the easiest setup are at their best with a Hikvision AcuSense NVR. For the full feature set, pair it with a matching Hikvision recorder.
§ 09Bundles
Recommended packages
Record and search it
Connect it to a Hikvision AcuSense recorder such as the 8-channel DS-7608NI-I2/8P NVR, or the larger 16-channel DS-7732NXI-I4/16P, so human and vehicle events stay quick to find. Add a surveillance-grade drive like the 6 TB for weeks of continuous footage.
Power it over one cable
Run a single network cable per camera from a PoE source. The HiLook 8-port PoE switch feeds several cameras and the recorder, keeping the cabling tidy on multi-camera sites.
Mount and upgrade
A DS-1280ZJ-S junction box tidies cabling and screw runs behind the camera. For two-way talk and an active strobe, step up to the DS-2CD2T47G2-LSU/SL.
