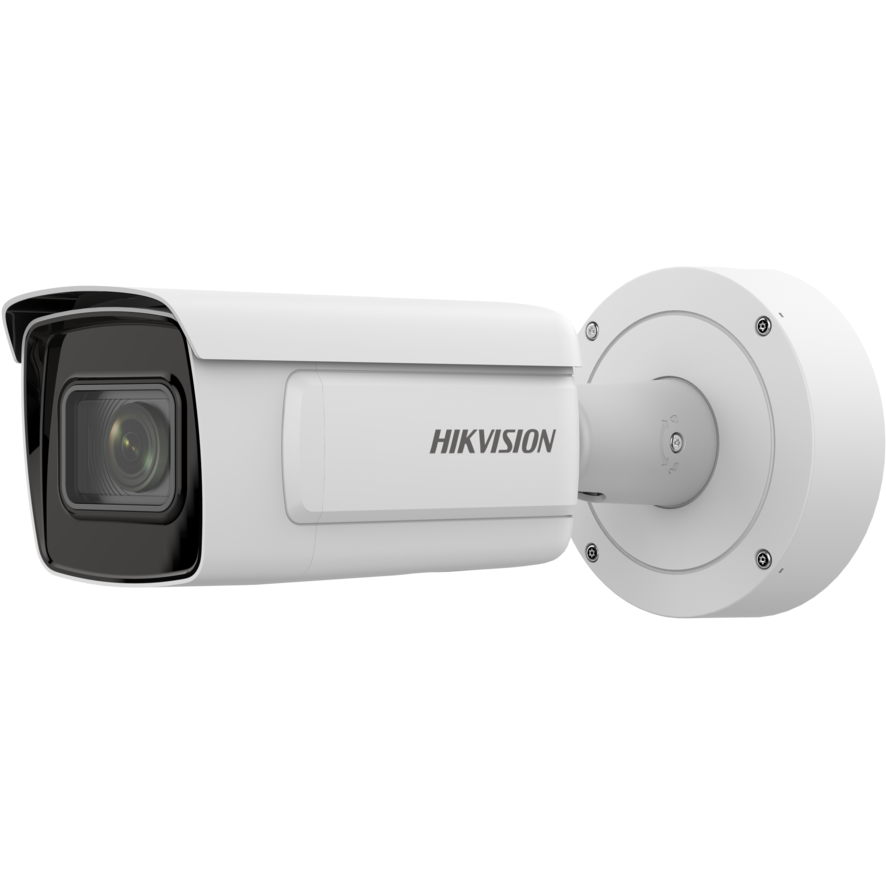

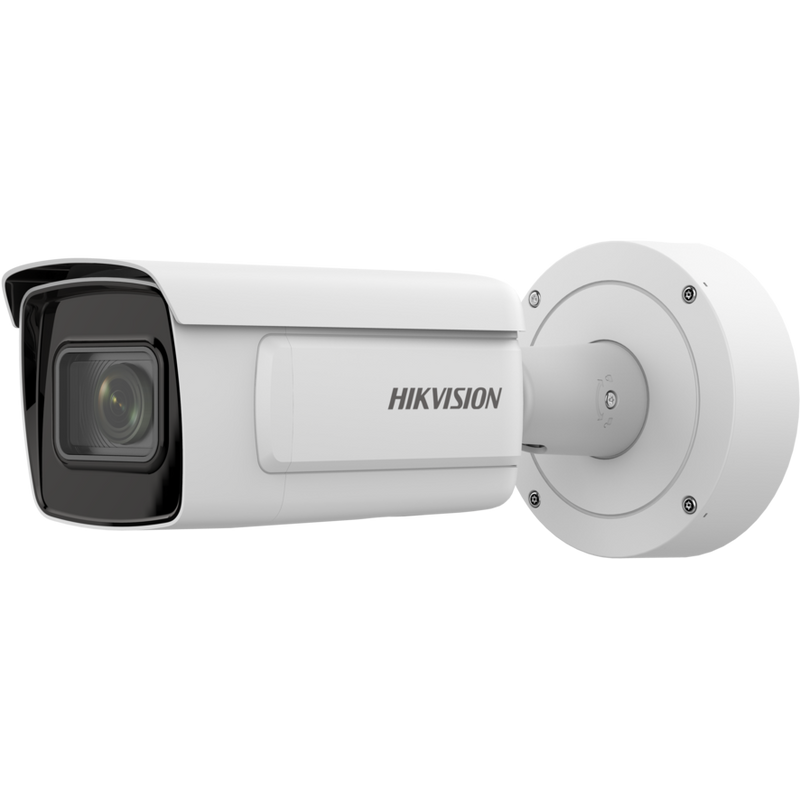

Hikvision iDS-2CD7AC5G0-IZHS 12MP DeepinView Moto Varifocal Bullet Camera
SKU: IDS-2CD7AC5G0-IZHS
Description
Provides ultra-high-definition 12MP surveillance with advanced AI analytics to manage site safety and identify security threats in real time.
Regular price
$1,352.20 AUD
Sale price
$1,352.20 AUD
Regular price
$1,700.00 AUD
Sale
20.46%
$347.80 AUD
(20.46%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Hikvision iDS-2CD7AC5G0-IZHS 12MP DeepinView Moto Varifocal Bullet Camera
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $2,295.80
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Hikvision IDS-2CD7AC5G0-IZHS 12MP DeepinView AI Network Camera delivers elite-level imaging and intelligent monitoring for high-security Australian facilities. It incorporates deep-learning technology to automate complex tasks such as vehicle identification and safety compliance. It is a powerful security Product designed for critical infrastructure and large-scale commercial organisations.
§ 02Engineering
Technical specifications
- 12MP Ultra-High Resolution: Delivers exceptional clarity with 4000 / 3000 resolution to capture minute details across expansive surveillance zones.
- Deep Learning AI Analytics: Supports advanced Features like face recognition, hard hat detection, and queue management to improve operational safety.
- DarkFighter Technology: Maintains superior image quality and detail in low-light and nighttime conditions where standard cameras fail.
- Motorised Varifocal Lens: Offers a 2.8 mm to 12 mm zoom range to allow for flexible field-of-view adjustments remotely.
- 140 dB True WDR: Ensures balanced exposure in high-contrast lighting to reveal details in both very bright and dark areas of a scene.
- Robust Weather and Vandal Protection: Features an IP67 weatherproof rating and IK10 vandal resistance to withstand harsh outdoor environments and physical impact.
- Smart Event Detection: Includes perimeter protection, intrusion alerts, and line crossing detection to provide proactive security warnings.
- Built-in Heater: Protects the lens from fogging and ensures continuous operation in cold or humid Australian climates.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Max. Resolution | 4000 × 3000 |
| Min. Illumination | Color: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON) |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Wide Dynamic Range (WDR) | Digital WDR |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| SNR | ≥52 dB |
Lens & Distance
| Feature | Detail |
|---|---|
| Focus | Auto, semi-auto, manual |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV: 96.2° to 36.4°, vertical FOV: 69.3° to 27.2°, diagonal FOV: 129.4° to 45.5° | 8 to 32 mm, horizontal FOV: 40.2° to 14.4°, vertical FOV: 29.6° to 10.8°, diagonal FOV: 51.47° to 17.8° |
| Aperture | 2.8 to 12 mm: F1.2 to F2.5 | 8 to 32 mm: F1.7 to F1.73 |
| Lens Mount | Integrated |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Range | 2.8 to 12 mm: 50 m | 8 to 32 mm: 100 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) | 60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) | 50 Hz: 20 fps (4000 × 3000) | 60 Hz: 20 fps (4000 × 3000) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) | 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) | 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) | 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) | 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Custom Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) | 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 | Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Target Cropping | Yes |
Audio
| Feature | Detail |
|---|---|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/8 to 320 Kbps (MP3) |
| Audio Type | Mono sound |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Multi-target-type Detection | Supports simultaneous detection of human body and face | Gets 8 face features and 13 human body features |
| Face Capture | Detects up to 30 faces simultaneously; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Up to 3 face libraries with up to 30000 faces each are configurable; Recognizes face identity via face modeling, grading and comparing to those in face library; Supports face library encryption. |
| People Counting | Yes |
| Queue Management | Detects queuing-up people number, and waiting time of each person | Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue | Supports raw data export for further analysis |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting | Support alarm triggering by specified target types (human and vehicle) | Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc. |
Network & Storage
| Feature | Detail |
|---|---|
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Smooth Streaming | Yes |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+ | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ | Local service: Chrome 41.0+, Firefox 30.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture | Trigger recording: memory card, network storage, pre-record and post-record | Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email | Trigger notification: HTTP, ISAPI, alarm output, Email |
| Smart Event | Line crossing detection, up to 4 lines configurable | Intrusion detection, up to 4 regions configurable | Region entrance detection, up to 4 regions configurable | Region exiting detection, up to 4 regions configurable | Unattended baggage detection, up to 4 regions configurable | Object removal detection, up to 4 regions configurable | Scene change detection, audio exception detection, defocus detection |
Interface
| Feature | Detail |
|---|---|
| Alarm | 2 input, 2 outputs (max. 24 VDC, 1 A) |
| Audio | -IZHY: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| RS-485 | With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Video Output | 1 Vp-p Composite Output (75Ω/CVBS) (For debugging only) |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Power Output | With -Y: 12 VDC, max. 100 mA (supported by all power supply types) |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 20%, 1.33 A, max. 16.0 W, three-core terminal block, reverse polarity protection, PoE: IEEE 802.3at, 42.5 V to 57 V, 0.43 A to 0.31 A, max. 18.0 W |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Heater | Yes |
| General Function | Anti-flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Material | Aluminum alloy body |
| Dimension | Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″) | With -Y: Ø140 mm × 351 mm (Ø5.5″ × 13.8″) |
| Package Dimension | 405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″) |
| Weight | Approx. 1920 g (4.2 lb.) |
| With Package Weight | Approx. 3060 g (6.7 lb.) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
| Automotive and Railway | With -R: EN50121-4 |
| Anti-Corrosion Protection | With -Y: NEMA 4X (NEMA 250-2018) |
| Other | With -Y: PVC FREE |
