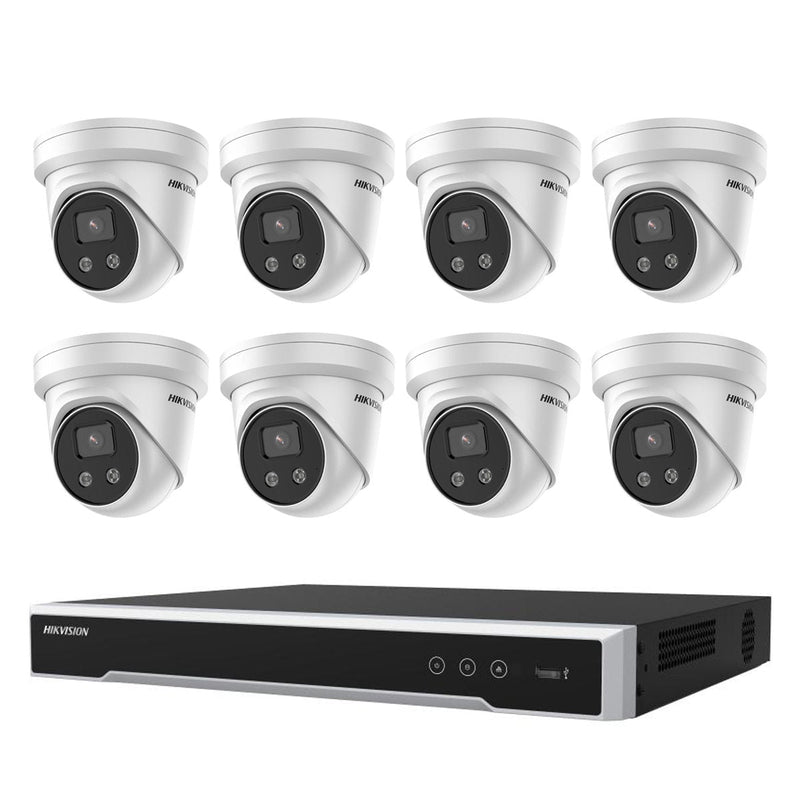

Hikvision 8 x 6MP DS-2CD2366G2-I AcuSense Turret CCTV Kit + DS-7608NI-M2/8P 8CH NVR + 4TB HDD
SKU: DS-2CD2366G2-I
Description
1 x DS-7608NI-M2/8P 8CH PoE NVR with 4TB HDD installed,
8 x DS-2CD2366G2-I 6MP AcuSense turret cameras.
Regular price
$2,560.35 AUD
Sale price
$2,560.35 AUD
Regular price
$3,428.00 AUD
Sale
25.31%
$867.65 AUD
(25.31%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Out of stock
No reviews
Hikvision 8 x 6MP DS-2CD2366G2-I AcuSense Turret CCTV Kit + DS-7608NI-M2/8P 8CH NVR + 4TB HDD
1
/
of
1
Customize this kit Kit price $2,560.35
This kit includes:
- 8 × Hikvision DS-2CD2366G2-I 6MP AcuSense Turret Camera 2.8mm, DarkFighter, 30m IR
- 1 × Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens: 2.8mm.
This 8-camera kit pairs eight DS-2CD2366G2-I 6MP AcuSense turrets with the 8-channel DS-7608NI-M2/8P recorder and a pre-installed 4TB surveillance drive — recording starts as soon as the cameras are plugged in.
Eight cameras is full-perimeter coverage: every wall of a large home or business premises watched, with no blind approach left. AcuSense classification on every camera keeps eight channels of alerts down to the humans and vehicles that matter, the 0.003 lux DarkFighter sensors hold colour into the evening, and 30m of smart infrared covers true darkness.
This kit uses all eight channels, and eight 6MP streams fill the 4TB drive in around 12 days of continuous recording — set motion-only recording, or upgrade the drive with the kit customiser on this page. No microphones on these cameras keeps audio consent simple across a big system.
§ 02Engineering
Technical specifications
- 8 x 6MP AcuSense Turrets: DarkFighter sensors rated to 0.003 lux colour, with human and vehicle classification on the cameras themselves.
- 8CH M-Series NVR: DS-7608NI-M2/8P with PoE on every channel — each camera runs off a single Ethernet run from the recorder.
- 4TB Surveillance HDD pre-installed: around 12 days of continuous footage from eight cameras — upgrade the drive for longer retention, or use motion-only recording.
- Perimeter Protection: line crossing, intrusion and region entry/exit zones per camera, filtered to your chosen target types.
- 30m Smart Infrared: self-adjusting IR that doesn't white out close objects, plus 120dB true WDR.
- IP67 Metal Housings: rated -30°C to +60°C for exposed Australian mounting positions.
- 8CH M-Series NVR: DS-7608NI-M2/8P with PoE on every channel — each camera runs off a single Ethernet run from the recorder.
- 4TB Surveillance HDD pre-installed: around 12 days of continuous footage from eight cameras — upgrade the drive for longer retention, or use motion-only recording.
- Perimeter Protection: line crossing, intrusion and region entry/exit zones per camera, filtered to your chosen target types.
- 30m Smart Infrared: self-adjusting IR that doesn't white out close objects, plus 120dB true WDR.
- IP67 Metal Housings: rated -30°C to +60°C for exposed Australian mounting positions.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Day/Night Switch | Day, Night, Auto, Schedule |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Target Cropping | Yes |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6° | 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8° | 6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m | 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m | 6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotate Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) | 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | -U: mono sound |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Built-in Microphone | -U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Material | Metal |
| Dimension | Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Weight | Approx. 740 g (1.6 lb.) |
| With Package Weight | Approx. 1070 g (2.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Firmware Version | V5.5.113 |
| Software Reset | Yes |
| Power Consumption and Current | 12 VDC, 0.45 A, max. 5.4 W; PoE (802.3af, 36 V to 57 V), 0.18 A to 0.11 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
§ 04Why choose this
Built for the way you actually use it
Full perimeter, no blind approach
Eight cameras watches every wall and corner of a large home or business — an intruder can't reach the building off-camera.
Alerts that are worth opening
AcuSense classifies humans and vehicles on the cameras themselves, so the 2am alert is a person in your driveway — not a possum, headlights or rain.
Eight channels without alert fatigue
Pixel-motion systems with eight cameras bury you in notifications — camera-side AcuSense classification is what makes a system this size liveable.
§ 05Where it fits
Right at home in these scenarios
Large two-storey home
Every external wall covered plus the porch and garage close-ups — no approach to the house goes unrecorded.
Business premises
Entries, counter, storeroom, rear dock and all external walls on one recorder — no-mic cameras keep workplace audio consent simple.
Acreage homestead
House approaches, carport, machinery shed and the yard between them — AcuSense ignores wildlife and stock movement while flagging people and vehicles.
Rental or dual-occupancy property
Shared driveways and separate entries each get their own camera and their own zones — without recording anyone's conversations.
§ 06Setup
Installation & setup
What's in the Box
1. Hikvision DS-2CD2366G2-I Camera × 8 2. DS-7608NI-M2/8P NVR with 4TB HDD installed × 1 3. NVR Power Adapter × 1 4. Quick Start Guide × 1
Installation Requirements
1. Each camera needs one Ethernet run back to the NVR — the PoE ports carry power and video together, up to 100m per run. 2. Mount on a solid wall or eave; under-eave positions keep lenses clear of direct rain and afternoon sun. 3. Connect the NVR to your router with a short Ethernet patch lead for remote viewing — works on all NBN connection types.
App Setup
1. Activate the NVR with a strong password on first boot, then add it to the Hik-Connect app by scanning the QR code on the NVR screen. 2. Enable push notifications in Hik-Connect so AcuSense human and vehicle alerts reach your phone. 3. Draw each camera's line crossing and intrusion zones tight to your own property, with target type set to human and vehicle.
§ 07Questions
Frequently asked
Q.01
Is this kit ready to use out of the box?
Yes — the 4TB drive comes installed and formatted, and the PoE ports power all eight cameras. Mount the cameras, run one Ethernet line from each to the NVR, and recording starts automatically at default settings.
Q.02
How long will the 4TB drive keep footage?
Around 12 days of continuous recording from eight 6MP cameras (roughly 40GB per camera per day) — or a month or more on motion-only recording. The NVR overwrites the oldest footage automatically. For longer retention, upgrade the drive with the kit customiser before checkout.
Q.03
Can I add more cameras later?
This kit uses all eight PoE channels on the recorder. Adding a ninth camera means moving to a 16-channel NVR — if growth is on the cards, ask about a 16CH base before ordering rather than replacing the recorder later.
Q.04
How far can the cameras see at night?
Each turret records colour down to 0.003 lux through its DarkFighter sensor, then switches to smart infrared with a 30-metre range in full darkness — the IR self-adjusts so close objects don't white out. Faces are identifiable to about 7.9 metres with the 2.8mm lens; number plates still need daylight or good lighting.
Q.05
Do these cameras record audio?
No — the G2-I cameras in this kit have no microphones, which suits strata schemes, shared driveways and workplaces where audio recording raises consent issues. If you want audio on a corner or two, add the -IU mic version to your order — same imaging, same AI, same recorder.
Q.06
What does AcuSense actually do?
Each camera classifies what triggered an event — human, vehicle, or neither — using deep learning on the camera itself, and line crossing, intrusion and region entry/exit zones trigger only on the target types you choose. Far fewer junk notifications get through than pixel-based motion detection.
Q.07
Can this kit warn intruders off, like cameras with sirens?
Not this one — these are quiet cameras that record and alert. If you want a camera that answers back, add the G2-ISU/SL (strobe, audible warnings, two-way talk) to an approach, or look at the Dahua TiOC family for red and blue lights and a siren.
Q.08
What does the NVR actually do beyond recording?
It powers every camera over its PoE ports, keeps all channels on one timeline with AcuSense events flagged for fast review, and handles remote viewing through Hik-Connect — one app for live view, playback and alerts.
Q.09
Do I need to pay any subscription?
No. Recording, AcuSense detection and remote viewing through the Hik-Connect app all run on your own hardware — no monthly fees and no cloud account requirement beyond the free app login.
Q.10
Can I view the cameras on my phone away from home?
Yes — add the NVR to Hik-Connect via its QR code, and live view plus playback work over the internet. The system also works fully offline if you prefer no outside access.
Q.11
Will it work without internet?
Yes. Cameras record to the NVR on a closed local network. Internet is only needed for remote viewing and push notifications.
Q.12
Is a Hikvision system safe to use in Australia?
Hikvision equipment was removed from federal government sites in 2023 as a precaution, and there is no restriction on private or business use. This kit records locally to its own NVR, needs no cloud account, and supports HTTPS and TLS encryption. On an isolated network it still records normally.
Q.13
What does the 3-year warranty cover?
Defects in the cameras and NVR for 3 years. The hard drive carries its own manufacturer warranty terms, and installation labour is not covered.
Q.14
What if I want colour at night and active deterrence?
These AcuSense kits record quietly in infrared and never light up. For full-colour night footage and cameras that warn intruders off with a strobe and voice, the ColorVu kits do that with the same human and vehicle AI. Pick AcuSense for quiet evidence, ColorVu where you want to be seen and heard.
§ 09Bundles
Recommended packages
Need more channels?
Past eight cameras you're into a 16 channel recorder — ask us to spec it as a custom order before you buy twice.
Recording continuously?
Eight 6MP streams fill 4TB in around 12 days — on this kit a drive upgrade is worth considering. Size it up with the kit customiser before checkout.
Audio or deterrence corners
Add the -IU mic version where conversations matter, or the -ISU/SL where you want a strobe and a voice.
