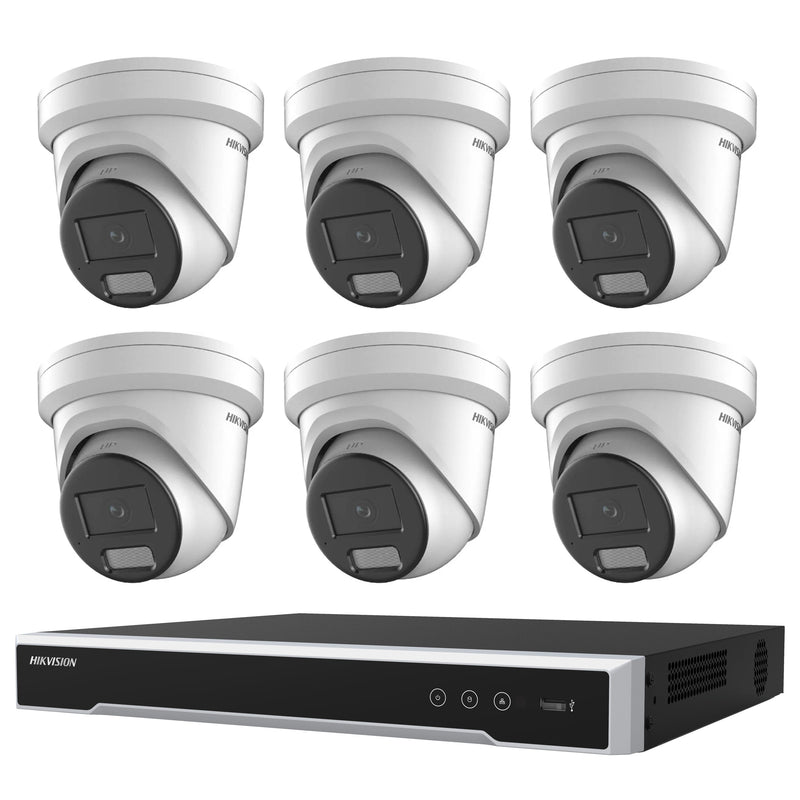

Hikvision 6 x 6MP DS-2CD2366G2H-IU AcuSense Turret CCTV Kit + DS-7608NI-M2/8P 8CH NVR + 4TB HDD
1 x DS-7608NI-M2/8P 8CH PoE NVR with 4TB HDD installed,
6 x DS-2CD2366G2H-IU 6MP AcuSense turret cameras with built-in mic.
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

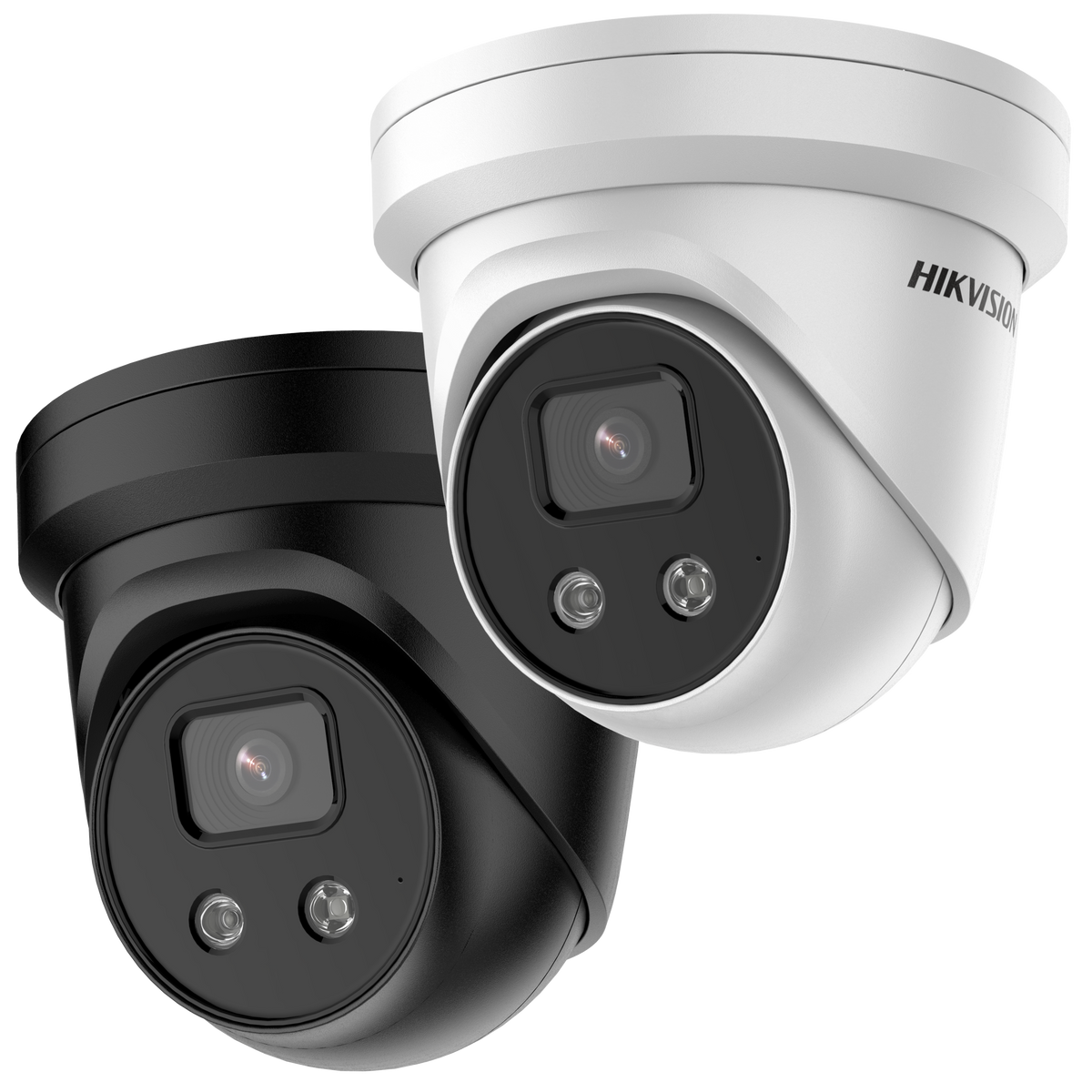

- 6 × Hikvision DS-2CD2366G2H-IU 6MP AcuSense Turret Camera 2.8mm, Built-in Mic, 0.001 lux DarkFighter
- 1 × Hikvision DS-7608NI-M2/8P 8ch PoE CCTV NVR, 128Mbps 8 PnP ports, 4K, 2 HDD Bay NO HDD (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
§ 01Overview
What the DS-2CD2366G2H-IU is
Lens: 2.8mm.
This 6-camera kit is the night-vision pick of our Hikvision range: six DS-2CD2366G2H-IU turrets — the newer G2H generation with F1.0 lenses rated 0.001 lux in colour — on the 8-channel DS-7608NI-M2/8P recorder with a pre-installed 4TB surveillance drive.
Six cameras suits a two-storey home or a corner block: the four approaches plus the porch close-up and the blind side a four-camera layout leaves open. Every position gets the G2H's wide 114.8° view and over twice the light-gathering of the standard G2 — colour off ambient glow where older sensors have gone to grey infrared — plus a built-in microphone for audio context.
The 8CH NVR keeps two spare PoE channels, and six 6MP streams fill the 4TB drive in around 2 weeks of continuous recording — upgrade the drive with the kit customiser on this page if you record continuously.
See it in action
What the DS-2CD2366G2H-IU features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
30m IR Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD2366G2H-IU specifications
- 8CH M-Series NVR: DS-7608NI-M2/8P with PoE on every channel — two channels spare for future cameras.
- 4TB Surveillance HDD pre-installed: around 2 weeks of continuous footage from six cameras, a month or more on motion-only recording.
- 114.8° Wide Views: the widest lens in the 2366 family on every camera — more scene per mount.
- Perimeter Protection: line crossing, intrusion and region entry/exit zones per camera, filtered to humans and vehicles.
- IP67 Metal Housings: rated -30°C to +60°C, with 512GB MicroSD backup slots on every camera.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5° | 4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 1.7 m to ∞ |
| DORI | 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m | 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotate Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); supported under certain settings |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ | Sub-stream: H.265/H.264/MJPEG | Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Built-in Microphone | -U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; support alarm triggering by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 8 W |
| Material | Cover: metal, main body: metal |
| Dimension | Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5") |
| Package Dimension | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
| Weight | Approx. 770 g (1.7 lb.) |
| With Package Weight | Approx. 1040 g (2.3 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67: IEC 60529-2013 |
| Camera & Image — Image Sensor | 1/2.4" Progressive Scan CMOS |
|---|---|
| Camera & Image — Max. Resolution | 3200 × 1800 |
| Camera & Image — Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Camera & Image — Shutter Time | 1/3 s to 1/100,000 s |
| Camera & Image — Day & Night | IR cut filter |
| Camera & Image — Day/Night Switch | Day, Night, Auto, Schedule |
| Camera & Image — Wide Dynamic Range (WDR) | 120 dB |
| Camera & Image — SNR | ≥ 52 dB |
| Camera & Image — Image Enhancement | BLC, HLC, 3D DNR |
| Camera & Image — Privacy Mask | 4 programmable polygon privacy masks |
| Camera & Image — Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Lens & Distance — Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Lens & Distance — Focal Length & FOV | 2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5° | 4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112° |
| Lens & Distance — Lens Mount | M12 |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Aperture | F1.0 |
| Lens & Distance — Depth of Field | 2.8 mm: 1.7 m to ∞ |
| Lens & Distance — DORI | 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m | 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Lens & Distance — Pan Range | 0° to 360° |
| Lens & Distance — Tilt Range | 0° to 75° |
| Lens & Distance — Rotate Range | 0° to 360° |
| Night Vision — Supplement Light Type | IR |
| Night Vision — Supplement Light Range | Up to 30 m |
| Night Vision — Smart Supplement Light | Yes |
| Night Vision — IR Wavelength | 850 nm |
| Video — Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video — Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video — Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); supported under certain settings |
| Video — Video Compression | Main stream: H.265/H.264/H.264+/H.265+ | Sub-stream: H.265/H.264/MJPEG | Third stream: H.265/H.264 |
| Video — Video Bit Rate | 32 Kbps to 16 Mbps |
| Video — H.264 Type | Baseline Profile, Main Profile, High Profile |
| Video — H.265 Type | Main Profile |
| Video — Bit Rate Control | CBR, VBR |
| Video — Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Video — Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio — Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio — Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio — Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Audio — Environment Noise Filtering | -U: Yes |
| Audio — Built-in Microphone | -U: Yes |
| AI & Deep Learning — Face Capture | Yes |
| AI & Deep Learning — Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; support alarm triggering by specified target types (human and vehicle) |
| Network & Storage — Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP |
| Network & Storage — Simultaneous Live View | Up to 6 channels |
| Network & Storage — API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Network & Storage — User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Network & Storage — Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network & Storage — Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Network & Storage — Client | iVMS-4200, Hik-Connect, Hik-Central |
| Event & Alarm — Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Event & Alarm — Smart Event | Scene change detection |
| Event & Alarm — Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| Interface — Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Interface — On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Interface — Reset Key | Yes |
| General & Environment — Power | 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 8 W |
| General & Environment — Material | Cover: metal, main body: metal |
| General & Environment — Dimension | Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5") |
| General & Environment — Package Dimension | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
| General & Environment — Weight | Approx. 770 g (1.7 lb.) |
| General & Environment — With Package Weight | Approx. 1040 g (2.3 lb.) |
| General & Environment — Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Protection | IP67: IEC 60529-2013 |
§ 04Why choose this
Built for the way you actually use the DS-2CD2366G2H-IU
Night colour at every position
0.001 lux F1.0 sensors hold colour off sky glow alone — across six cameras that's the difference between a yard in colour and a yard in grey infrared.
Alerts that are worth opening
AcuSense classifies humans and vehicles on the cameras themselves, so the 2am alert is a person in your driveway — not a possum, headlights or rain.
Covers what four cameras miss
Six cameras closes the gaps a four-corner layout leaves: the porch close-up and the blind side path are usually the first two added — here they're included from day one.
§ 05Where it fits
Right at home in these scenarios
Two-storey family home
Four corners plus the front porch and balcony side — six wide 114.8° views with night colour and audio context at every position.
Corner block
Street frontage on two sides means more approaches to watch. Six cameras covers both frontages, the driveway and the rear, with zones drawn to your boundary.
Poorly lit streets
No street lighting to help means F1.6 sensors live in infrared — this kit's F1.0 cameras are the fix, six positions at a time.
Small business premises
Entry, counter, storeroom, rear door and both external walls on one recorder, with mics adding audio where your state's recording rules allow.
§ 06Setup
Installation & setup
What's in the Box
1. Hikvision DS-2CD2366G2H-IU Camera × 6 2. DS-7608NI-M2/8P NVR with 4TB HDD installed × 1 3. NVR Power Adapter × 1 4. Quick Start Guide × 1
Installation Requirements
1. Each camera needs one Ethernet run back to the NVR — the PoE ports carry power and video together, up to 100m per run. 2. Mount on a solid wall or eave; under-eave positions keep lenses clear of direct rain and afternoon sun. 3. Connect the NVR to your router with a short Ethernet patch lead for remote viewing — works on all NBN connection types.
App Setup
1. Activate the NVR with a strong password on first boot, then add it to the Hik-Connect app by scanning the QR code on the NVR screen. 2. Enable push notifications in Hik-Connect so AcuSense human and vehicle alerts reach your phone. 3. Draw each camera's line crossing and intrusion zones tight to your own property, with target type set to human and vehicle.
§ 08Questions
Frequently asked about the DS-2CD2366G2H-IU
Q.01
Is the 6-camera G2H kit ready to use out of the box?
Q.02
How long will the 4TB drive keep footage from six cameras?
Q.03
Can I add a seventh or eighth camera later?
Q.04
How far can the cameras see at night?
Q.05
Do these cameras record audio?
Q.06
What does AcuSense actually do?
Q.07
Can this kit warn intruders off, like cameras with sirens?
Q.08
What does the NVR actually do beyond recording?
Q.09
Do I need to pay any subscription?
Q.10
Can I view the cameras on my phone away from home?
Q.11
Will it work without internet?
Q.12
Is a Hikvision system safe to use in Australia?
Q.13
What does the 3-year warranty cover?
Q.14
What if I want colour at night and active deterrence?
Q.15
Where do the six cameras go?
Q.16
Can I mix in a deterrence camera?
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Bigger property?

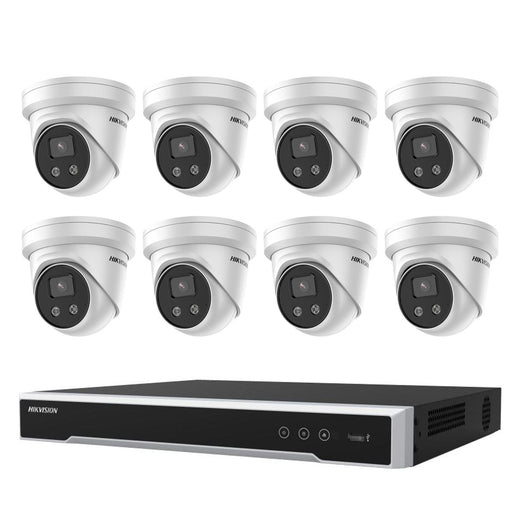

The 8-camera version of this kit puts the same G2H camera on every wall and uses the recorder's last two channels.
Recording continuously?
Six 6MP streams fill 4TB in around 2 weeks. Upgrade to a larger surveillance drive with the kit customiser before checkout if you need longer history.
A deterrence corner
Add the G2H-IS2U/SL on the most exposed approach — same F1.0 sensor with a strobe, audible warnings and two-way talk (budget a PoE+ port).
