Hikvision 4 x 6MP DS-2CD2366G2-I AcuSense Turret CCTV Kit + DS-7604NI-M1/4P 4CH NVR + 4TB HDD
SKU: DS-2CD2366G2-I
Description

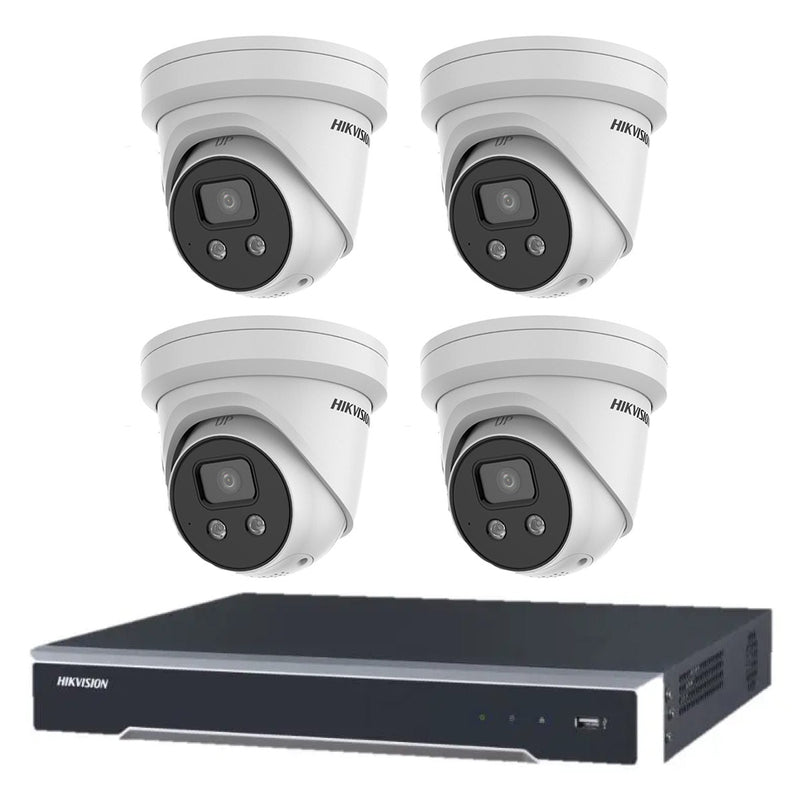

1 x DS-7604NI-M1/4P 4CH PoE NVR with 4TB HDD installed,
4 x DS-2CD2366G2-I 6MP AcuSense turret cameras.
Regular price
$1,522.90 AUD
Sale price
$1,522.90 AUD
Regular price
$1,891.00 AUD
Sale
19.47%
$368.10 AUD
(19.47%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Out of stock
No reviews
Hikvision 4 x 6MP DS-2CD2366G2-I AcuSense Turret CCTV Kit + DS-7604NI-M1/4P 4CH NVR + 4TB HDD
1
/
of
1
Customize this kit Kit price $1,522.90
This kit includes:
- 4 × Hikvision DS-2CD2366G2-I 6MP AcuSense Turret Camera 2.8mm, DarkFighter, 30m IR
- 1 × Hikvision DS-7604NI-M1/4P 4ch M-Series PoE NVR, 40Mbps, H.265, 4 PnP Ports, 1 HDD Bay, 4TB (4ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens: 2.8mm.
This 4-camera kit pairs four DS-2CD2366G2-I 6MP AcuSense turrets with the 4-channel DS-7604NI-M1/4P recorder and a pre-installed 4TB surveillance drive — recording starts as soon as the cameras are plugged in.
Four cameras is the standard single-storey layout — entry, driveway, backyard, side access — with AcuSense classification on every camera keeping the alerts to humans and vehicles. The 0.003 lux DarkFighter sensors hold colour well into the evening, 30m of smart infrared takes over in darkness, and 120dB WDR handles doorways shot against the sun.
This kit uses all four channels; if growth is on the cards, the 6 and 8 camera kits run on an 8CH recorder. Four 6MP streams fill the 4TB drive in about 3 weeks of continuous recording — upgrade the drive with the kit customiser on this page if you need longer history. No microphones on these cameras keeps audio-consent issues out of the picture.
§ 02Engineering
Technical specifications
- 4 x 6MP AcuSense Turrets: DarkFighter sensors rated to 0.003 lux colour, with human and vehicle classification on the cameras themselves.
- 4CH M-Series NVR: DS-7604NI-M1/4P with PoE on every channel — each camera runs off a single Ethernet run from the recorder.
- 4TB Surveillance HDD pre-installed: about 3 weeks of continuous footage from four cameras, two months or more on motion-only recording.
- Perimeter Protection: line crossing, intrusion and region entry/exit zones per camera, filtered to your chosen target types.
- 30m Smart Infrared: self-adjusting IR that doesn't white out close objects, plus 120dB true WDR.
- IP67 Metal Housings: rated -30°C to +60°C for exposed Australian mounting positions.
- 4CH M-Series NVR: DS-7604NI-M1/4P with PoE on every channel — each camera runs off a single Ethernet run from the recorder.
- 4TB Surveillance HDD pre-installed: about 3 weeks of continuous footage from four cameras, two months or more on motion-only recording.
- Perimeter Protection: line crossing, intrusion and region entry/exit zones per camera, filtered to your chosen target types.
- 30m Smart Infrared: self-adjusting IR that doesn't white out close objects, plus 120dB true WDR.
- IP67 Metal Housings: rated -30°C to +60°C for exposed Australian mounting positions.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Day/Night Switch | Day, Night, Auto, Schedule |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Target Cropping | Yes |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6° | 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8° | 6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m | 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m | 6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotate Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) | 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | -U: mono sound |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Built-in Microphone | -U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Material | Metal |
| Dimension | Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Weight | Approx. 740 g (1.6 lb.) |
| With Package Weight | Approx. 1070 g (2.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Firmware Version | V5.5.113 |
| Software Reset | Yes |
| Power Consumption and Current | 12 VDC, 0.45 A, max. 5.4 W; PoE (802.3af, 36 V to 57 V), 0.18 A to 0.11 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
§ 04Why choose this
Built for the way you actually use it
Alerts that are worth opening
AcuSense classifies humans and vehicles on the cameras themselves, so the 2am alert is a person in your driveway — not a possum, headlights or rain.
The classic four-corner layout
Entry, driveway, backyard and side gate — every approach to a single-storey home covered in 6MP with AI-filtered alerts.
Privacy-clean by hardware
No microphones on the G2-I means no audio-consent questions from neighbours, tenants or body corporates — coverage that stays uncontroversial.
§ 05Where it fits
Right at home in these scenarios
Single-storey family home
The four approaches covered with faces identifiable to about 7.9 metres — and AcuSense deciding what's worth a notification before your phone buzzes.
Townhouse with rear lane
Two cameras street-side, two on the courtyard and lane — line crossing zones drawn to your boundary keep lane foot traffic out of the alerts.
Rental properties
Landlord-friendly: no audio recorded, remote viewing through one app, and a recorder that overwrites itself without maintenance visits.
Small business perimeters
Entries and external walls on one recorder, with AcuSense flagging people after close while ignoring passing traffic.
§ 06Setup
Installation & setup
What's in the Box
1. Hikvision DS-2CD2366G2-I Camera × 4 2. DS-7604NI-M1/4P NVR with 4TB HDD installed × 1 3. NVR Power Adapter × 1 4. Quick Start Guide × 1
Installation Requirements
1. Each camera needs one Ethernet run back to the NVR — the PoE ports carry power and video together, up to 100m per run. 2. Mount on a solid wall or eave; under-eave positions keep lenses clear of direct rain and afternoon sun. 3. Connect the NVR to your router with a short Ethernet patch lead for remote viewing — works on all NBN connection types.
App Setup
1. Activate the NVR with a strong password on first boot, then add it to the Hik-Connect app by scanning the QR code on the NVR screen. 2. Enable push notifications in Hik-Connect so AcuSense human and vehicle alerts reach your phone. 3. Draw each camera's line crossing and intrusion zones tight to your own property, with target type set to human and vehicle.
§ 07Questions
Frequently asked
Q.01
Is this kit ready to use out of the box?
Yes — the 4TB drive comes installed and formatted, and the PoE ports power all four cameras. Mount the cameras, run one Ethernet line from each to the NVR, and recording starts automatically at default settings.
Q.02
How long will the 4TB drive keep footage?
About 3 weeks of continuous recording from four 6MP cameras (roughly 40GB per camera per day), and two months or more on motion-only recording. The NVR overwrites the oldest footage automatically — for longer retention, upgrade the drive with the kit customiser before checkout.
Q.03
Can I add more cameras later?
This kit uses all four PoE channels. If growth is on the cards, the 6 and 8 camera kits run on an 8CH recorder — the cheaper path than replacing a recorder later.
Q.04
How far can the cameras see at night?
Each turret records colour down to 0.003 lux through its DarkFighter sensor, then switches to smart infrared with a 30-metre range in full darkness — the IR self-adjusts so close objects don't white out. Faces are identifiable to about 7.9 metres with the 2.8mm lens; number plates still need daylight or good lighting.
Q.05
Do these cameras record audio?
No — the G2-I cameras in this kit have no microphones, which suits strata schemes, shared driveways and workplaces where audio recording raises consent issues. If you want audio on a corner or two, add the -IU mic version to your order — same imaging, same AI, same recorder.
Q.06
What does AcuSense actually do?
Each camera classifies what triggered an event — human, vehicle, or neither — using deep learning on the camera itself, and line crossing, intrusion and region entry/exit zones trigger only on the target types you choose. Far fewer junk notifications get through than pixel-based motion detection.
Q.07
Can this kit warn intruders off, like cameras with sirens?
Not this one — these are quiet cameras that record and alert. If you want a camera that answers back, add the G2-ISU/SL (strobe, audible warnings, two-way talk) to an approach, or look at the Dahua TiOC family for red and blue lights and a siren.
Q.08
What does the NVR actually do beyond recording?
It powers every camera over its PoE ports, keeps all channels on one timeline with AcuSense events flagged for fast review, and handles remote viewing through Hik-Connect — one app for live view, playback and alerts.
Q.09
Do I need to pay any subscription?
No. Recording, AcuSense detection and remote viewing through the Hik-Connect app all run on your own hardware — no monthly fees and no cloud account requirement beyond the free app login.
Q.10
Can I view the cameras on my phone away from home?
Yes — add the NVR to Hik-Connect via its QR code, and live view plus playback work over the internet. The system also works fully offline if you prefer no outside access.
Q.11
Will it work without internet?
Yes. Cameras record to the NVR on a closed local network. Internet is only needed for remote viewing and push notifications.
Q.12
Is a Hikvision system safe to use in Australia?
Hikvision equipment was removed from federal government sites in 2023 as a precaution, and there is no restriction on private or business use. This kit records locally to its own NVR, needs no cloud account, and supports HTTPS and TLS encryption. On an isolated network it still records normally.
Q.13
What does the 3-year warranty cover?
Defects in the cameras and NVR for 3 years. The hard drive carries its own manufacturer warranty terms, and installation labour is not covered.
Q.14
What if I want colour at night and active deterrence?
These AcuSense kits record quietly in infrared and never light up. For full-colour night footage and cameras that warn intruders off with a strobe and voice, the ColorVu kits do that with the same human and vehicle AI. Pick AcuSense for quiet evidence, ColorVu where you want to be seen and heard.
§ 09Bundles
Recommended packages
Planning to grow?
This kit uses all four channels. The 6 camera kit steps up to an 8CH recorder — and brings the higher-spec G2H night sensor with it.
Recording continuously?
Four 6MP streams fill 4TB in about 3 weeks. Upgrade to a larger surveillance drive with the kit customiser before checkout if you need longer history.
Audio or deterrence corners
Add the -IU mic version where conversations matter, or the -ISU/SL where you want a strobe and a voice.
