Dahua DH-IPC-HDW3666TP-ZS-AUS 6MP Motorised Turret Network Camera 40m IR with SMD 4.0
Dahua DH-IPC-HDW3666TP-ZS-AUS 6MP Motorized Turret Network Camera IR SMD 4.0
1 1
Dahua

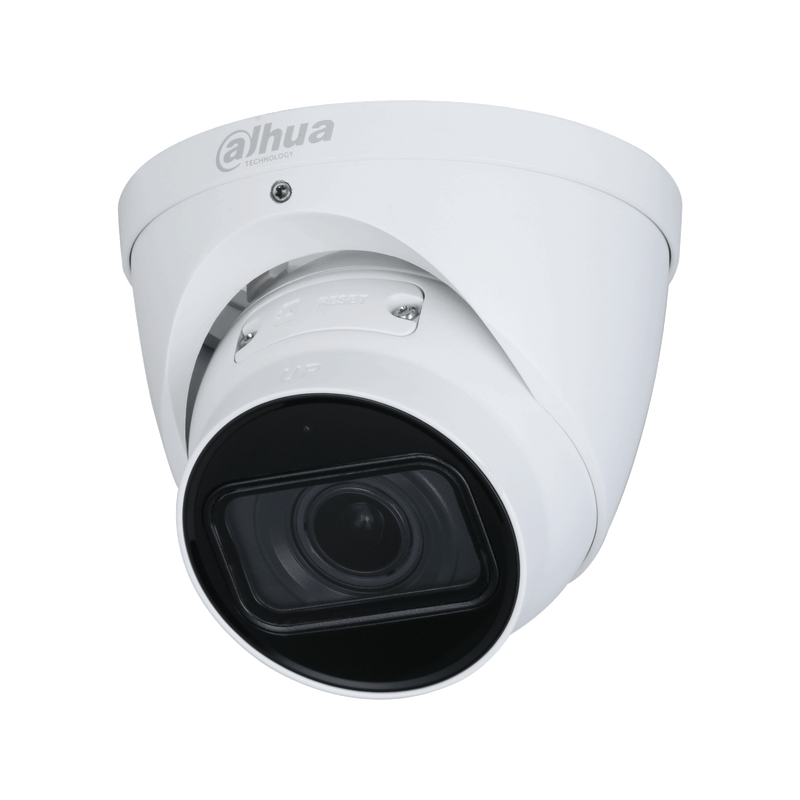

Dahua DH-IPC-HDW3666TP-ZS-AUS 6MP Motorised Turret Network Camera 40m IR with SMD 4.0

SKU: DH-IPC-HDW3666TP-ZS-AUS
Description

6MP WizSense motorised varifocal turret with SMD 4.0, perimeter protection and 40m Smart IR for flexible, accurate surveillance.

  • 1/2.7" 6MP CMOS, 3072 x 2048 at 25/30 fps
  • Motorised 2.7-13.5mm varifocal lens, F1.5
  • Starlight low light and 120dB WDR
  • Smart IR up to 40m
  • SMD 4.0 and perimeter protection with human and vehicle classification
  • Quick Pick target search with a compatible Dahua AI NVR
  • Built-in microphone
  • IP67 metal housing; PoE or 12V DC; microSD to 256GB
6MP Ultra HD 40m IR Night Vision IP67 Weatherproof Human/Vehicle Detection Built-in Microphone
$291.33 AUD $291.33 AUD $351.00 AUD
Sale 17.0% $59.67 AUD (17.0%)
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $790.78

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
Ethernet Cable Pre-terminatedCable
1
    Bundle total: $291.33
    3-Year Warranty

    3-Year Warranty

    Warranty on all cameras

    Free Shipping

    Free Shipping

    On orders over $300

    30-Day Returns

    30-Day Returns

    Easy returns for unopened items

    Fast Delivery

    Fast Delivery

    5-10 Day Delivery Australia-wide

    § 01Overview

    What the DH-IPC-HDW3666TP-ZS-AUS is

    The Dahua DH-IPC-HDW3666TP-ZS-AUS is a 6MP WizSense motorised varifocal turret built for flexible, accurate monitoring.

    A 1/2.7-inch sensor delivers 3072 x 2048 detail with Starlight low-light performance and 120dB WDR, and a 2.7-13.5mm motorised lens lets you reframe from a wide view to a tighter scene remotely from your phone or NVR.

    WizSense analytics classify humans and vehicles, so SMD 4.0 and perimeter protection (tripwire and intrusion) raise alerts on people and vehicles while filtering out animals, foliage and weather.

    Quick Pick, with a compatible Dahua AI NVR, helps operators find targets of interest in recorded SMD events.

    A built-in microphone, Smart IR to 40m and an IP67 housing with PoE or 12V DC power suit homes, retail and commercial sites alike.

    See it in action

    What the DH-IPC-HDW3666TP-ZS-AUS features actually look like

    Representative illustrations of how each key feature performs in a real scene.

    6MP Ultra HD — 6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a fac...

    6MP Ultra HD

    6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
    40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (1/2)
    40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (2/2)

    40m IR Night Vision

    Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.
    Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

    Human/Vehicle Detection

    Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
    IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

    IP67 Weatherproof

    Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

    Illustrative — simulated for demonstration

    § 02Engineering

    DH-IPC-HDW3666TP-ZS-AUS specifications

    - Sensor and resolution: 1/2.7" 6MP CMOS, 3072 x 2048 at up to 25/30 fps, for detailed identification

    - Lens: motorised 2.7-13.5mm varifocal, F1.5, set zoom and focus remotely without repositioning the camera

    - Low light: Starlight imaging with 120dB WDR and 3D NR for poor and high-contrast lighting

    - Night vision: Smart IR up to 40m across 2 LEDs, adjusting intensity to avoid overexposing close subjects

    - Classification: SMD 4.0 and perimeter protection (tripwire, intrusion) with human and vehicle classification

    - Quick Pick: with a compatible Dahua AI NVR, quickly picks human and vehicle targets from SMD events

    - Audio: built-in microphone records on-site sound alongside video

    - Durability and power: IP67 metal housing; PoE or 12V DC; microSD up to 256GB

    § 03Full datasheet

    Detailed specifications

    Camera & Image

    Camera & Image — Dahua DH-IPC-HDW3666TP-ZS-AUS 6MP Motorised Turret Network Camera 40m IR with SMD 4.0
    FeatureDetail
    Image Sensor 1/2.7" CMOS
    Max. Resolution 3072 (H) × 2048 (V)
    ROM 128 MB
    RAM 1 GB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
    Min. Illumination 0.005 lux@F1.5 (Color, 30 IRE) | 0.0005 lux@F1.5 (B/W, 30 IRE) | 0 lux (Illuminator on)
    S/N Ratio >56 dB
    Day/Night Auto (ICR)/Color/B/W
    BLC Yes
    HLC Yes
    WDR 120 dB
    Scene Self-adaptation (SSA) Yes
    White Balance Auto; natural; street lamp; outdoor; manual; regional custom
    Gain Control Auto
    Noise Reduction 3D NR
    Motion Detection OFF/ON (4 areas, rectangular)
    Image Stabilization Electronic Image Stabilization (EIS)
    Region of Interest (RoI) Yes (4 areas)
    Defog Yes
    AFSA Yes
    Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
    Mirror Yes
    Privacy Masking 4 areas

    § 04Why choose this

    Built for the way you actually use the DH-IPC-HDW3666TP-ZS-AUS

    Frame it remotely

    A motorised 2.7-13.5mm lens lets you set the field of view from the app or NVR after mounting, ideal for cameras at height or in awkward positions.

    Accurate, filtered alerts

    SMD 4.0 and perimeter protection classify humans and vehicles, cutting nuisance alerts from animals, foliage and weather.

    6MP detail in low light

    A 6MP Starlight sensor with 120dB WDR resolves faces and plates and holds detail in dim and high-contrast scenes.

    Faster review with an AI NVR

    Quick Pick, on a compatible Dahua AI NVR, helps operators find human and vehicle targets in recorded SMD events quickly.

    § 05Where it fits

    Right at home in these scenarios

    Home and residential perimeters

    6MP detail with human and vehicle filtering covers driveways, yards and entries with fewer false alerts from pets and foliage.

    Retail and commercial interiors and entries

    The motorised lens frames doorways, aisles or counters precisely, and Starlight imaging handles mixed lighting.

    Car parks and yards

    40m Smart IR and 6MP detail cover bays and approaches, with perimeter rules filtered to people and vehicles.

    Sites scaling on an NVR

    Smart H.265 efficiency and WizSense analytics keep storage and review manageable as camera counts grow on a Dahua NVR.

    § 06Setup

    Installation & setup

    01

    Power over PoE or 12V DC

    Connect to a PoE switch or NVR over a single cable, or provide a 12V DC supply where PoE is unavailable.

    02

    Mount on wall, eave or ceiling

    Fix the turret and, for surface cabling or angled positions, add a Dahua junction box such as the PFA130-E to seal connectors.

    03

    Set the lens remotely

    After mounting, set the motorised 2.7-13.5mm zoom and focus from the NVR or app to frame the scene precisely.

    04

    Configure WizSense rules

    Set SMD 4.0 and perimeter tripwire and intrusion rules with human and vehicle classification, and pair an AI NVR if you want Quick Pick search.

    § 07Questions

    Frequently asked about the DH-IPC-HDW3666TP-ZS-AUS

    Q.01

    What is the difference between this and a fixed-lens 6MP turret?
    This model has a motorised 2.7-13.5mm varifocal lens you can adjust remotely, so you set the exact field of view from the NVR or app after mounting. A fixed-lens turret such as the 3666EMP is set by the lens you order, which is cheaper but cannot be reframed later.
    Q.02

    What do SMD 4.0 and perimeter protection do?
    SMD 4.0 (Smart Motion Detection) classifies movement as human or vehicle before alerting, and perimeter protection adds tripwire and intrusion rules filtered to those targets. Together they cut nuisance alerts from animals, foliage and lighting changes.
    Q.03

    What is Quick Pick and what do I need for it?
    Quick Pick lets operators quickly pick out human and vehicle targets of interest from SMD events. It works with the camera paired to a compatible Dahua AI NVR, which performs the search across recorded footage, rather than running on the camera alone.
    Q.04

    How far does the night vision reach?
    Smart IR reaches up to 40m across two LEDs and adjusts intensity to avoid overexposing nearby objects. With Starlight low-light imaging, footage stays usable in darkness across yards, driveways and entries within that range.
    Q.05

    Does it have two-way audio?
    No. It has a built-in microphone to record on-site audio alongside video, but no built-in speaker, so it does not provide two-way talk. Use the microphone for a fuller record where local laws permit.
    Q.06

    Is it suitable for outdoor use?
    Yes. The metal turret is IP67-rated against dust and water, suiting eave, wall and outdoor positions. Smart IR and Starlight keep it effective through the night in exposed locations.
    Q.07

    How is it powered and how much can it store?
    It runs on PoE over a single cable or a 12V DC supply, and supports a microSD card up to 256GB for edge recording, plus NAS. For continuous multi-camera recording, pair it with a Dahua NVR and a surveillance hard drive.
    Q.08

    Will it work with a third-party recorder?
    Video works over ONVIF. WizSense events such as SMD and perimeter protection are fully managed with a compatible Dahua NVR; on a third-party platform, confirm which AI events it can receive before specifying the system.

    § 08In motion

    Dahua 3666 Camera Review | The Latest Version

    Dahua 3666 Camera Review | The Latest Version

    § 09Bundles

    Recommended packages

    03

    Mounting

    For outdoor positions or surface cabling, add a Dahua PFA130-E junction box; confirm it suits this turret before ordering.
