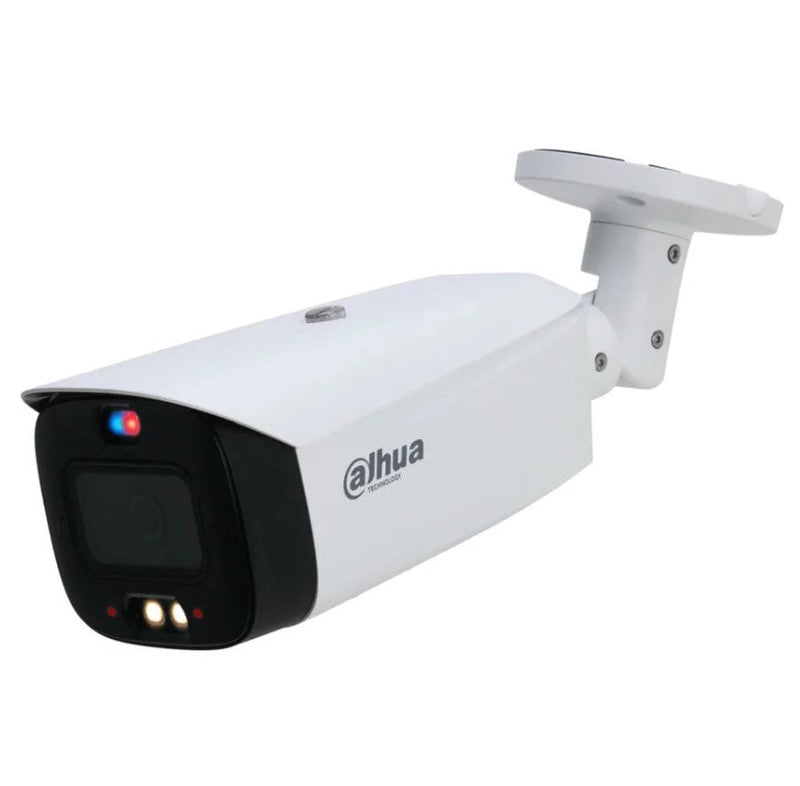

Dahua TIOC 5MP DH-IPC-HFW3549T1P-AS-PV-0280B-S3 Full color Starlight IP Bullet Fixed 2.8mm, Built-in Mic & Speaker IP67 POE Wizsense
1 1
Dahua

Dahua TIOC 5MP DH-IPC-HFW3549T1P-AS-PV-0280B-S3 Full color Starlight IP Bullet Fixed 2.8mm, Built-in Mic & Speaker IP67 POE Wizsense

SKU: DH-IPC-HFW3549T1P-AS-PV-0280B-S3
Description

5MP TiOC 2.0 fixed full-colour bullet with active deterrence, two-way audio and AI human and vehicle detection for proactive outdoor protection.

  • 1/2.7" 5MP CMOS, 2592 x 1944
  • Fixed 2.8mm lens, F1.0
  • Warm-light full-colour night vision up to 40m
  • Active deterrence: red and blue strobe plus speaker with siren and voice alerts
  • Two-way audio with built-in dual microphone array and speaker
  • SMD 3.0 and perimeter protection with human and vehicle classification
  • IP67 metal housing; PoE or 12V DC; microSD up to 256GB
5MP Ultra HD 40m IR Night Vision Dual-Light Night Vision Full Color Night Vision IP67 Weatherproof False Alarm Reduction Human/Vehicle Detection Audio Alarm Blue/Red Strobe Built-in Microphone Built-in Speaker Two-Way Audio
$281.25 AUD $281.25 AUD $320.00 AUD
Sale 12.11% $38.75 AUD (12.11%)

Log in to save 3%

Apply for TradePrice Match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Build your setup Build a complete CCTV system Complete setup from $865.85

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $281.25

01Overview

What the DH-IPC-HFW3549T1P-AS-PV-0280B-S3 is

The Dahua DH-IPC-HFW3549T1P-AS-PV-0280B-S3 is a 5MP TiOC 2.0 fixed-lens bullet that combines full-colour night vision, active deterrence and WizSense AI for outdoor positions where proactive response matters as much as recording. A warm-light LED keeps footage in full colour up to 40m after dark, so clothing and vehicle detail stay visible rather than switching to monochrome.

When SMD 3.0 detects a person or vehicle, the camera can trigger a red and blue strobe and a speaker carrying a siren or custom voice message, and a newly designed dual-microphone array with a built-in speaker supports two-way talk for live communication. The fixed 2.8mm lens gives a wide near-field view for driveways, loading bays and frontages, the 5MP sensor with 120dB WDR resolves detail, and the IP67 housing with PoE or 12V DC power and microSD up to 256GB suits residential and commercial outdoor installs.

See it in action

What the DH-IPC-HFW3549T1P-AS-PV-0280B-S3 features actually look like

Representative illustrations of how each key feature performs in a real scene.

40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (1/2)
40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (2/2)

40m IR Night Vision

Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.
Dual-Light Night Vision — Combines infrared with a warm spotlight so it can light a scene in colour at nigh...

Dual-Light Night Vision

Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Blue/Red Strobe — When activity is detected after dark, the camera can flash a bright red-and-blue strobe t...

Blue/Red Strobe

When activity is detected after dark, the camera can flash a bright red-and-blue strobe to warn intruders they've been seen — active deterrence, not just a recording for later.

02Engineering

DH-IPC-HFW3549T1P-AS-PV-0280B-S3 specifications

- Sensor and resolution: 1/2.7" 5MP CMOS, 2592 x 1944, with 120dB WDR for high-contrast scenes

- Full-colour night vision: a warm-light LED keeps footage in colour up to 40m in darkness

- Lens: fixed 2.8mm, F1.0, giving a wide near-field view for entries, driveways and bays

- Active deterrence: red and blue strobe plus a speaker with a siren and customisable voice alerts

- Two-way audio: a dual-microphone array and built-in speaker for live talk with visitors or to warn intruders

- Classification: SMD 3.0 and perimeter protection (tripwire, intrusion) with human and vehicle classification

- Storage and power: microSD up to 256GB; PoE (802.3af) or 12V DC

- Durability: IP67 metal housing for exposed outdoor positions

03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua TIOC 5MP DH-IPC-HFW3549T1P-AS-PV-0280B-S3 Full color Starlight IP Bullet Fixed 2.8mm, Built-in Mic & Speaker IP67 POE Wizsense
FeatureDetail
Image Sensor 1/2.7"5Megapixel progressive CMOS
Max. Resolution 2592 (H) × 1944 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 Lux @ F1.0
S/N Ratio >56 dB
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Image Rotation 0°/90°/180°/270° (Support with 2592×1944 resolution and lower)
Mirror Yes
Privacy Masking 4 areas

04Why choose this

Built for the way you actually use the DH-IPC-HFW3549T1P-AS-PV-0280B-S3

Stops incidents in real time

A red and blue strobe and speaker with siren or voice alerts warn off intruders the moment AI detects a person or vehicle.

Full colour after dark

A warm-light LED keeps footage in colour up to 40m, capturing detail that monochrome infrared loses at night.

Talk to people on site

A dual-microphone array and built-in speaker support two-way talk for greeting visitors or challenging intruders.

Fewer false alarms

SMD 3.0 human and vehicle classification keeps deterrence and alerts focused on real threats, not animals or weather.

05Where it fits

Right at home in these scenarios

Home driveways and entries

Full-colour night footage and active deterrence protect the front of a property, with two-way talk to greet expected visitors.

Retail frontages and loading bays

After-hours strobe and voice alerts deter loitering at shopfronts and docks, while human and vehicle filtering cuts nuisance alarms.

Warehouse and site perimeters

Tripwire and intrusion rules with light and sound deter people crossing fixed boundaries at gates and fence lines.

Construction and yard entrances

A wide 2.8mm view covers entry points, with full-colour capture and deterrence for unmanned positions overnight.

06Setup

Installation & setup

  1. Position for the deterrent and view

    Mount where the strobe and speaker face the likely approach and the 2.8mm lens covers the entry or driveway, at a height that frames people clearly.

  2. Power over PoE or 12V DC

    Run a single PoE cable from a switch or NVR, or provide a 12V DC supply. Allow for the speaker and light load when sizing the PoE budget.

  3. Set AI rules and warnings

    Configure SMD 3.0 and perimeter tripwire and intrusion zones with human and vehicle classification, and set the siren or voice messages and deterrence schedule.

  4. Add storage or an NVR

    Fit a microSD card up to 256GB for edge recording, or connect to a Dahua NVR for continuous multi-camera recording.

08Questions

Frequently asked about the DH-IPC-HFW3549T1P-AS-PV-0280B-S3

Q.01

What does TiOC mean on this camera?
TiOC stands for Three-in-One Camera. It brings together full-colour night vision, active deterrence with light and sound, and WizSense AI in one unit, so it sees in colour at night, warns off intruders and filters alerts to people and vehicles.
Q.02

Does it provide colour footage at night?
Yes. A warm-light LED keeps the scene in full colour up to 40m in darkness, so clothing and vehicle detail stay visible. This is a full-colour TiOC model focused on colour capture and active deterrence at the front of a property.
Q.03

How does the active deterrence work?
When SMD 3.0 detects a person or vehicle, the camera triggers a red and blue strobe and a speaker that plays a siren or a custom voice message, intervening in real time. The deterrent can be scheduled so it is active only at chosen times, such as after hours.
Q.04

Does it support two-way talk?
Yes. It has a newly designed dual-microphone array and a built-in speaker, so you can listen and speak live through the camera from the app or NVR. The dual-mic array improves audio pick-up compared with the previous generation.
Q.05

What does the fixed 2.8mm lens cover?
The 2.8mm lens gives a wide near-field view suited to a driveway, entry, loading bay or small frontage. The focal length is fixed, so plan the mounting position and height for the area you want, as the view cannot be zoomed after install.
Q.06

Will it reduce false alarms?
Yes. SMD 3.0 classifies targets as human or vehicle before triggering, so the alerts and the deterrent focus on people and vehicles rather than animals, foliage or changing light, keeping after-hours notifications meaningful.
Q.07

How is it powered and can it record locally?
It runs on PoE (802.3af) over a single cable or a 12V DC supply, and takes a microSD card up to 256GB for edge recording. It can run as a standalone deterrent camera or record locally alongside a Dahua NVR.
Q.08

Is it suitable for outdoor mounting?
Yes. The metal housing is IP67-rated against dust and water for exposed walls, eaves and soffits. Mount it so the strobe and speaker face the likely approach and the 2.8mm view covers the entry or driveway.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

09In motion

Dahua Tioc 2.0 - the ultimate 3-in-1 camera

Dahua Tioc 2.0 - the ultimate 3-in-1 camera

10Bundles

Recommended packages

03

Mounting

Mount on wall or eave, adding a Dahua PFA130-E junction box where surface cabling or clearance is needed; confirm fit before ordering.
