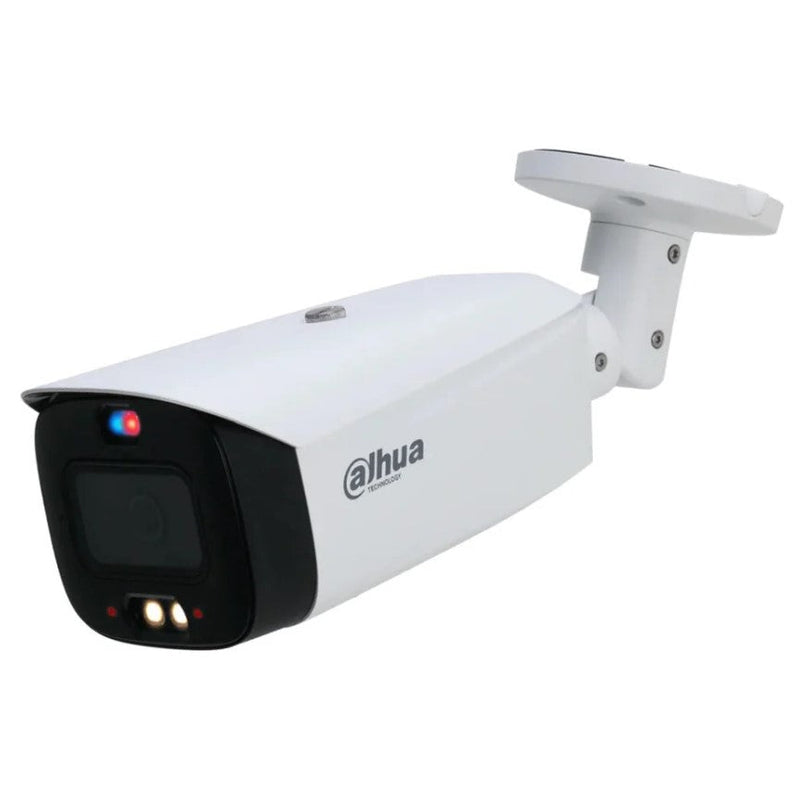

Dahua TIOC 2.0 Advanced DH-IPC-HFW3549T1-ZAS-PV 5MP AI Active Deterrence Motorised Bullet Camera
Dahua DH-IPC-HFW3549T1-ZAS-PV 5MP AI Active Deterrence Motorized Bullet Camera TIOC 2.0
1 1
Dahua

Dahua TIOC 2.0 Advanced DH-IPC-HFW3549T1-ZAS-PV 5MP AI Active Deterrence Motorised Bullet Camera

SKU: DH-IPC-HFW3549T1-ZAS-PV
Description

5MP TiOC 2.0 motorised bullet that combines full-colour night vision, AI human and vehicle detection and an active light-and-sound deterrent.

  • 1/2.7" 5MP CMOS, up to 2960 x 1668
  • Motorised 2.7-13.5mm varifocal lens, F1.0
  • Smart Dual Illumination: IR up to 50m and warm light up to 40m
  • Full-colour night imaging with warm light
  • Active deterrence: red and blue strobe plus 110dB speaker
  • Two-way audio with built-in dual microphone array and speaker
  • SMD 3.0 and perimeter protection with human and vehicle classification
  • IP67 metal and plastic housing; PoE or 12V DC; microSD up to 256GB
5MP Ultra HD 50m IR Night Vision Dual-Light Night Vision Full Color Night Vision IP67 Weatherproof False Alarm Reduction Human/Vehicle Detection Audio Alarm Blue/Red Strobe Two-Way Audio
$377.65 AUD $377.65 AUD $455.00 AUD
Sale 17.0% $77.35 AUD (17.0%)
Member Price$366.32 AUD
to save $11.33 AUD · Free to join
Business or bulk buyer? Apply for trade pricing →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $977.65

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
0
0
0
0
0
Bundle total: $377.65
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HFW3549T1-ZAS-PV is

The Dahua DH-IPC-HFW3549T1-ZAS-PV is a 5MP TiOC 2.0 Advanced motorised bullet that brings together full-colour night vision, active deterrence and WizSense AI in one camera.

A 2.7-13.5mm motorised varifocal lens lets installers set the field of view remotely after mounting, and Smart Dual Illumination switches between infrared up to 50m for discreet monitoring and warm light up to 40m for full-colour capture when it matters.

When SMD 3.0 and perimeter rules detect a person or vehicle, the camera responds with a red and blue strobe and a 110dB speaker carrying a siren or custom voice message, intervening in real time rather than only recording.

A built-in dual-microphone array and speaker support two-way talk for live communication.

The 5MP sensor with 120dB WDR resolves faces and plates, and the IP67 metal housing with PoE or 12V DC power suits driveways, yards and commercial perimeters, with microSD storage up to 256GB.

See it in action

What the DH-IPC-HFW3549T1-ZAS-PV features actually look like

Representative illustrations of how each key feature performs in a real scene.

50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (1/2)
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (2/2)

50m IR Night Vision

Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
Dual-Light Night Vision — Combines infrared with a warm spotlight so it can light a scene in colour at nigh...

Dual-Light Night Vision

Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Blue/Red Strobe — When activity is detected after dark, the camera can flash a bright red-and-blue strobe t...

Blue/Red Strobe

When activity is detected after dark, the camera can flash a bright red-and-blue strobe to warn intruders they've been seen — active deterrence, not just a recording for later.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HFW3549T1-ZAS-PV specifications

- Sensor and resolution: 1/2.7" 5MP CMOS, up to 2960 x 1668, with 120dB WDR for high-contrast scenes

- Lens: motorised 2.7-13.5mm varifocal, F1.0, set zoom and focus remotely after mounting

- Smart Dual Illumination: IR up to 50m for discreet monitoring, warm light up to 40m for full-colour capture

- Active deterrence: red and blue strobe plus a 110dB speaker with a siren or custom voice messages

- Two-way audio: built-in dual-microphone array and speaker for live talk with visitors or to warn intruders

- Classification: SMD 3.0 and perimeter protection (tripwire, intrusion) with human and vehicle classification

- Storage and power: microSD up to 256GB; PoE (802.3af) or 12V DC

- Durability: IP67 metal and plastic housing, -30C to +60C, for exposed outdoor positions

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua TIOC 2.0 Advanced DH-IPC-HFW3549T1-ZAS-PV 5MP AI Active Deterrence Motorised Bullet Camera
FeatureDetail
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE); 0.0003 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on)
S/N Ratio >56 dB
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas

§ 04Why choose this

Built for the way you actually use the DH-IPC-HFW3549T1-ZAS-PV

Stops incidents, not just records them

Red and blue strobe and a 110dB speaker warn off intruders the moment AI detects a person or vehicle, turning the camera into an active deterrent.

Full colour after dark

Smart Dual Illumination switches to warm light on detection, capturing clothing and vehicle detail in colour instead of monochrome infrared.

Frame it remotely

A motorised 2.7-13.5mm lens lets you set the field of view from the NVR or app after mounting, ideal for awkward or high positions.

Talk to visitors live

Built-in two-way audio with a dual-microphone array lets you greet a visitor or challenge an intruder directly through the camera.

§ 05Where it fits

Right at home in these scenarios

Home driveways and entries

Full-colour night imaging and active deterrence warn off prowlers at the front of a property, with two-way talk to greet expected visitors.

Commercial yards and frontages

After-hours strobe and siren protect shopfronts, loading bays and yards, while human and vehicle filtering reduces nuisance alerts.

Perimeter fence lines

Tripwire and intrusion rules with light and sound deter people crossing boundaries, and the motorised lens frames the line precisely.

Larger areas needing a remote lens

The 2.7-13.5mm motorised lens covers wider or variable scenes and can be reframed from the desk as needs change.

§ 06Setup

Installation & setup

01

Position for the deterrent

Mount where the strobe and speaker face the likely approach and the lens covers the area, at a height that frames people clearly without an excessive downward angle.

02

Power over PoE or 12V DC

Run a single PoE cable from a switch or NVR, or provide a 12V DC supply. Allow for the speaker and light load when sizing the PoE budget.

03

Set the lens remotely

After mounting, set the motorised 2.7-13.5mm zoom and focus from the NVR or DMSS app to frame the scene without returning to the camera.

04

Set AI rules and warnings

Configure SMD 3.0 and perimeter tripwire and intrusion zones with human and vehicle classification, and set the warning voice messages or siren and deterrence schedule.

§ 07Questions

Frequently asked about the DH-IPC-HFW3549T1-ZAS-PV

Q.01

What does TiOC mean on this camera?
TiOC stands for Three-in-One Camera. It combines full-colour night vision, active deterrence with light and sound, and WizSense AI in one unit, so it sees in colour at night, warns off intruders and filters alerts to people and vehicles without separate devices.
Q.02

How does the active deterrence work?
When SMD 3.0 and perimeter rules detect a person or vehicle, the camera triggers a red and blue strobe and a 110dB speaker that plays a siren or a custom voice warning. This intervenes in real time, deterring trespassers rather than only recording the event.
Q.03

Does it provide colour footage at night?
Yes. Smart Dual Illumination uses infrared up to 50m for discreet monitoring and switches to warm light up to 40m when a target is detected, capturing the scene in full colour. Colour footage makes clothing and vehicle detail far clearer than monochrome infrared.
Q.04

Can I adjust the lens after mounting?
Yes. The 2.7-13.5mm motorised varifocal lens is set remotely from a compatible NVR or the DMSS app, so you can reframe from a wide area to a tighter view without returning to the camera, which is valuable at height.
Q.05

Does it support two-way talk?
Yes. It has a built-in dual-microphone array and a speaker, so you can listen and speak live through the camera from the app or NVR, useful for greeting visitors or challenging an intruder alongside the automatic deterrent.
Q.06

Will it cut false alarms from animals and weather?
Yes. SMD 3.0 classifies targets as human or vehicle before triggering, so tripwire and intrusion alerts and the deterrent focus on people and vehicles rather than animals, foliage or headlights.
Q.07

How is it powered and how much can it store?
It runs on PoE (802.3af) over a single cable or a 12V DC supply, and takes a microSD card up to 256GB for edge recording. For continuous multi-camera recording, pair it with a Dahua NVR and a surveillance hard drive.
Q.08

Is it suitable for outdoor use?
Yes. The metal housing is IP67-rated against dust and water across a -30C to +60C range, suiting driveways, yards and perimeter fence lines. Position it so the strobe and speaker face the likely approach for the deterrent to be effective.

§ 08In motion

Dahua Tioc 2.0 - the ultimate 3-in-1 camera

Dahua Tioc 2.0 - the ultimate 3-in-1 camera

§ 09Bundles

Recommended packages

03

Mounting

For surface cabling or angled positions, add a Dahua PFA130-E junction box; confirm it suits this bullet before ordering.
