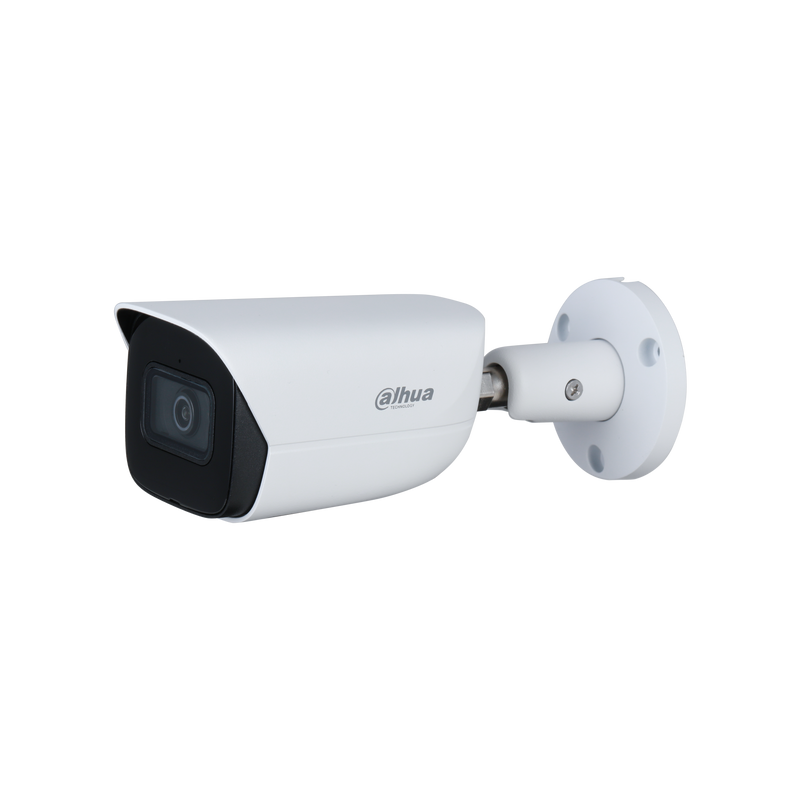

Dahua DH-IPC-HFW3466EP-AS-AUS 4MP Bullet Network Camera 50m IR 2.8mm with SMD 4.0, Wizsense
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-IPC-HFW3466EP-AS-AUS 4MP Bullet Network Camera 50m IR 2.8mm with SMD 4.0, Wizsense
SKU: DH-IPC-HFW3466EP-AS-AUS
Description
4MP AI-powered bullet camera featuring SMD 4.0 and advanced perimeter protection to provide high-definition monitoring with accurate human and vehicle detection for Australian residential and commercial sites.
Regular price
$153.72 AUD
Sale price
$153.72 AUD
Regular price
$183.00 AUD
Sale
16.0%
$29.28 AUD
(16.0%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua DH-IPC-HFW3466EP-AS-AUS 4MP Bullet Network Camera 50m IR 2.8mm with SMD 4.0, Wizsense
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $660.05
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Dahua DH-IPC-HFW3466EP-AS-AUS 4MP WizSense Bullet Camera is a sophisticated security camera.It leverages independent AI chips and deep learning Features to focus on relevant targets, ensuring reliable performance in various Australian bandwidth and storage environments.
§ 02Engineering
Technical specifications
- Resolution: The 4MP 1/3” CMOS sensor delivers high-definition images at 30 fps to ensure clear capture of essential security details.
- SMD 4.0: This Smart Motion Detection technology uses deep learning to distinguish between humans/vehicles and irrelevant objects like animals or leaves to reduce false alarms.
- Night Vision: Integrated IR LEDs provide powerful night-time illumination up to 50 metres to maintain security in complete darkness.
- AI SSA: The Scene Self-Adaption feature automatically adjusts image parameters to provide the best possible footage in changing environmental conditions.
- Perimeter Protection: Intelligent tripwire and intrusion detection allow organisations to set specific boundaries that trigger alerts only when a person or vehicle crosses them.
- Audio Integration: A built-in microphone allows for ambient sound recording, while additional audio and alarm ports support external security device integration.
- Durability: The IP67-rated housing ensures the camera is completely protected against dust and heavy rain, making it ideal for the Australian outdoors.
- Storage Efficiency: Support for AI H.265 coding and up to a 256GB Micro SD card allows for high-quality video retention with significantly reduced storage requirements.
- SMD 4.0: This Smart Motion Detection technology uses deep learning to distinguish between humans/vehicles and irrelevant objects like animals or leaves to reduce false alarms.
- Night Vision: Integrated IR LEDs provide powerful night-time illumination up to 50 metres to maintain security in complete darkness.
- AI SSA: The Scene Self-Adaption feature automatically adjusts image parameters to provide the best possible footage in changing environmental conditions.
- Perimeter Protection: Intelligent tripwire and intrusion detection allow organisations to set specific boundaries that trigger alerts only when a person or vehicle crosses them.
- Audio Integration: A built-in microphone allows for ambient sound recording, while additional audio and alarm ports support external security device integration.
- Durability: The IP67-rated housing ensures the camera is completely protected against dust and heavy rain, making it ideal for the Australian outdoors.
- Storage Efficiency: Support for AI H.265 coding and up to a 256GB Micro SD card allows for high-quality video retention with significantly reduced storage requirements.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.4 |
| Field of View | 2.8 mm: Horizontal:107°; vertical: 56°; diagonal: 127° | 3.6 mm: Horizontal:88°; vertical: 44°; diagonal: 105° | 6 mm: Horizontal:54°; vertical: 29°; diagonal: 63° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft); 3.6 mm: 1.3 m (4.27 ft); 6 mm: 2.6 m (8.53 ft) |
| DORI Distance | 2.8 mm: Detect 63.6 m (208.66 ft); Observe 25.4 m (83.33 ft); Recognize 12.7 m (41.67 ft); Identify 6.4 m (21.00 ft) | 3.6 mm: Detect 85.4 m (280.18 ft); Observe 34.2 m (112.20 ft); Recognize 17.1 m (56.10 ft); Identify 8.5 m (27.89 ft) | 6 mm: Detect 124 m (406.82 ft); Observe 49.6m (162.73 ft); Recognize 24.8 m (81.36 ft); Identify 12.4 m (40.68 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–90° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 50 m (164.04 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (IR LED) |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 2688 × 1520 @ (1–25/30) fps | Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) | Sub stream 2: 1920 × 1080 @ (1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | IOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | - AS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception | -S: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) (Only - AS supports) |
| Audio Output | 1 channel (RCA port) (Only - AS supports) |
| Alarm Input | 1 channel in: 5 mA 3–5 VDC (Only - AS supports) |
| Alarm Output | 1 channel out: 300 mA 12 VDC (Only - AS supports) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 3.8 W (12 VDC); 4.6 W (PoE) | Max. (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95%RH |
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
| Protection | IP67 |
| Casing | Metal |
| Product Dimensions | 192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.77" × 2.61") (L × W × H) |
| Net Weight | 590 g (1.30 lb) |
| Gross Weight | 780 g (1.72 lb) |
| Certifications | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC:47 CFR FCC Part 15, Subpart B | UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
§ 08In motion
Dahua 3466 Camera - High-Quality Surveillance for Your Home or Business
