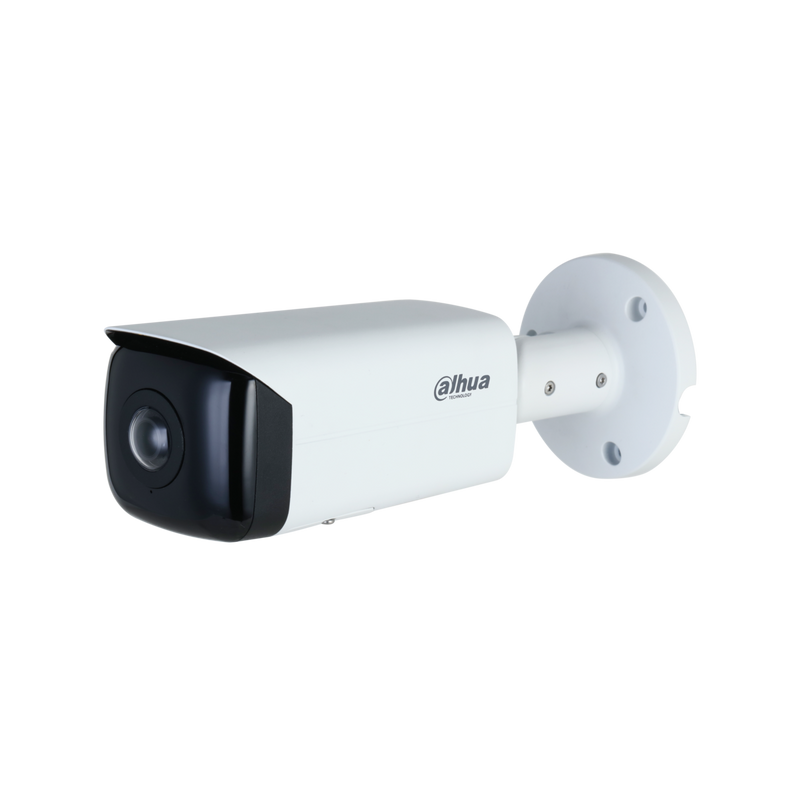

Dahua DH-IPC-HFW3466T-AS-P 4MP Wide Angle Fixed Bullet WizSense Network Camera
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-IPC-HFW3466T-AS-P 4MP Wide Angle Fixed Bullet WizSense Network Camera
SKU: DH-IPC-HFW3466T-AS-P
Description
4MP AI-powered panoramic bullet camera featuring a dual-lens 180° wide-angle view and WizSense technology to provide seamless wall-to-wall surveillance without blind spots for Australian properties.
Regular price
$223.27 AUD
Sale price
$223.27 AUD
Regular price
$269.00 AUD
Sale
17.0%
$45.73 AUD
(17.0%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua DH-IPC-HFW3466T-AS-P 4MP Wide Angle Fixed Bullet WizSense Network Camera
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $729.60
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Dahua DH-IPC-HFW3466T-AS-P 4MP Panoramic Bullet Camera is a specialised security camera.It provides an expansive 180-degree field of view combined with intelligent AI Features like human and vehicle detection, making it the perfect solution for monitoring wide open spaces such as car parks and warehouses.
§ 02Engineering
Technical specifications
- Resolution: The 4MP sensor delivers high-definition panoramic video to ensure that large areas are covered with a single camera while maintaining sharp image detail.
- 180° Panoramic View: The dual-lens design seamlessly stitches images together to provide a wide-angle perspective, effectively replacing multiple standard cameras and eliminating blind spots.
- SMD 4.0: Smart Motion Detection technology uses deep learning to focus on human and vehicle movements, significantly reducing false alerts from pets, insects, or swaying trees.
- Perimeter Protection: Intelligent tripwire and intrusion detection allow organisations to secure large boundaries with high-accuracy alerts tailored to specific target types.
- Night Vision: Integrated IR illumination ensures clear visibility in low-light conditions, providing reliable 24/7 security monitoring across the entire wide-angle frame.
- Audio and Alarm Support: Features a built-in microphone for ambient sound pickup and external alarm I/O ports for easy integration with existing security systems.
- Weatherproof Design: Built with an IP67-rated enclosure, the camera is designed to withstand the harsh Australian sun and heavy rain for durable outdoor performance.
- 180° Panoramic View: The dual-lens design seamlessly stitches images together to provide a wide-angle perspective, effectively replacing multiple standard cameras and eliminating blind spots.
- SMD 4.0: Smart Motion Detection technology uses deep learning to focus on human and vehicle movements, significantly reducing false alerts from pets, insects, or swaying trees.
- Perimeter Protection: Intelligent tripwire and intrusion detection allow organisations to secure large boundaries with high-accuracy alerts tailored to specific target types.
- Night Vision: Integrated IR illumination ensures clear visibility in low-light conditions, providing reliable 24/7 security monitoring across the entire wide-angle frame.
- Audio and Alarm Support: Features a built-in microphone for ambient sound pickup and external alarm I/O ports for easy integration with existing security systems.
- Weatherproof Design: Built with an IP67-rated enclosure, the camera is designed to withstand the harsh Australian sun and heavy rain for durable outdoor performance.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color,30 IRE); 0.001 lux@F2.0 (B/W,30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.1 mm |
| Max. Aperture | F2.0 |
| Field of View | LDC is disabled: Horizontal: 180°; Vertical: 78°; Diagonal: 180° | LDC is enabled (by default): Horizontal: 170°; Vertical: 75°; Diagonal: 175° |
| Close Focus Distance | 0.6 m (1.97 ft) |
| DORI Distance | 2.1 mm: Detect 52.0 m (170.60 ft); Observe 20.8 m (68.24 ft); Recognize 10.4 m (34.12 ft); Identify 5.2 m (17.06 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–90° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 20 m (65.62 ft) (IR LED) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (IR LED) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 2880 × 1620 @(1–20 fps )/2688 × 1520 @(1–25/30 fps ) | sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) | third stream:1920 × 1080 @ (1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 296 ; 1080p(1920 × 1080); 1.3M (1280 × 960); 720p(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF(352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD 3.0 | Less false alarm, longer detection distance |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5 mA 3–5V DC |
| Alarm Output | 1 channel out: 1,000 mA 30V DC/500mA 50V DC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE |
| Power Consumption | Basic: 3.1 W (12 V DC); 5.3 W (PoE) | Max. (H.265+main stream/IR intensity+IR on): 4 W (12V DC); 6.5 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Casing | Metal |
| Product Dimensions | 249.3 mm × 90.7 mm × 90.4 mm (9.81" × 3.57" × 3.56") (L × W × H) |
| Net Weight | 820 g (1.81 lb) |
| Gross Weight | 1090 g (2.40 lb) |
| Certifications | CE-LVD:EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
